Overview
The FSP SFX PRO 450W packaging is diminutive which is fitting given the unit’s diminutive size. On the front of the package are a couple of rows of advertising that include things such as “DC to DC”, “Full Safety Approved” (what?), etc. We also find that FSP is advertising this unit as adhering to the 80 Plus Bronze standard of efficiency and a quick check of the 80 Plus website shows that this unit is indeed certified for 80 Plus Bronze. Moving to the rear of the packaging of the SFX PRO 450W, we find advertising that carries over from the front of the package but, in some cases, with more text accompanying it. In addition to that, we find the power label (reproduced below), connector count (reproduced below), and an efficiency graph. Lastly, the SFX PRO 450W carries a 3-year warranty.

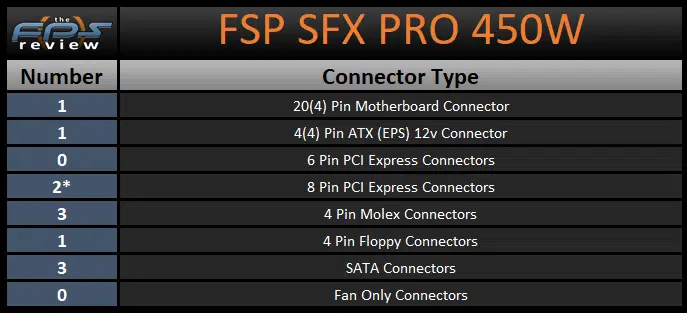

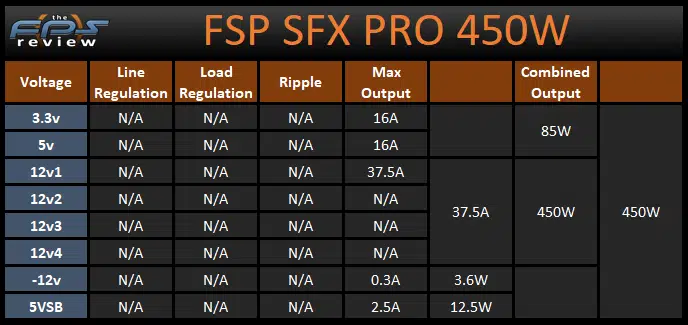

The SFX PRO 450W is advertised as being a single 12v rail power supply with a capacity up to 37.5A (or ~100% of the unit’s capacity) if necessary. The minor rails (5v and 3.3v) have a capacity of 16A each and the combined capacity of those two rails is 85W. Combined with these outputs, we find that this unit has 2 PCIe connectors, 3 SATA connectors, and 3 Molex connectors.

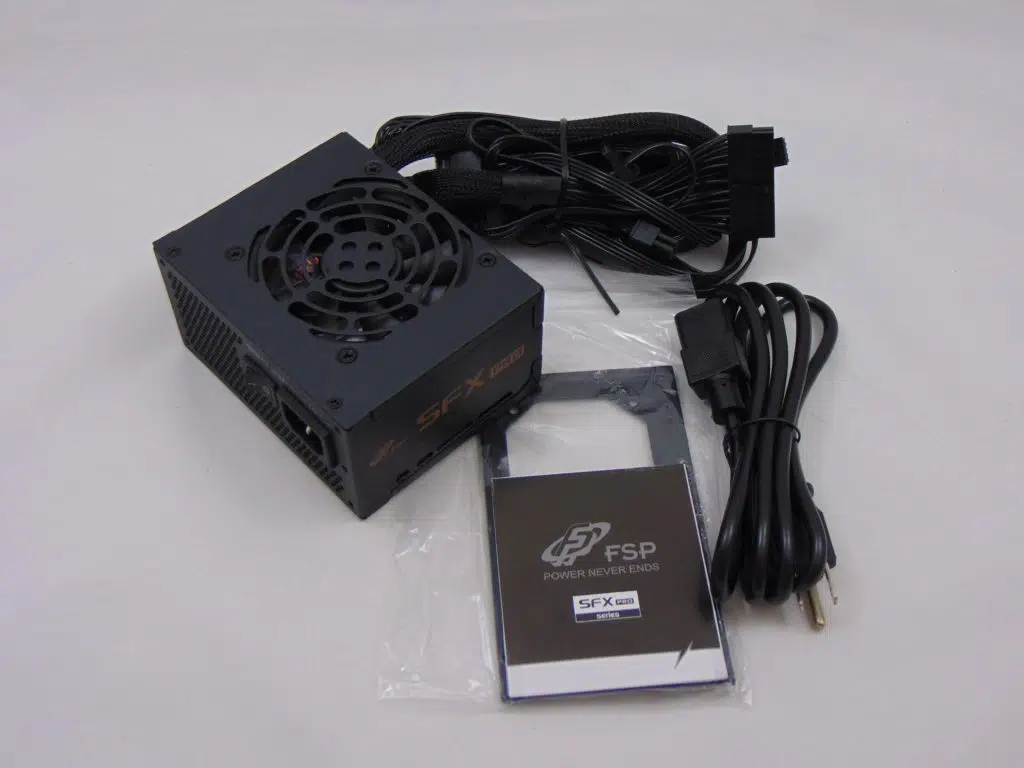

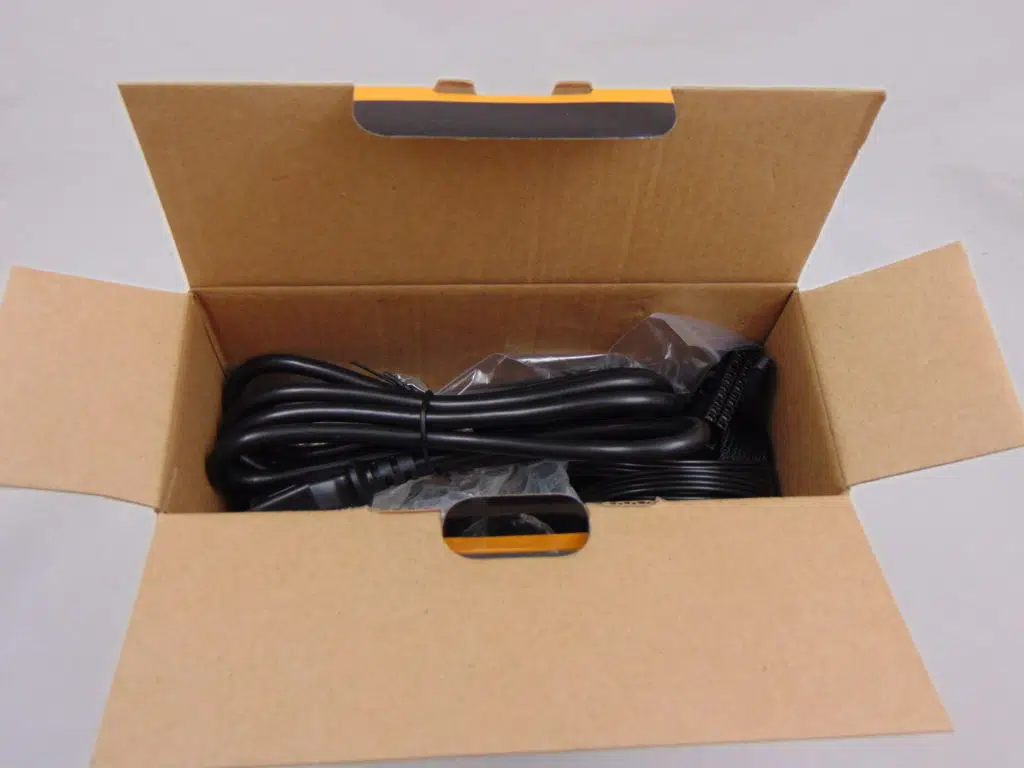

Once we open the FSP SX PRO 450W packaging, we are left looking at the unit, power cord, mounting screws, ATX adapter plate, and user manual. The user manual includes a pinout guide, power label, and some very short installation instructions. That is all, and not terribly complete. Let’s move on to see what this unit looks like when we open it up!
