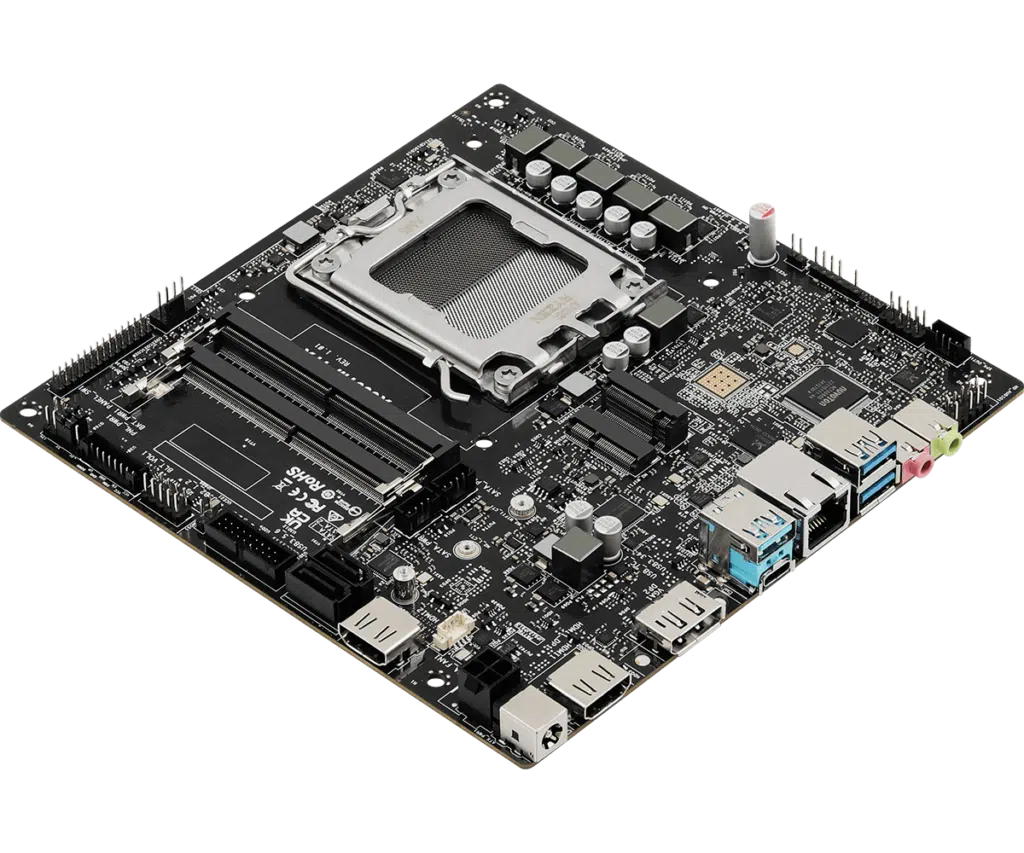

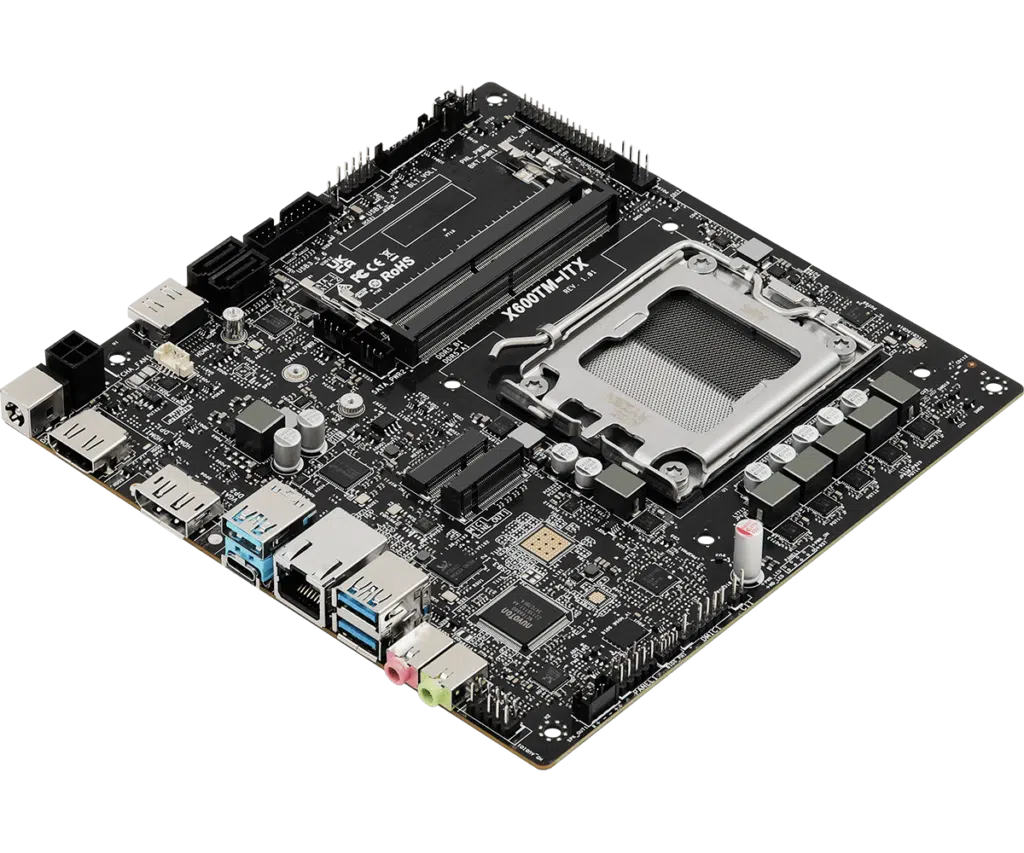

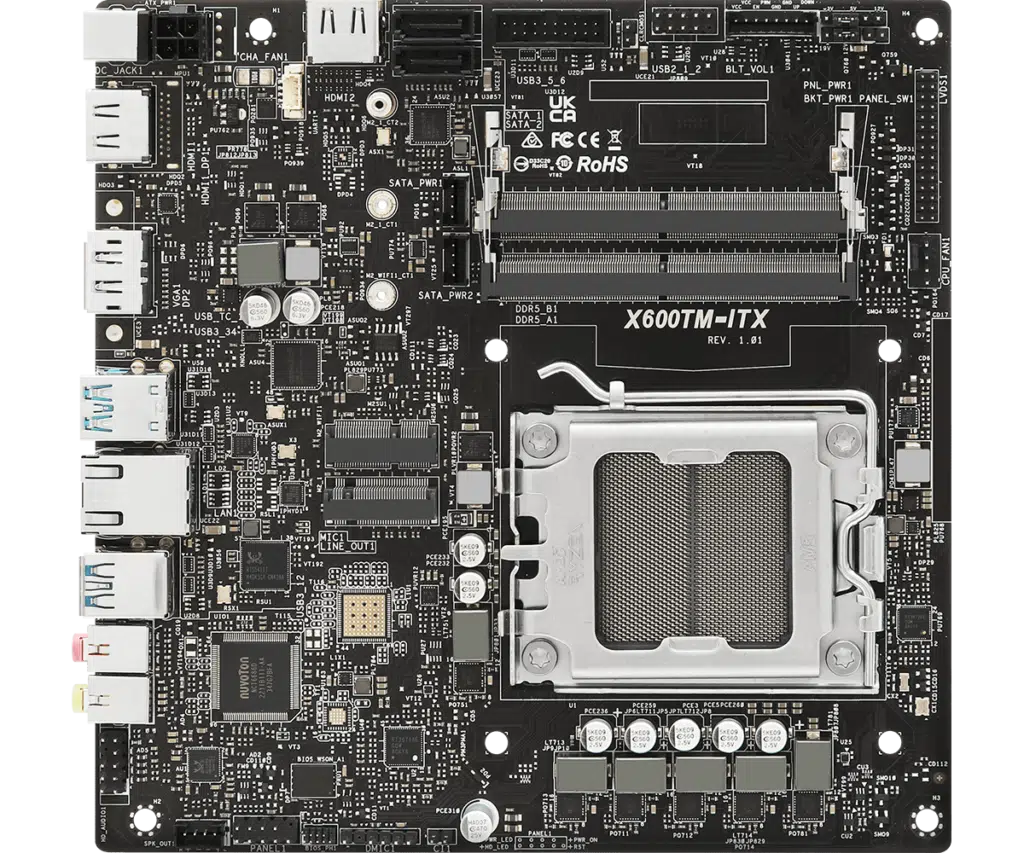

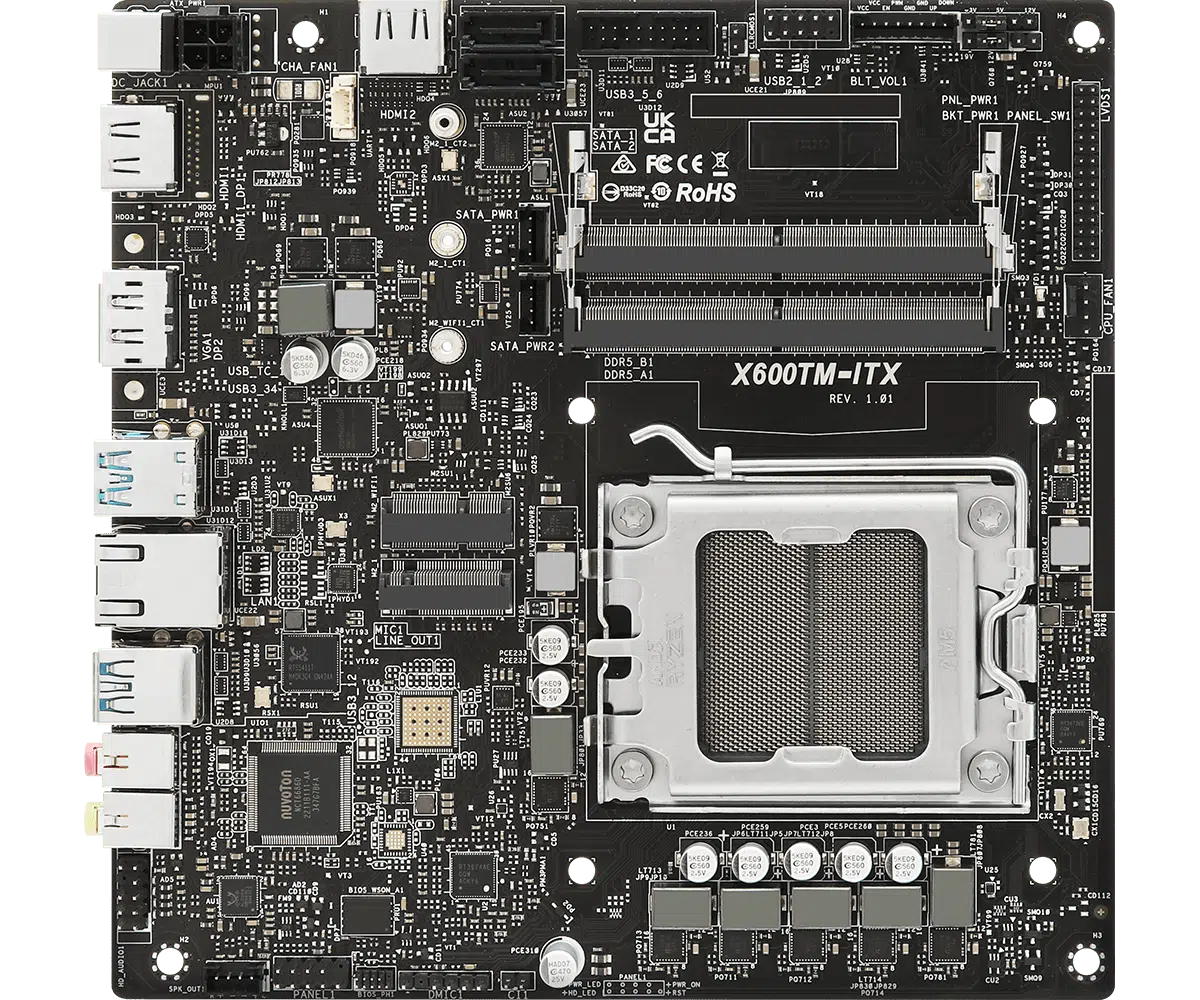

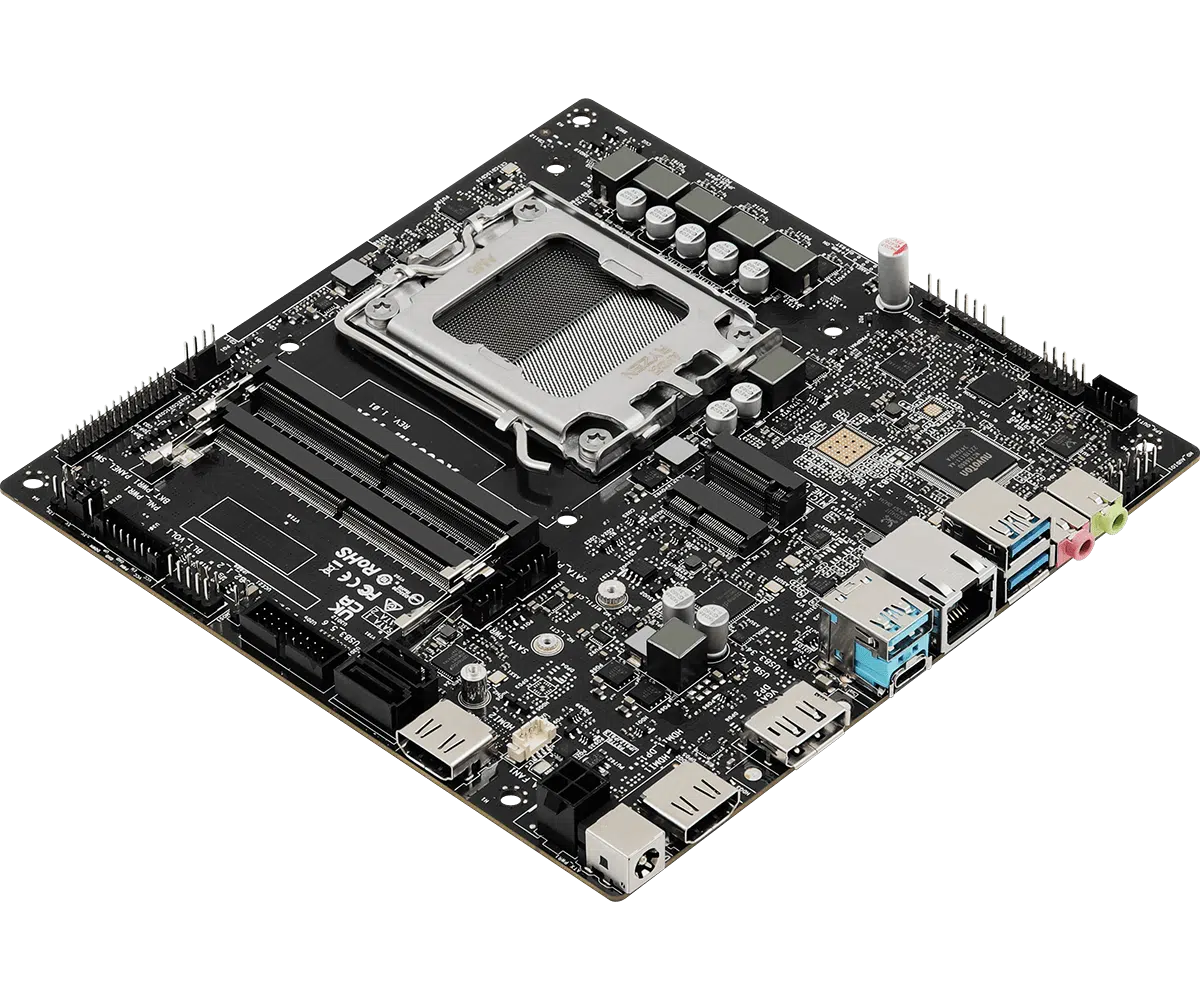

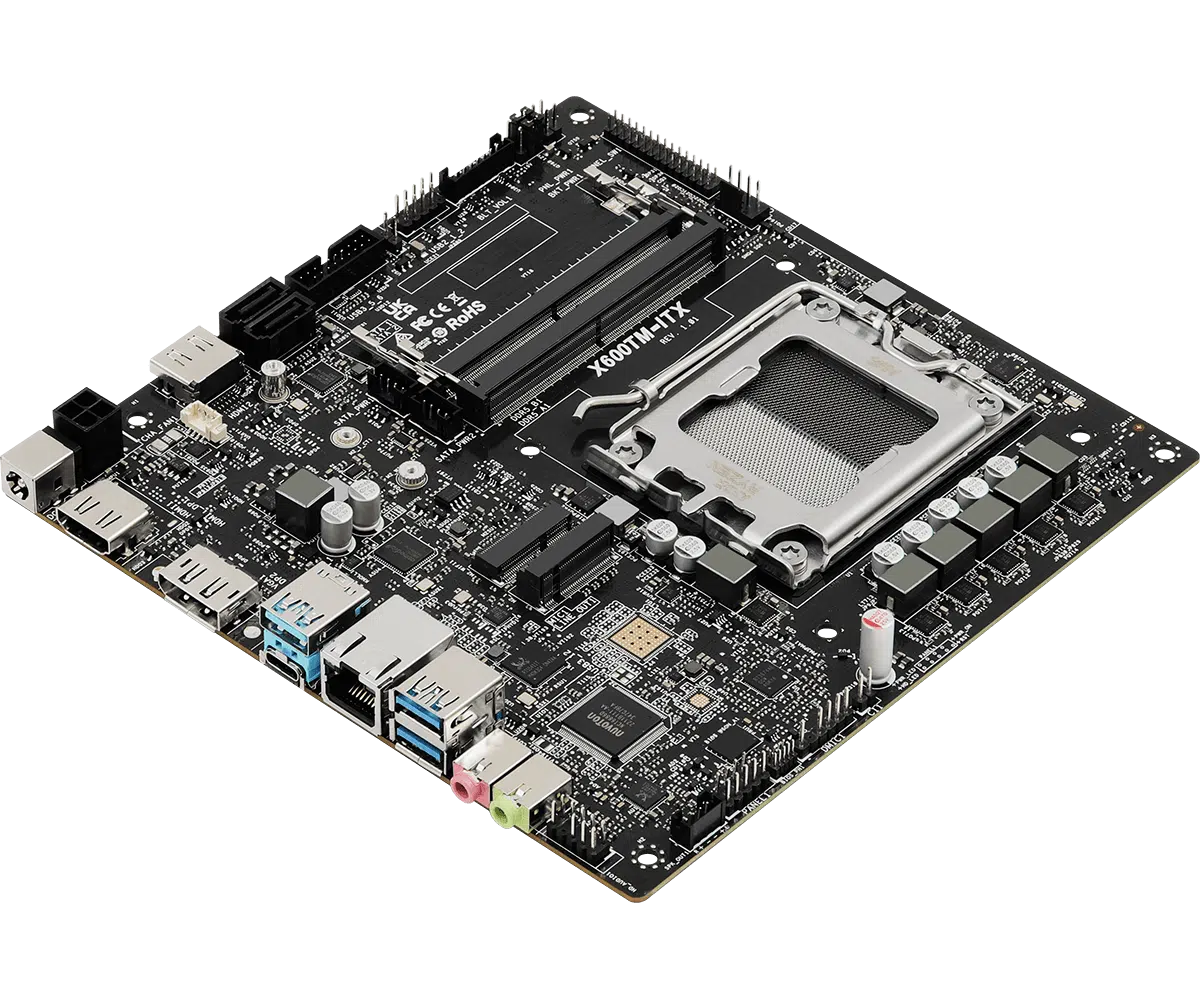

The ASRock X600TM-ITX is a wonder that packs many modern features into a miniature form factor design supporting the latest AM5 socket processors. Gamers hoping to make an ultra-small rig will have to temper their expectations as the ASRock X600TM-ITX does not feature any PCIe slots so builders who want to game with one will need to seek out one of AMD’s AM5 processors that feature integrated graphics options. Aside from that, this thin Mini ITX AM5 motherboard has many other usage possibilities, including an ultra-small workstation, HTPC/media server, signage solutions, educational devices, and more.
Per ASRock:
“Introducing the world’s first thin mini ITX motherboard with AM5 support, delivering unprecedented performance in the smallest form factor. Perfect for mini PCs, All-in-One solutions, smart mirrors, educational tools, and home theater PCs, this groundbreaking motherboard offers exceptional performance, flexibility, and durability. Elevate your computing experience with the unparalleled power of AM5 in a thin mini ITX design.”

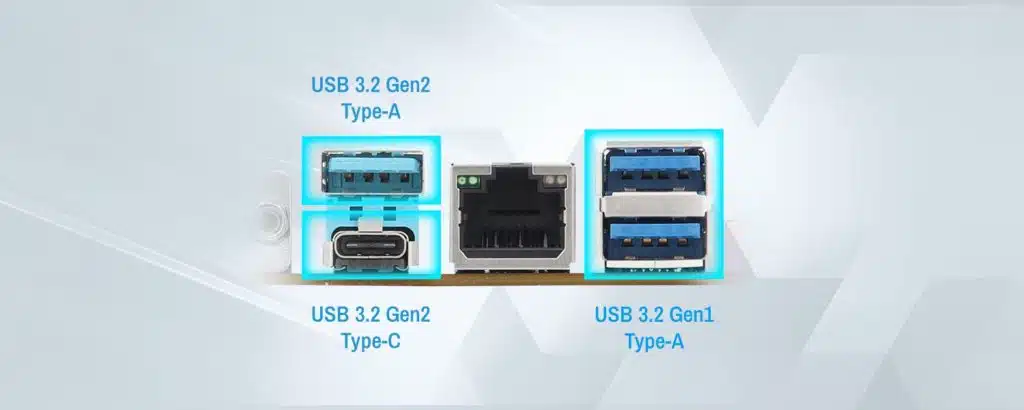

The ASRock X600TM-ITX can support up to 96 GB of dual-channel 6400+(OC) memory. ASRock is offering a multitude of configuration options for both I/O ports and display connectors. USB options include mix-matching of up to four ports that can have up to one USB Type-C and then a combo of 1x USB 3.2 Gen2 Type A and 2x USB 3.2 Gen1. Up to four displays can be connected via HDMI 2.1, DP 1.4, and D-Sub (VGA), support varies by the processor used. Onboard storage includes one M.2 type 2260/2280 PCIe Gen4x4 (64 Gb/s) and one M.2 type 2280 PCIe Gen4x4 (64 Gb/s) socket. ASRock has not revealed pricing and availability yet for the X600TM-ITX.
Specifications:
- CPU: Supports AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series Processors, Supports CPU up to 65W, 4+1+1 Power Phase design
- Chipset: AMD X600
- Memory: Dual Channel DDR5 Memory Technology, 2 x DDR5 SO-DIMM Slots, Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC), Max. capacity of system memory: 96GB, Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
- BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
- Graphics: Integrated AMD RDNA™ graphics (Actual support may vary by CPU).
- Three graphics output options: HDMI, LVDS, and D-Sub ports
- 1 x HDMI 2.1 TMDS 8G Compatible, supports HDR, HDCP 2.3, and max. resolution up to 4K 120Hz (HDMI x 1 port (Rear) )
- 1 x HDMI 2.1 TMDS 8G Compatible, supports HDR, HDCP 2.3, and max. resolution up to 4K 120Hz (HDMI x 1 port (Internal) )
- * (Optional) 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz (Rear DP1)
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz (Rear DP2)
- * (Optional) 1 x D-Sub, supports max. resolution up to Full HD (1920×1200) 60Hz
- 1 x LVDS, supports max. resolution up to Full HD (1920×1080) 60Hz
- Audio: Realtek ALC269 Audio Codec, 1 x MIC IN, 1 x Line out
- LAN: PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H, * (Optional) Realtek RTL8111FP, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE
- Slots: 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- Storage: 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
- – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode**Supports NVMe SSD as boot disks
- Connector:
- * (Optional) 1 x Onboard TPM 2.0 (INFINEON SLB9672 or NUVOTON NPCT750AADYX)
- – 1 x Chassis Intrusion Header
- – 1 x Panel Voltage Selection Header
- – 1 x Backlight Inverter Voltage Selection Header
- – 1 x FPD Brightness Header
- – 1 x Panel Off Header
- – 1 x LVDS Connector
- – 1 x CPU Fan Connector (4-pin)
- * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
- – 1 x 4 pin 19V Power Connector (2-Pin)
- * (Optional) 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)
- – 1 x Front Panel Audio Connector
- – 1 x Internal Speaker Header (4-Pin)
- – 1 x Digital MIC Header
- – 2 x SATA Power Connectors
- – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

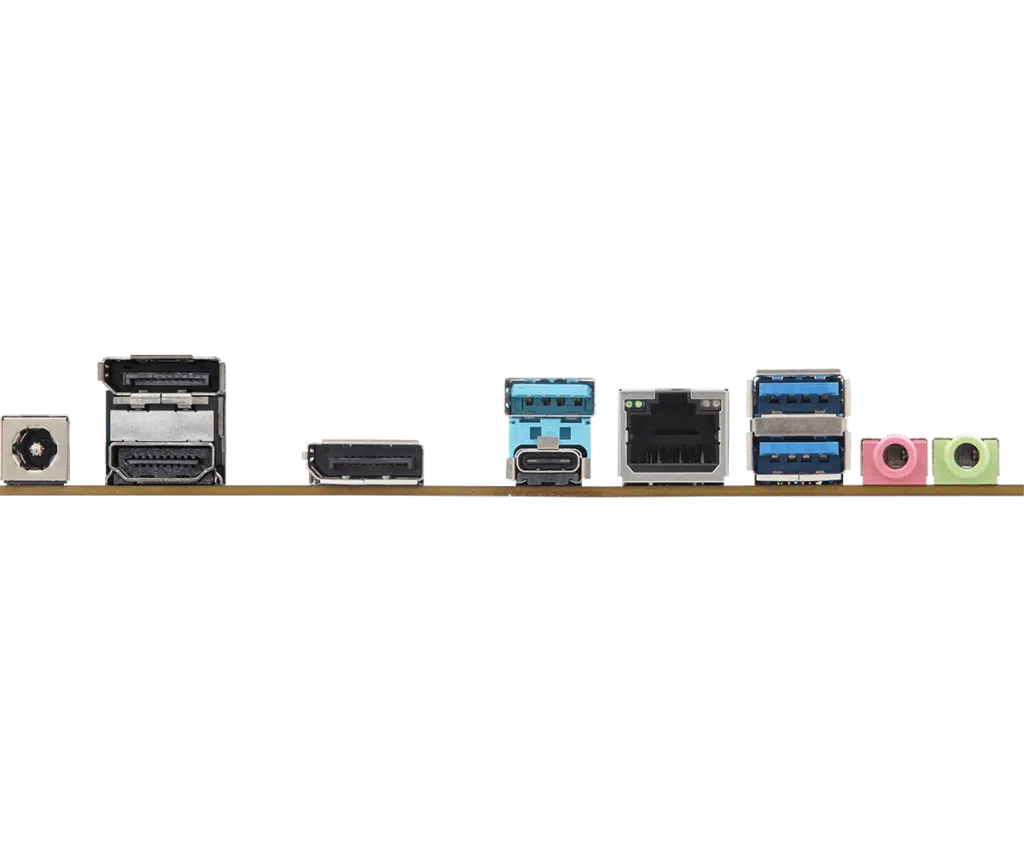

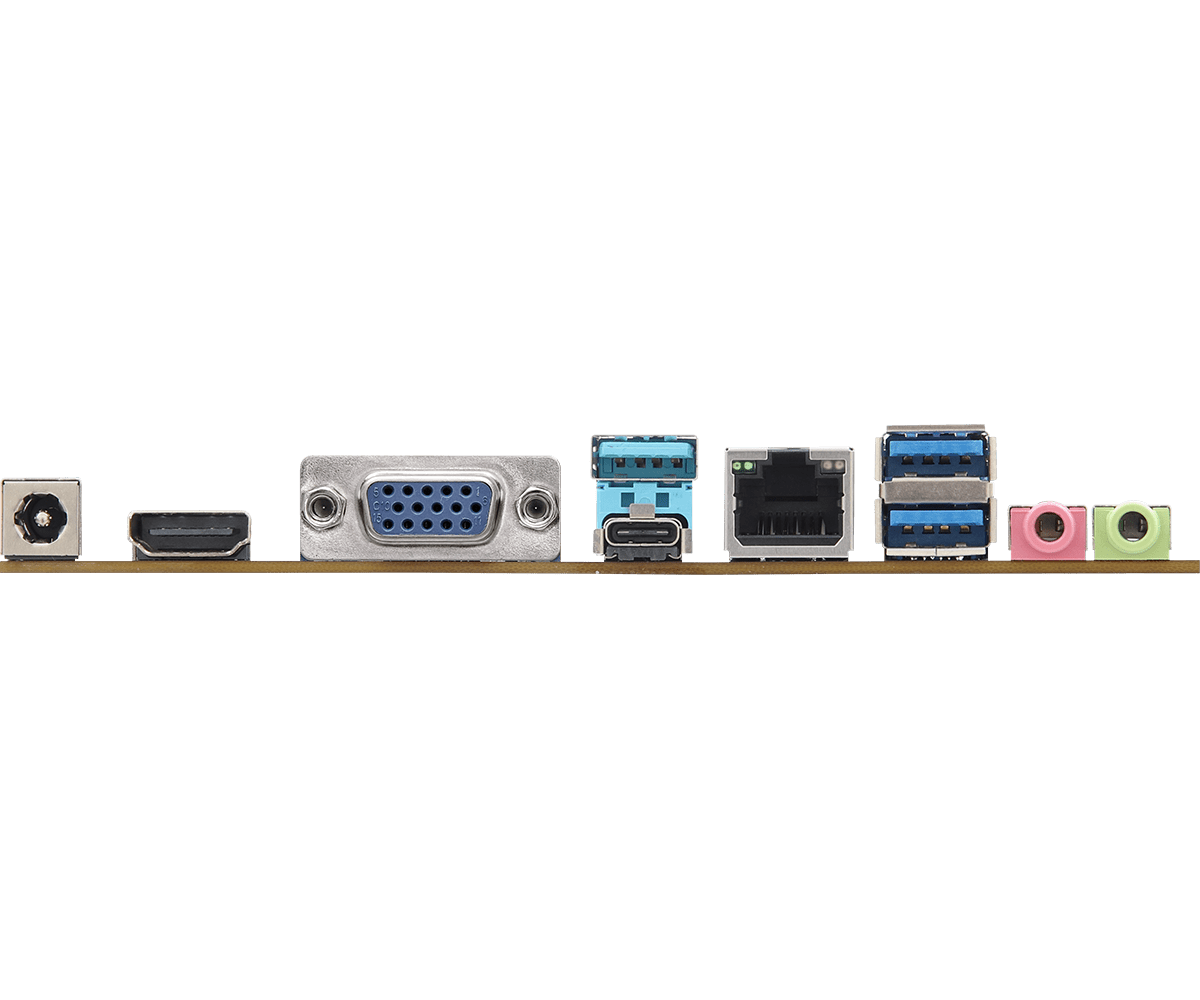

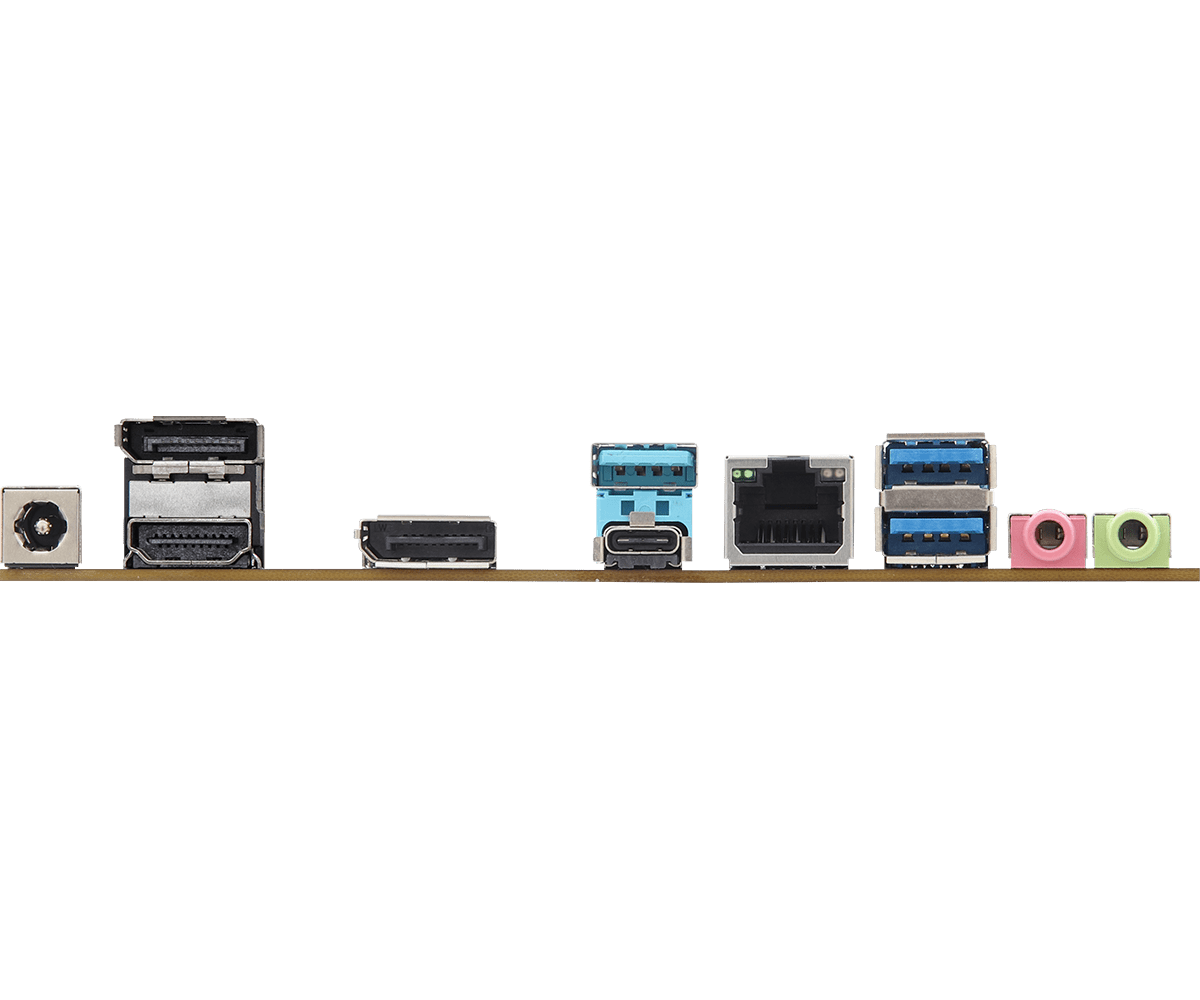

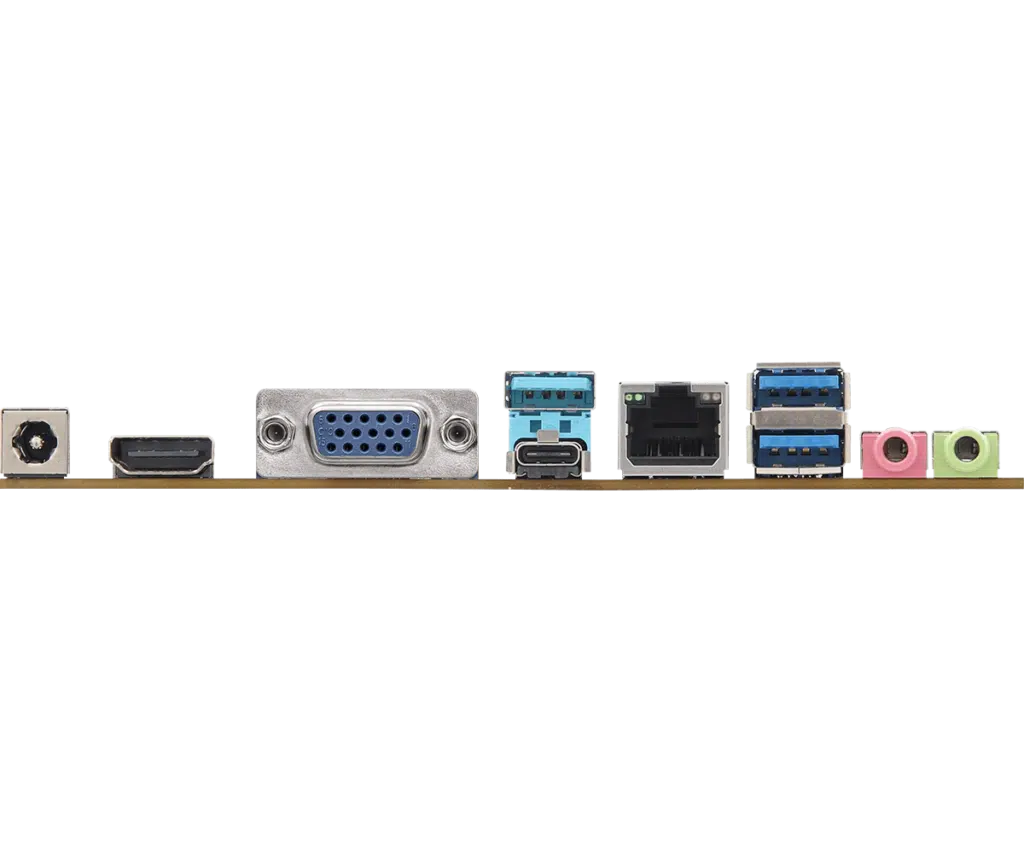

- Rear Panel I/O: – 1 x DC Jack (Compatible with the 19V power adapter)
- – 1 x DisplayPort 1.4 (DP2)
- * (Optional) 1 x D-Sub Port
- – 1 x HDMI Port: HDMI2 (Internal)
- – 1 x HDMI Port: HDMI1 (Rear)
- * (Optional) 1 x DisplayPort 1.4 (DP1) + 1 x HDMI Port: HDMI1 (Rear)

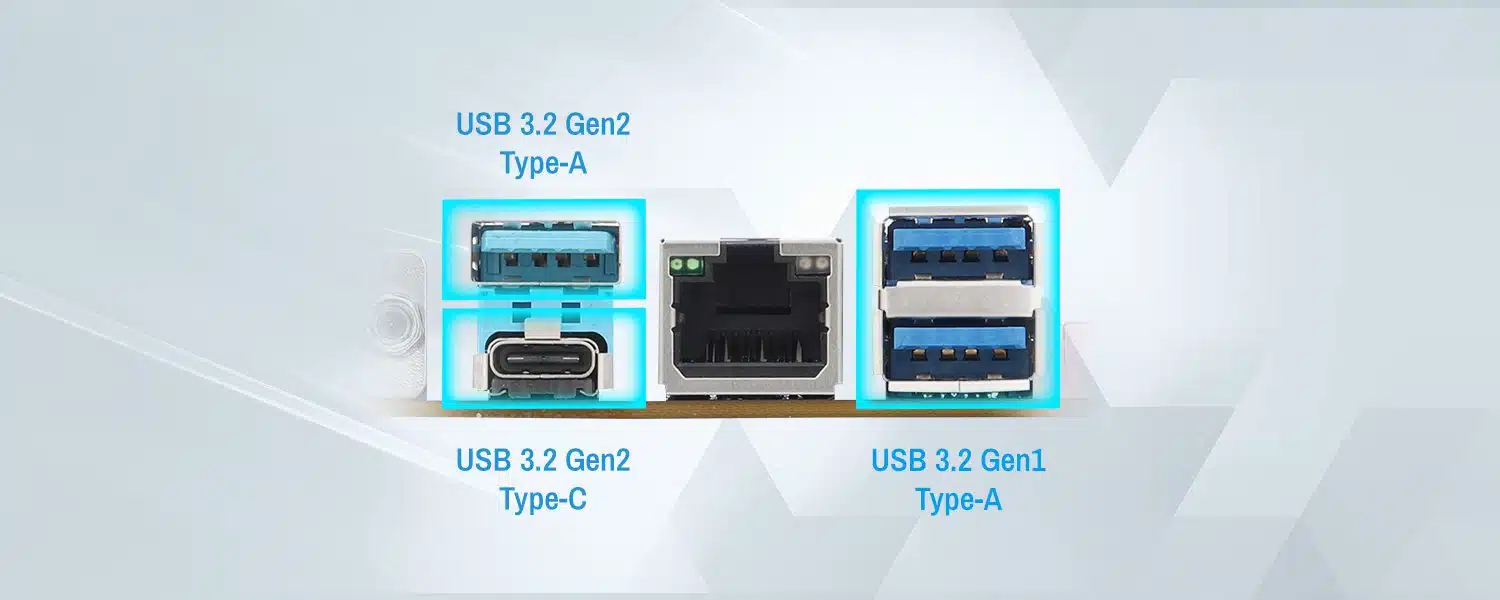

- – 1 x USB 3.2 Gen2 Type-A Port (Supports ESD Protection)
- – 1 x USB 3.2 Gen2 Type-C Port (Supports ESD Protection)
- * (Optional) 2 x USB 3.2 Gen2 Type-A Ports (Supports ESD Protection)
- – 2 x USB 3.2 Gen1 Ports (Support ESD Protection)
- – 1 x RJ-45 LAN Port with LED
- – HD Audio Jacks: Line out / Microphone
- Unique Feature: ASRock Super Alloy
- High-Density Glass Fabric PCB
- ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
- Accessories: I/O Shield (Optional)
– 1 x SATA Data Cable (Optional)
– 1 x SATA Power Cable (Optional)
– 2 x Screws for M.2 Sockets
– 1 x Screw for WiFi Module
– 1 x Standoff for M.2 Socket - Hardware Monitor: CPU Temperature Sensing
– CPU Fan Tachometer
– CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU Fan Multi-Speed Control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore - Form Factor: Thin Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm (Compatible with Mini-ITX)
– Solid Capacitor design - OS: Microsoft Windows® 11 64-bit
- Certifications: FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
