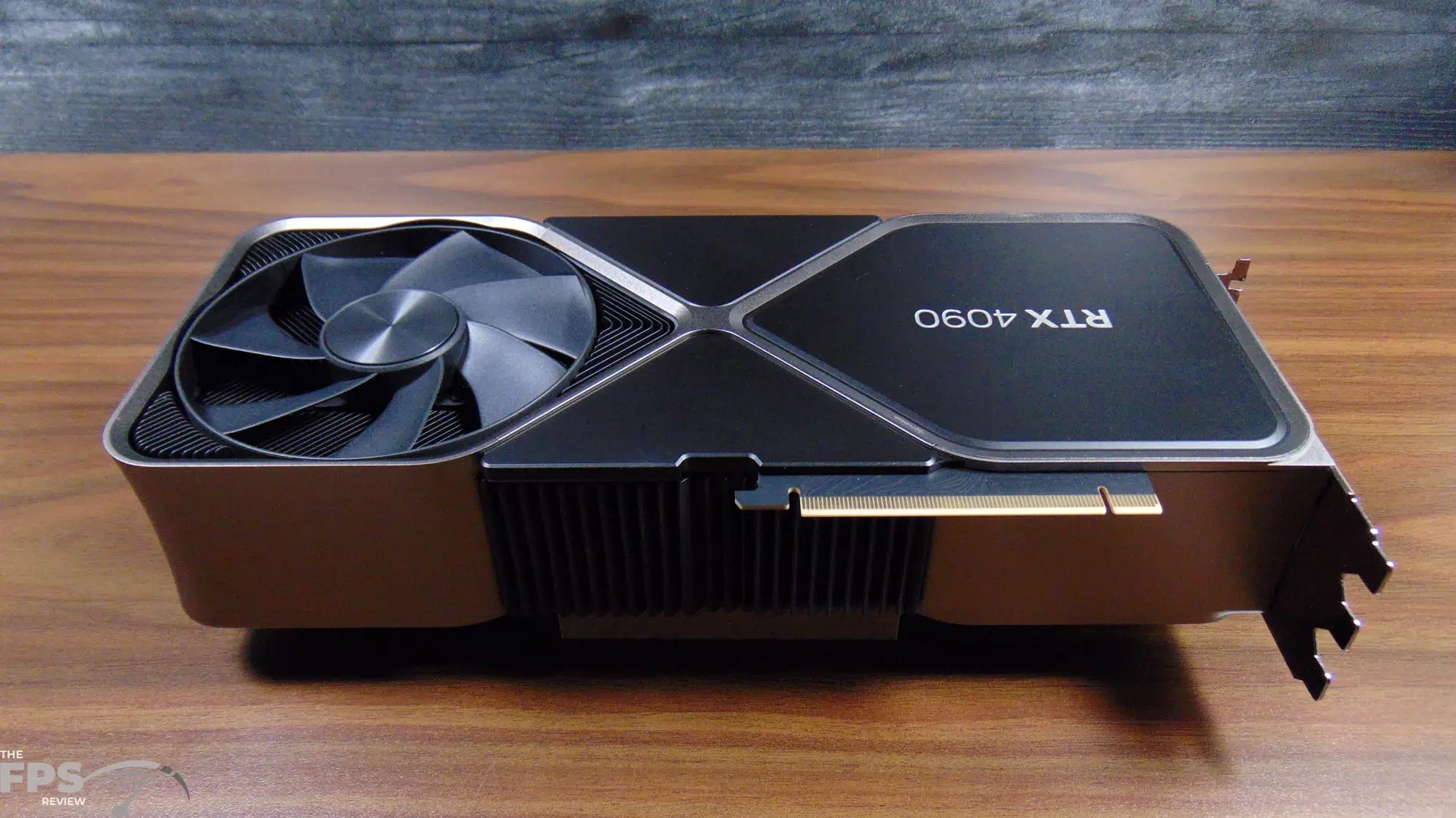

NVIDIA GeForce RTX 4090 GPU Family Specifications

GPU Family Basics
GPU Manufacturer	NVIDIA
GPU Generation	RTX 40 Series
GPU Architecture Name	Ada Lovelace
GPU Die Code	AD102
Default TGP	450 W
Launch Price	$1,599

GPU Family Basics

GPU Manufacturer

NVIDIA

GPU Generation

RTX 40 Series

GPU Architecture Name

Ada Lovelace

GPU Die Code

AD102

Default TGP

450 W

Launch Price

$1,599

GPU Family Memory
Default Memory Bandwidth	1008 GB/s
Default Memory Size	24 GB
Memory Bus Width	384 bit
Memory Type	GDDR6X

GPU Family Memory

Default Memory Bandwidth

1008 GB/s

Default Memory Size

24 GB

Memory Bus Width

384 bit

Memory Type

GDDR6X

GPU Family Chip Details
Transistors	76.3 billion
Die Size	608.5 mm^2
CUDA Cores	16384
RT Cores	128
ROPs	176
TMUs	512

GPU Family Chip Details

Transistors

76.3 billion

Die Size

608.5 mm^2

CUDA Cores

16384

RT Cores

128

ROPs

176

TMUs

512

GPU Family Clock Speeds
Default GPU Base Clock
Default GPU Boost Clock	2520 MHz
Default Memory Clock	21 GHz

GPU Family Clock Speeds

Default GPU Base Clock

Default GPU Boost Clock

2520 MHz

Default Memory Clock

21 GHz

The NVIDIA Lovelace Architecture is what powers the GeForce RTX 40 Series graphics cards. It all starts with the new manufacturing process, GeForce RTX 40 series GPUs are manufactured on a new custom TSMC and NVIDIA-made 4N process, allowing 76.3 Billion transistors and a die size smaller than the previous generation with AD102, powering the GeForce RTX 4090. The full AD102 includes 12 Graphics Processing Clusters (GPCs), 72 Texture Processing Clusters (TPCs), 144 Streaming Multiprocessors (SMs) and 18,432 CUDA Cores and 144 RT Cores, and 576 Tensor Cores and Texture Units. Note that this is not the RTX 4090 specs, it has one GPC disabled, we’ll go over the RTX 4090 specifically on the next page.

The GPC includes a dedicated raster engine, two raster operations partitions, eight individual ROP units, and six TPCs which include one PolyMorph engine and two SMs. Each SM contains 128 CUDA Cores, one third-generation RT Core and four fourth-generation Tensor Cores, four Texture Units, a 256KB register file, and 128KB of L1 cache. L1 cache, L2 cache, and register file sizes have all been increased in Ada architecture. The full AD102 spec has each Ada SM having 128KB of L1 cache, a total of 18,432KB of L1 cache, and the L2 cache has been increased to 98,304KB, which is an improvement of 16x over GA102.
