NVIDIA GeForce RTX 4090 Founders Edition Video Card Specifications

GPU Family
GPU Manufacturer NVIDIA
GPU Generation RTX 40 Series
GPU Family Name GeForce RTX 4090
GPU Architecture Name Ada Lovelace
GPU Die Code AD102
Transistors 76.3 billion
Die Size 608.5 mm^2
Memory Bus Width 384 bit
Memory Type GDDR6X
CUDA Cores 16384
Video Card Basics
GPU Family NVIDIA GeForce RTX 4090 GPU Family Specifications
Manufacturer NVIDIA
Manufacturer Part Number 900-1G136-2530-000
Manufacturer Product Page Product Page
GPU Clock Speeds
Base Clock 2235 MHz
Boost Clock 2520 MHz
Memory Clock 21 GHz
Memory Clock Speeds
Video Memory 24 GB
Memory Clock 21 GHz
Memory Bandwidth 1008 GB/s
Dimensions
Length 304 mm
Width 137 mm
Height 61 mm
Connections
Display Outputs 3x DisplayPort 1.4a
1x HDMI 2.1
Interface PCIe 4 x16
Power Connectors 1x 12VHPWR

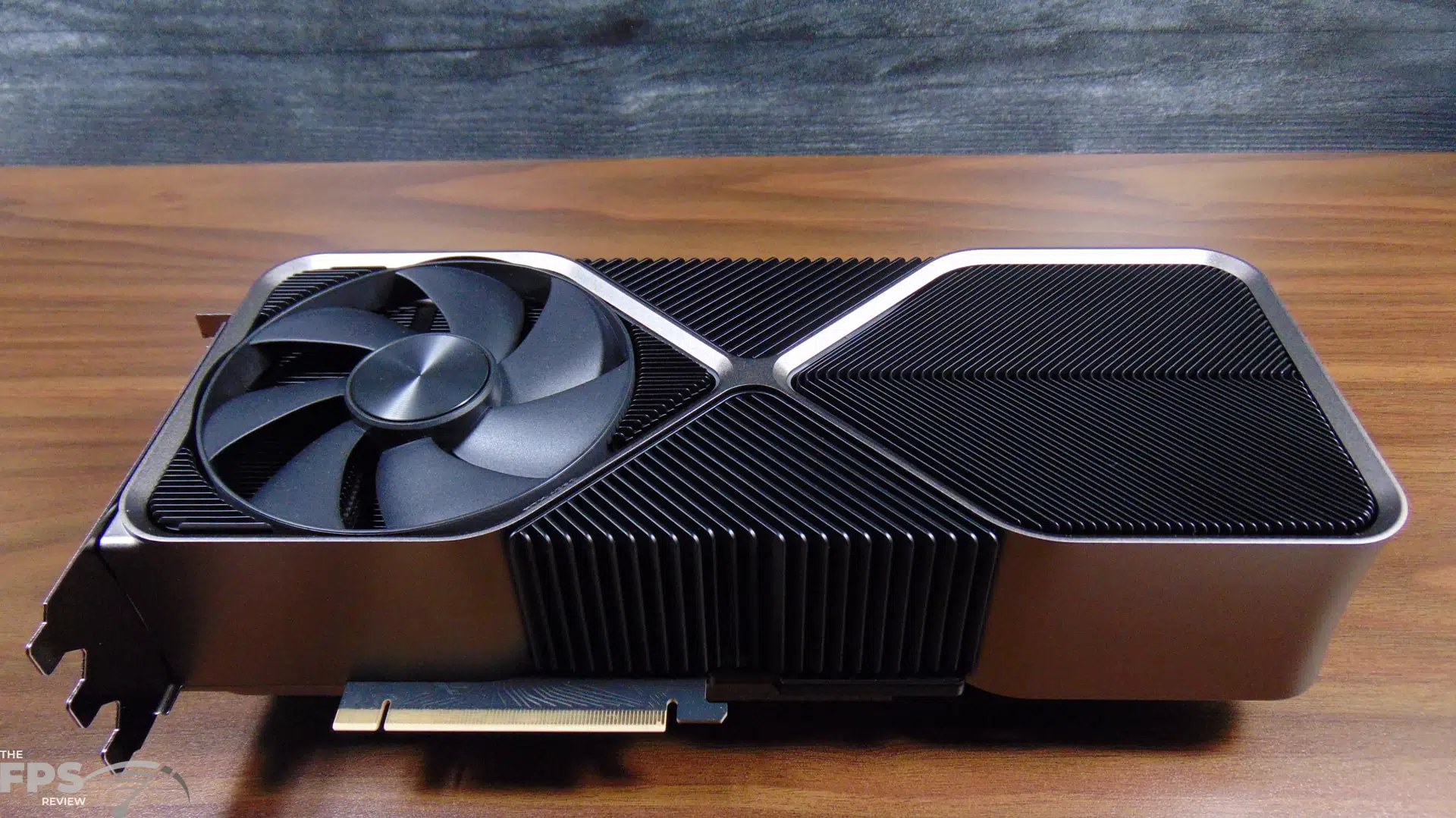

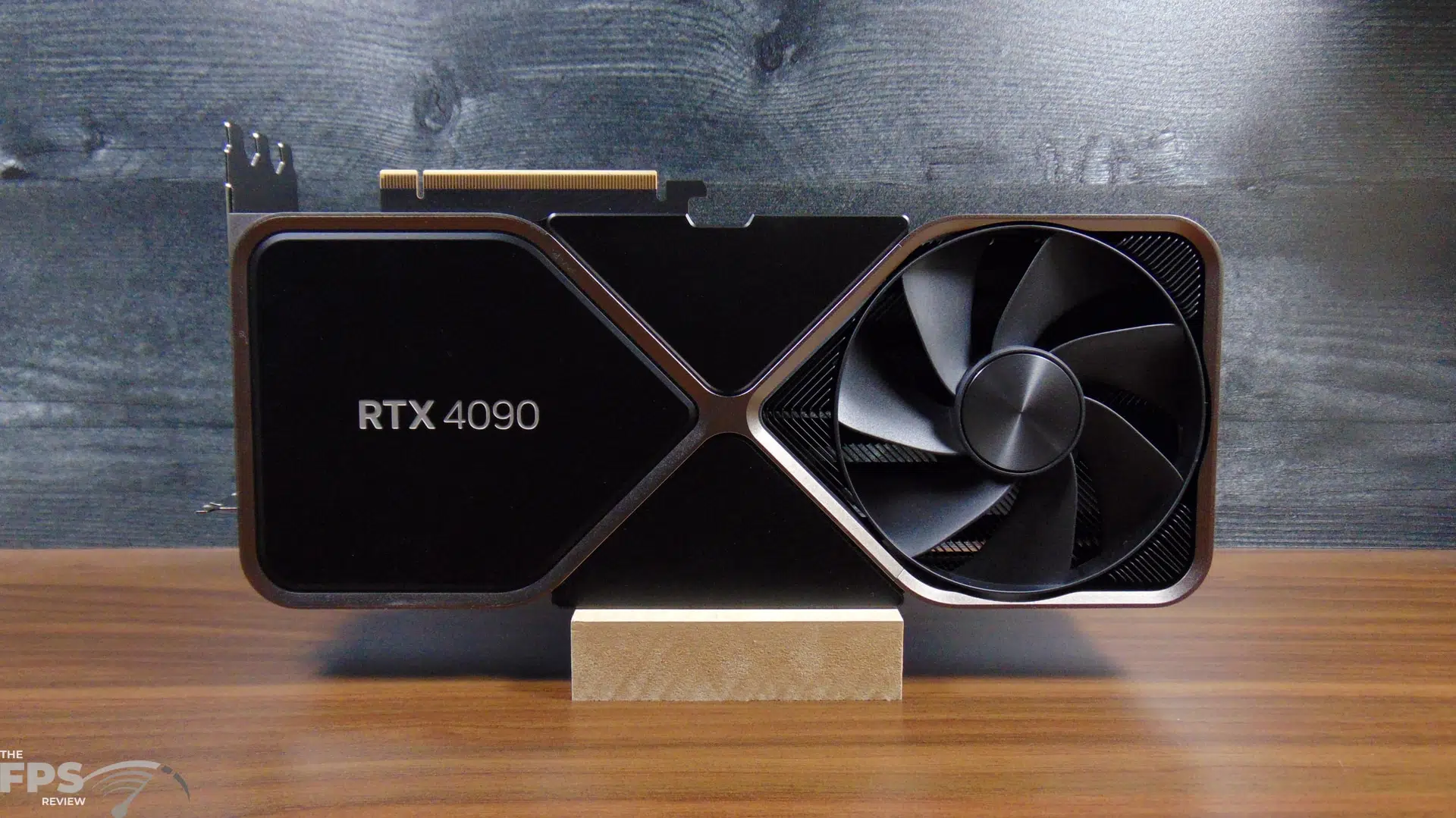

In crafting the Founders Edition version of this video card, NVIDIA utilized the design language from the previous generation, however, it is much evolved. The same dual-sided, opposing fan format is being utilized for the video card. The PCB is also compact and shortened, while the heatsink mass extends beyond. The heatsink is built from an extruded aluminum alloy and the frame has anodizing treatments throughout. The fins are made from a 99% pure aluminum alloy that is lightweight and rigid.

The memory pedestal has been improved to provide more even GPU to heatsink contact improving pressure from the memory modules, and the TIM thickness has been increased from 1.5mm to 2mm to provide better memory cooling. The vapor chamber and heat pipes have also been improved in many ways. The number of heat pipes has increased from 4 to 6 on the east side and a bigger vapor chamber is being used. The internal design of the vapor chamber has also been improved.

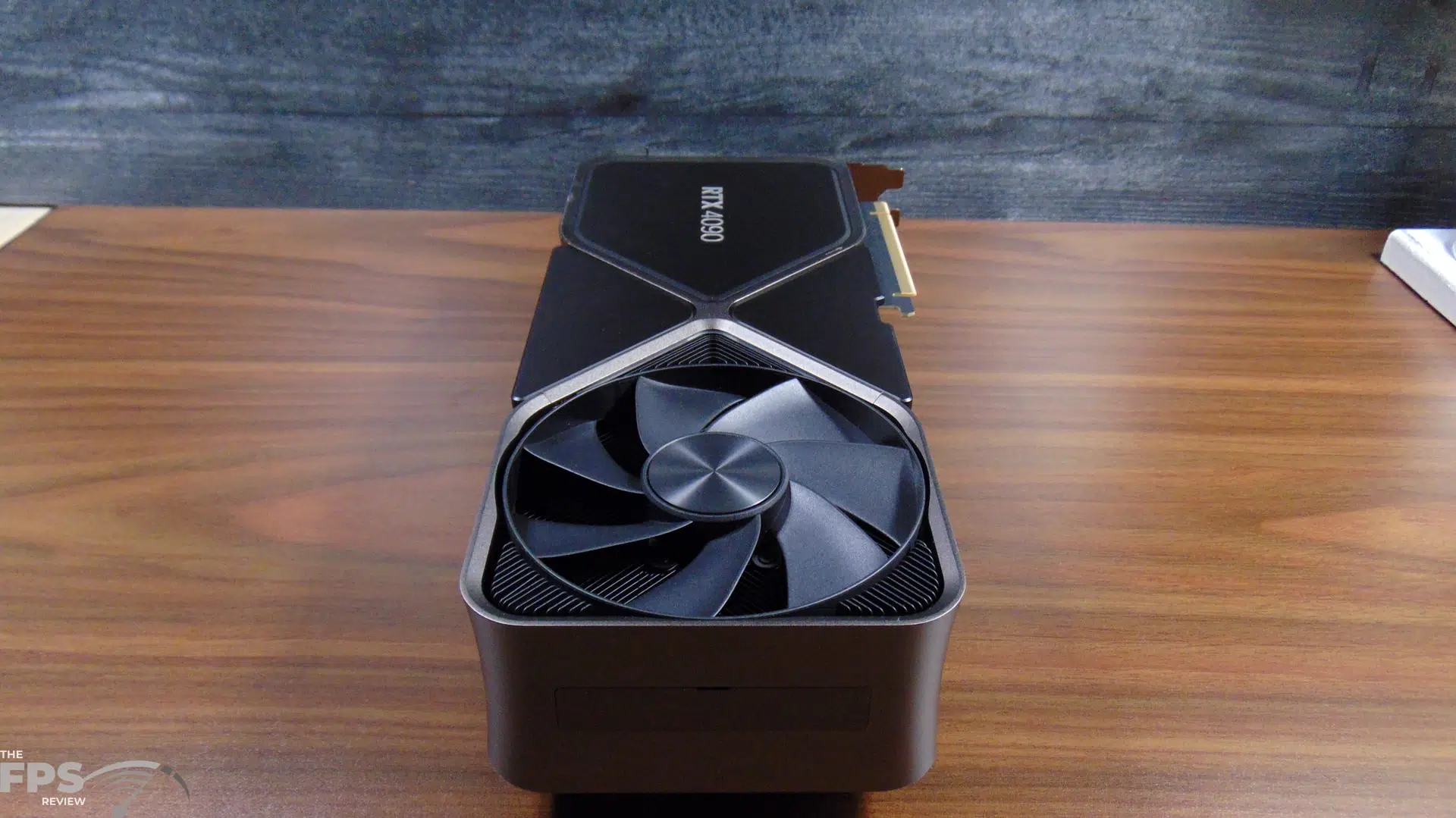

The GeForce RTX 4090 Founders Edition actually shrinks in length down to 12″ inches, from the RTX 3090’s 12.3″ inches. However, the height (thickness) increases from a 2.7-slot to a 3-slot height. The actual size is 304mm in length, 137mm in width, and 61mm in height. For comparison, the GeForce RTX 3090 measures 313mm in length, 138mm in width and 53mm in height. It has 3x DisplayPort 1.4a and 1x HDMI 2.1.
