MiniTool Disk Benchmark

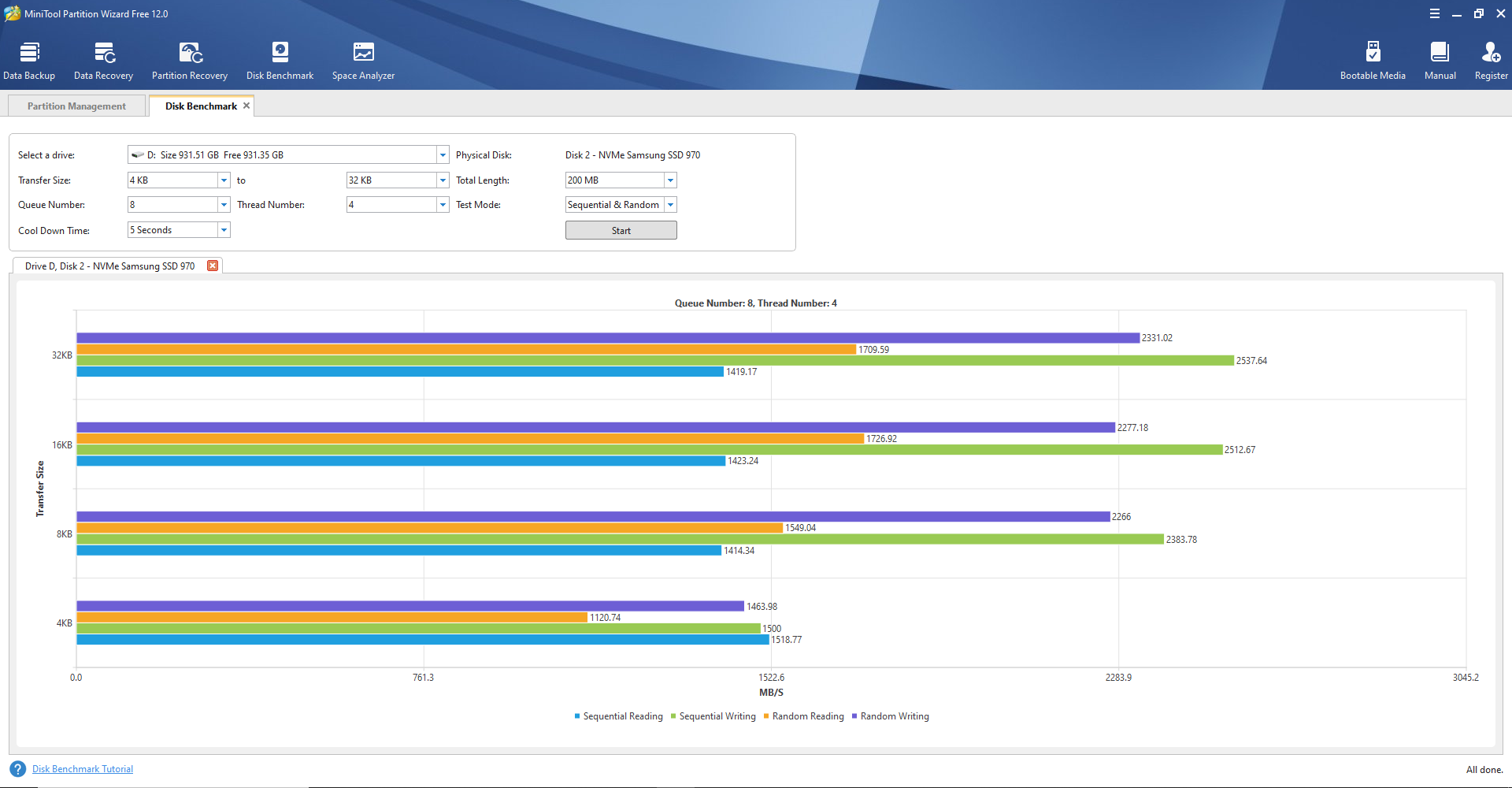

Above are all the benchmark results in the MiniTool Partition Wizard Disk Benchmark.

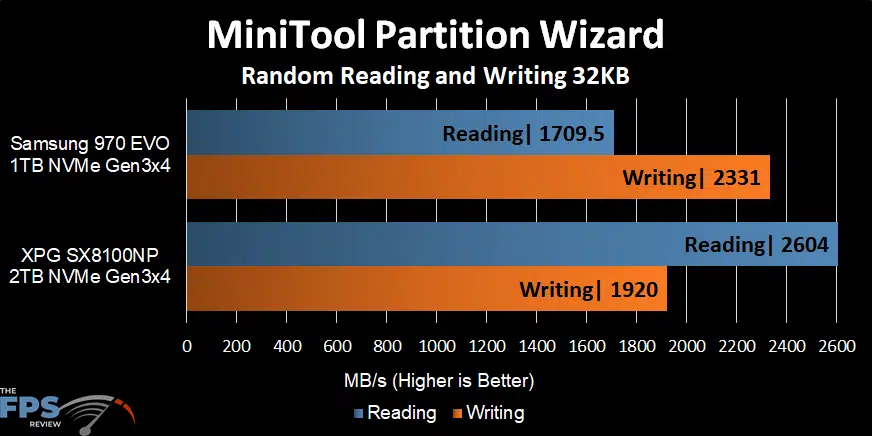

In the above graph we are looking at random reading and writing performance at 32KB. Very interesting are the results, as the writing performance is much ahead of the reading performance on Samsung 970 EVO 1TB. While on the XPG reading is faster than writing. It makes an interesting turn of events where the reading performance on XPG SX8100NP is much faster than Samsung 970 EVO 1TB. However, the writing performance of the Samsung 970 EVO fare surpasses the performance of the XPG SSD.

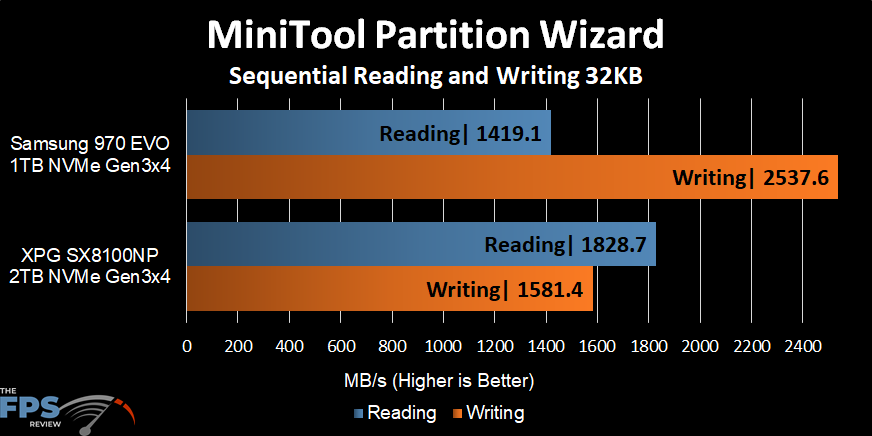

In this graph we are looking at sequential data at 32KB. The pattern is the same as the above results.

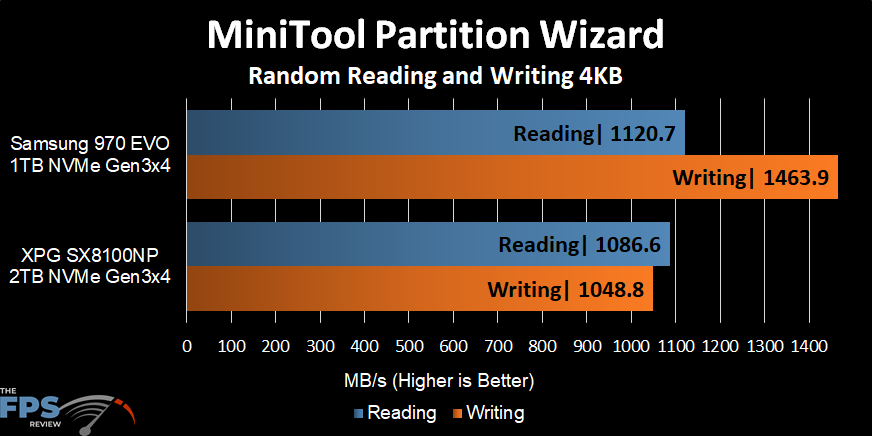

Now we are looking at random reading and writing at 4KB. The Samsung 970 1TB SSD is now faster than the XPG SX8100NP at write and read speeds. It’s write performance is really great compared to the SX80001NP.

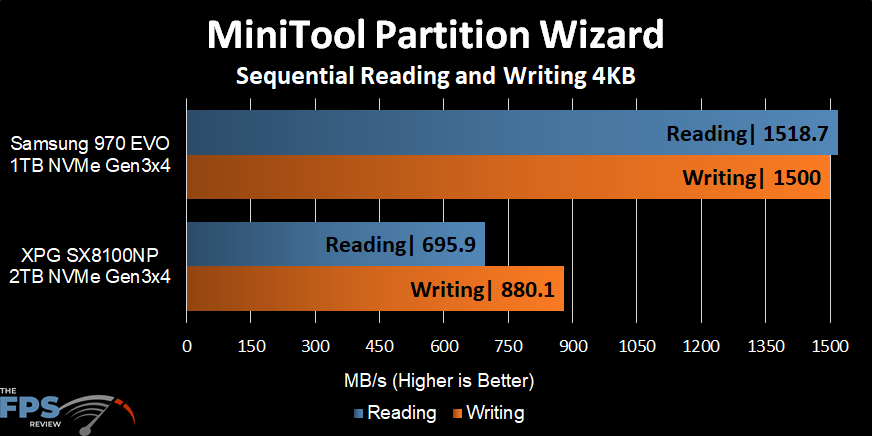

At sequential reading and writing of 4K the Samsung 970 EVO 1TB blows the doors off the XPG SX8100NP. We are talking performance differences over 100% faster.
