Rendering Benchmarks
Cinebench R20

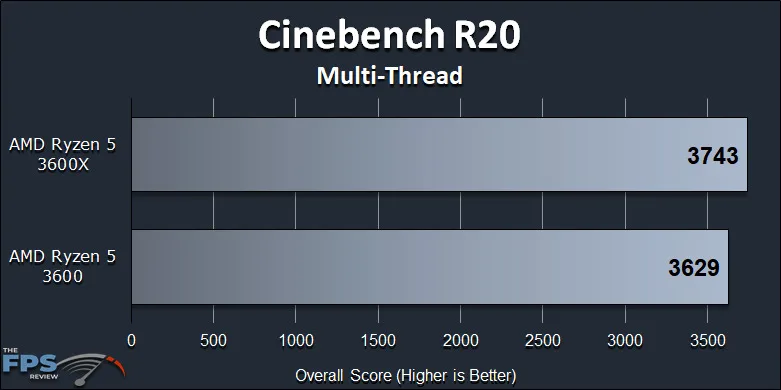

In this first graph, we are looking at the Multi-Thread results from Cinebench. The Ryzen 5 3600X scores 3743 while the Ryzen 5 3600 scores 3629. Once again we see the 3% figure, the Ryzen 5 3600X is 3% faster in Cinebench compared to the Ryzen 5 3600.

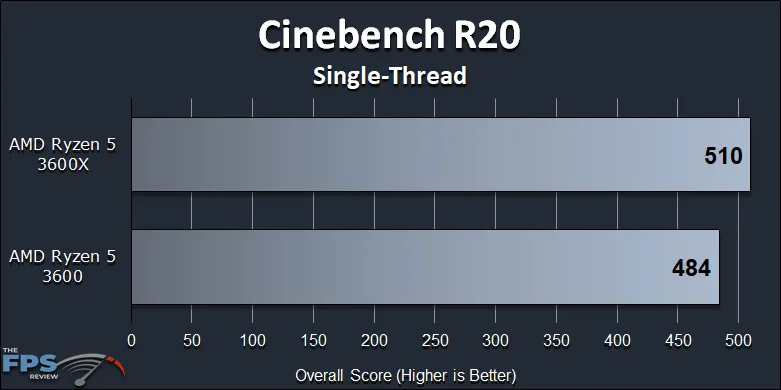

Now for the single-thread test. The Ryzen 5 3600X scores 510 while the Ryzen 5 3600 scores 484. That’s a 5% performance increase in single-thread to the Ryzen 5 3600X.
Blender Open Data Benchmark

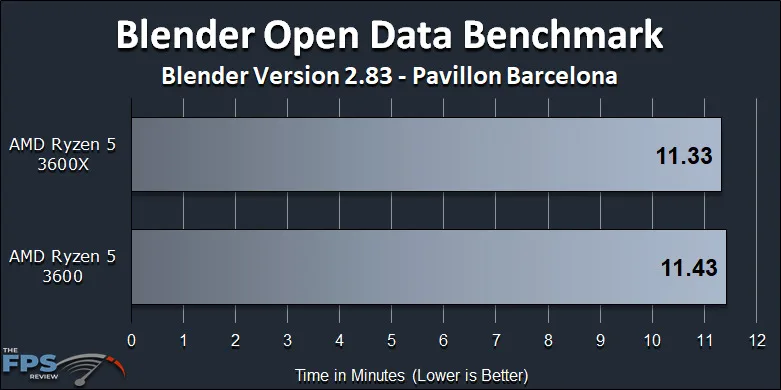

In this first graph, we are looking at the time it takes to render Pavillon Barcelona scene using the CPU only. The Ryzen 5 3600X takes 11 minutes and 33 seconds. The Ryzen 5 3600 takes 11 minutes and 43 seconds. That is only .10 seconds faster to the Ryzen 5 3600X. That is hardly worth it as far as rendering time saved. That is not even a 1% difference.

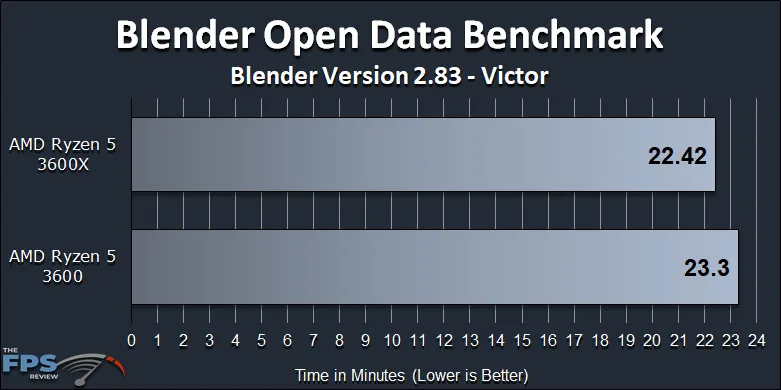

Now we are looking at the Victor scene. This one took 22 minutes and 42 seconds on the Ryzen 5 3600X and 23 minutes and 30 seconds on the Ryzen 5 3600. That is about a 4%-time savings toward the Ryzen 5 3600X, but in real-time that’s not even a full minute. Overall, it’s a small time savings with the fastest 3600X.
HandBrake

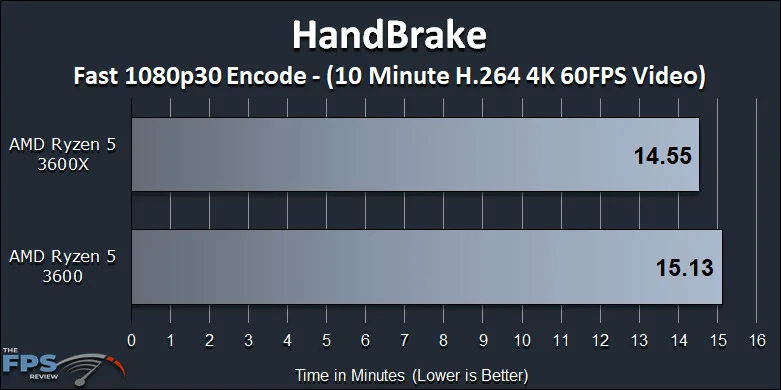

In HandBrake we are testing the time it takes to transcode a 10-minute video. The Ryzen 5 3600X took 14 minutes and 55 seconds while the Ryzen 5 3600 took 15 minutes and 13 seconds. That’s about a 4%-time savings or twenty or so seconds. It’s not a big difference.
V-Ray

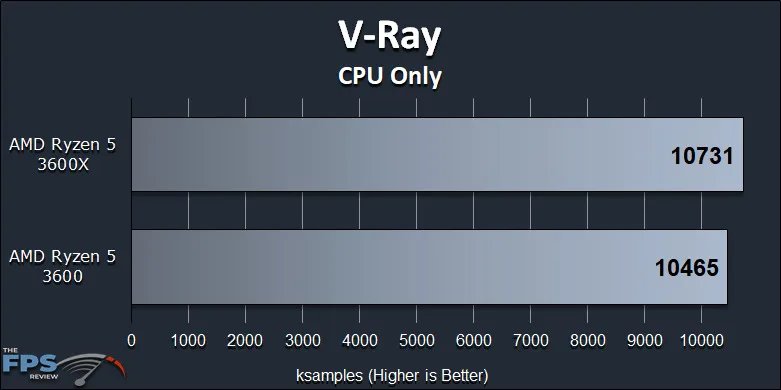

In V-Ray the Ryzen 5 3600X scores 10731 ksamples while the Ryzen 5 3600 scores 10465 ksamples. That is a 3% performance improvement to the Ryzen 5 3600X.
