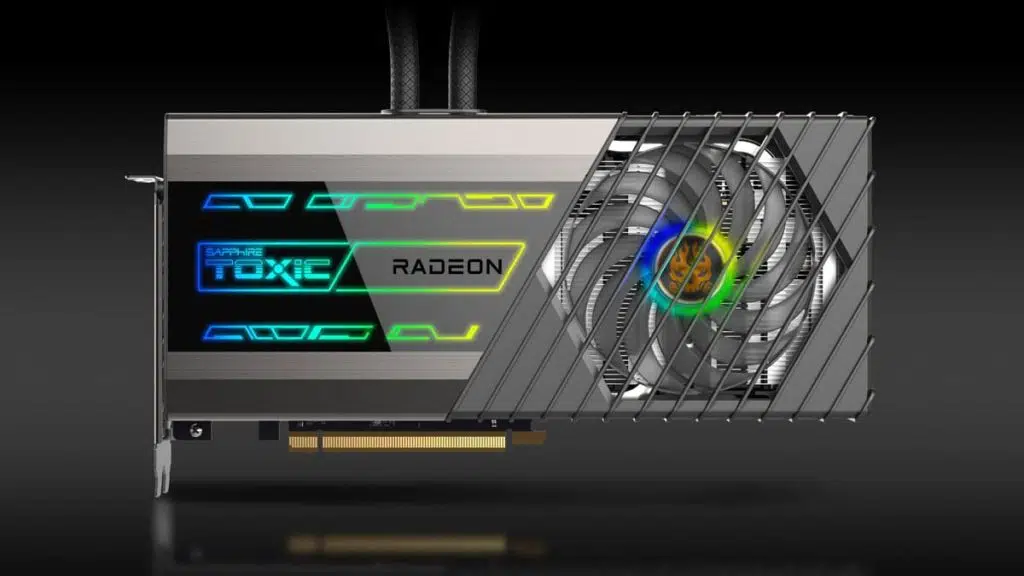

SAPPHIRE has launched its fastest Radeon RX 6900 XT graphics card yet, the TOXIC AMD Radeon RX 6900 XT Extreme Edition. While the TOXIC AMD Radeon RX 6900 XT Limited Edition that it revealed back in February already features some pretty impressive speeds (2,365 MHz boost clock, 2,135 game clock), the new Extreme Edition bests it with an even more stunning one-click TOXIC boost clock of up to 2,730 MHz, a standard boost clock of up to 2,525 MHz, and a game clock of up to 2,375 MHz. SAPPHIRE’s new TOXIC AMD Radeon RX 6900 XT Extreme Edition is said to leverage red team’s higher-binned Navi 21 XTXH GPU.
| Model | TOXIC AMD Radeonâ„¢ RX 6900 XT Extreme Edition Gaming Graphics Card with 16GB GDDR6 |
| GPU | 7nm GPU, RDNAâ„¢ 2 Gaming Architecture |
| Stream Processors | 5120 |
| Boost Clock | Up to 2730 MHz (TOXIC BOOST) Up to 2525 MHz (BIOS Default)Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. |
| Game Clock | Up to 2500 MHz (TOXIC BOOST) Up to 2375 MHz (BIOS Default)Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. |
| Ray Accelerators | 80 |
| Infinity Cache | 128MB |
| Memory Size/Bus | 16GB/256 bit GDDR6 |
| Memory Clock | 16 Gbps Effective(BIOS Default) |
| Displays | Maximum 4 Displays |
| Resolution | HDMI™: 7680×4320 DisplayPort1.4: 7680×4320 |
| Interface | PCI-Express 4.0 |
| Output | 1x HDMI 3x DisplayPort |
| BIOS Support | Dual UEFI |
| Game Index | 4K |
| Features | All-In-One Liquid Cooler with 360mm Radiator Dual BIOS Max Boost TriXX Software Switch Premium Digital Power Design Fuse Protection Intelligent Fan Control Precision Fan Control Backplate with ARGB ARGB Fans ARGB AIO Cooler Fans Dual Ball Bearing Fans Hybrid Fan Blade on VRM/Memory Cooling Integrated VRM/Memory Cooling Module TriXX Supported Fan Check TriXX Boost NITRO Glow External RGB LED MB Synchronization |
| AMD Features | AMD RDNA™ 2 Gaming Architecture DirectX® 12 Ultimate Hardware Raytracing 7nm GPU GDDR6 Memory PCI® Express 4.0 Support AMD FreeSync™ Technology DisplayPort™ 1.4 with DSC HDMI™ 2.1 VRR Video Streaming up to 8K Radeon™ VR Ready Premium AMD FidelityFX Radeon™ Image Sharpening Radeon™ Anti-Lag Radeon™ Software Game Driver Optimizations High Performance 4K Gaming |
| Cooling | AIO Liquid Cooling with 360 mm radiator Two-Ball Bearing Fans |
| Form Factor | Board 270(L)x 130(W)x 45 (H)mm Hex / Radiator (394(L) x 120(W) x 52.5(H)mm) Standard Rubber Tubing, 470mm |
| Power Consumption | <430W |
| OS | Linux®, Windows® 7, Windows® 10, and Windows 8.1. 64-bit operating system required |
| System Requirements | Minimum 850 Watt Power Supply 2 x 8-pin + 1x 6-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. |
One Click TOXIC BOOST to reach peak ultimate performance! Using the SAPPHIRE TriXX Software, simply enable the TOXIC BOOST feature for the TOXIC AMD Radeon RX 6900 XT Extreme Edition to reach a TOXIC BOOST Clock of up to 2730 MHz and a TOXIC BOOST Game Clock of up to 2500 MHz with 5120 stream processors. Built with 4 output ports including 1x HDMI 2.1 VRR and FRL and 3x Display Port 1.4 with DSC outputs to support your choice of display monitor and equipped with 80 Ray Accelerators to support raytracing in games.
Source: SAPPHIRE
