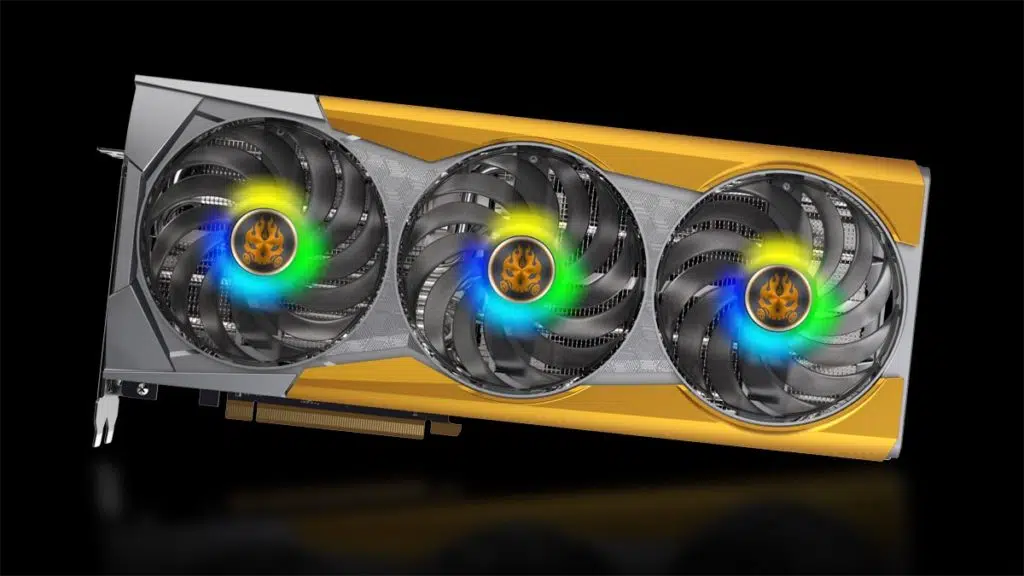

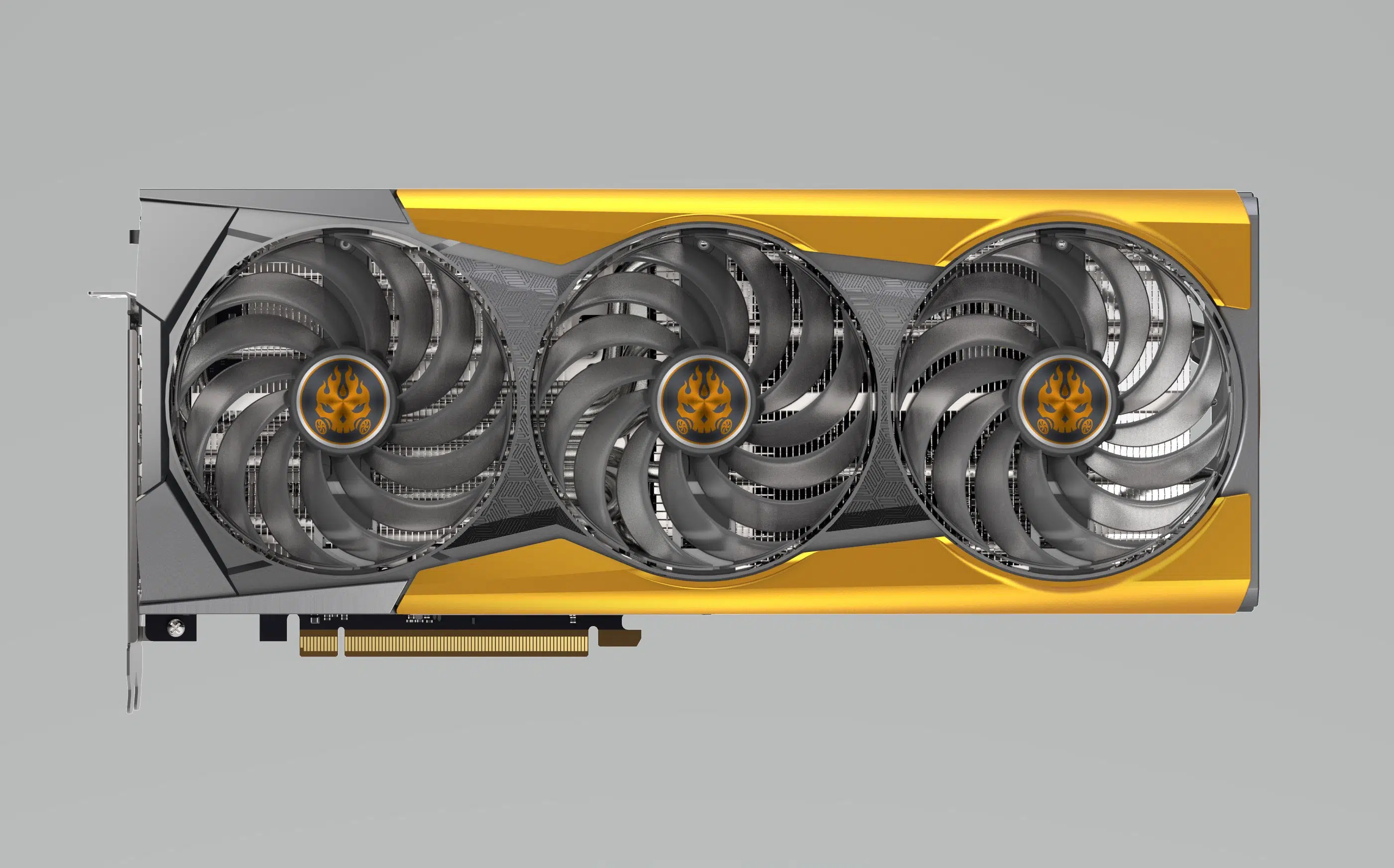

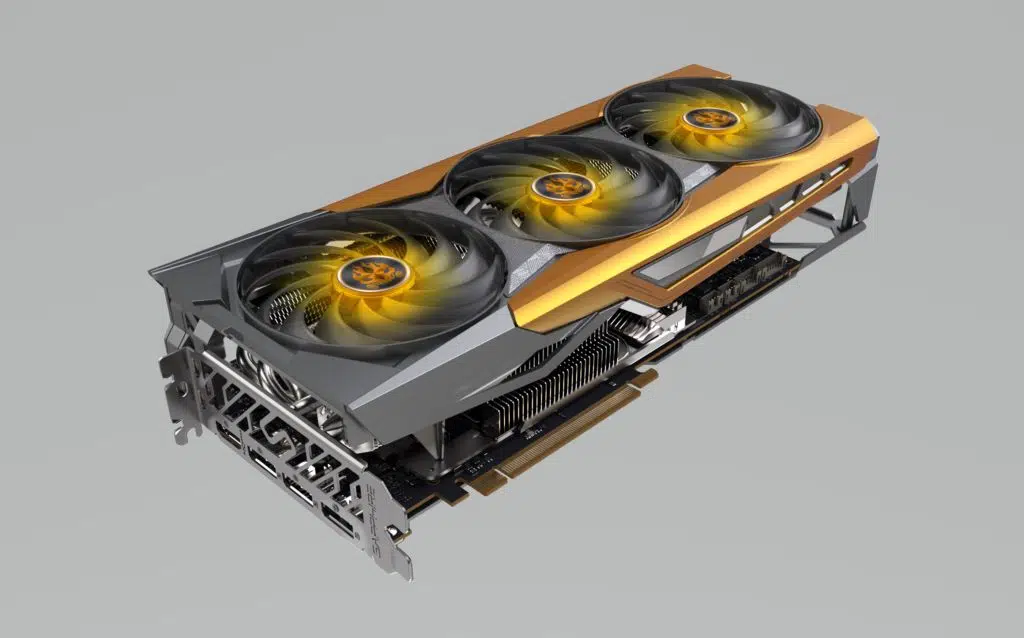

Sapphire has officially debuted its new flagship air-cooled Toxic AMD Radeon RX 6900 XT graphics card after teasing it on Facebook. The new card borrows some design traits from the previous NITRO+ series such as a three-fan cooling solution, but it features a new gold/orange motif and ARGB. The Tri-X cooling solution also features a combined memory and VRM cooling module with two heat pipes running underneath, which is said to improve thermal conductivity by 38 percent over the former design. The 7 nm GPU is believed to be a Navi 21 XTXH GPU.

Image: Sapphire
GPUAMD Radeon™ RX 6900 XT Graphics Card
7nm GPU
AMD RDNA™ 2 Architecture
Engine ClockBoost Clock: Up to 2425 MHz
Game Clock: Up to 2235 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors5120
Infinity Cache128MB
Ray Accelerators80
Memory Size/Bus16GB GDDR6
Memory ClockBIOS Default: 16 Gbps Effective
DisplaysMaximum 4 Displays
ResolutionHDMI™: 7680×4320
DisplayPort1.4: 7680×4320
InterfacePCI-Express 4.0
Output1x HDMI
3x DisplayPort
BIOS SupportDual UEFI
Game Index4K
Sapphire FeaturesDual BIOS
Max Boost
TriXX Software Switch
Premium Digital Power Design
Fuse Protection
TOXIC Air-Cooled Tri-X Cooling Technology
Intelligent Fan Control
Precision Fan Control

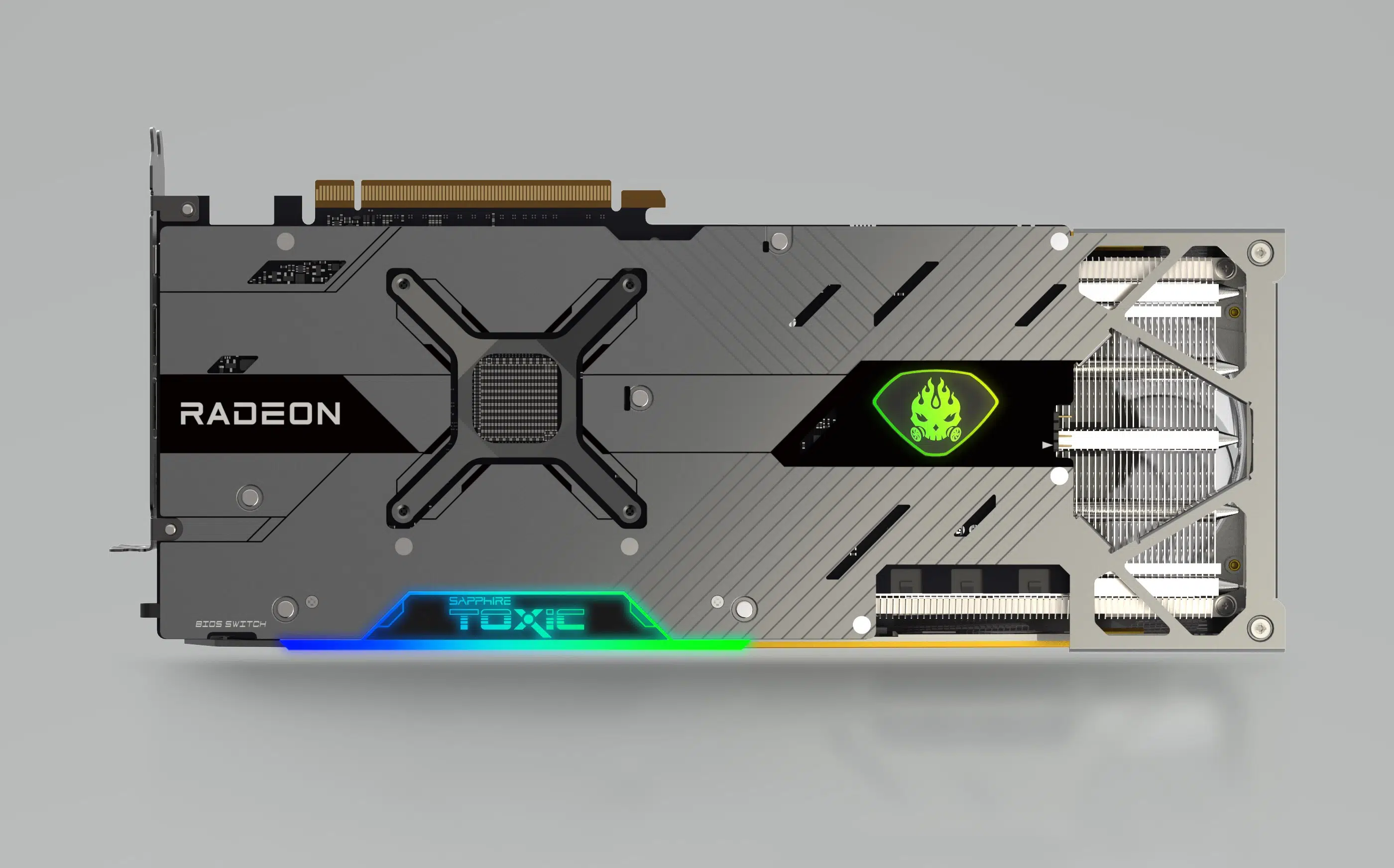

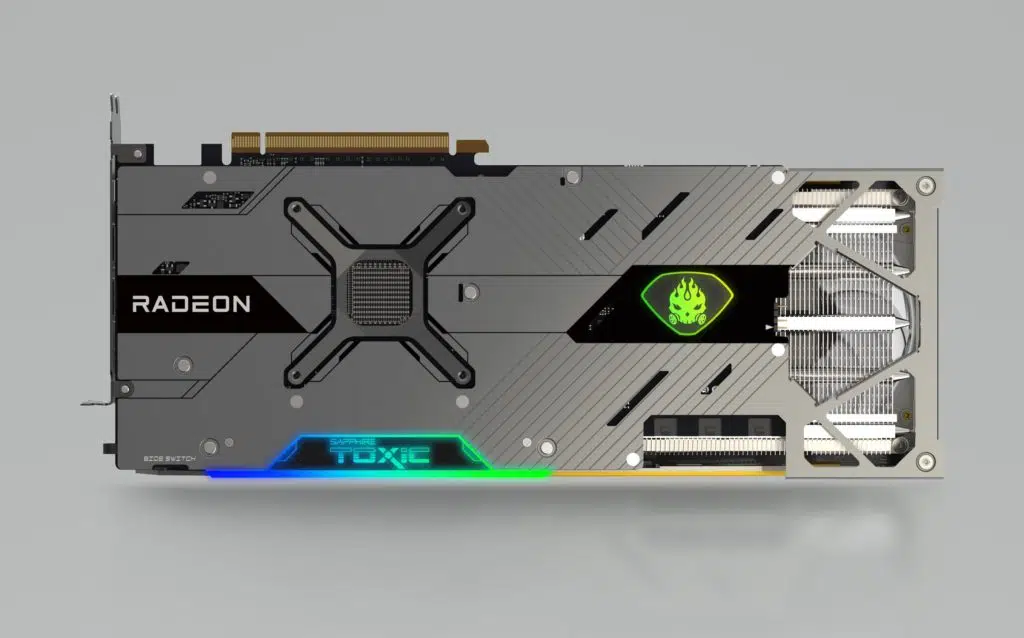

Backplate with ARGB
ARGB Fans
Two-Ball Bearing Fans
Hybrid Fan Blade
Wave Fin Design
V Shape Fin Design for GPU Cooling
Integrated Cooling Module
K6.5 Memory Pad
TriXX Supported
Fan Check
Fan Quick Connect
TriXX Boost
NITRO Glow
External RGB LED MB Synchronization
AMD FeaturesAMD RDNA™ 2 Gaming Architecture
DirectX® 12 Ultimate
Hardware Raytracing
7nm GPU
GDDR6 Memory
PCI® Express 4.0 Support
AMD FreeSync™ Technology
DisplayPort™ 1.4 with DSC
HDMI™
Video Streaming up to 8K
Radeon™ VR Ready Premium
AMD FidelityFX
Radeon™ Image Sharpening
Radeon™ Anti-Lag
Radeon™ Software
Game Driver Optimizations
High Performance 4K Gaming
CoolingTOXIC Air-Cooled Tri-X Cooling Technology
Two-Ball Bearing Fans
Form Factor3 slot, ATX
Dimension: 320(L)X 134.85(W)X 58.4 (H)mm
Power Consumption<400W
OSLinux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit  operating system required
*Does not support all features including but not limited to Hardware Raytracing
System RequirementsMinimum 850 Watt Power Supply
2 x 8-pin + 1 x 6-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.

The graphics card appears to be borrowing the design from the NITRO series, in fact, it seems to be just a new color scheme with the exact same cooler design.

Source: Sapphire (via VideoCardz)
