Can a graphics card be so thick that it borders on being obnoxious? That’s a question that’s been raised again by MSI’s GeForce RTX 3090 Ti SUPRIM X, a premium version of NVIDIA’s upcoming flagship graphics card that will take up not two, not three, but nearly four slots in height. Leaked specifications shared by VideoCardz can confirm that the GeForce RTX 3090 Ti SUPRIM X features a 3.5-slot design, making it one of the thickest graphics card in the current generation. MSI’s GeForce RTX 3090 Ti SUPRIM X will also be unique for being one of the first graphics cards to feature the new 16-pin PCIe Gen 5 power connector, a design choice that was presumably prompted at least in part by its 480-watt TDP. This is 60 watts higher than the GeForce RTX 3090 SUPRIM X’s power specification.

MSI GeForce RTX 3090 Ti SUPRIM X leaked, 3.5-slot design with 16-pin connector and 480W TDP (VideoCardz)

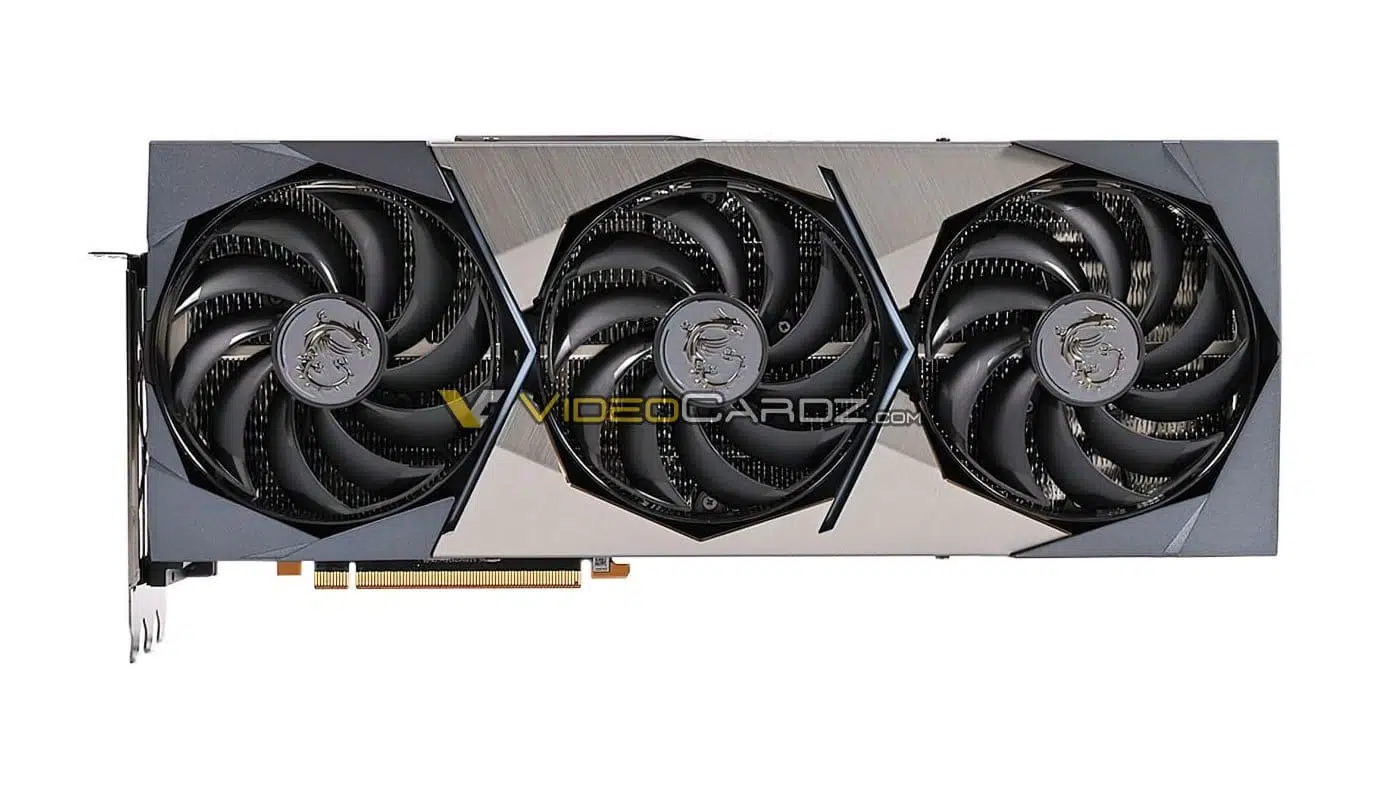

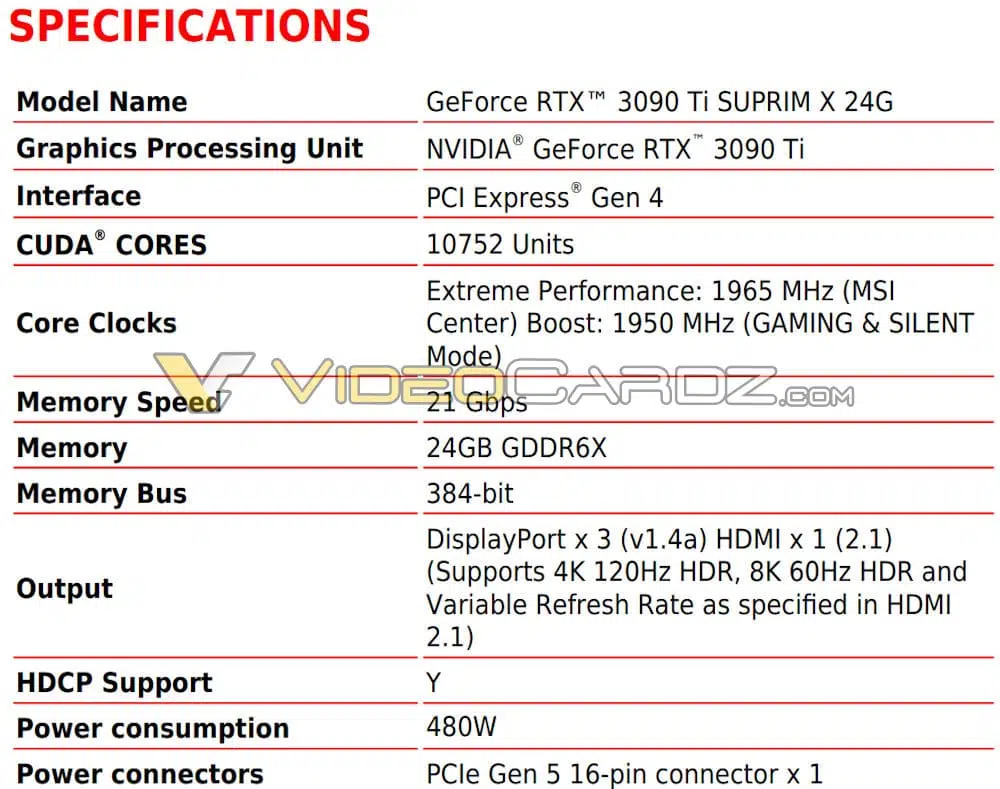

The SUPRIM X is a full custom graphics card with triple-fan and 3.5-slot design. The card offers full implementation of the GA102 with 10752 CUDA cores. By far the most significant upgrade comes to the memory subsystem, now featuring 21 Gbps and 2 GB GDDR6X modules (Micron IZU47 D8BZC).

This model has increased GPU clock to 1950 MHz and 1965 MHz for Gaming and Extreme modes respectively, while NVIDIA reference clock is 1860 MHz. This comes at a cost of higher TDP of 480W (+30W) but this is still within the range available through the new PCIe Gen5 16-pin power connector and PCIe slot of 525W (450W + 75W).

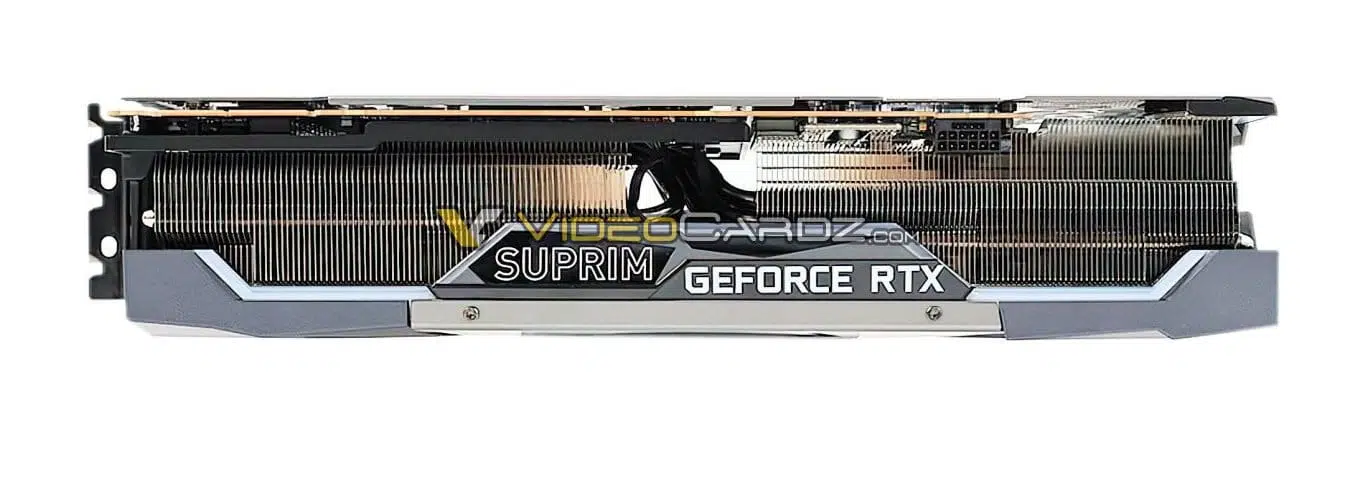

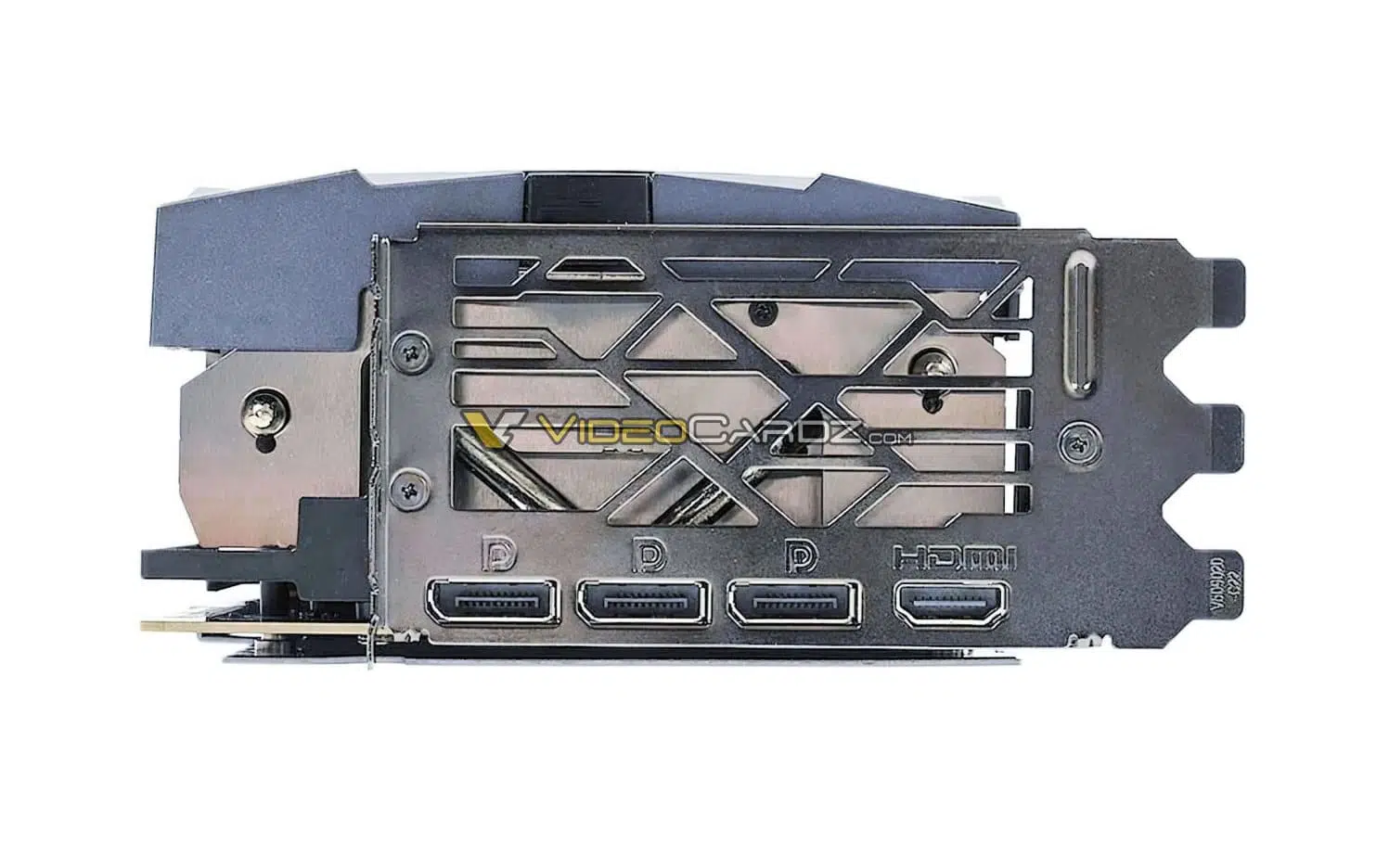

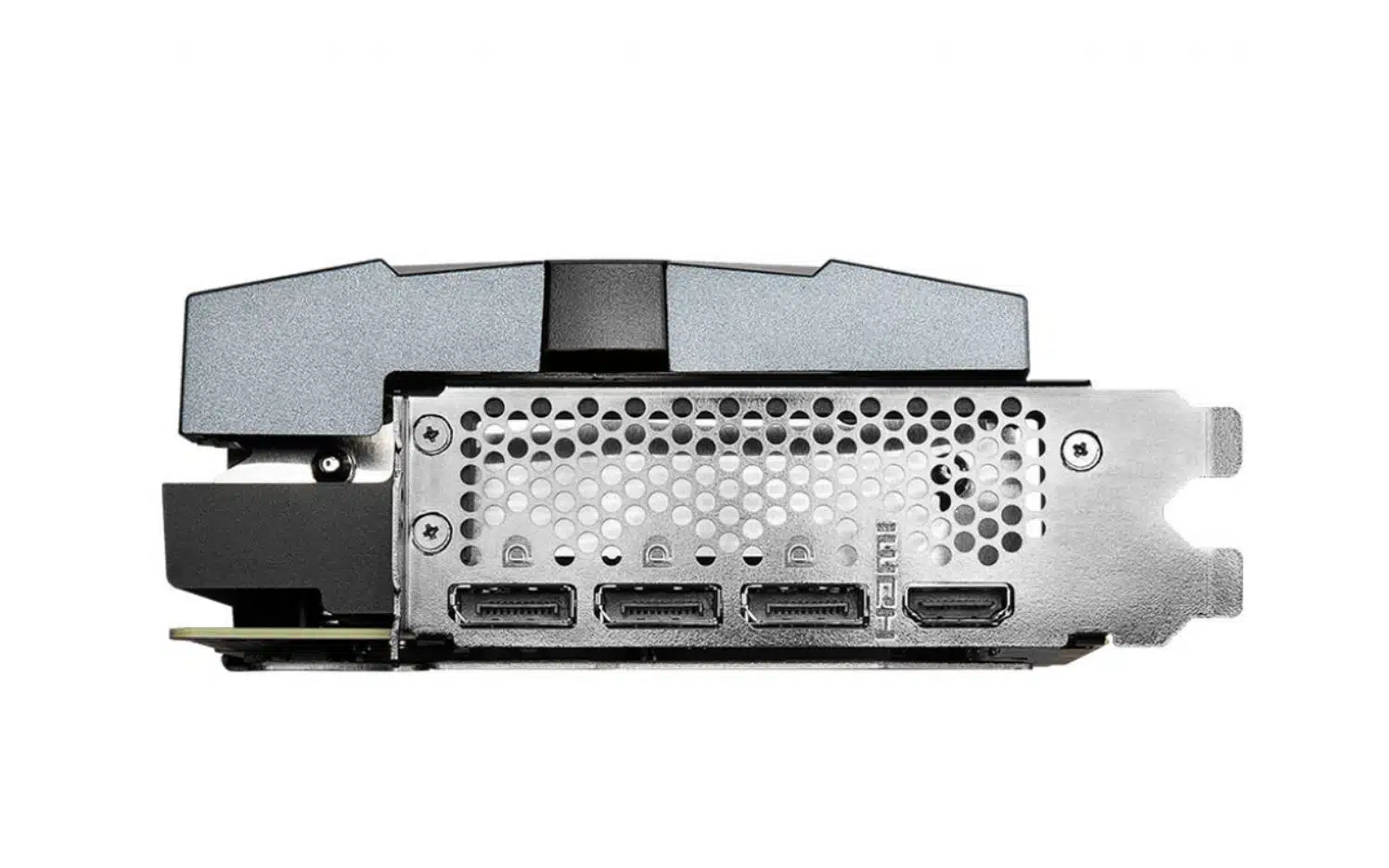

The RTX 3090 Ti SUPRIM X is a very thick 3.5 slot design that weights 2.1 kg, 200g more than the RTX 3090 SUPRIM. There are no changes to the display output configuration, however the card now has a three-slot I/O bracket, and that’s still not enough to cover the card’s height. The MSI RTX 3090 Ti will launch on March 29th. The official pricing has not yet been confirmed.

Go to thread

Don’t Miss Out on More FPS Review Content!

Our weekly newsletter includes a recap of our reviews and a run down of the most popular tech news that we published.

9 comments

  1. I'm not really surprised by this. I've got a 3090 Suprim and that thing barely fit in my HAF X case. Considering how gigantic that case is I was truly shocked.

    I will say that it is one of the best cards I've ever been lucky enough to own. It cools better and is consequently quieter than the Strix 3090 I previously had in the same rig. At stock settings, it's nearly silent, and even when fully OCd, with fans maxed, it isn't too bad plus it easily hits upwards of 2100 MHz for the core and with mem at just over 21 GHz.
  2. Mow the question is does it have blanks or a support bracket thst comes with it to help alleviate load on the PCIE socket? Because a card thst heavy and big has to have a way to relieve stress from the pcie port.
  3. I'd like to know how much this thing weighs. And yyyeeeaaahhh, like Grimlakin said, a card like this definitely needs some extra support when used in a typical tower case.
  4. Mine came with a solid steel(carbon?) rod/stand that's adjustable. Simple but easy to adjust. I ended up not needing it because the card ran all the way to the drive cage with barely 1 or 2 mm to spare so it fit snuggly and there's no way it'll sag. These cards are solidly built too. It made any of the other cards I've had, including that Strix 3090, just feel cheaply constructed.
  5. Mow the question is does it have blanks or a support bracket thst comes with it to help alleviate load on the PCIE socket? Because a card thst heavy and big has to have a way to relieve stress from the pcie port.
    I use one from Cooler Master for our case reviews, and have one from 'upHere' for my 3080 12GB FTW3 that uses adjacent slots as there's no where to put something that extends up from the bottom of the case in my O11 Dynamic XL.

    The O11 Dynamic XL even comes with a very cheap one that uses the motherboard standoffs, but unfortunately the shape of EVGAs FTW3 PCB prevents its use.
