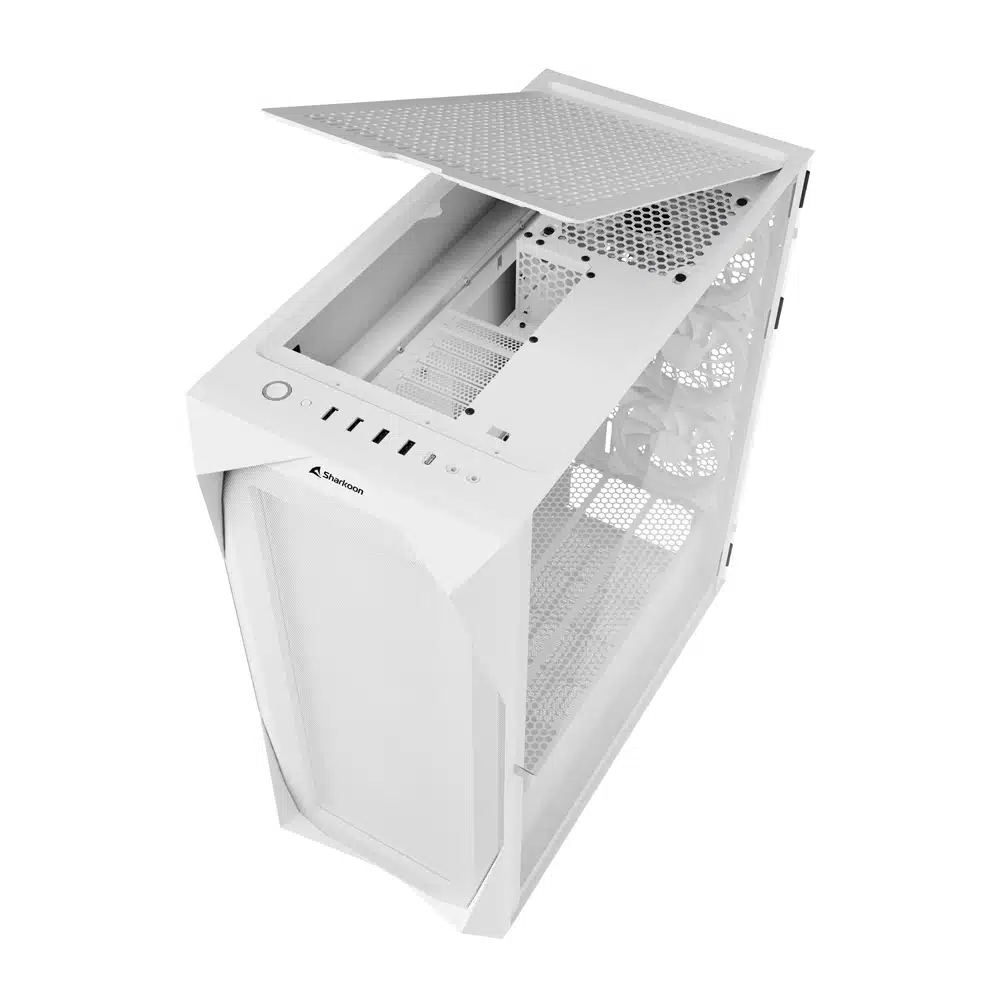

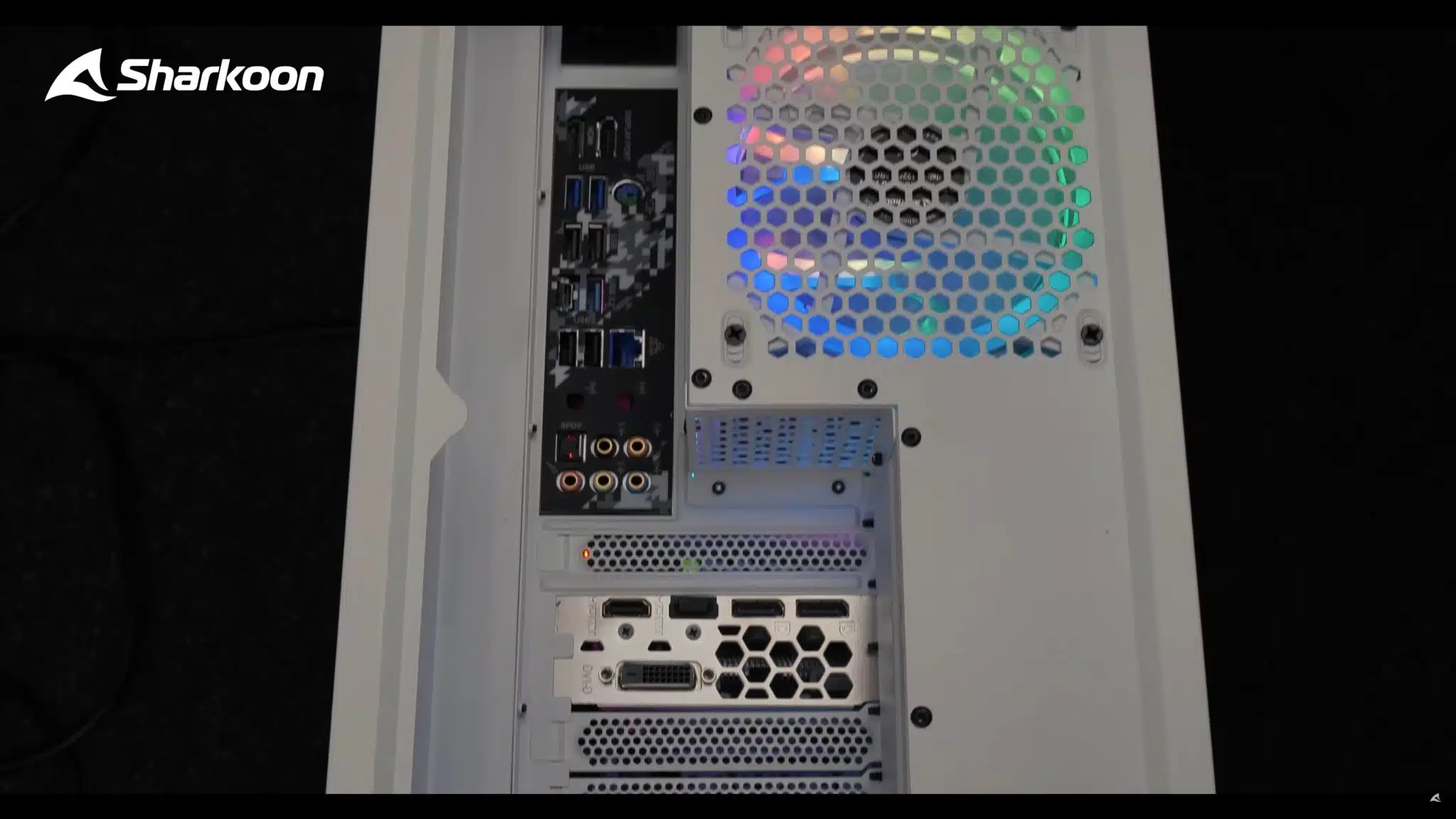

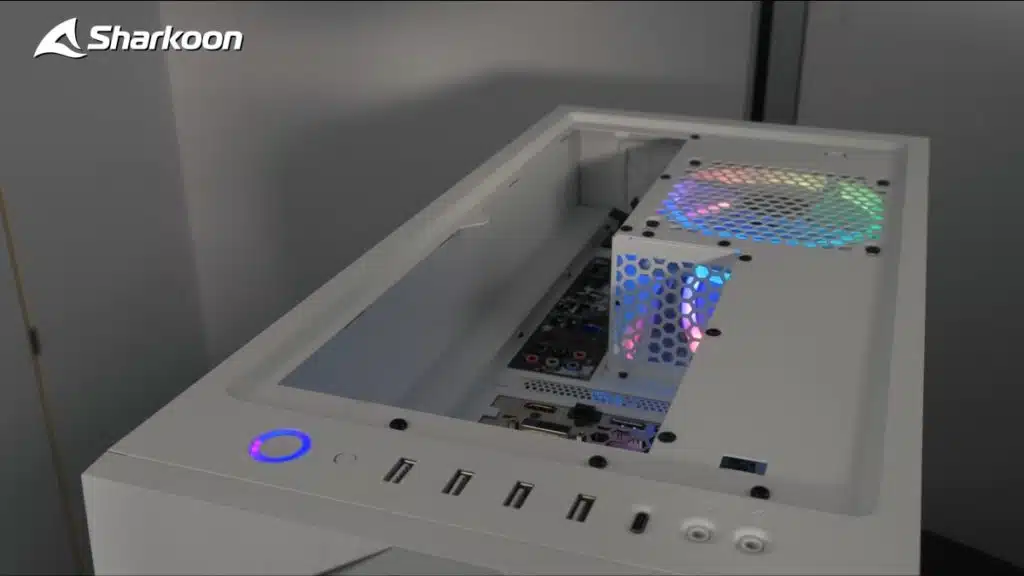

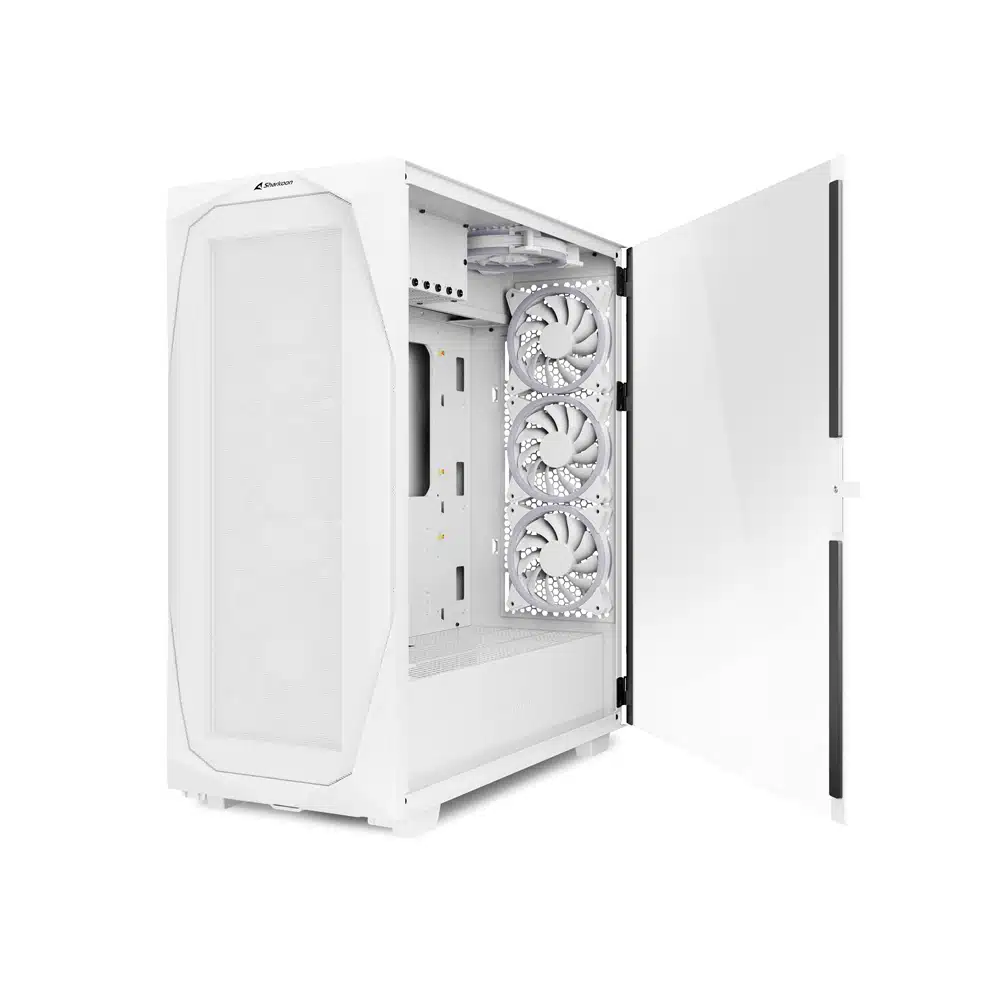

Sharkoon has unveiled its new REV300 White PC chassis giving enthusiasts another option for designing their builds. The REV300 White featured a somewhat unique approach by rotating the motherboard 90° to face the I/O ports upwards. The chassis then has a compartment on top to direct cabling toward the rear. An obvious advantage of this design is easier access to the various ports. Another is that the case then allows, per size requirements, the installation of a 360mm radiator in the rear and a 420 mm radiator in the front of the case. The REV300 White can fit up to an E-ATX motherboard. As Sharkoon announces the REV300 White it goes to show there are still some different ways of thinking inside the box.
Per Sharkoon (REV300 White overview page):

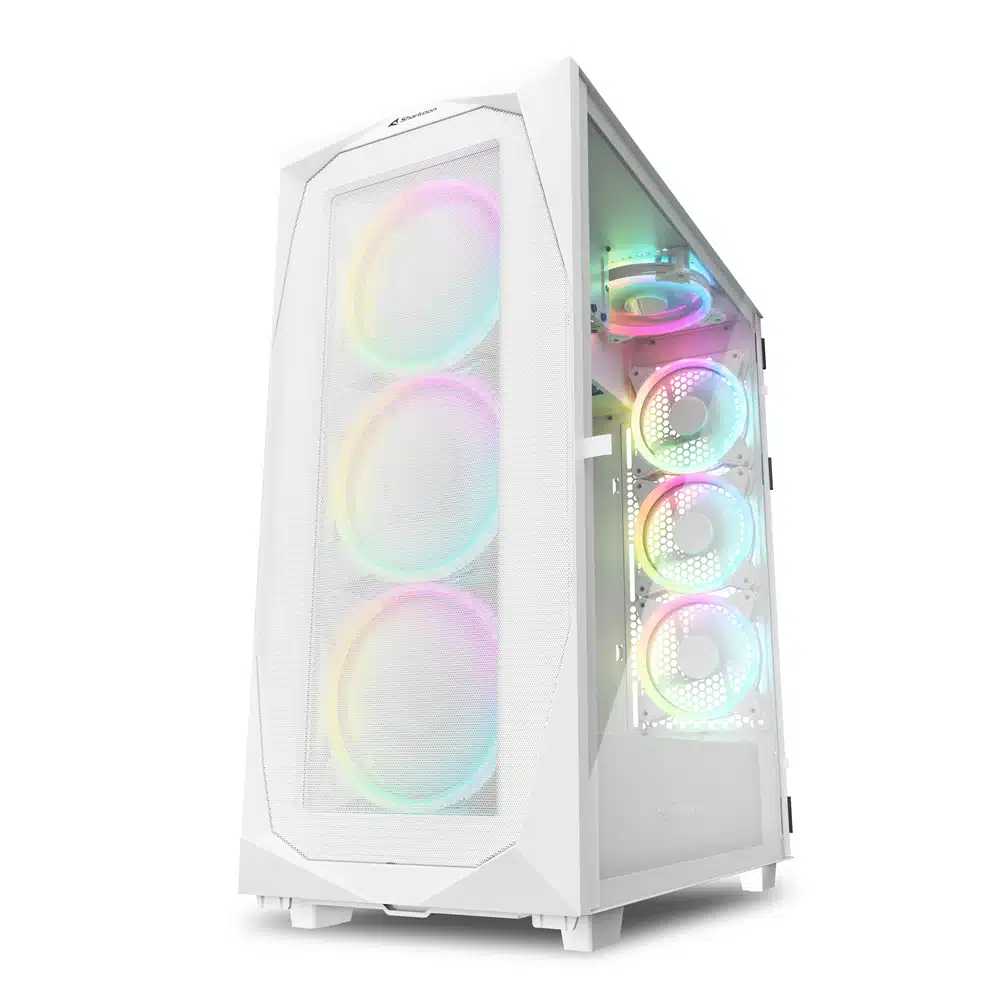

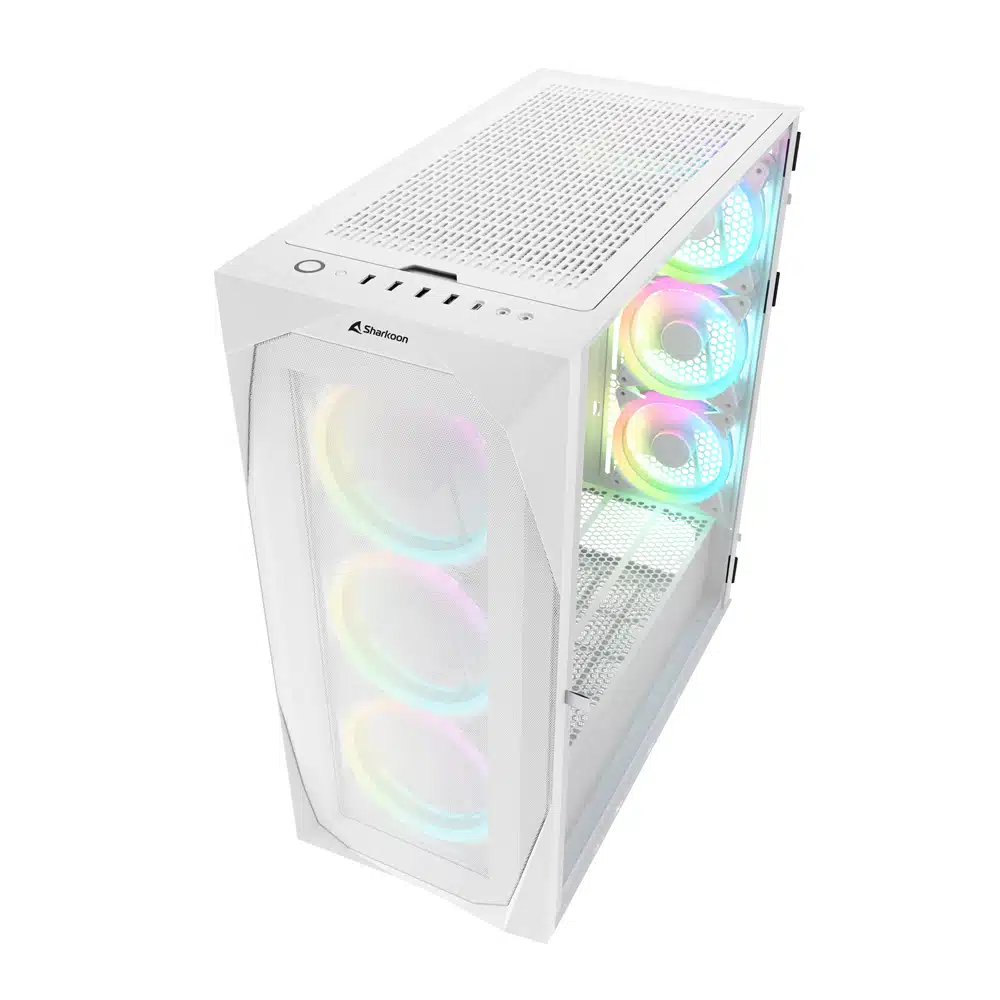

“Anyone who owns a demanding gaming system knows that the proper airflow is a must. The REV300 is best equipped for this. Seven fans are already pre-installed in the case, so that you are ready to start and can benefit from a maximum cooling of your hardware. A mesh grille extends over the entire front panel, clearing the way for plenty of air, which is fed through three 140 mm RGB LED fans. Three more 120 mm RGB LED fans are installed at the rear. Supplemented by an additional 120 mm RGB LED fan under the top panel, an efficient airflow is created that keeps systems cool even when running at full load. If water cooling is required, two radiators can be installed within the REV300 at the same time. A 360 mm radiator can be installed at the rear, while there is even space for a gigantic 420 mm radiator behind the front panel.”
General Specifications (per official page):
- Form Factor: ATX, E-ATX
- Expansion Slots: 8
- Cable Management System: Yes
- Side Panel: Tempered Glass Side Panel with Hinge and Magnetic Closure
- Weight: 10.4 kg
- Dimensions (L x W x H): 50.1 x 23.8 x 55.0 cm
- RGB Compatibility: Addressable (8 ports), 20 Manual Control Modes, Mainboard Compatibility: MSI Mystic Light Sync, ASUS Aura Sync, Gigabyte RGB Fusion Ready, ASRock Polychrome Sync. RGB pinout: 5V-D-G & 5V-D-coded-G
- Max. Drive Bays: 3.5″x 4, 2.5″x 5
- USB Ports: Type-C (USB 3.2 Gen 2)x 1, USB 3.0 (Top)x 2, USB 2.0 (Top)x 2
- Audio: Yes (top)
- Fan Configuration: Front Panel (3x 140 mm Addressable RGB LED PWM Fan (Pre-Installed) or Radiator (Optional)), Rear Panel (3x 120 mm Addressable RGB LED PWM Fan (Pre-Installed) or Radiator (Optional)), Top Panel (1x 120 mm Addressable RGB LED PWM Fan (Pre-Installed))
- Motherboard compatibility: Mini-ITX, Micro-ATX, ATX, E-ATX
- Max. Length Graphics Cards: 34.5 / 33.3 cm (Using the optional Angled Graphics Card Kit)
- Max. Height CPU Cooler: 17.7 cm
- Max. Length PSU: 27.0 cm
- Max. Height Radiator incl. Fan (Front): 7.4 cm / 5.7 cm (Using a 420 mm radiator)
- Max. Height Radiator incl. Fan (Rear): 6.5 cm
- Optional Accessories: SHARK Blades PWM, Angled Graphics Card Kit 3.0, Angled Graphics Card Kit 4.0
