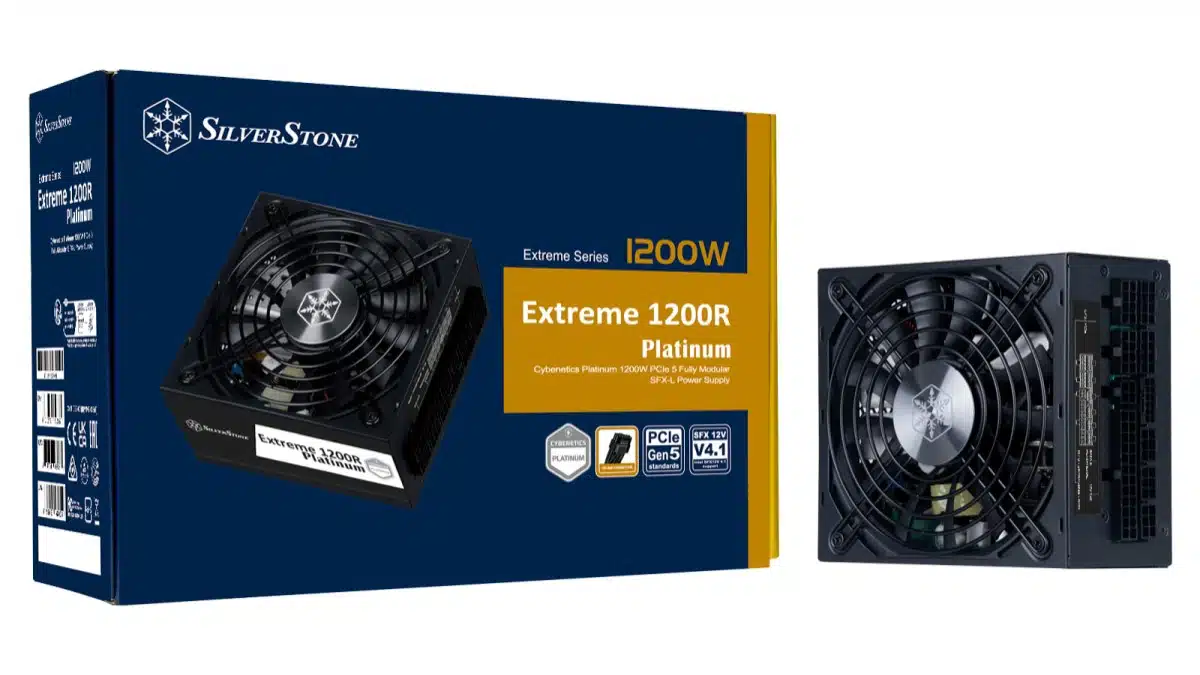

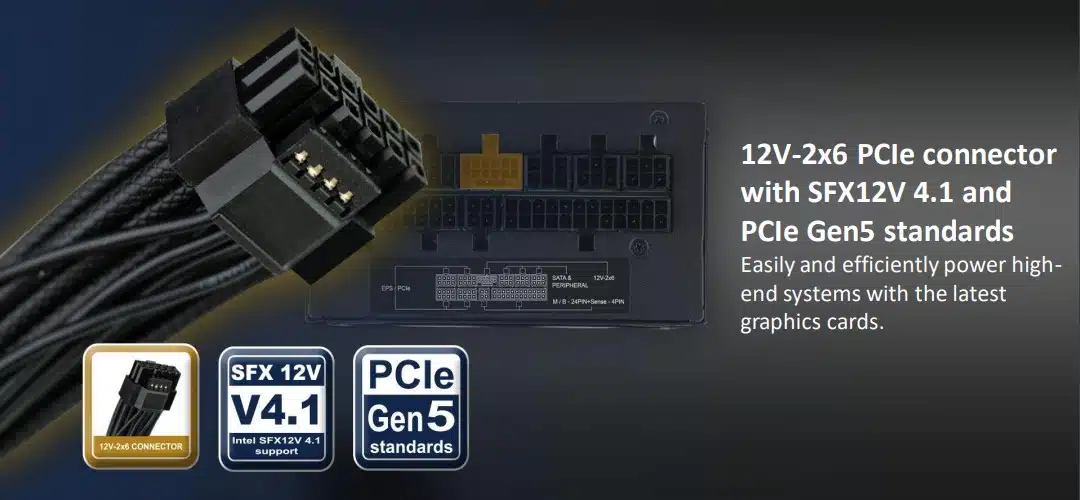

PC owners needing a high-capacity power supply with the new 12V-2×6 connector have another option as SilverStone announces its Extreme1200R Platinum PSU. The Extreme1200R gets SilverStone’s Cybenetics Platinum certification which means it’s up to 91% efficient for reduced power waste. The PSU is also PCIe Gen 5 and SFX12V 4.1 compliant making it both ideal for dynamic power usage events needed for modern graphics cards while being able to be installed in small form factor scenarios. Made with all Japanese capacitors the Extreme1200R also comes with a complete set of flat cables. The 120mm FDB fan can operate in a semi-fanless mode during non-intensive workloads for quiet environments.
Specifications (per product data sheet):
- Product Number: SST-EX1200R-PL
- Model (safety certification): SST-SL1200MCPT-A
- Color: Black (lead-free paint)
- Max. DC Output: 1200W
- Power density: 969W/L
- Combined +3.3V & +5V: 100W
- Combined +12V: 1200W
- Input Voltage: 90 ~ 264 Vrms
- Input Frequency Range: 47Hz ~ 63Hz
- PFC: Active PFC (PF>0.9 at full load)
- Efficiency: 89% ~ 91% overall efficiency
- MTBF:100,000 hours
- Operating temperature: 0°C ~ 50°C
- Protection: Over Current Protection, Over Power Protection, Over Voltage Protection, Short Circuit Protection, Over Temperature Protection
- Connectors: 1 x 24 / 20-Pin motherboard connector, 2 x 8 / 4-Pin EPS / ATX 12V connectors, 4 x 8 / 6-Pin PCIe connectors, 1 x 12+4-Pin 12V-2×6 connector, 8 x SATA connectors, 3 x 4-Pin Peripheral connector, 1 x 4-Pin Floppy connector
- Cooling System: Silent 120mm FDB fan
- Form factor: SFX-L
- Noise Level: 0 ~ 36 dBA
- Dimension: 125mm (W) x 63.5mm (H) x 130mm (D), 4.92” (W) x 2.5” (H) x 5.12” (D)
- Weight: 1.39 kg
- Certification: Cybenetics Platinum
As Silverstone announces its Extreme1200R Platinum it has not yet indicated MSRP or launch date(s). However, with CES 2024 right around the corner more information is likely to be revealed and it could be on display there.
