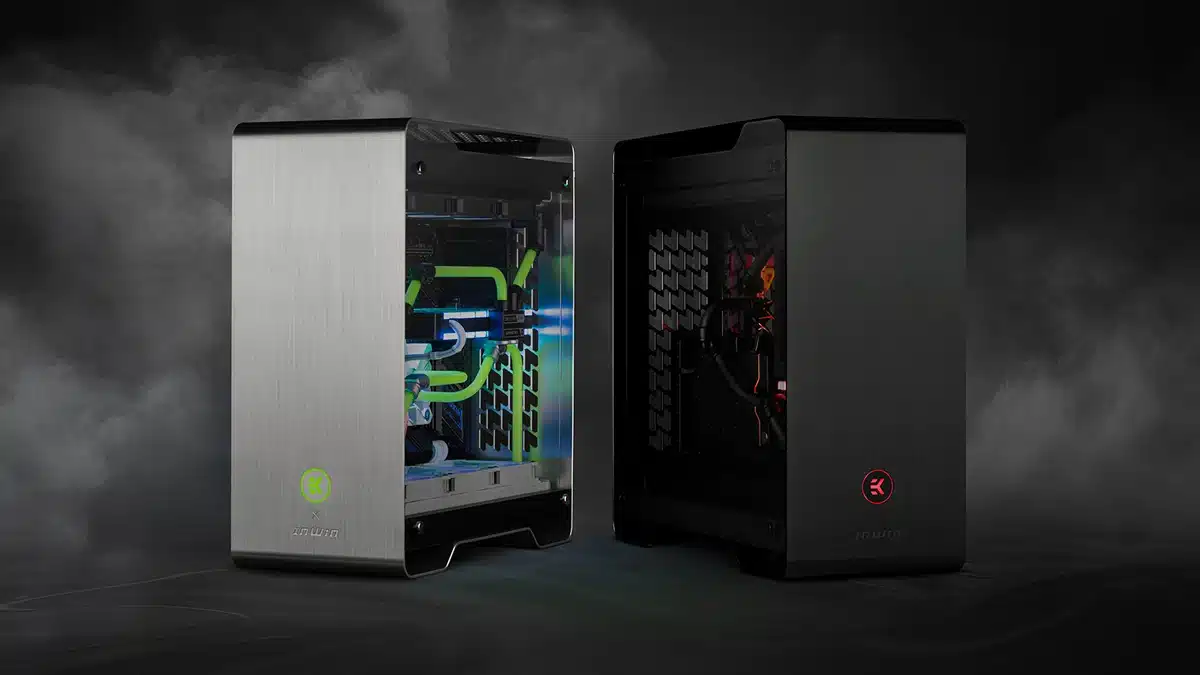

EKWB has published a video showcase for the EK-Quantum InWin 977EK, a new water-cooling-focused PC case that was designed in collaboration with the Taiwanese PC case and PSU manufacturer. Features include two 420 mm radiators; dedicated mounts for pumps, reservoirs, and combo units; and even an RGB-lit capacitive on/off button, all of which EK says delivers the ultimate user-friendly experience for custom loop liquid cooling enthusiasts.
Pricing:
Tech specs:
- Dimensions (W x D x H): 525 x 250 x 575mm
- Color: Black
- Tinted Tempered Glass Panels: Yes
- Power Supply Compatibility: ATX up to 285mm
- Motherboard Compatibility: E-ATX, ATX, Micro-ATX, Mini-ITX
- Maximum GPU Length: 330mm
- Maximum GPU Width: 190mm (184mm to be removable via rails through the back)
- Storage Drive Maximum Thickness: 26.4mm
The maximum radiator length is 360 or 420mm, even supporting longer X-Flow variants. A Slim series Surface radiator will sit flush with the mounting frame of the case, and a P series 44mm thick radiator combined with 25mm fans will fit with no issues. To be more specific, the top side has a clearance of 75mm until hitting the motherboard tray, while the bottom has 89mm. This means there is room for a 58mm thick X series Surface radiator and 29mm fans in the bottom. Still, EK recommends the maximum thickness of radiators to be 45mm, which translates to a P series 420mm radiator as the recommended maximum.
