Seasonic Native 12V-2×6 Cable Delivers Up to 600 Watts of Power for the Latest Graphics Cards, including NVIDIA GeForce RTX 40 Series

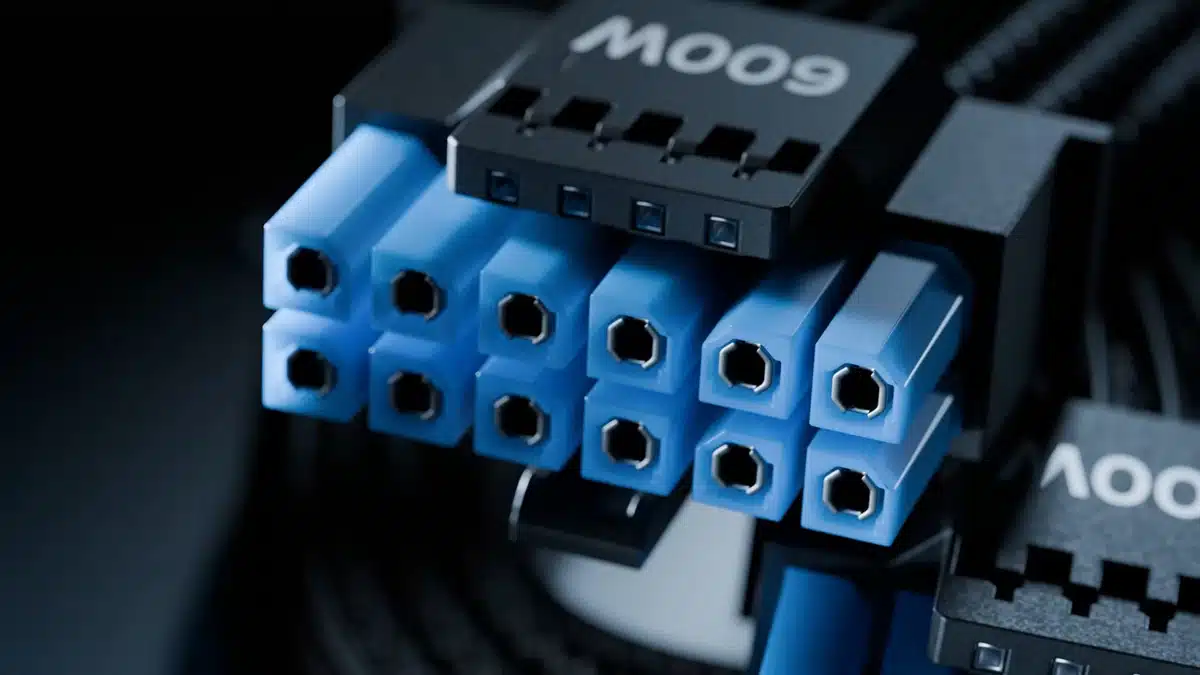

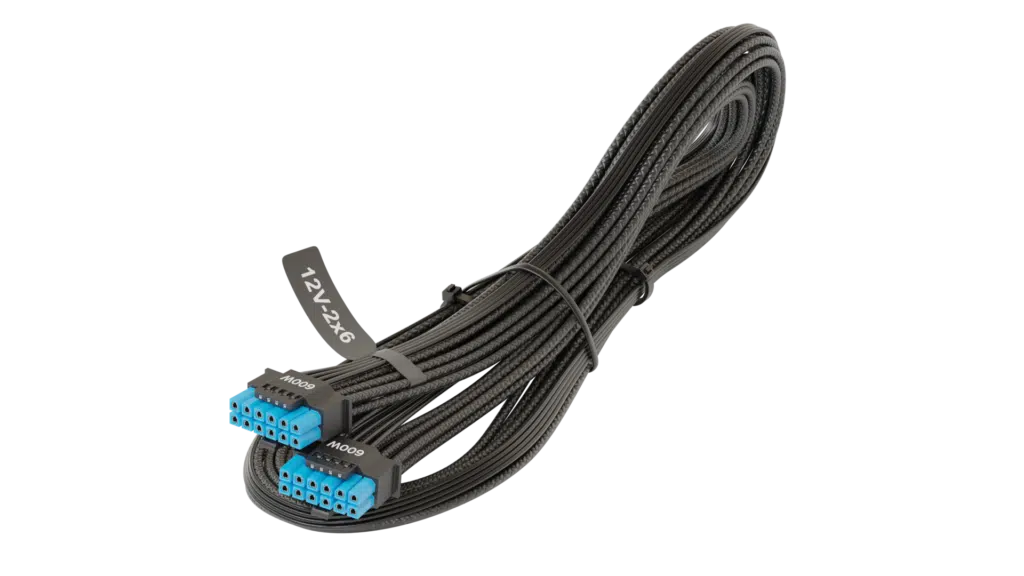

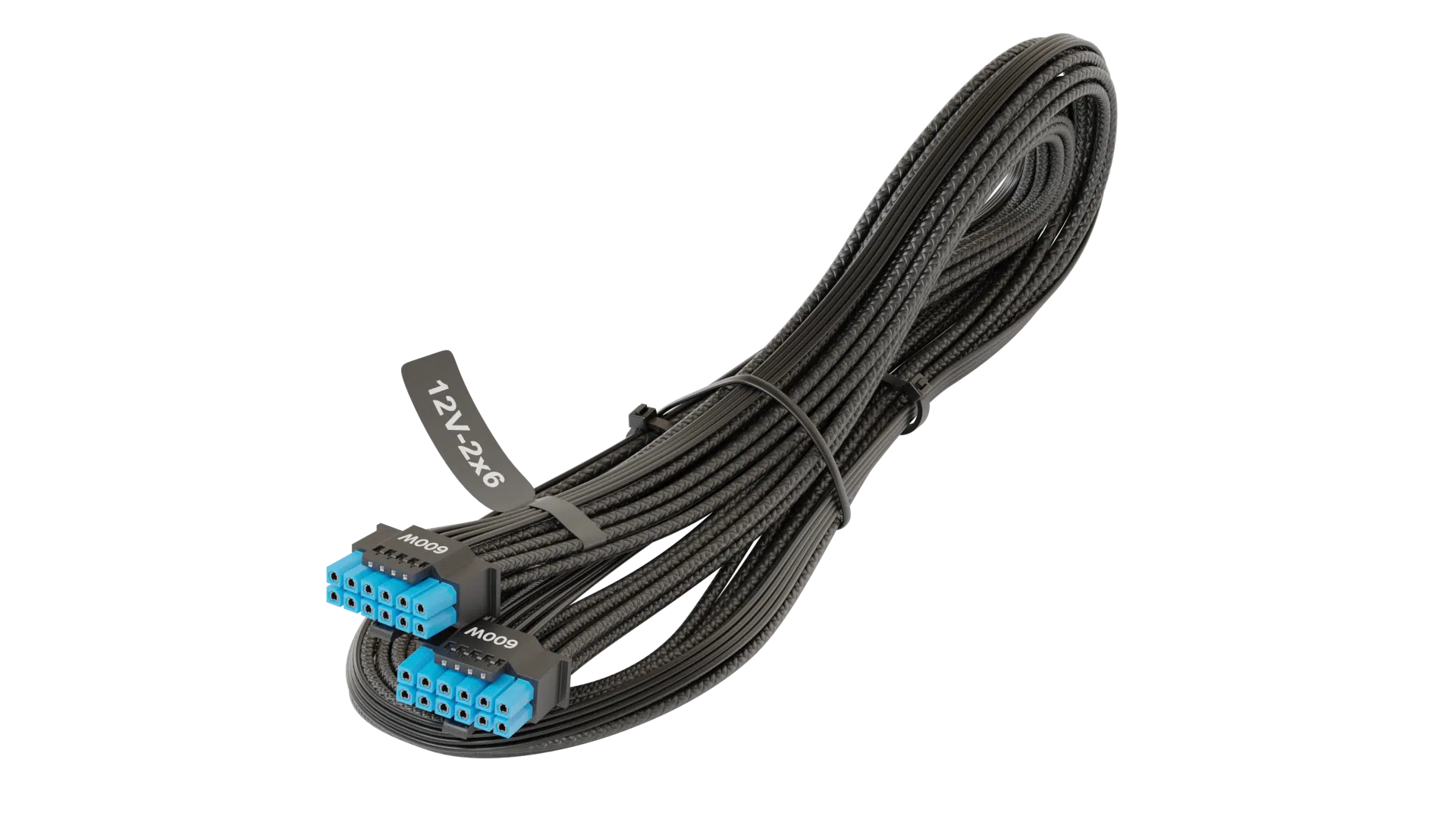

Seasonic has launched the Native 12V-2×6 Cable, a new native 12V-2×6 to 12V-2×6 cable with high-quality materials (e.g., high-current terminal connectors, 16 AWG wires) that offers up to 600 watts of power for today’s high-performance GPUs, including NVIDIA’s GeForce RTX 40 Series. Designed for a “lifetime of 50 mating cycles,” this cable supports all of the Seasonic ATX 3 power supplies that are currently available on the market.

Specs:

• Connectors: 12V-2×6 to 1x 12V-2×6 – High-current terminal connectors
• Gauge: 16AWG
• Length: 700 mm
• Warranty: 2 Years
• Color: Black

Special features:

• Compliant to ATX 3 and PCIe 5
• The 12V-2×6 format is backwards compatible with 12VHPWR
• 12V-2×6 connector (GPU side) to 12V-2×6 connector (PSU side)Maximum 600 W rated power
• 16 AWG (American Wire Gauge) size
• HCS (High-Current System) terminals with 94V-0 plastic material for 8-pin housing
• Designed for a lifetime of 50 mating cycles, a normal standard for connectors
• With Seasonic blue colored connector for improved safety
• Compatible with any ATX 3 Seasonic power supply above 650 W
• Not compatible with any ATX 2 Seasonic power supply

Compatibility recommendations:

• Power supply requirement:
  • Any Seasonic ATX 3 power supplies
    • The native 12V-2×6 cable that is provided with your Seasonic power supply is rated at 600 W. This means the maximum allowable power pull from the power supply by the VGA can be up to 600 W. If your VGA is very power usage intensive, then please consider power supplies that are rated at 750 W and higher.
• Compatible series:
  • Seasonic PRIME TX ATX 3.0
  • Seasonic PRIME PX ATX 3.0
  • VERTEX GX, PX, GX White and Sakura
  • FOCUS GX and GX White ATX 3.0
• Not Compatible series:
  • Any Seasonic ATX 2 Power Supplies

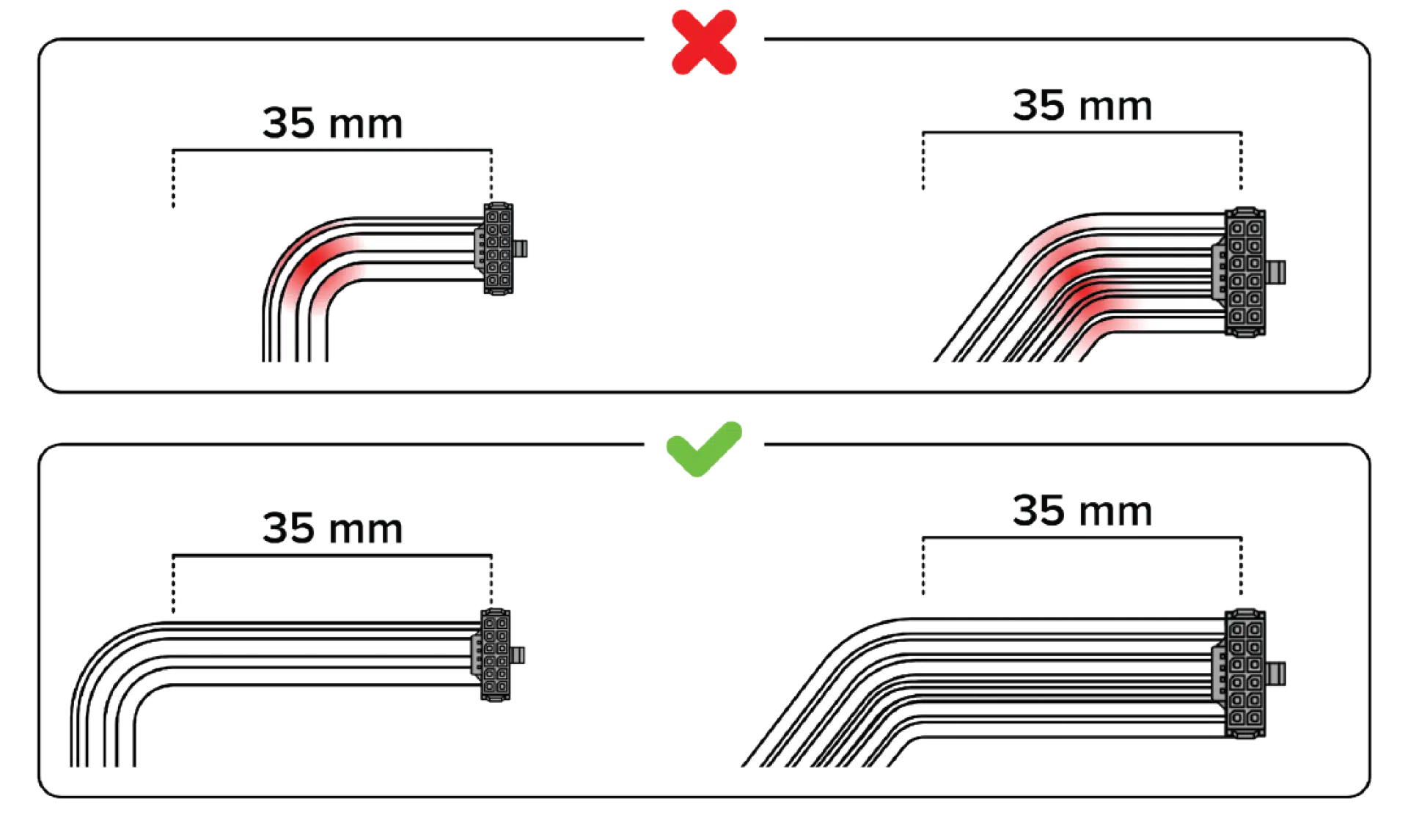

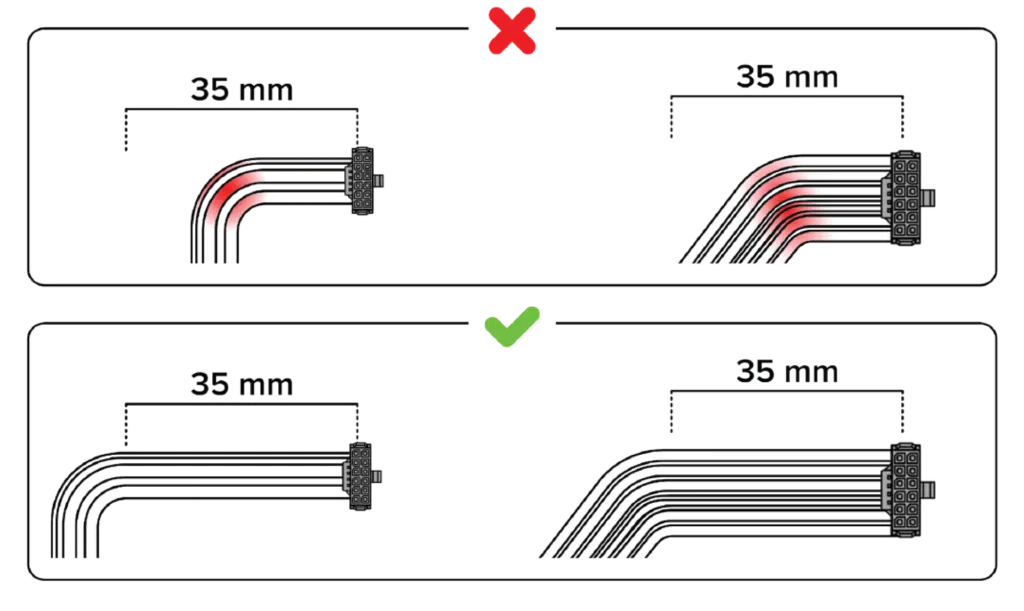

Seasonic’s warning against close bending:

Feature showcase:

With the RTX 40-series GPU’s leading the way of the newest generation of high-performing graphics cards, Seasonic stays ahead of their increasing power requirements by producing versatile power cables with H++ connectors that enable safe and easy connectivity.

Source
