ENERMAX has announced the launch of the REVOLUTION D.F. 12, a new PSU that is said to be the world’s smallest ATX 3.1 power supply, featuring a depth of only 122 mm. These fully modular, 80 PLUS GOLD certified PSUs feature a single 12V-2×6 connector and a switch for activating D.F.R., short for dust-free rotation technology.
Models/colors:
- 750W Black ($129.99)
- 850W Black ($139.99)
- 850W White ($149.99)

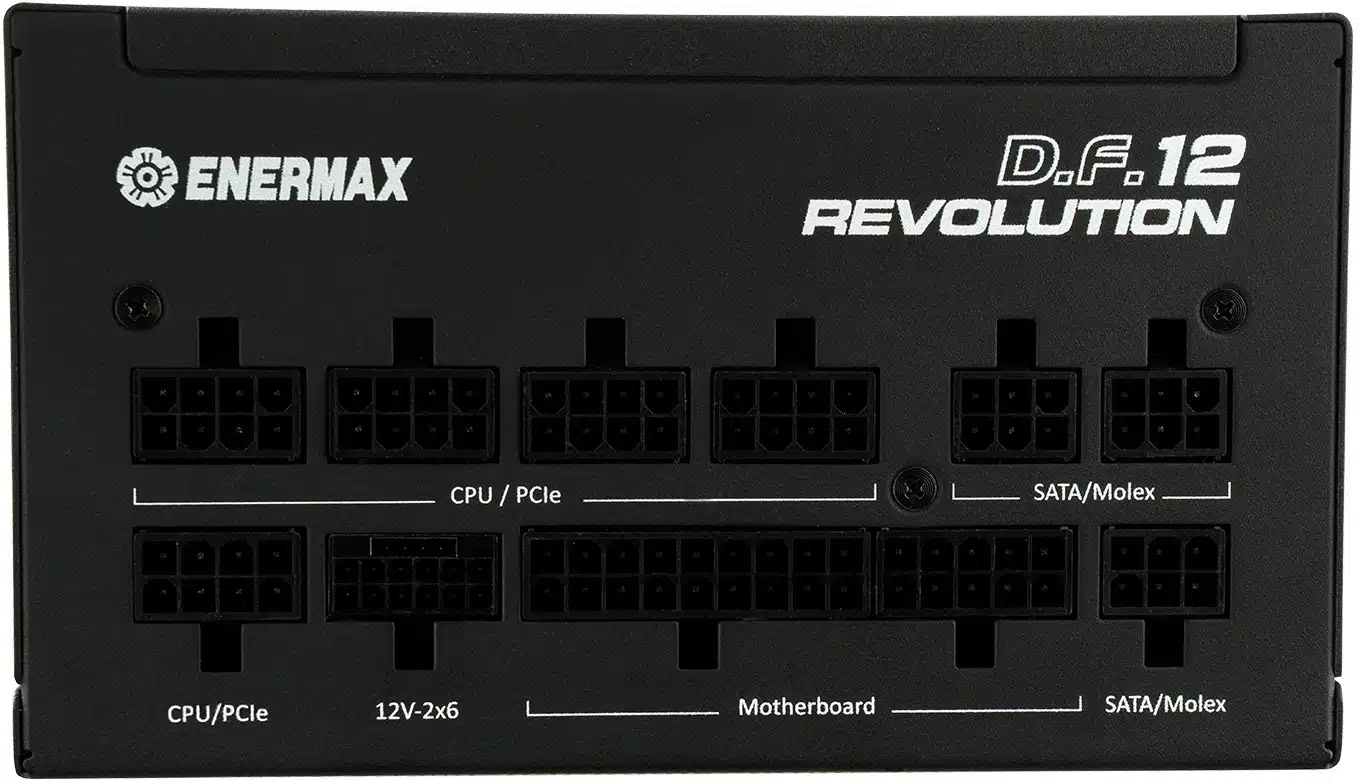

Cables/connectors:
| Motherboard 24 (20+4) pin | 1 [ 1x 60cm ] |
| CPU 4+4 Pin | 2 [Â 2 x 70cm ] |
| 12V-2×6 12+4 pin | 1 [ 1x 60cm ] |
| PCIe 6+2pin | 3 [Â 3 x 60cm ] |
| SATA | 8 [ 2 x 45/15/15/15cm ] |
| 4P Molex | 4 [ 1 x 45/15/15/15cm ] |
Features:

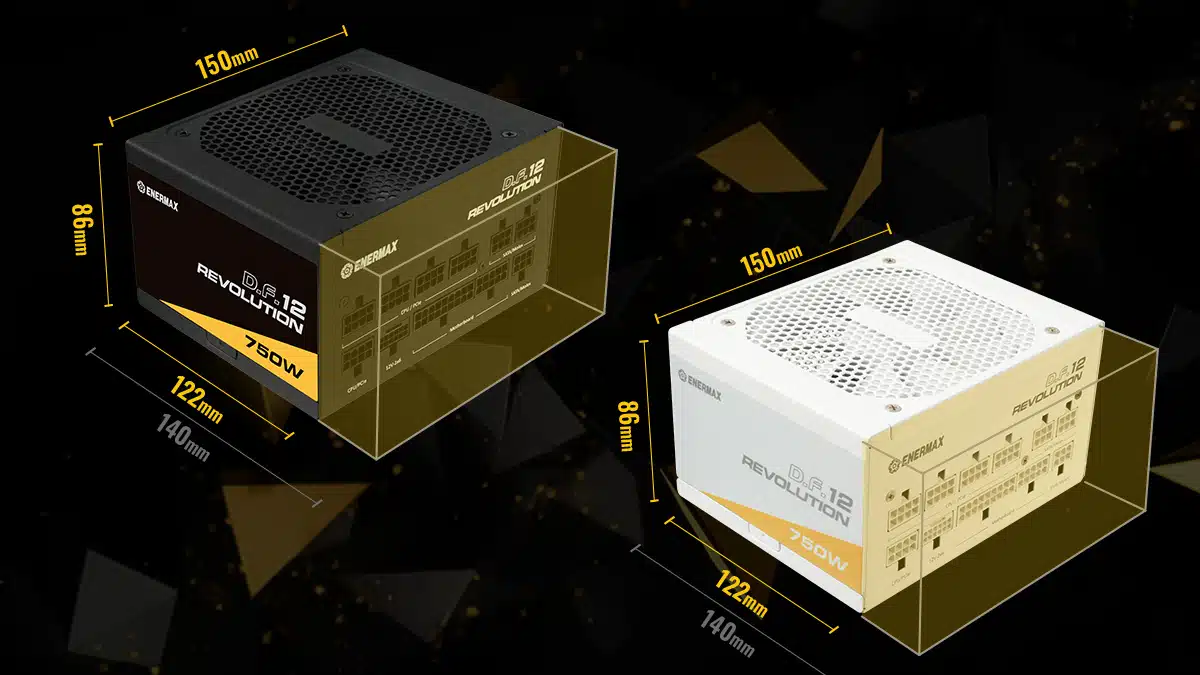

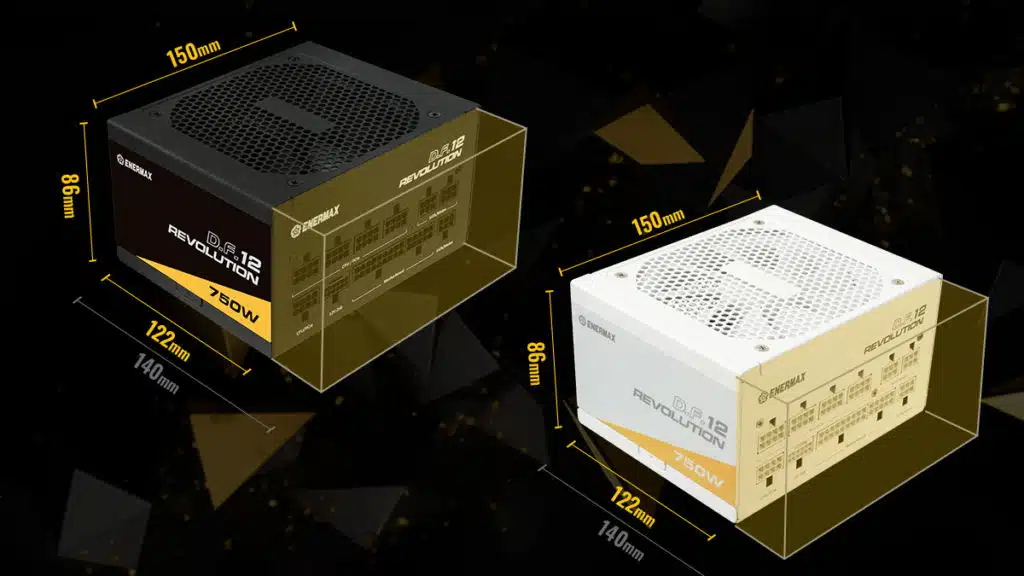

- Among the Smallest ATX PSUs with 122mm in depth
- ATX3.1 Ready with Native 12V-2×6 Cable
- Up to 235% Power Excursion
- Dust-Free Rotation Tech. for Ultra Cleanness
- Fully Modular 80 PLUS Gold Certified
- Industrial-grade 100% Japanese Capacitors
- Optimal Semi-Fanless Tech. with Zero-RPM Under 50% Load
ENERMAX on its PSU:
This design maximizes space for airflow within PC cases while delivering robust power in line with the ATX 3.1 specifications, including up to a 235% power excursion. Equipped with a 600W 12V-2×6 cable, the REVOLUTION D.F. 12 ensures uncompromised performance for high-end graphics cards and cutting-edge AI computing. The REVOLUTION D.F. 12 also fits seamlessly into micro ATX cases, providing ample room for efficient cable management.
Committed to sustainable computing, REVOLUTION D.F. 12 offers a highly technical power solution aimed at enhancing power conversion efficiency and reducing carbon emissions. This commitment to sustainability is further demonstrated in the product’s shipping and packaging innovations. The REVOLUTION D.F. 12 features an innovative 115mm dual-ball bearing fan with ENERMAX’s patented Dust-free Rotation (D.F.R.) technology, providing a self-cleaning function and an activated switch button to enhance system longevity by minimizing dust accumulation inside the power supply. The power supply operates in fanless mode when under 50% load, ensuring complete silence at low and medium workloads. Additionally, users will be able to manually activate the D.F.R. function using the D.F.R. switch button, which can also serve as a power-on indicator.
The REVOLUTION D.F. 12 series is available in both black and white versions, offering PC enthusiasts different choices to match their system aesthetics. It includes premium mesh-sleeved cables that are flexible for effortless routing and comes with a cable comb kit to maintain a tidy build. The white version stands out with its sleek, all-white design from the chassis and fan to the cable connectors and cable combs.
