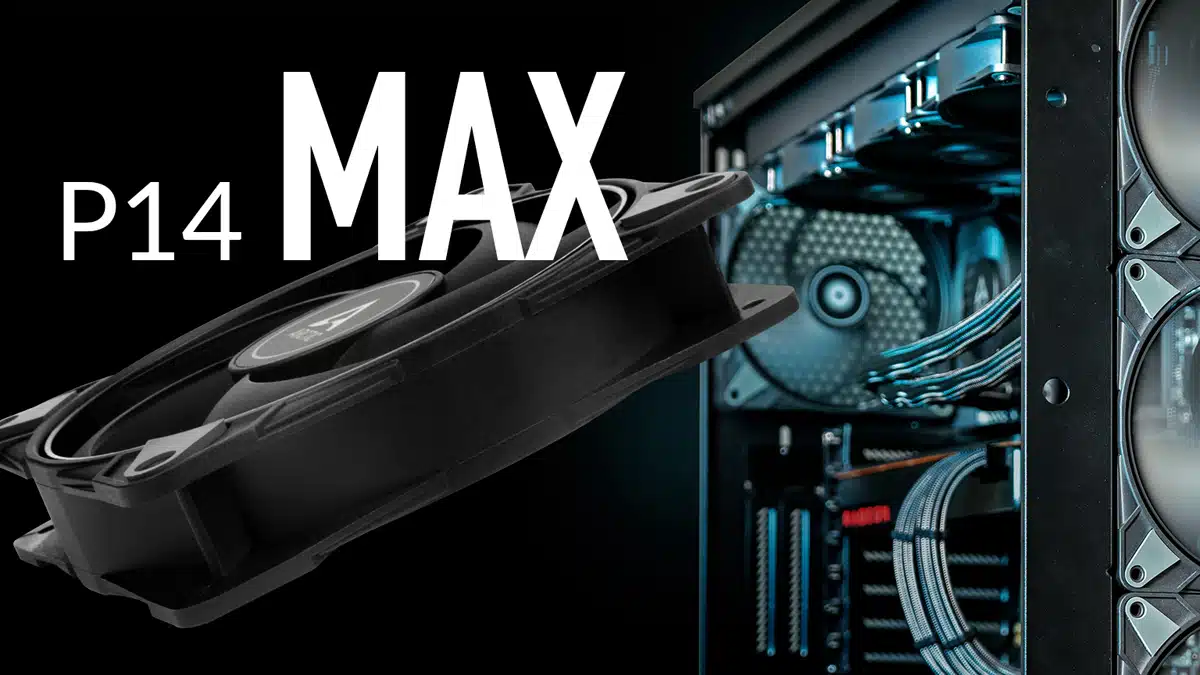

ARCTIC has launched the P14 MAX, expanding its existing series of high-performance fans with a powerful 140 mm option that features speeds from 400 to 2,800 RPM. Highlights include a closed ring fan wheel for low-vibration rotation, and the ability to deliver a focused airflow with high static pressure.
Store links (Amazon):
- Single fan ($12.99)
- Five pack ($59.99)
General specs:
- Dimensions: 140 (L) x 140 (W) x 27 (H) mm
- Net weight: 245 g
- Operating ambient temp: 0–40 °C
- Warranty: 6 years
Fan specs:
- Fan speed: 400—2800 rpm (PWM controlled), 0 rpm below 3 % PWM
- Airflow: 95,00 cfm | 161,40 m³/h
- Static pressure: 4,18 mmH2O
- Fan bearing: Fluid Dynamic Bearing
- Typical voltage: 12 V DC
- Start-up voltage: 3.9 V DC
- Current: 0.35 A
- Cable length: 400 mm
- Connector: 4-pin PWM
ARCTIC on its new fan:
The P14 Max impresses above all with its extremely wide speed range, which extends from a minimum of 400 to a maximum of 2800 rpm. It’s equipped with a Fluid Dynamic Bearing, allowing for near-silent operation at low speeds, while at the same time guaranteeing brutal performance when it’s needed.
As ARCTIC’s most powerful 140 mm fan, it provides a significant leap in performance over existing air- and water-cooling solutions. Like the P-Max models already introduced, the high-speed fan is also characterized by proven features such as the closed ring fan wheel for low-vibration rotation and a focused airflow at high static pressure.
