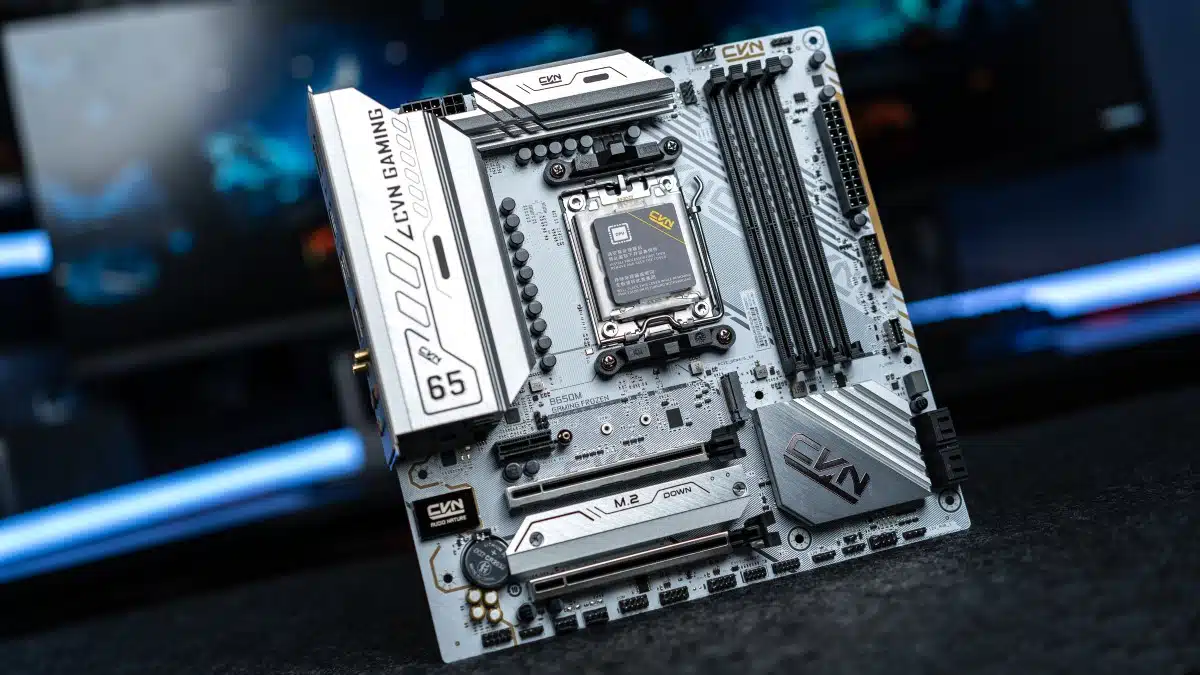

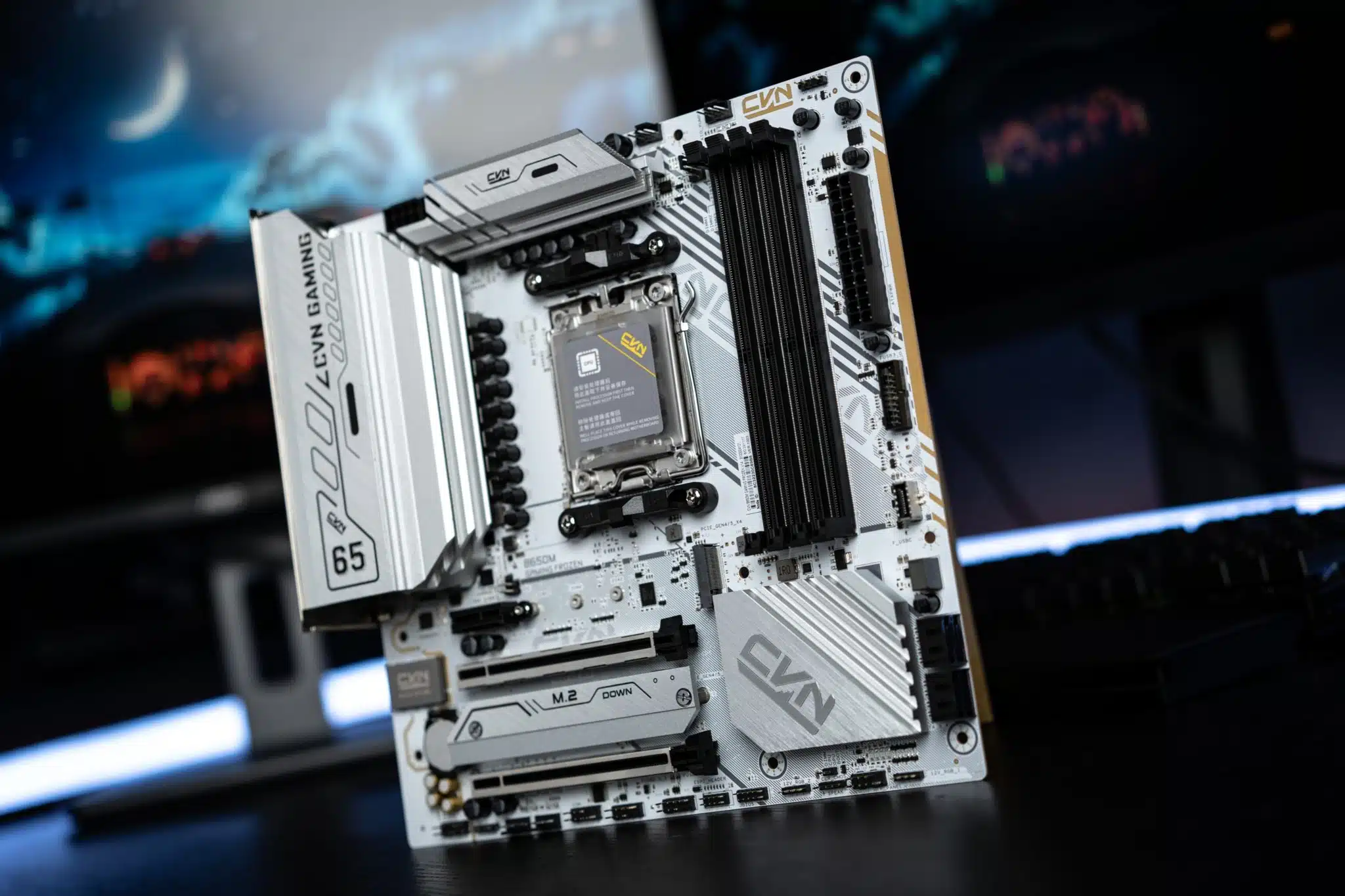

COLORFUL has launched the CVN B650M GAMING FROZEN V14 M-ATX motherboard for the AM5 socket with support for Ryzen AI and 7000/8000 Series CPUs. The CVN B650M GAMING FROZEN V14 is a budget-friendly model featuring a custom white theme. Up to 192 GB DDR5-7600 is supported and includes 2x M.2 PCIe 5.0 slots. Network connectivity includes AX200 WiFi 6, Bluetooth 5.2, and 2.5 Gbit LAN. Display connectivity includes 1x HDMI 1.4 and 1x DP 1.2. Power for the B650M is provided by a 12+2+1 power phase solution which is a slight step down from its non-M counterpart which features a 16+2+1 phase design but can go for as much as $100 higher.
The CVN B650M GAMING FROZEN V14 has yet to make it to more mainstream outlets but could arrive on Newegg soon. It can currently be found on Ali Express for ~$162.77.
Specifications (via Official Product Page)
- Model: CVN B650M GAMING FROZEN V14
- Product Series: CVN series
- Chipset: AMD B650
- Processor Supports AMD Ryzen 7000 series processors that fit the AMD AM5 slot of the motherboard
- Memory 4 DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory, * Please visit www.colorful.cn for the latest memory compatibility list)
- Support DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory
- Support Extreme Memory Profile (XMP) memory technology and dual channel memory technology
- SATA Ports 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 RAID with SATA or M.2 NVMe hard disk devices
- M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel)
- M.2_2 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel)
- Board I/O Rear I/O : 4×USB 2.0, 2×USB 3.2 Gen 1 Type-A, 1×USB 3.2 Gen 2 Type-A, 1×USB 3.2 Gen 2 Type-C, 1×DP 1.2, supporting up to 4K 60Hz resolution, 1×HDMI 1.4, Supports up to 4K 30Hz resolution
-1×2.5G, 2×Wi-Fi 6 antenna, 6×Audio interfaces (audio input/audio output/microphone), 1×BIOS update button - On board: 1×CPU fan pin, 3×System fan pins, 1×water cooling pump pin, 2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces, 1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces, 1×USB 3.2 Gen 1 Type-C slot expandable 1 USB 3.2 Gen 1 Type-C interface, 2×5V 3-pin ARGB pins, 2×12V 4-pin RGB pins, 1×Front audio pin, 1×Front panel pin, 1×Speaker pin, 1×Clear CMOS jumper, 1×COM port pin, 1×BIOS burner pin, 1×POST card pin
- Expansion Slots: 1×PCIe 5.0 x16 slot, 1×PCIe x16 slot (supports PCIe 4.0 x4 specifications)
1×PCIe 4.0 x1 slot - BIOS 128M UEFI, support multiple languages
- Power Management Support: S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot
- Hardware Monitor: CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
- Network: LAN RTL8125 2.5Gbit LAN, AX200 WiFi 6 wireless network card, Bluetooth 5.2
- Audio: Audio Realtek ALC897 high fidelity decoding chip, Support up to 7.1 channels
- Form Factor: M-ATX
- Dimensions: 245mm x 245 mm
Press Release:
“Colorful Technology Company Limited, a leading brand in gaming PC components, gaming laptops, and HiFi audio products, proudly presents the CVN B650M GAMING FROZEN motherboard. This motherboard is our first AMD AM5 motherboard that supports the AMD Ryzen 7000 Series and the latest AMD Ryzen 8000 Series processors that feature the groundbreaking AMD Ryzen AI technology as well as support for AVX-512.
Supports Latest AMD Ryzen Processors
The CVN B650M GAMING FROZEN supports the latest AMD Ryzen 8000G Series APUs with AMD Ryzen AI technology. It also supports the AMD Ryzen 7000 and AMD Ryzen 7000 X3D Series processors with 3D V-Cache Technology, as well as support for the future AM5 processors.
AMD Ryzen AI
AMD Ryzen AI* brings the power of personal computing closer to you on an AI PC, unlocking a whole new level of efficiencies for work, collaboration, and innovation so that you can stay connected better with the world around you.
Robust Performance
The CVN B650M GAMING FROZEN features a 12+1+1 digital power phase design with 55A DrMos and 10K black gold solid capacitors providing a robust power delivery, supporting up to powerful AMD Ryzen 9-level processors.
Aesthetic Inside and Out

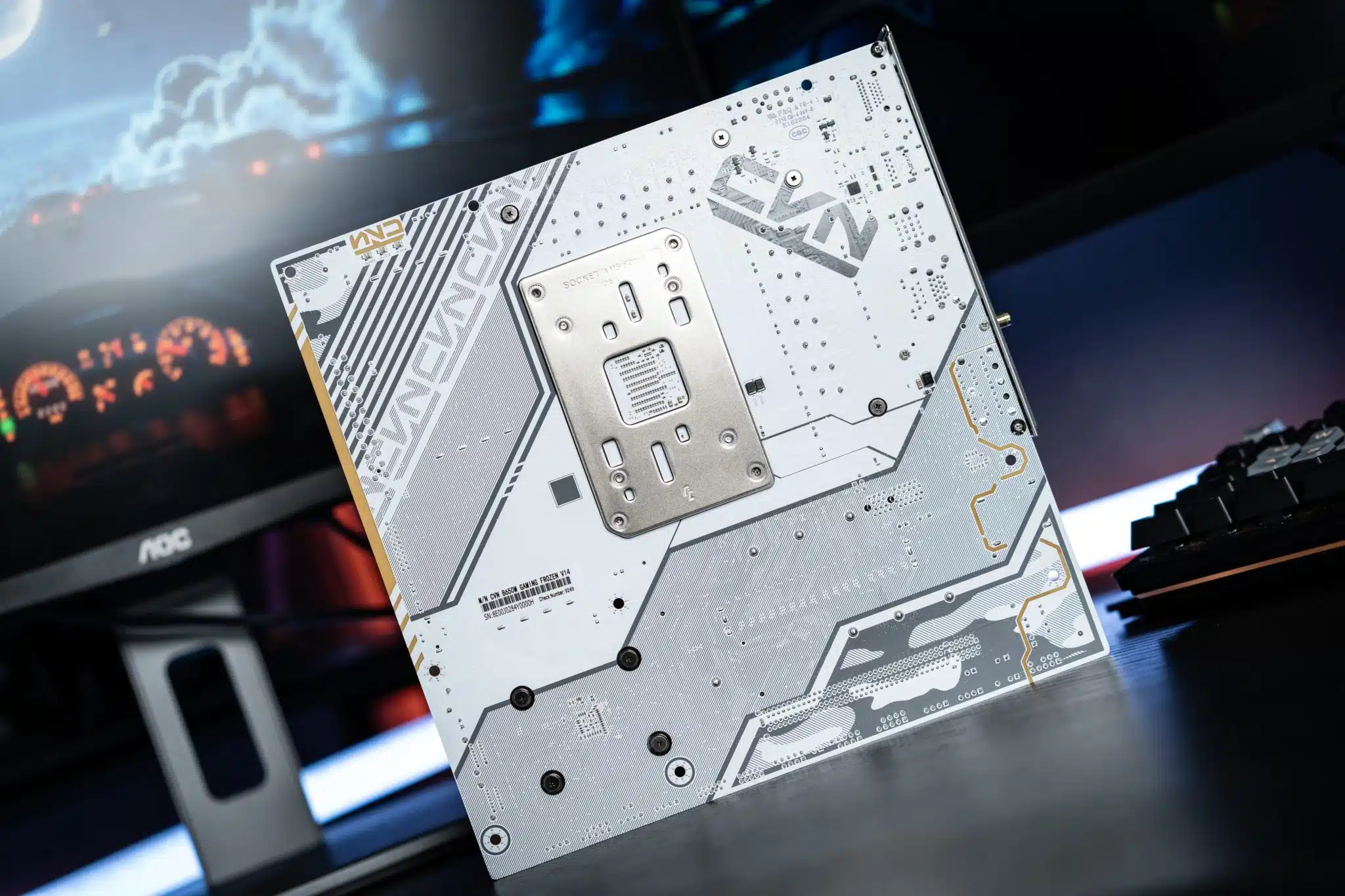

The CVN B650M FROZEN WIFI sports the signature military inspired white on silver camo style design which extends to the back of the motherboard. The RGB LED-lit CVN logo on the upper-right of the motherboard completes the gaming look of the motherboard which can be synchronized with other RGB components using the iGame Center app.”
