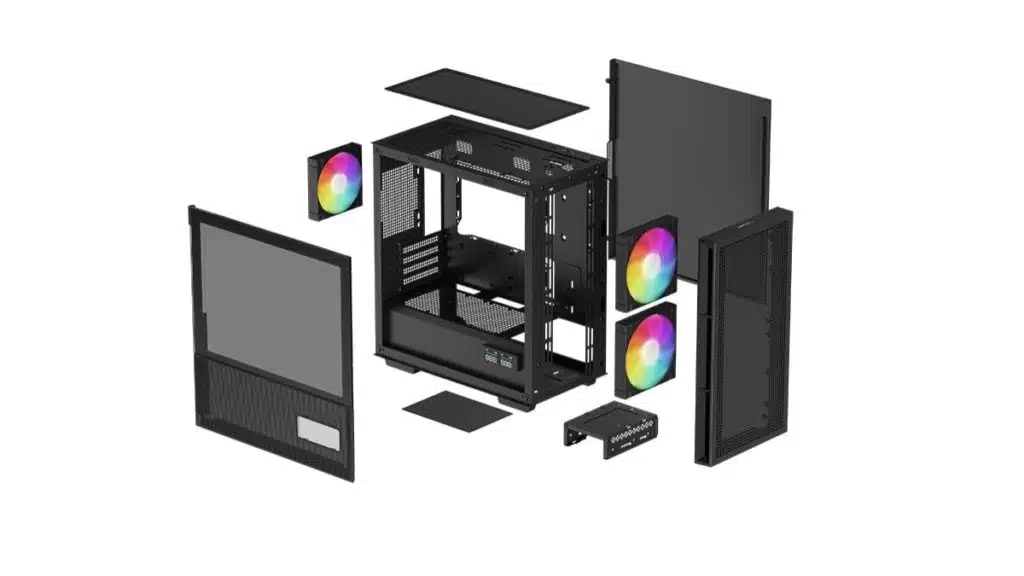

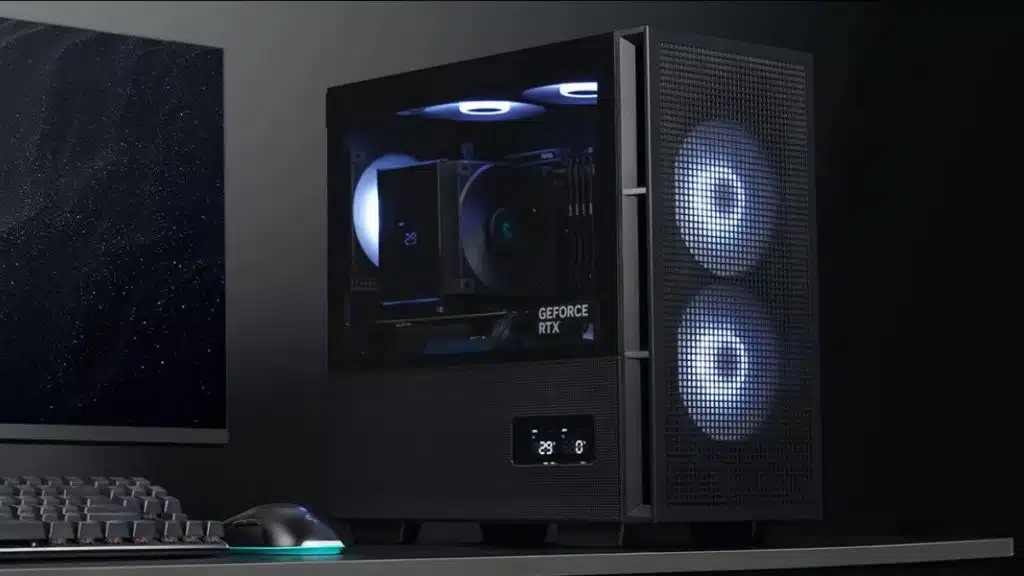

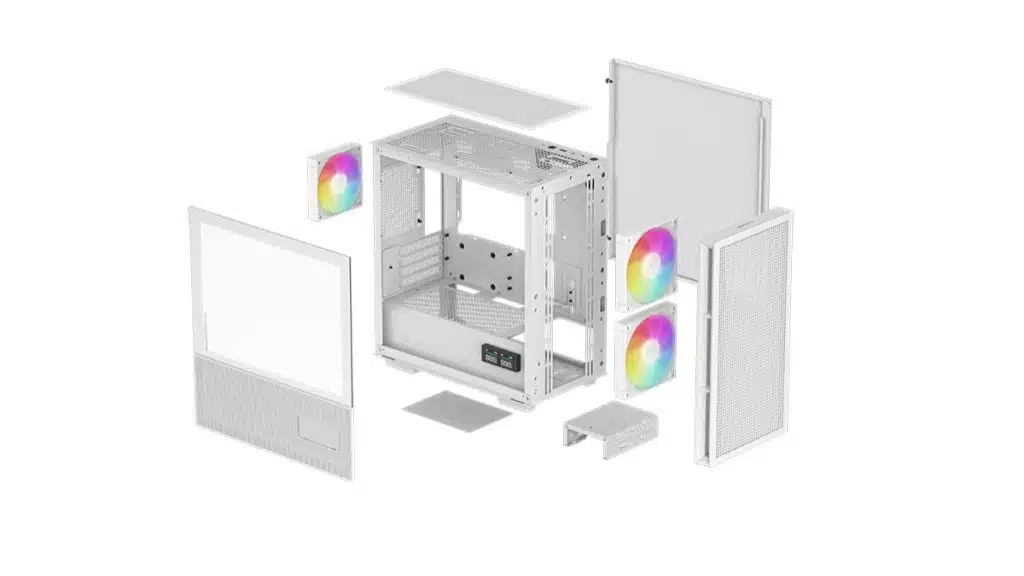

DeepCool has launched a new range of mATX cases designed to occupy less space and provide optimal cooling while looking stylish for PC users with either black or white builds. The DeepCool CH360 Digital has a hybrid mesh/tempered glass side panel for increased airflow featuring a software-configurable digital display for monitoring CPU and GPU statistics. The DeepCool CH360 Digital comes preinstalled with 2x 140mm ARGB PWM fans in the front and 1x 120mm ARGB PWM fan in the rear of the case.
CPU air coolers up to 165 mm tall can be installed and for those interested in liquid cooling solutions radiators up to 360 mm (front)/240 mm (top)/120 mm (rear) are supported. The DeepCool CH360 Digital can accommodate moderately large-sized GPUs of up to 320 mm, and power supplies up to 160 mm, in length. Other features include removable magnetic air filters, a removable drive cage, an adjustable GPU support arm, and cable management options. The top I/O panel includes a USB 3.0 and Type-C port along with an audio jack and power/LED buttons.
Per DeepCool:
“The next generation of airflow cases from DeepCool has arrived, and they are indeed glorious. The CH360 DIGITAL is a newly designed mATX case with a concentrated focus on increased airflow throughout the entire chassis.”
Specifications (via product page)
| Product Dimensions | 428×215×431mm(L×W×H) |
| Net Weight | 6 KG |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX |
| Front I/O Ports | USB3.0×1、Audio×1、TYPE-C×1 |
| 3.5″ Drive Bays | 2 |
| 2.5″ Drive Bays | 2+1 |
| Expansion Slots | 4 Slots |
| Pre-Installed Fans | Front: 2×140mm ARGB Rear: 1×120mm ARGB |
| Fan Support | Front: 3×120 / 2×140mm Top: 2×120 / 2×140mm Rear: 1×120mm PSU Shrouded: 2×120mm |
| Radiator Support | Front: 120/140/240/280/360mm Top: 120/140/240mm Rear: 120mm |
| CPU Cooler Height Limit | 165mm |
| GPU Length Limit | 320mm |
| Power Supply Type | ATX PS2 （maximum length: 160mm） |
| EAN | 6933412774693 |
| P/N | R-CH360-BKAPE3D-G-1 |
