The X600TM-ITX, a new Thin Mini-ITX motherboard that is said to be the world’s first to feature support for AMD AM5 Socket processors, including the Ryzen 8000 and Ryzen 7000 Series, is coming to retailers, ASRock has announced. Thin Mini-ITX is a form factor that Intel introduced over a decade ago, designed for all-in-one PCs with standout features that include thinner I/O shields and on-board power connector.
Key features include:
- Supports AMD AM5 Socket CPUs (Ryzen 8000 and 7000 Series Processors, up to 65W)
- Supports Intel CPU Cooler
- Supports Dual DDR5 6400+(OC)MHz memory, Max. 96GB
- Multi Video Outputs: Dual HDMI, one DisplayPort, one LVDS
- Quad Storage Devices: Dual Hyper M.2 Socket (PCIe Gen4 x4 & SATA 6Gb), Dual SATA 6Gb
- Abundant USB Ports:
- 1 USB 3.2 Gen1 Type-C port
- 1 x USB 3.2 Gen2 Type-A Port
- 2 x USB 3.2 Gen1 Ports

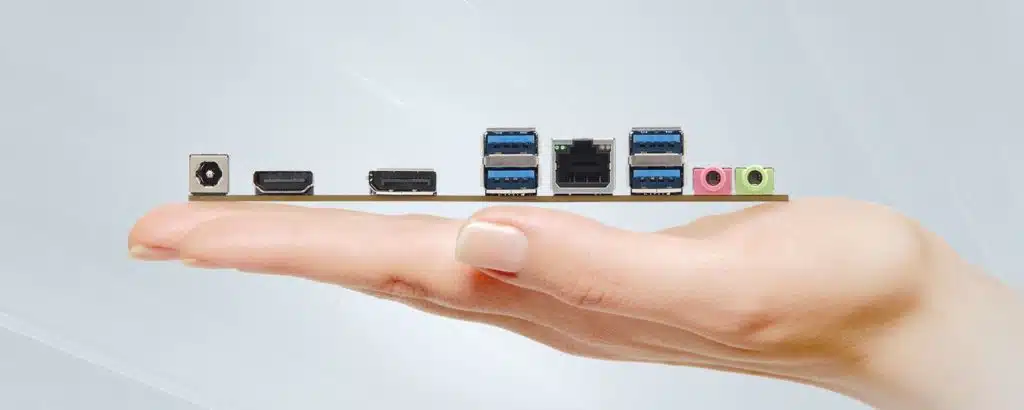

A look at the thinness of the motherboard:
ASRock on the X600TM-ITX:
Exceptional Performance with AMD AM5 Processors: The X600TM-ITX stands out as the first thin mini ITX motherboard compatible with AMD AM5 series processors in the world. This compatibility ensures unprecedented performance, allowing users to experience faster computing speeds, better multitasking capabilities, and improved overall efficiency. Ideal for those who demand power in a compact form factor, the X600TM-ITX sets a new standard in motherboard technology.
Advanced Memory Support: Supporting dual channel DDR5 memory up to 6400+(OC)* with a maximum capacity of 96GB, the X600TM-ITX offers blazing-fast data processing and seamless multitasking. This advanced memory capability ensures that users can run complex applications smoothly, whether for gaming, content creation, or professional tasks.
Eight Flexible I/O Configurations for Customizable Connectivity: The X600TM-ITX motherboard features a Flexible I/O Design, allowing users to tailor their I/O configuration to meet specific requirements. Our innovative co-lay setup provides up to eight customizable I/O configurations, such as swapping DisplayPort for D-sub, converting HDMI to HDMI and DisplayPort, or changing Type-C to Type-A. This ensures that users get the precise connectivity solutions they need, enhancing the versatility and functionality of the system.
Versatile Connectivity and Storage Options: The X600TM-ITX features comprehensive connectivity options with six display outputs, allowing users to flexibly choose four. In addition to the default LVDS, the available options include two HDMI ports, two DisplayPort, and one VGA, giving customers the flexibility to customize their display setup. This versatile configuration supports multiple monitors, enhancing productivity and delivering an immersive entertainment experience. Furthermore, the motherboard supports four storage devices, including two SATA3 connectors and two Hyper M.2 sockets, providing ample space and faster data access for quick boot times and efficient file management.
Optional TPM 2.0 and DASH LAN for Enhanced Security and Management: For users prioritizing security and remote management, the X600TM-ITX offers optional TPM 2.0 and DASH LAN. TPM 2.0 provides hardware-based security, protecting sensitive data and enhancing network security. Meanwhile, DASH LAN enables secure out-of-band and remote management, ensuring efficient and reliable system administration.
