Power – Temp – GPU Clock Frequency
Power

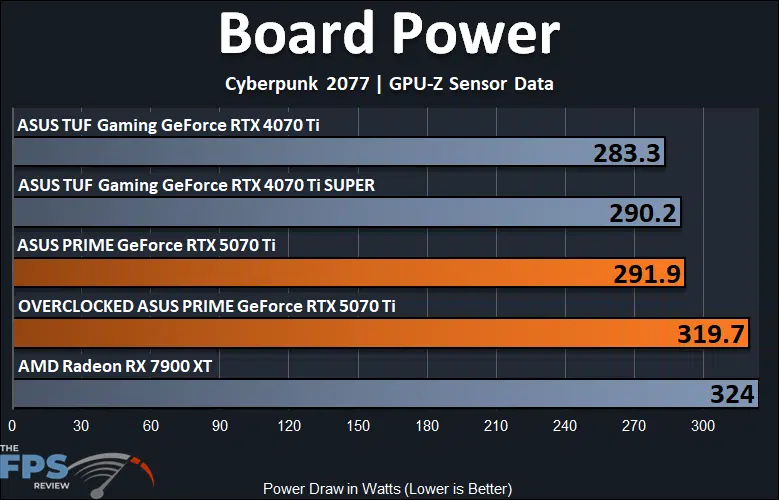

The TGP of the GeForce RTX 5070 Ti is 300W. According to our power testing, the ASUS PRIME GeForce RTX 5070 Ti hit 291.9W at its highest, and this was pushing 4K in Cyberpunk 2077 as well. We tested both 1440p and 4K, and 4K had the highest board power result and temp results right here at 292W. This puts it on par with the GeForce RTX 4070 Ti SUPER in terms of power utilization. Given that the ASUS PRIME GeForce RTX 5070 Ti was faster than the GeForce RTX 4070 Ti SUPER in testing, this proves a more efficient design with the RTX 5070 Ti.
When we overclocked the ASUS PRIME GeForce RTX 5070 Ti we saw the power increase by 10%. This falls right in line with the performance increase we also experienced from overclocking, so this follows a pretty even curve of power to performance when overclocking.
Temperature

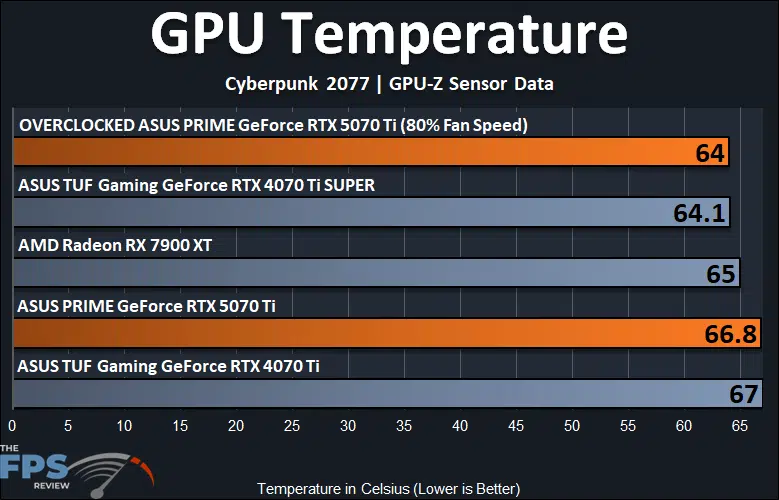

Looking at temperature, the ASUS PRIME GeForce RTX 5070 Ti ran at about 66.8c at its highest peak temperature, so basically on par with the ASUS TUF Gaming GeForce RTX 4070 Ti design. This was warmer than the ASUS TUF Gaming GeForce RTX 4070 Ti SUPER. Just keep in mind the comparisons here are to the TUF Gaming series, and this is the PRIME series. There is a TUF Gaming RTX 5070 Ti that ASUS makes. With the card overclocked, and fans set to 80%, temps were only 64c.

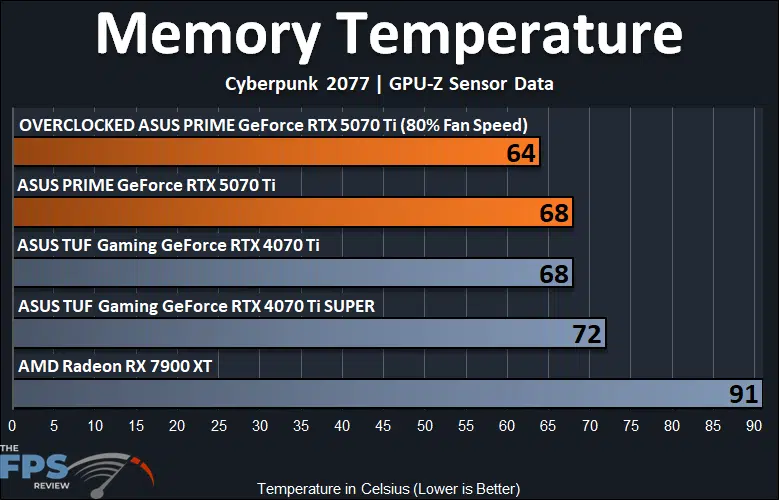

We also wanted to look at the memory temperature. The ASUS PRIME GeForce RTX 5070 Ti ran at a much cooler 68c compared to the ASUS TUF Gaming GeForce RTX 4070 Ti SUPER. This put it on par with the ASUS TUF Gaming GeForce RTX 4070 Ti. The Radeon RX 7900 XT is just out of control with its memory temps there, wowzer. At any rate, the ASUS PRIME GeForce RTX 5070 Ti’s memory runs at an acceptable temperature.
GPU-Z and HWiNFO64 Screenshots

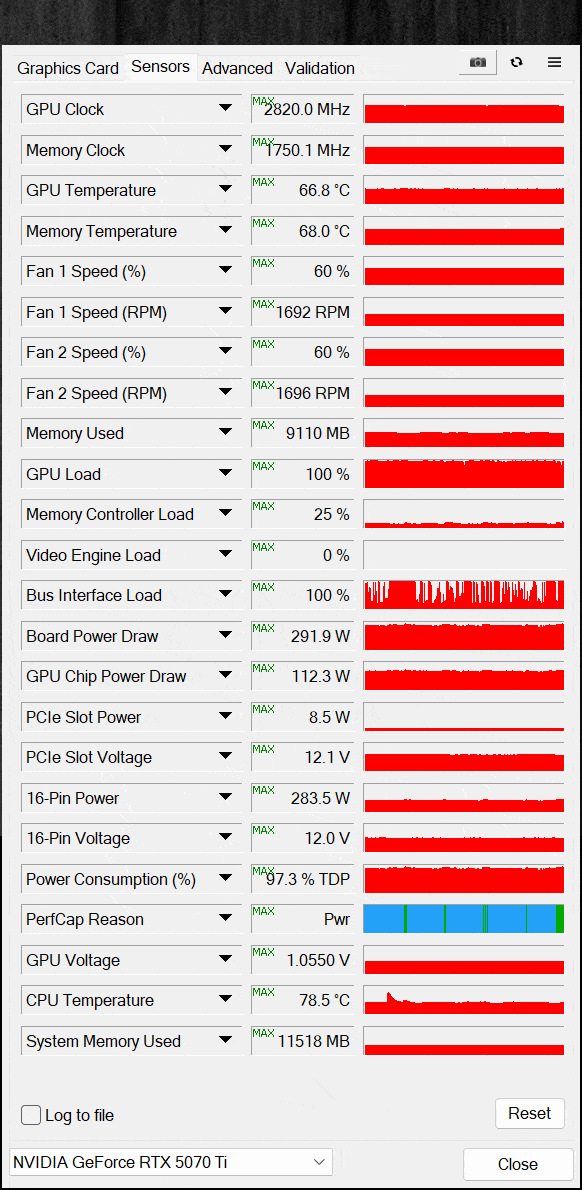

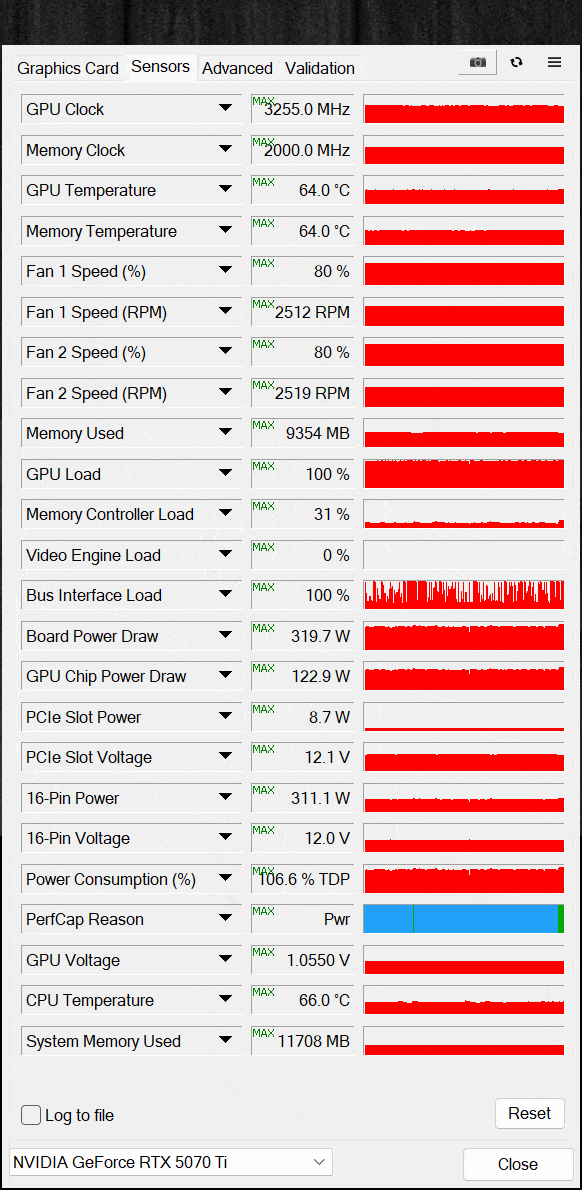

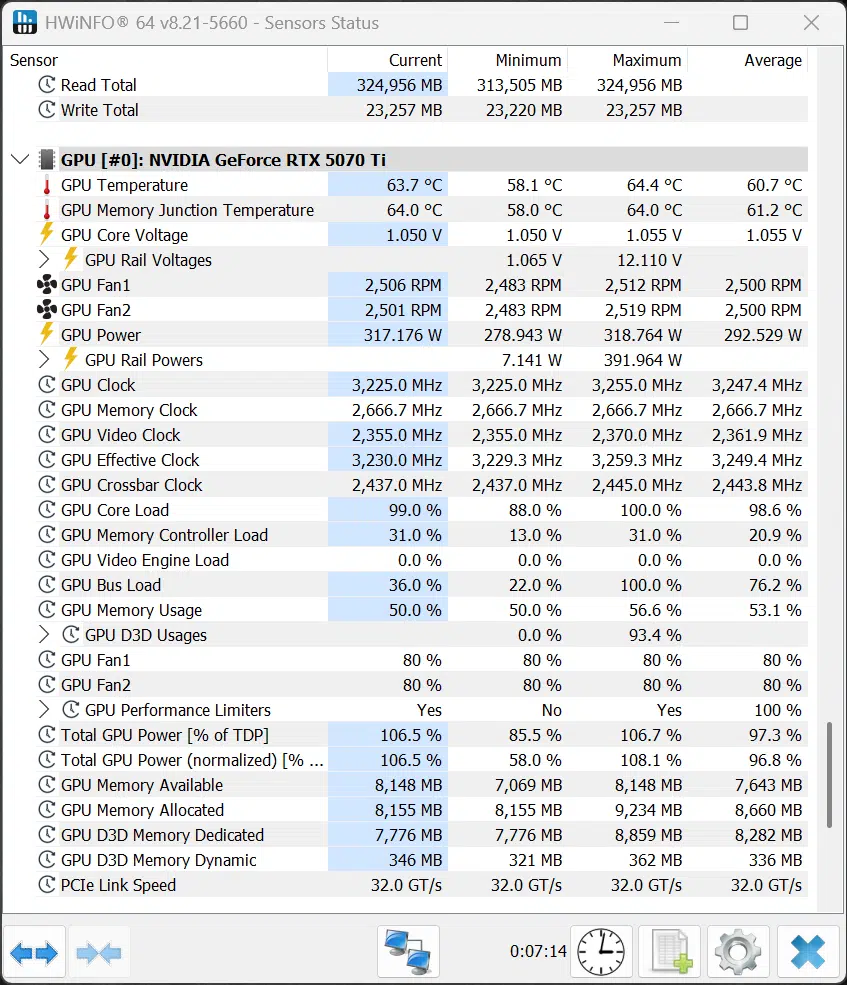

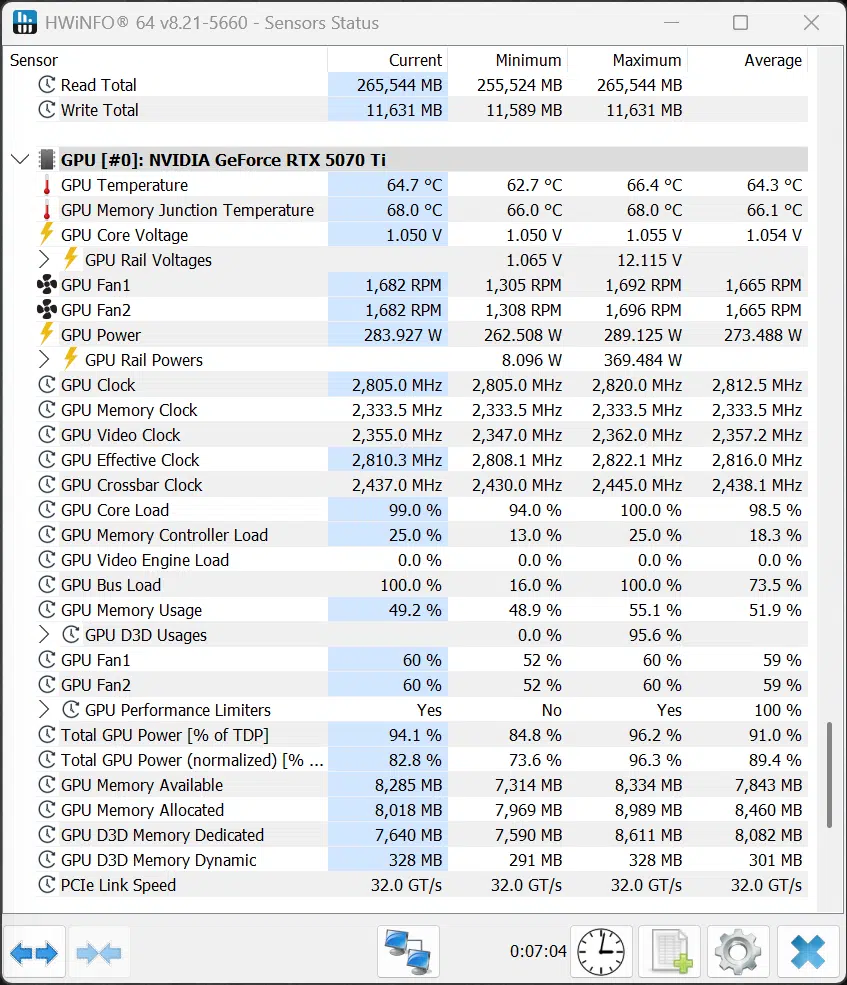

At default (left), the ASUS PRIME GeForce RTX 5070 Ti hits a maximum GPU Voltage of 1.0550V without changing any settings. The fan speed is around 60% by default, without overclocking. When we overclock the video card (right), without touching the Voltage it remains at 1.0550V. In the last screenshot we have increased just the Voltage slider, and Power Target, to show that the ASUS PRIME GeForce RTX 5070 Ti can indeed increase Voltage with GPU Tweak III up to 1.0850V.
