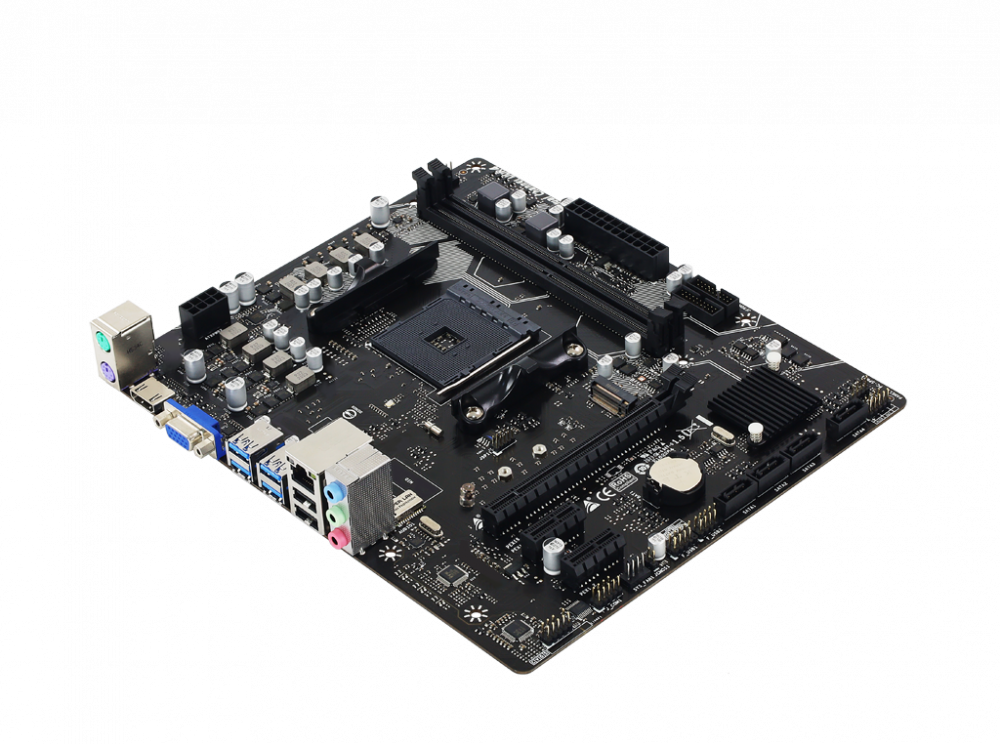

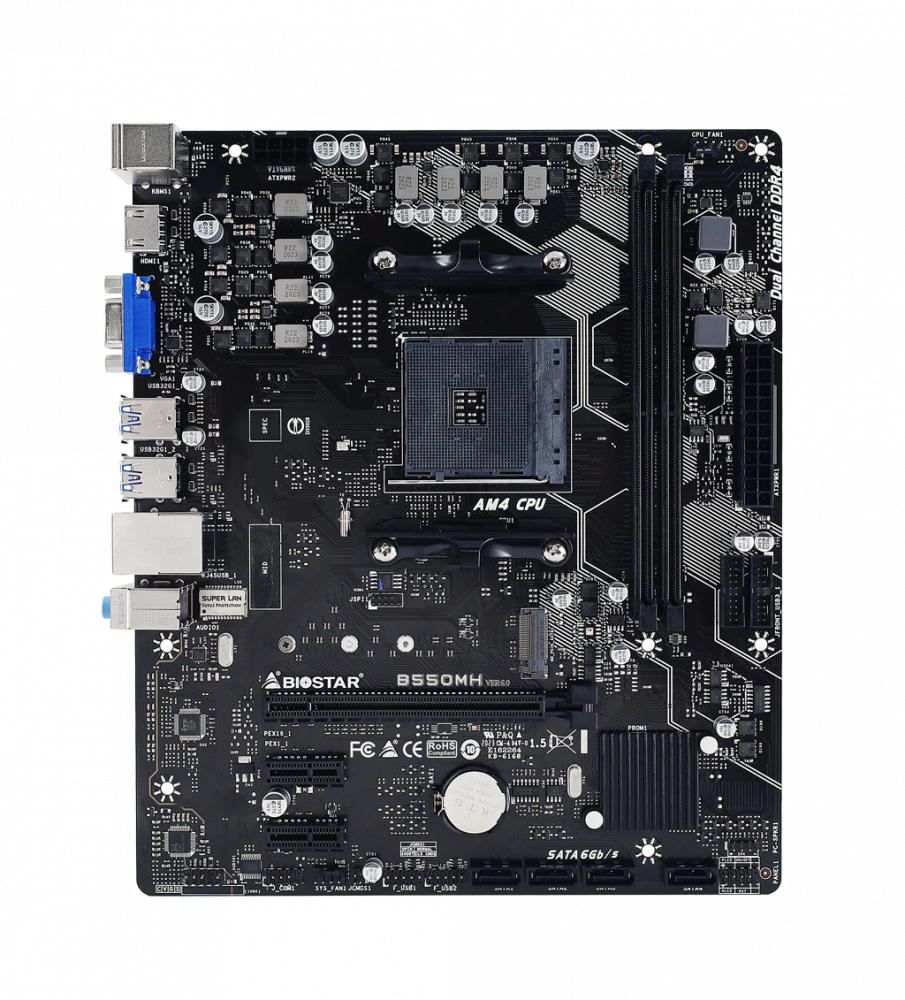

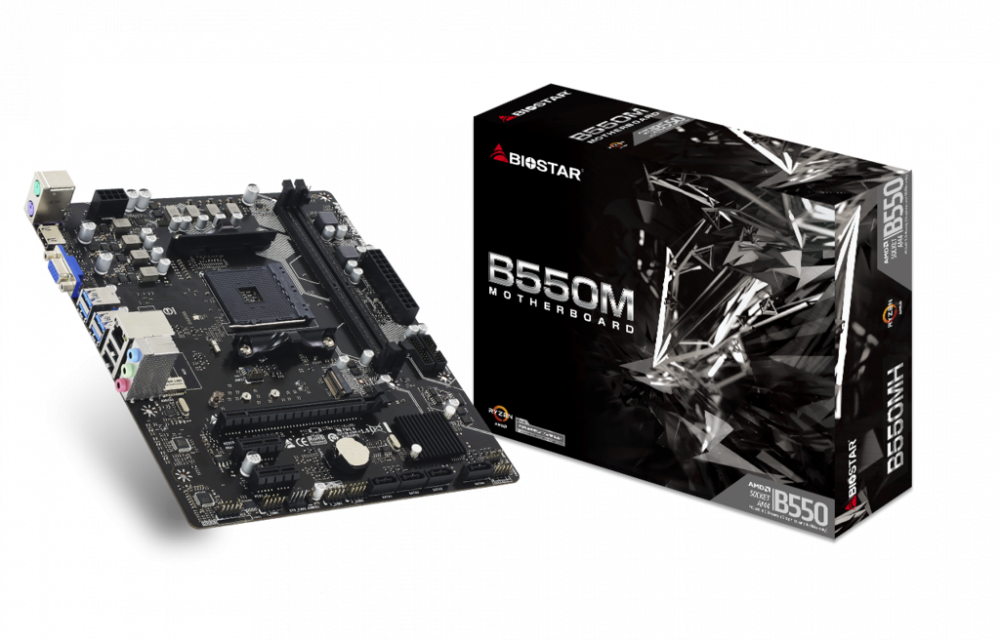

BIOSTAR, a leading brand of motherboards, graphics cards, and storage devices, today announces the B550MH motherboard that runs the 3rd gen Ryzen processors.

Geared towards the business and casual users, the new BIOSTAR B550MH motherboard is designed to be efficient and reliable with bleeding edge technology built to be the best in the market with a new stylish PCB design.

The B550MH motherboard supports up to 64Gb of RAM across 2DIMMs with the capability of reaching 4400+OC speeds and technologies like PCIe 4.0 that supports 16GT/s bit data transfer rates which is 2 times faster than PCIe 3.0 with backward compatibility, as well as PCIe M.2 4.0 which delivers lower latency on a higher bandwidth of 64Gb/s which is 2x faster than the old PCIe M.2 3.0 making the new BIOSTAR B550MH motherboard a great choice for many applications.

The latest USB 3.2 Gen1 is also present in the B550MH motherboard delivering extraordinary performance boosts with data transfer speeds reaching up to 5Gbps and is backward compatible with older devices.

Additionally, the BIOSTAR B550MH also has Super LAN Surge Protection, providing LAN with more advanced antistatic protection capabilities by adding an integrated chip to strengthen electrical stability and prevent damage from lightning strikes and electrical surges and HDMI output port which supports up to 4K resolution enabling new high-definition image displays with four times the resolution of Full HD, which express bright and highly detailed content that fills the entire screen with lifelike images allowing users to enjoy high definition TV shows and movies online such as YouTube or Netflix with the HDMI output.

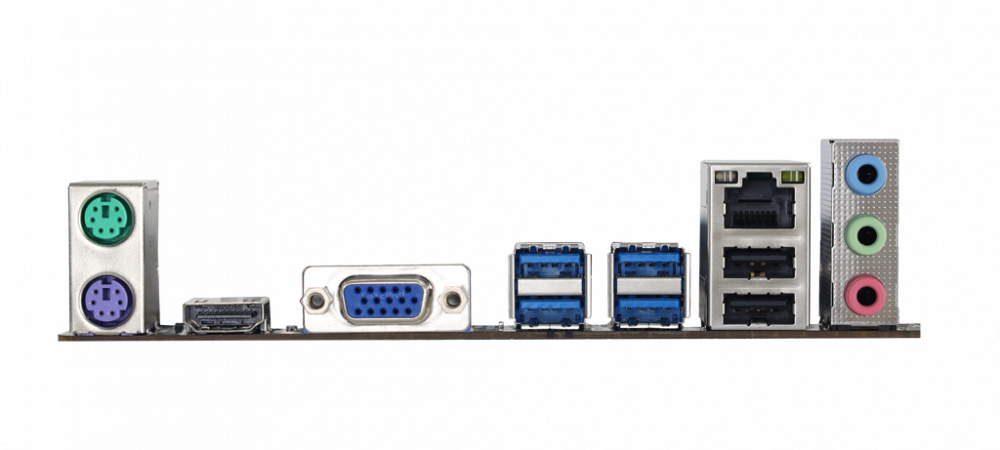

The B550MH also contains a fully packed rear I/O panel containing multiple connectivity options like 4 x USB 3.2 (Gen1) ports as well as 1 x PS/2 Keyboard and a 1 x PS/2 mouse port and a standard D-Sub output port complementary to its already exceptional HDMI port. Additionally, the B550MH also has 3 x audio ports that run on Realtek ALC887 architecture which delivers 7.1 Channels, High Definition Audio, Realtek GbE LAN port, as well as 2 x USB 2.0 ports for added connectivity.

Overall, the B550MH motherboard is a great choice for that new AMD Ryzen build and BIOSTAR promises support for any upcoming Ryzen processors with timely BIOS updates so users can rest assured that the new B550MH motherboard will serve them faithfully for a long time.

ChipsetAMD B550
CPU SUPPORTSupports AMD 3rd Gen Ryzen (Matisse) Processors / Future Ryzen ProcessorsSupport for future AMD Ryzen processors with BIOS update* Please refer to www.biostar.com.tw for CPU support list.
MEMORYSupports Dual Channel DDR4 1866/2133/2400/2667/2933Supports Dual Channel DDR4 3200(OC)/ 3600(OC)/ 4000(OC)/ 4400+(OC)2 x DDR4 DIMM Memory Slots, Max. Supports up to 64 GB MemoryEach DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module*DDR4- 2667 only for Ryzen CPU*Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEOBy CPU modelSupports DX12Supports HDCP
STORAGE4 x SATA III Connectors (6Gb/s): Supports AHCI & RAID 0, 1, 101 x M.2 (M Key) Socket:Supports M.2 Type 2242/ 2260/ 2280 SSD moduleSupports PCI-E 4.0 x4 (64Gb/s)/ 3.0 x4 (32Gb/s)- NVMe / AHCI SSDSupports SATA III (6.0Gb/s) SSD*M.2 (M Key) Socket (M2_PCIE-SATA1):The bandwidth is dependent on the CPUSupports PCI-E 4.0 x4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse.
LANRealtek RTL8111H10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capabilitySupports Super LAN Surge Protection
CODECALC8877.1 Channels, High Definition Audio, Hi-Fi (Front)
USB8 x USB 3.2 (Gen1) ports (4 on rear I/Os and 4 via internal headers)6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)
EXPANSION SLOT1 x PCIe 4.0/ 3.0 x16 Slot:Supports PCIe 4.0 x16 mode with AMD Ryzen processors. (Matisse only)Supports PCIe 3.0 x16 mode AMD Ryzen with Radeon Vega Graphics processors.2 x PCIe 3.0 x1 Slots*According to different CPUs will have different speeds.
REAR I/O1 x PS/2 Keyboard1 x PS/2 Mouse1 x HDMI Port1 x VGA Port1 x LAN port4 x USB 3.2 (Gen1) Ports2 x USB 2.0 Ports3 x Audio Jack
INTERNAL I/O4 x SATA III (6.0Gb/s) Connectors2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)2 x USB 3.2 (Gen1) Headers (each header supports 2 USB 3.2 (Gen1) ports)1 x 8-Pin Power Connector1 x 24-Pin Power Connector1 x CPU Fan Connector1 x System Fan Connector1 x Front Panel Header1 x Front Audio Header1 x Clear CMOS Header1 x Internal Stereo Speaker Header1 x COM Port Header
H/W MONITORINGCPU / System Temperature MonitoringCPU / System Fan MonitoringSmart / Manual CPU Fan ControlSystem Voltage Monitoring
DIMENSIONMicro-ATX Form Factor: 24.4 cm x 20.8 cm
OS SUPPORTWindows 10 (64bit)*BIOSTAR reserves the right to add or remove support for any OS with or without notice.
ACCESSORIES2 x SATA Cables1 x I/O Shield1 x Quick Guide1 x DVD Driver
