Overview

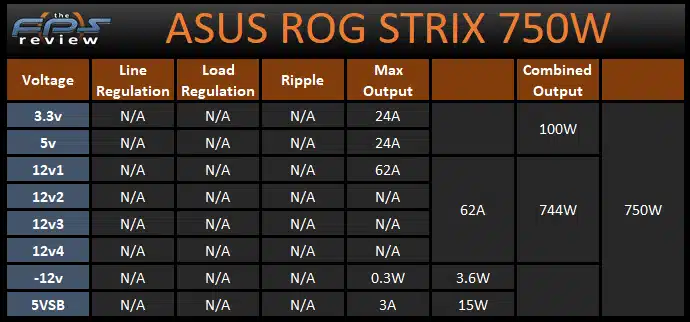

The ROG STRIX 750W packaging is about what we would expect to see given how the ROG THOR 850W was packaged. That said, the packaging is a bit on the smaller side, but that just means less waste going into a landfill! The front of the package is bare of information save for the advertising about the 10-year warranty, and the 80 Plus Gold seal. When we check the 80 Plus website we find that this unit is listed and, as such, we will see how it does in this regard later. The rear of the packaging has a lot more in the way of advertising as we find advertisements for the ROG Heatsinks, Axial-tech Fan Design, Premium Components, and Cosmetic Customization. The side of the package has the power label (reproduced below) but the connector count (reproduced below) was retrieved from the contents of the box.

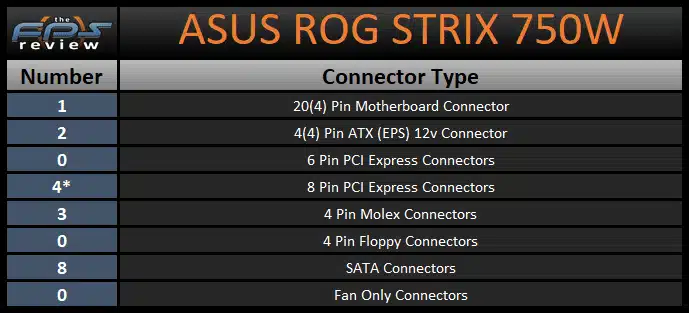

The ROG STRIX 750W is advertised as being a single 12v rail power supply with a capacity up to 62A (or ~99% of the unit’s capacity) if necessary. The minor rails (5v and 3.3v) have a capacity of 24A each and the combined capacity of those two rails is 100W. Combined with these outputs, we find that this unit has 4 PCIe connectors, 8 SATA connectors, and 3 Molex connectors.

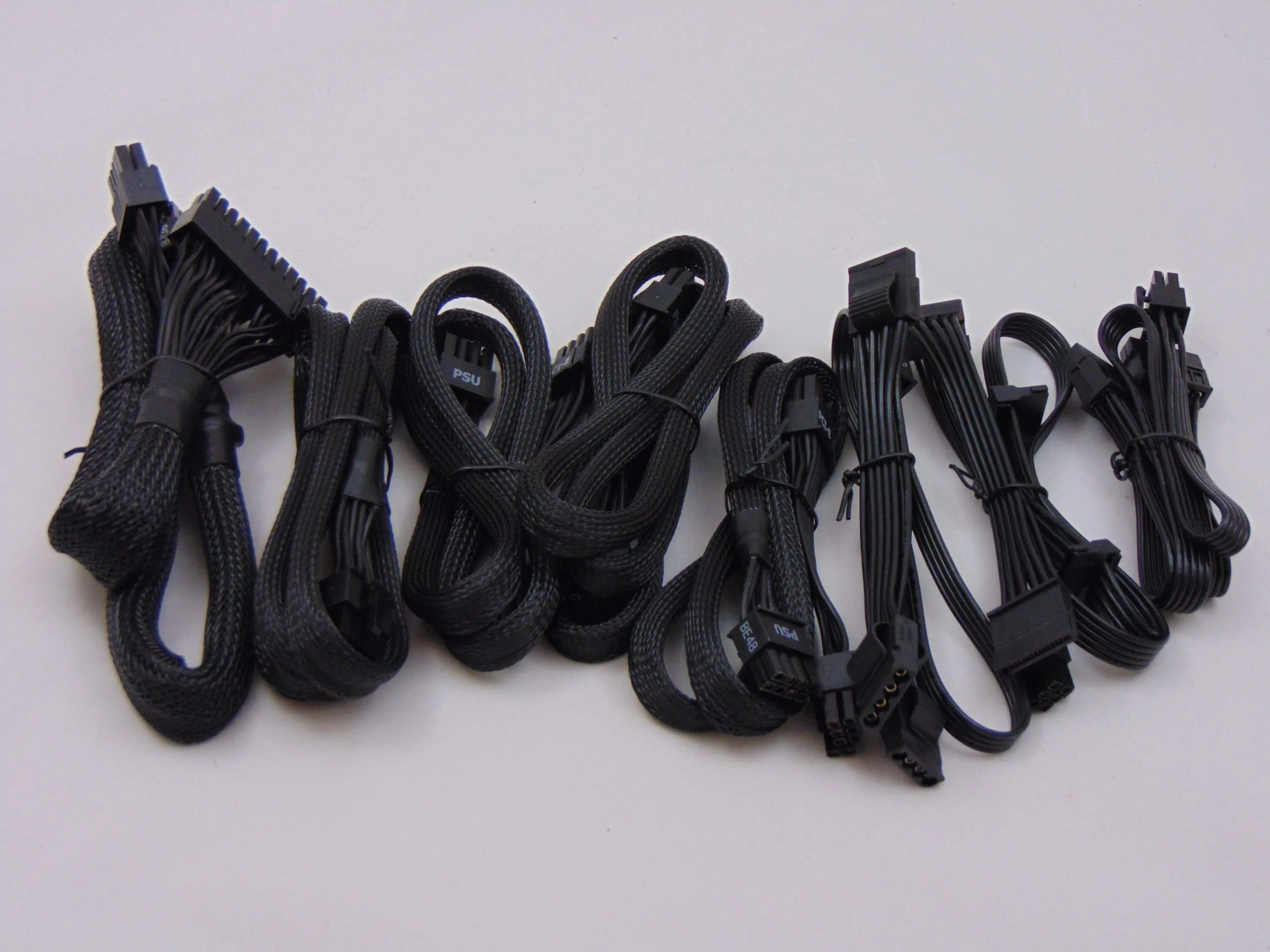

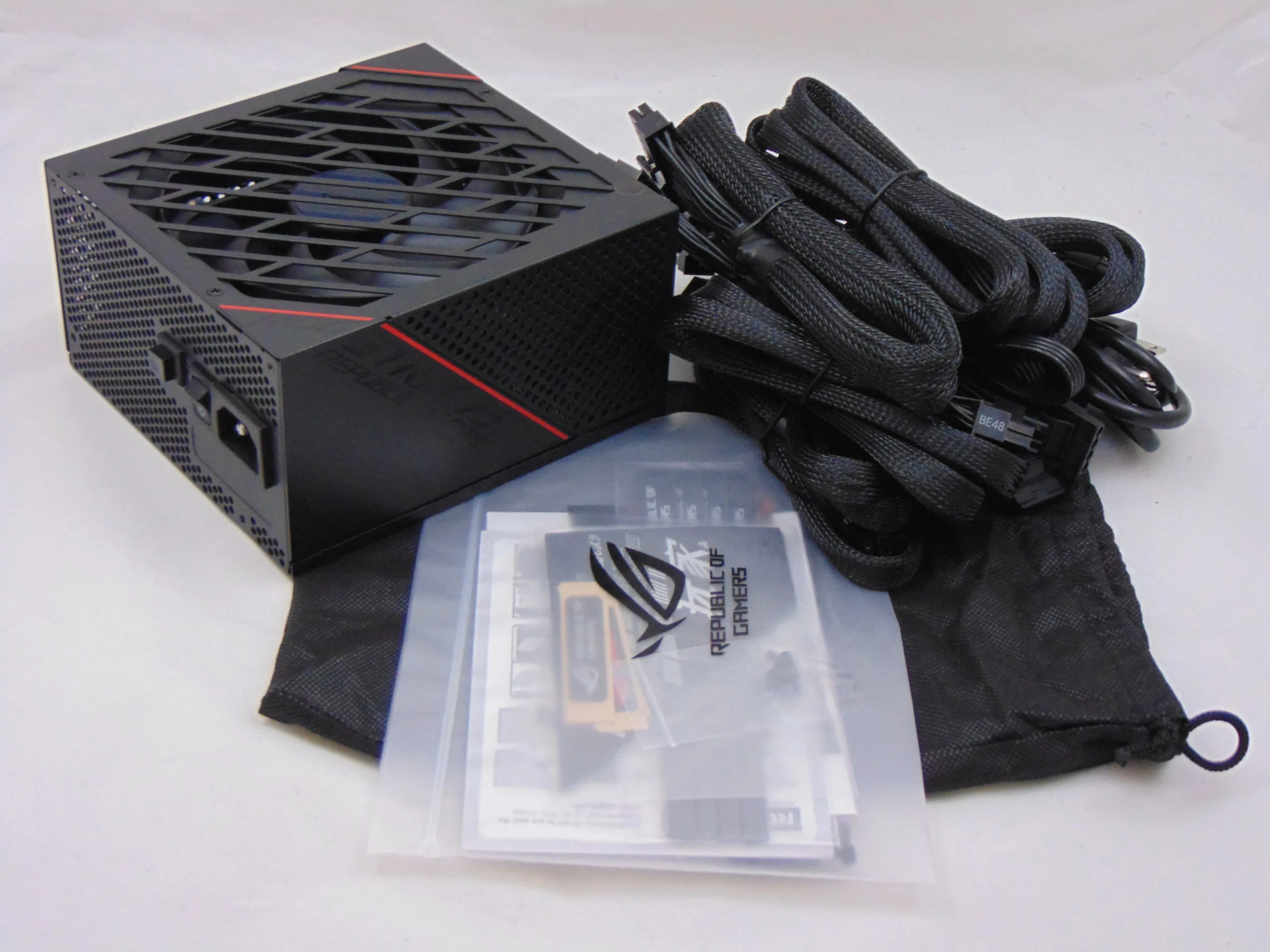

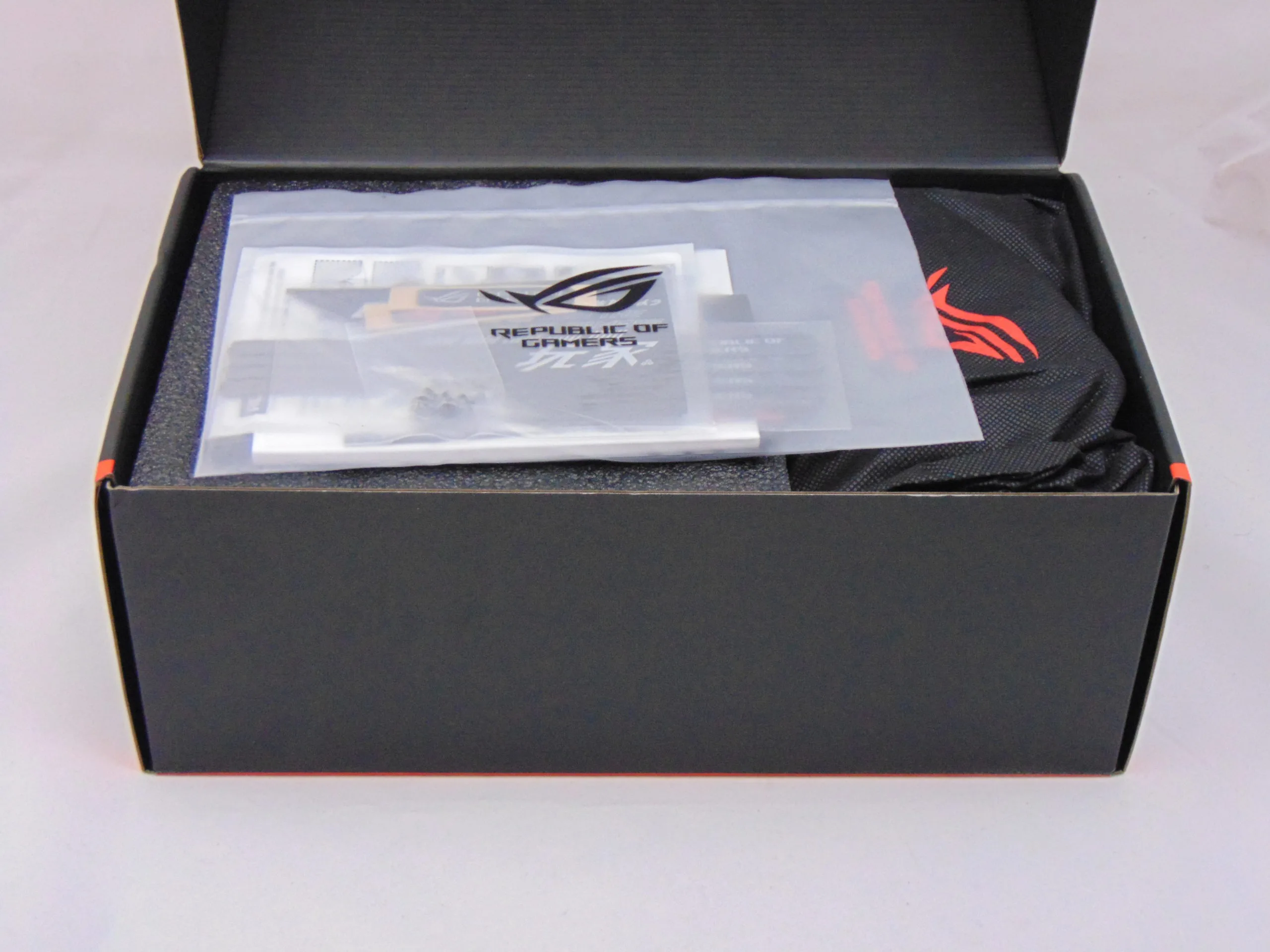

Once we open the ROG STRIX 750W packaging we find the power supply, mounting screws, modular cables, the power cord, customizable side stickers, Velcro straps, and the user manual. The user manual covers 91 pages of absolutely nothing at all. It is a total waste of space. Let’s move on to the unit itself now.
