ASUS ROG STRIX 750W Power Supply Review

The FPS Review may receive a commission if you purchase something after clicking a link in this article.

Transient Testing

For those of you that are curious as to some of the reasoning and equipment behind our PSU testing program here at TheFPSReview, we have put together an introduction for you that shares a lot of the behind the scenes of the program. This program is based on what the author developed at [H]ardOCP and utilizes the equipment bequeathed to the author by Kyle Bennett. The testing we are conducting today is exactly as described in that document and will continue with our Transient Testing.

Transient Test 1

Loaded/Unloaded

12v/5v

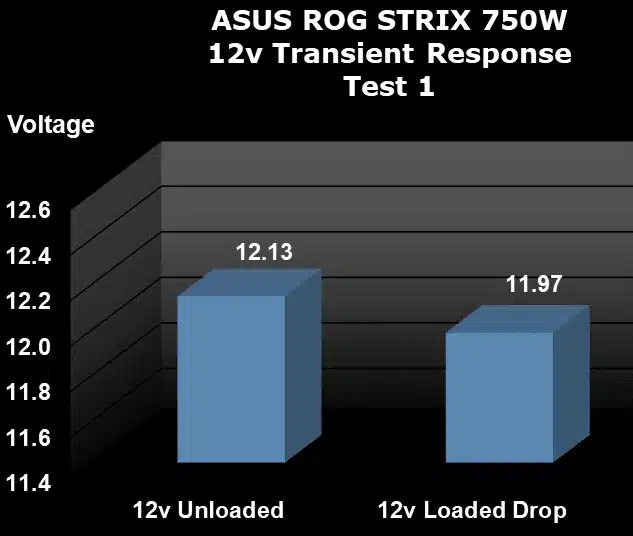

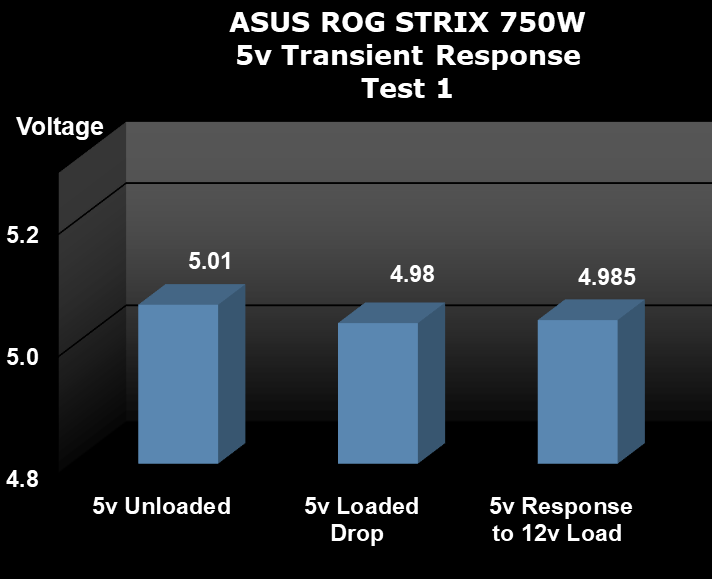

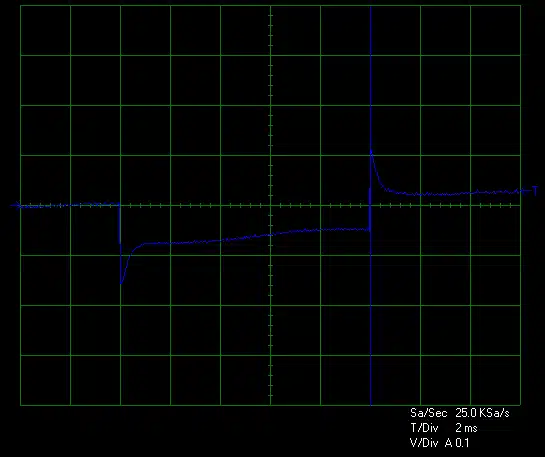

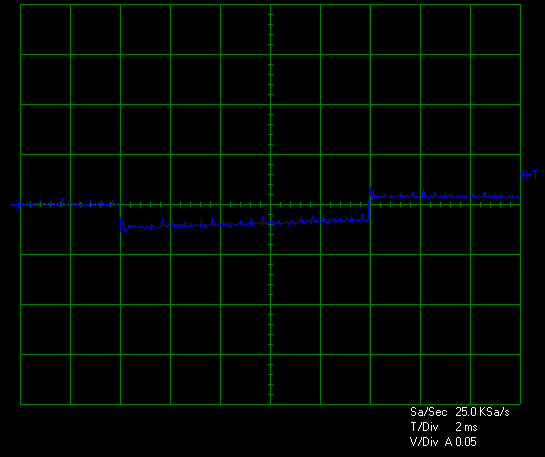

Test #1 is equal to approximately 25% of the rated capacity of the ASUS ROG STRIX 750W at 45c. This makes Test #1 equal to 185W by loading the 12v rail to 13a, the 5v rail to 2a, the 3.3v rail to 1a, the +5vsb to 2a, and the -12v to 0.3a before the addition of the transient load. The results of Test #1 show a ~160mV drop on the 12v rail and ~30mV drop on the 5v rail when each is directly loaded. At the same time that the load was being triggered on the 12v rail, the 5v rail measured a ~25mV drop.

Transient Test 2

Loaded/Unloaded

12v/5v

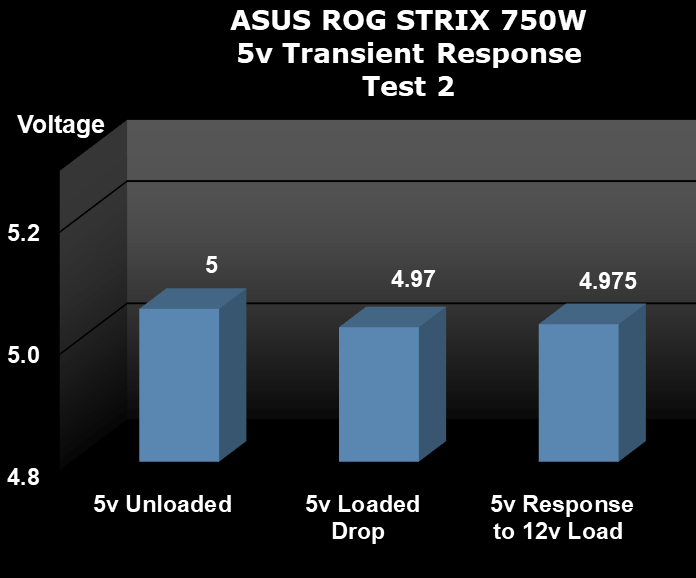

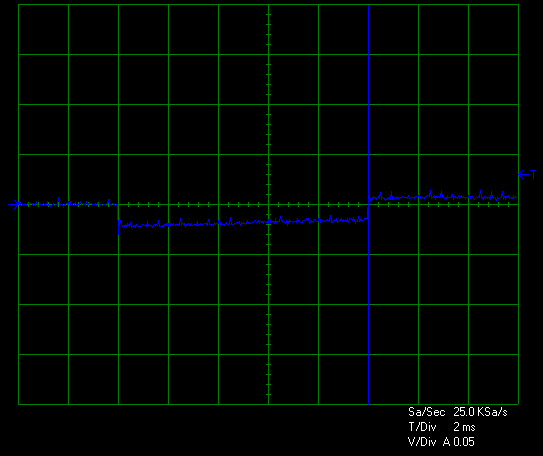

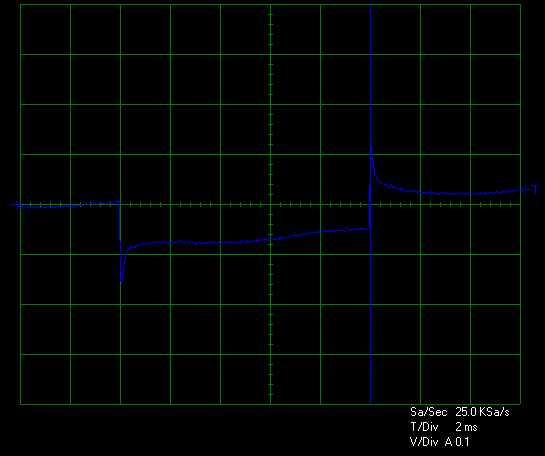

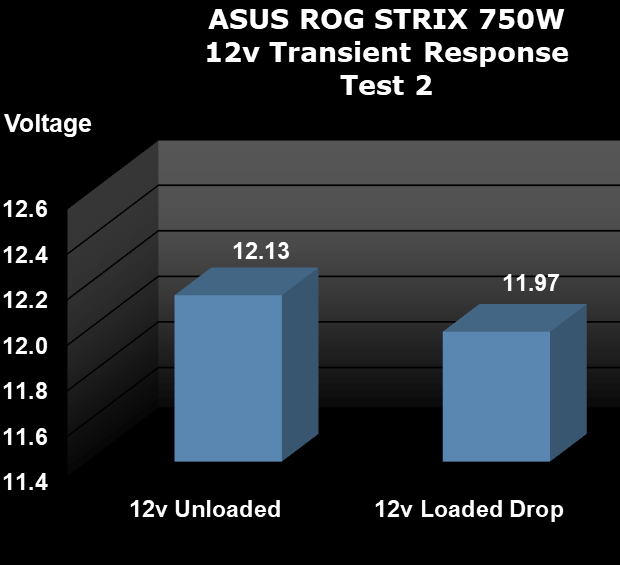

Test #2 is equal to approximately 50% of the rated capacity of the ASUS ROG STRIX 750W at 45c. This makes Test #2 equal to 343W by loading the 12v rail to 27a, the 5v rail to 4a, the 3.3v rail to 2a, the +5vsb to 2a, and the -12v to 0.3a before the addition of the transient load. The results of Test #2 show a ~160mV drop on the 12v rail and ~30mV drop on the 5v rail when each is directly loaded. At the same time that the load was being triggered on the 12v rail, the 5v rail measured a ~25mV drop.

Transient Load Testing Summary

The Transient Load Tests results for the ASUS ROG STRIX 750W are passing and excellent all around! In today’s testing, the ROG STRIX 750W saw the loaded 12v rail post a peak change of ~160mV, and the loaded 5v rail post a peak change of ~30mV. The unloaded 5v peak change during the 12v load was ~25mV. Those numbers are, in an absolute sense, outstanding! In a relative sense this unit was better than the Phanteks AMP 750 and EVGA SuperNOVA G5 750W. So, this is an excellent outstanding set of results for the ROG STRIX 750W today. Let’s move on now to see how this unit does in the DC Output Quality aspect of our testing!
