GIGABYTE has launched the AORUS C700 GLASS, a full-tower PC case with an eye-catching design and tempered glass panels on both sides. The case is compatible with E-ATX motherboards, 420 mm radiators, and as many as eight 120 mm fans and ten 2.5-inch solid state drives. Like many of GIGABYTE’s other flagship products, the AORUS C700 GLASS features RGB lighting effects that can be customized using its RGB FUSION 2.0 software.
AORUS C700 GLASS Specifications
|Case Form Factor||Full Tower|
|M/B Type||Mini ITX / Micro ATX / ATX / E-ATX|
|Materials||Aluminum, Steel, Plastic, Glass|
|Dimensions||H=714 W=301 D=671 mm (Within ± 1% error)|
|Expansion slots||8 + 2 (Requires PCI-E Riser Cable)|
|5.25″ Drive Bays||None|
|3.5“/2.5” Drive Bays||4|
|2.5″ Drive Bays||6|
|I/O Panel||USB 3.1 Gen-2 Type-C x1|
USB 3.0 x4
RGB SW Button
Fan Speed Button
Audio In & Out (supports AC97 /HD Audio)
|Pre-installed Fan||Front : 120mm x3 (PWM)|
Rear : 120mm x2 (ARGB&PWM)
|Fan Support||Front : 120mm x3 / 140mm x3|
Top : 120mm x3 / 140mm x3
Rear : 120mm x2 / 140mm x1
|Radiator Support||Front : Max 360mm|
Top : Max 420mm
Rear : Max 140mm
|Power Supply Type||Standard ATX (Not included)|
|Maximum Compatibility||CPU Height : 198mm|
GPU Length : 490mm
PSU Length : 200mm
|Vertical GPU Mount||Yes|
*54mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling
|RGB Lighting||Yes (Support RGB Fusion 2.0)|
|Weight||N.W. 19.2 Kg|
|Package Dimensions||H=773 W=406 D=820 mm|
2. Accessories kit

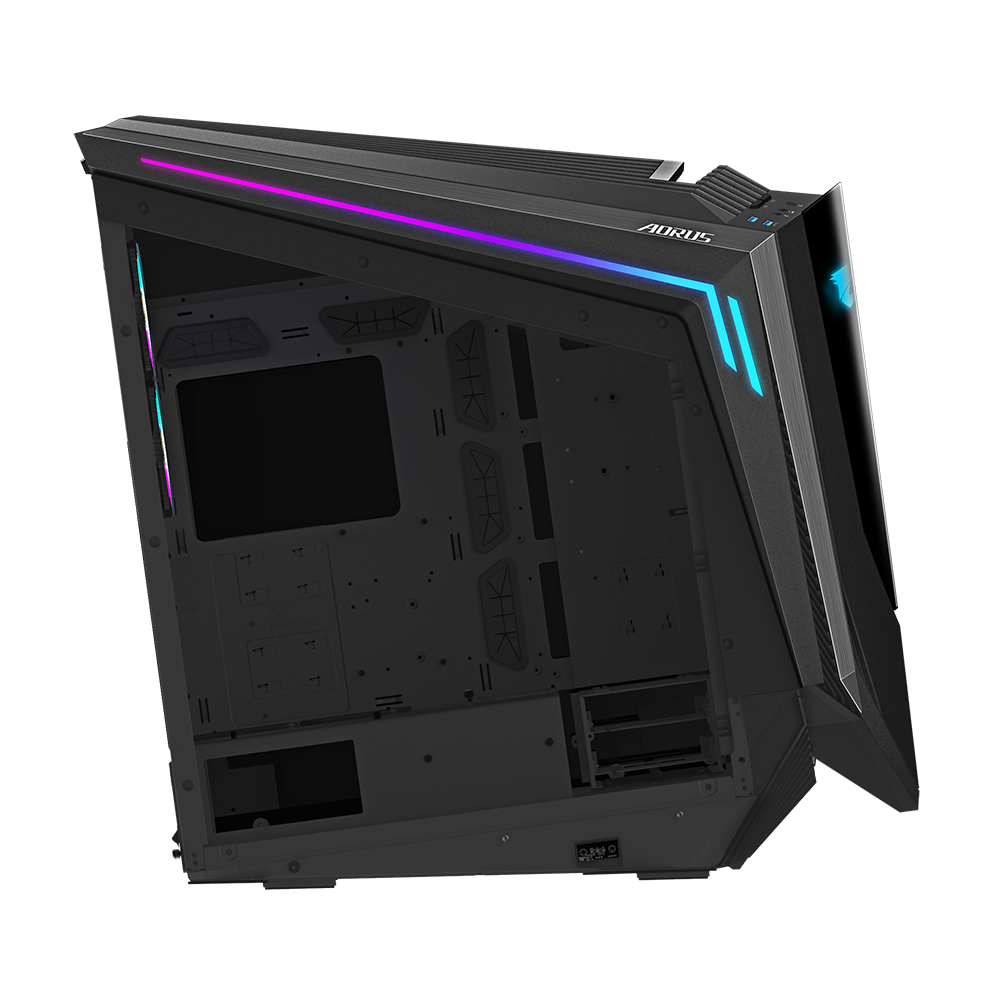

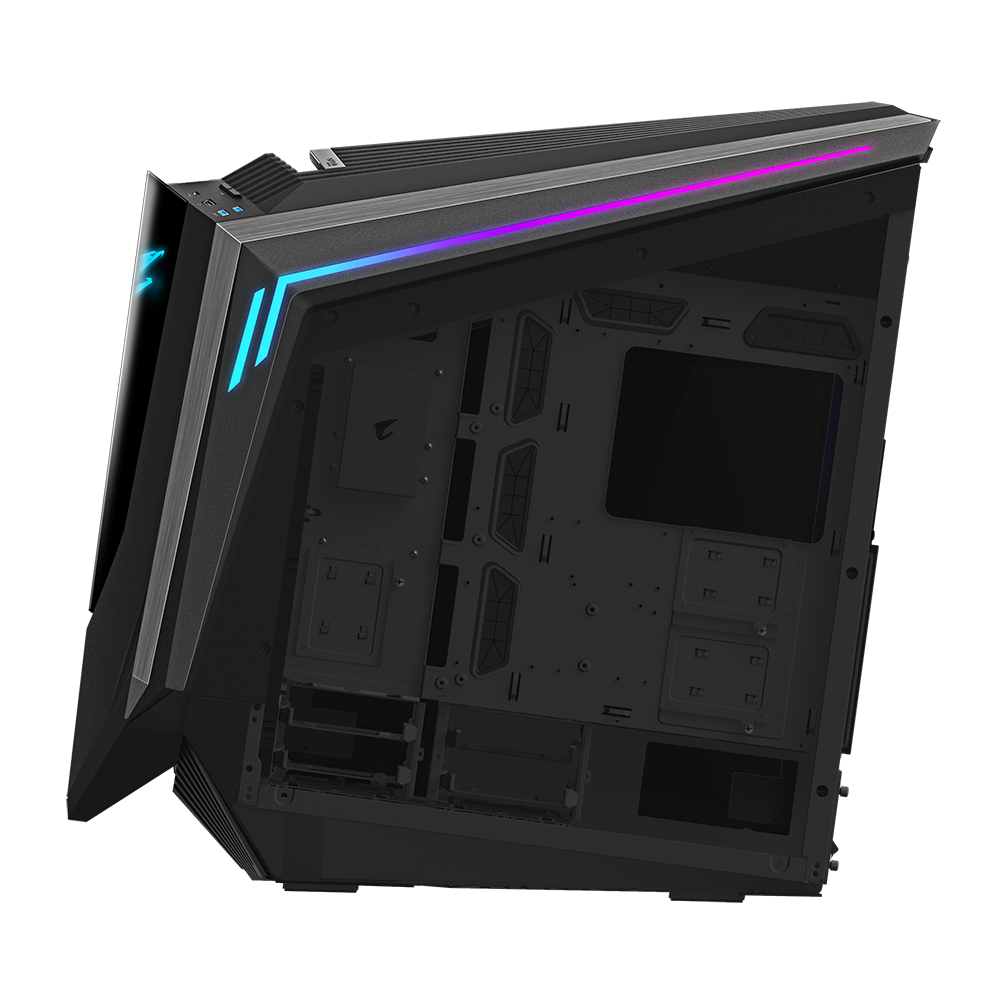

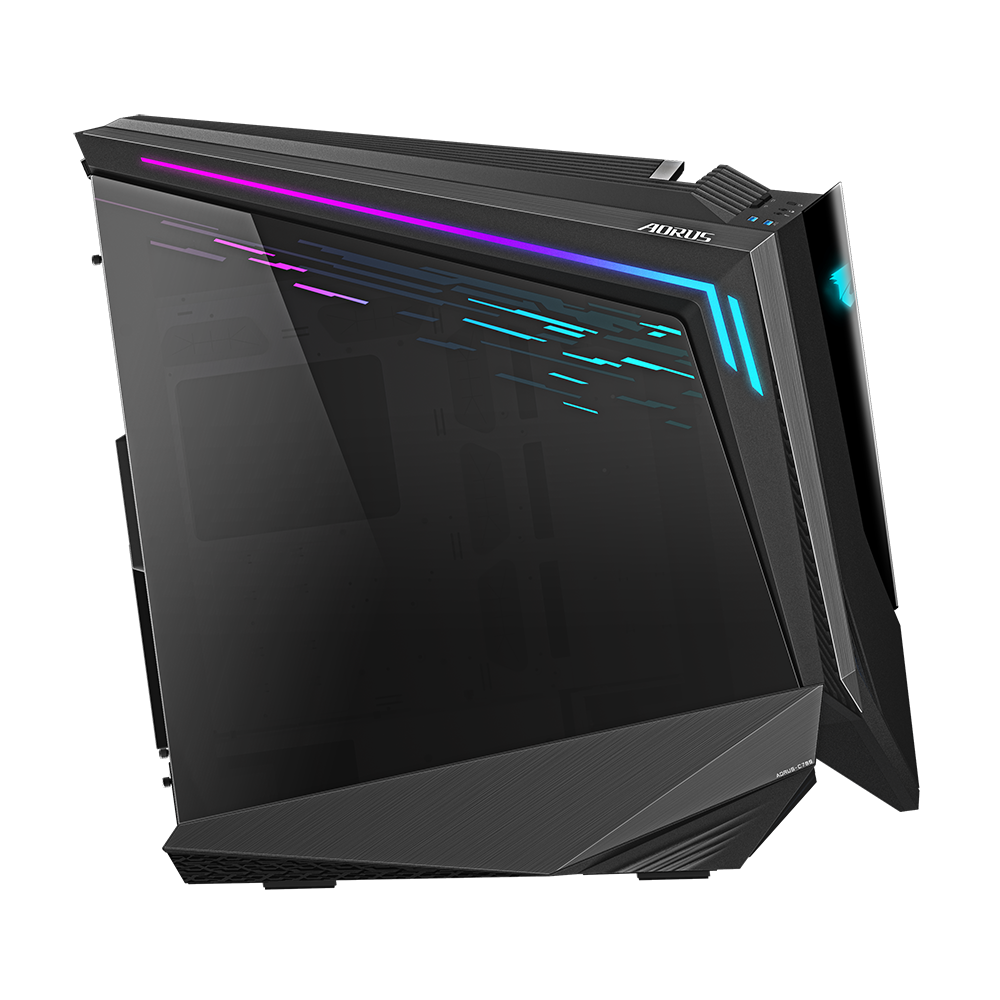

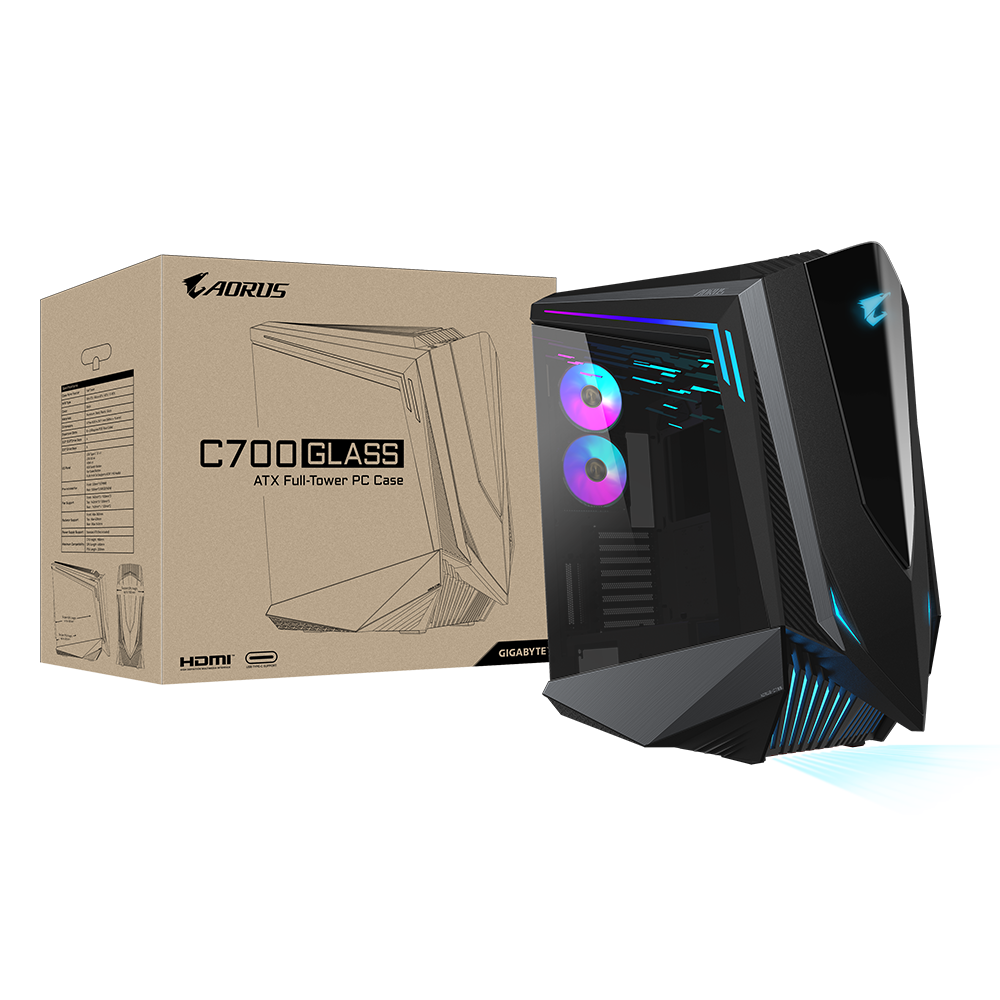

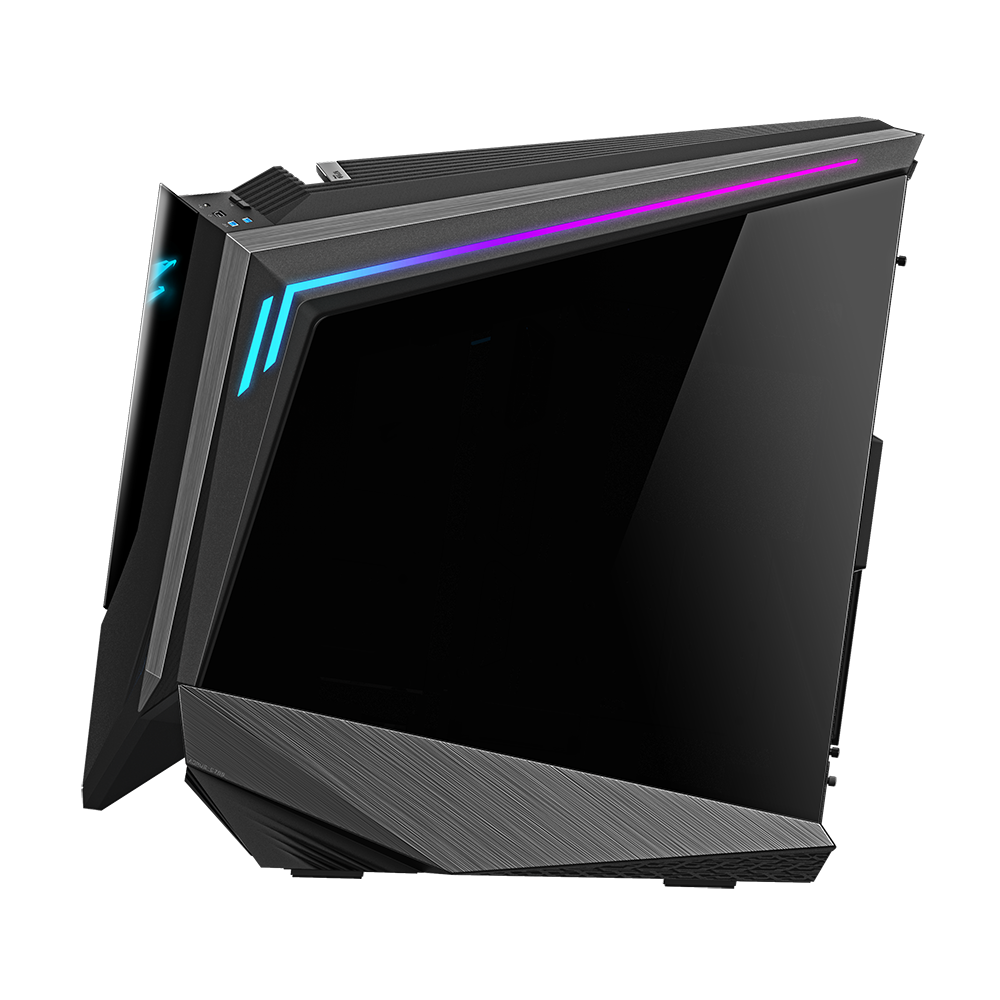

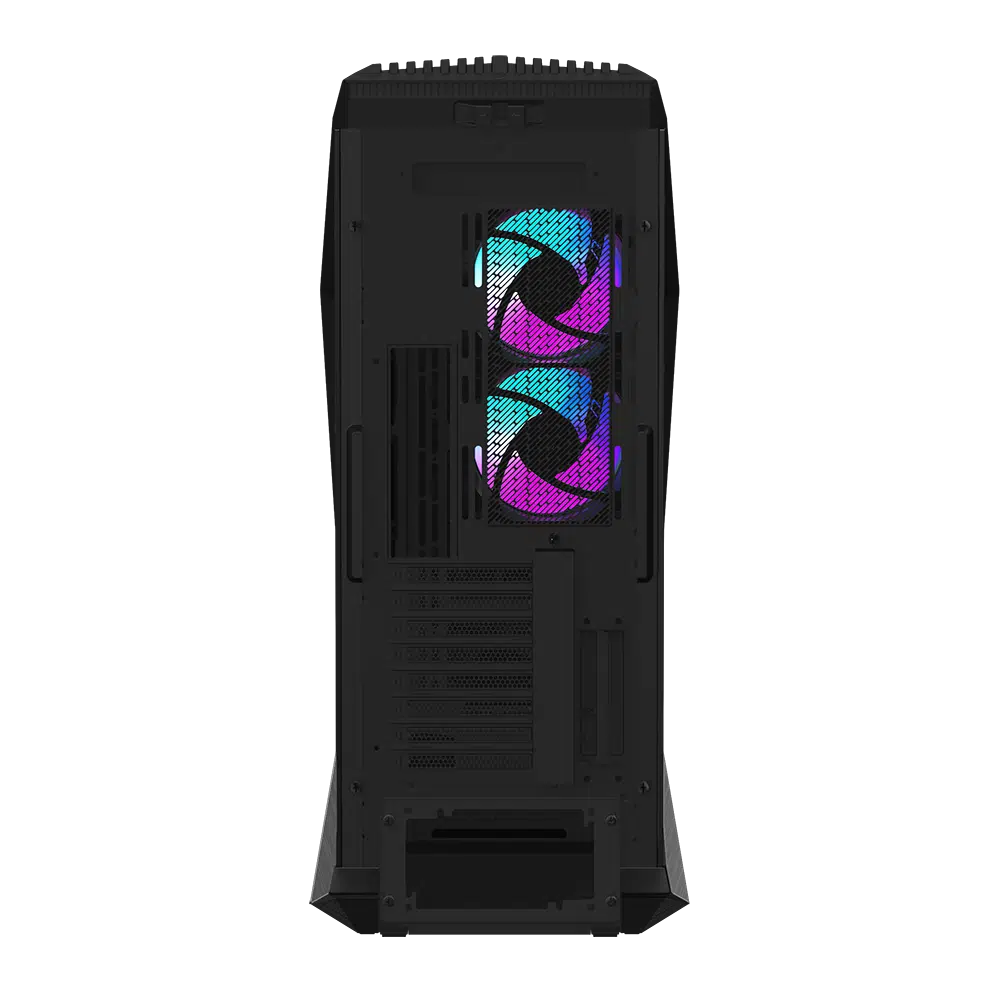

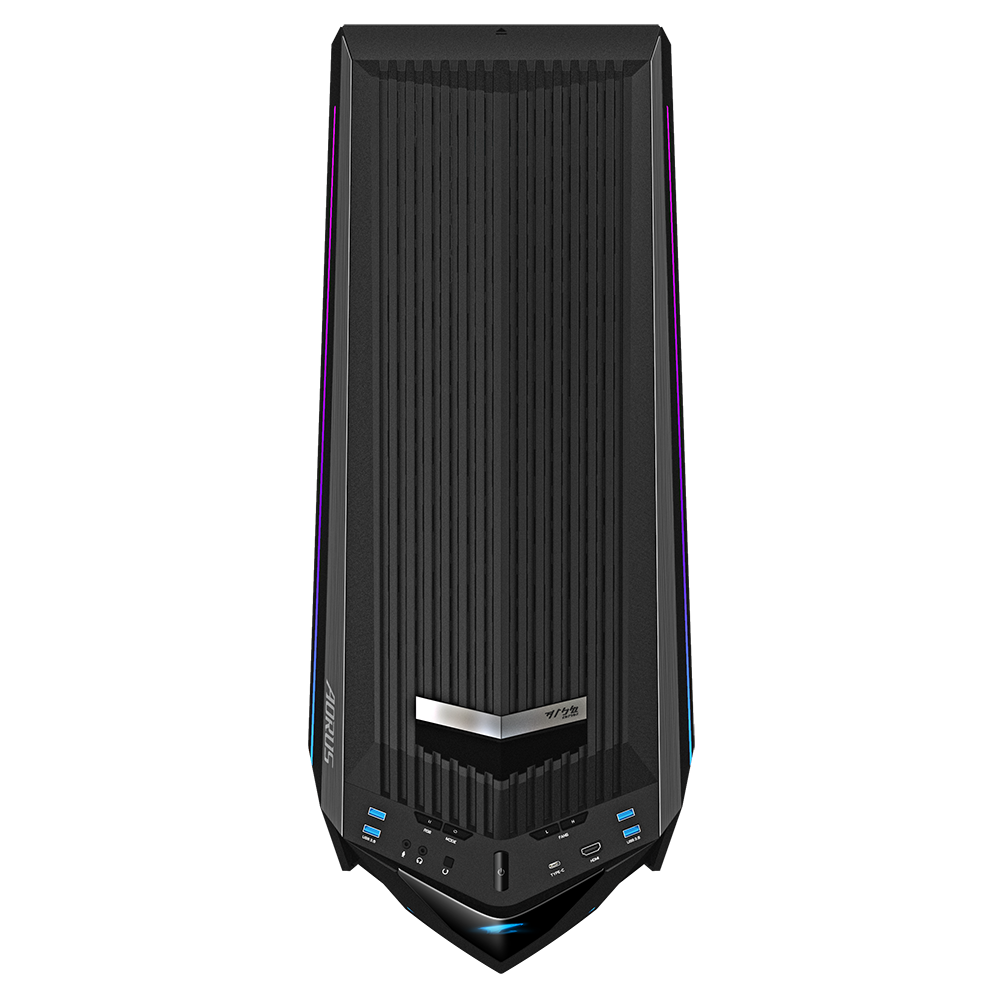

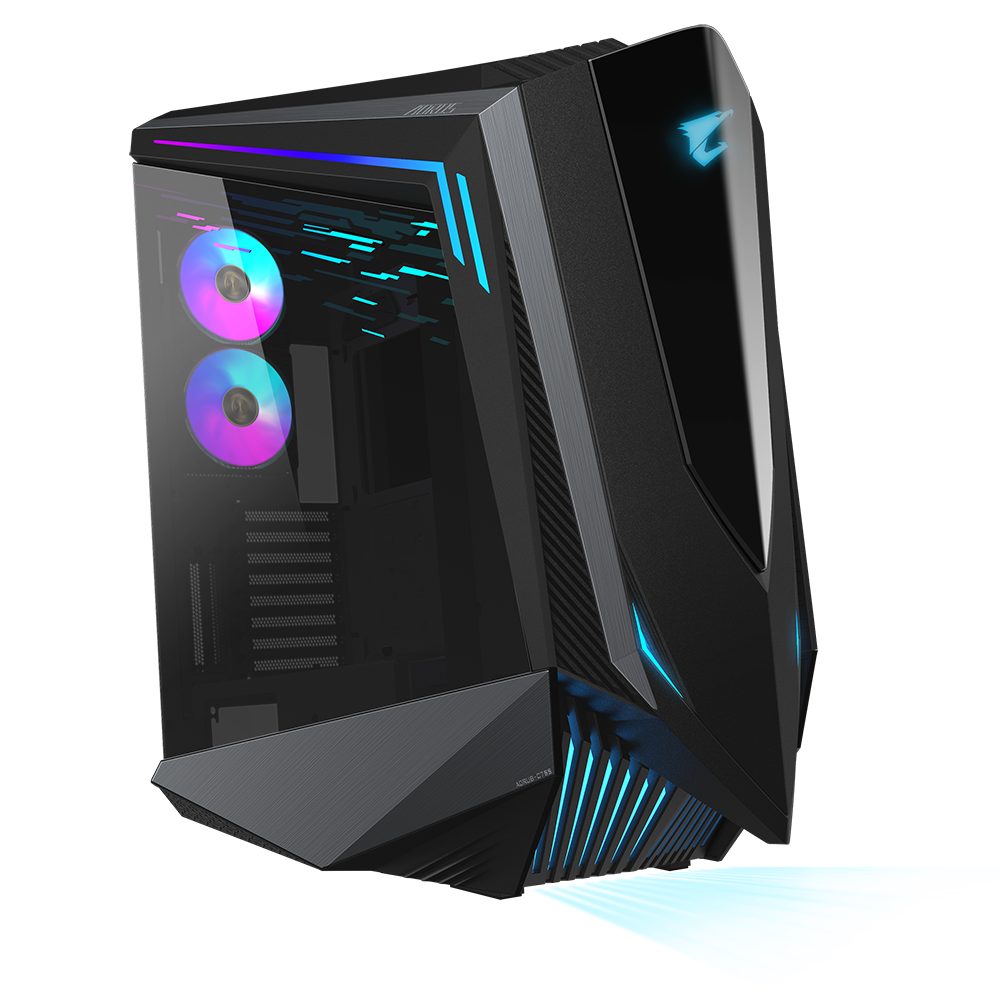

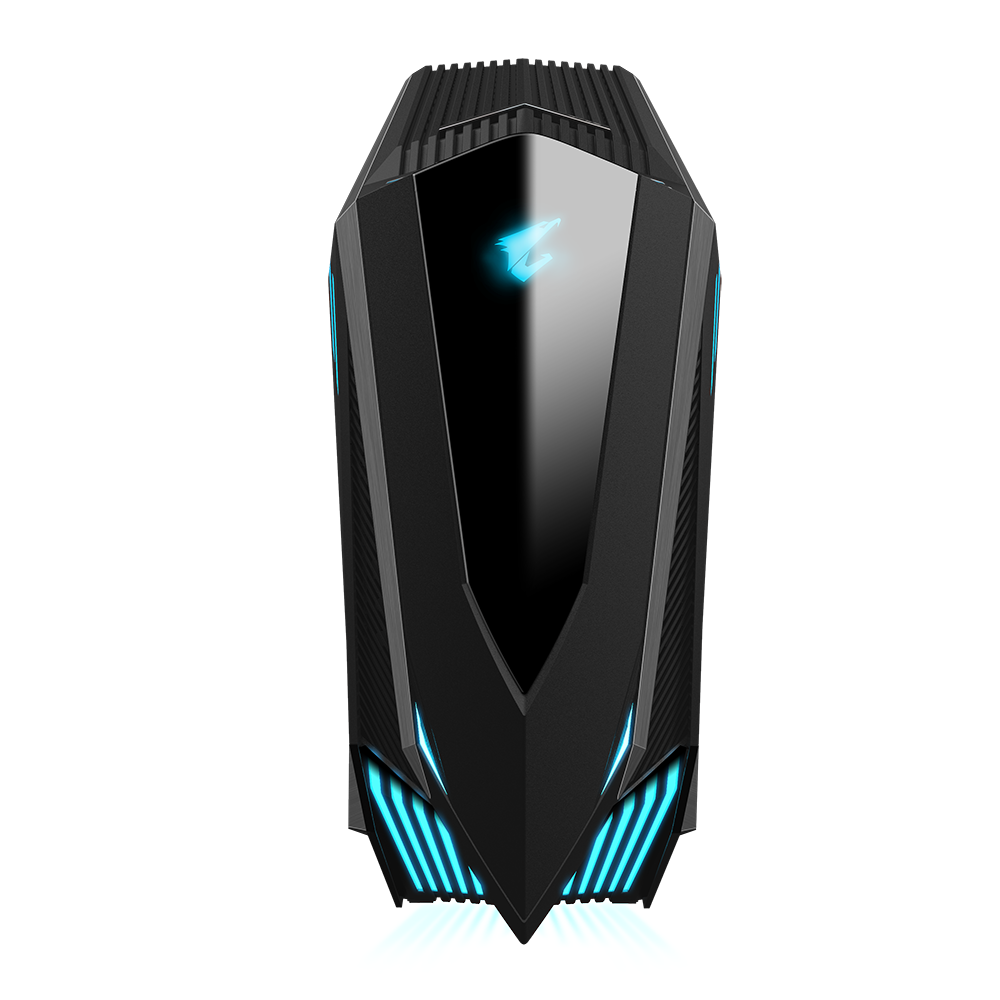

AORUS C700 GLASS Gallery
Original Press Release
GIGABYTE, the world’s leading premium gaming hardware manufacturer, announced today the new full-tower gaming case – AORUS C700 GLASS is the first case we designed for the falcon image of AORUS. Built for powerful expansion and outstanding cooling, AORUS C700 GLASS supports a maximum E-ATX motherboard, 420mm liquid cooling system, up to ten 2.5” of SSD, and a total of eight 120mm fan system, which enables the entire case achieves the most extreme performance and thermal solution. AORUS C700 GLASS adopts the different translucent black on both sides’ tempered glass, the special processing of AORUS pattern design on the left side can be synchronized with other RGB lighting. Gamers can download the RGB FUSION 2.0 software to customize the various RGB lighting effects and colors to make the gaming case perfect perform all of AORUS devices and be collected as a marvelous artwork.
Superior Expansion x Superior Cooling
AORUS C700 GLASS built for top-tier performance and expansion, which can fit maximum E-ATX motherboard, 198mm-height CPU cooler, 490mm-length graphics card and 200mm-length PSU. The fan system can be installed with three 140mm or 120mm fans at the top and front panels respectively, and one 140mm or two 120mm at the rear. In addition, AORUS C700 GLASS pre-installed not only three 120mm PWM fans at the front but also two 120mm ARGB fans at the rear. AORUS pre-built the outstanding airflow for the users without installing an extra fan. The liquid cooling system can be installed with a maximum of 420mm radiator at the top, with a maximum of 360mm radiator at the front, and with a maximum of 140mm radiator at the rear. For hard disk installation, it can support 6 sets of 2.5″ SSD and 4 sets of 3.5″ HDD exclusive installation space, and the 3.5” HDD also can be replaced by 2.5” SSD. In other words, the case can install a total of ten 2.5” SSD. It’s pretty suitable for users who need abundant storage space. Moreover, the module design of the drive bays makes users more facile to assemble.
Vertical and Horizontal Installation
Support for vertical or horizontal GPU installation, gamers have another option to choose the best viewing for the graphics card. The card’s outlook and RGB lighting effects can bring a more dazzling show.
Easy to install. Easy to use.
User can easily remove case panels without any tool, it’s convenient to expand device and regular clean. In terms of the way of PSU installation, users can assemble the PSU with the mounting plate in advance, then push into the case from rear side, which allows user to install more easily and also convenient to upgrade components. Moreover, AORUS C700 GLASS built in ARGB and PWM hub controller, provided three 5v 3pin ARGB connectors and five PWM connectors, which allows users to connect extra RGB strips and expand more thermal fans. Let’s build your own rig of your dream!

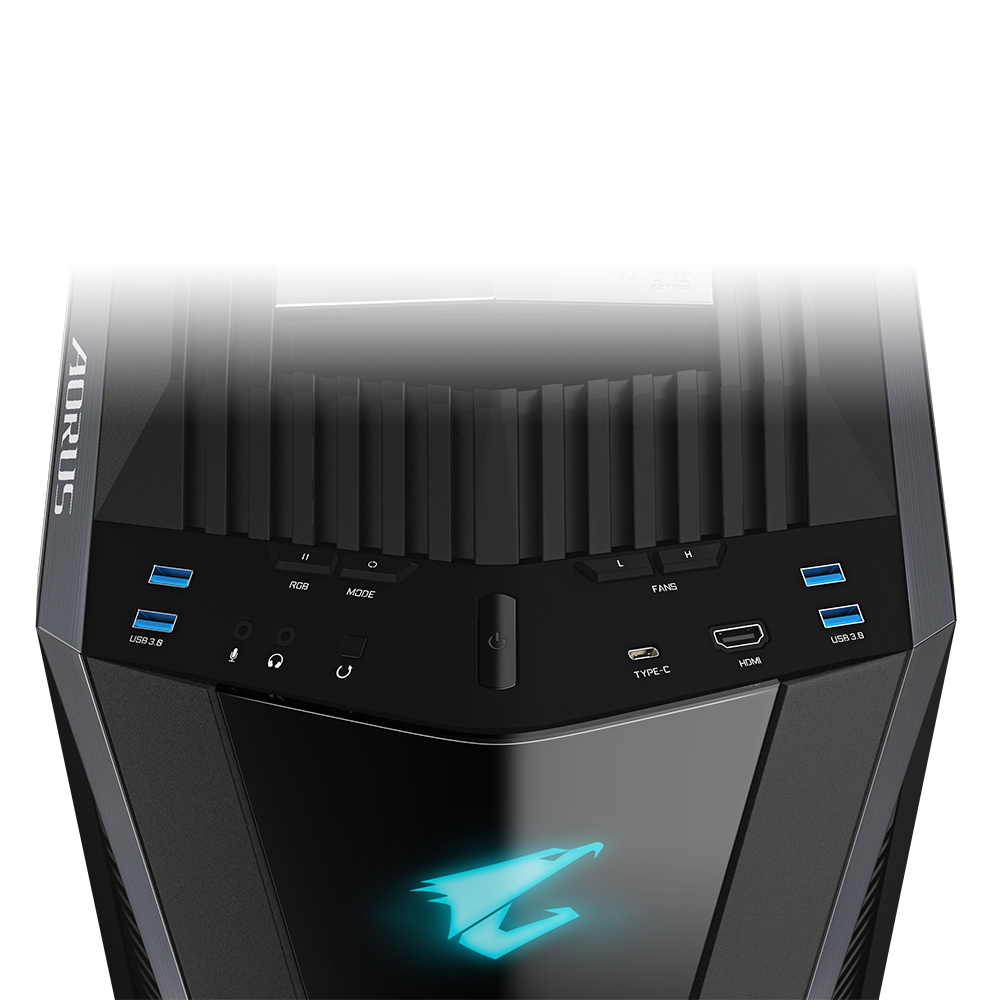

Expansive I/O Interface. All Your Bases Covered.
Equipped with four USB3.0, a 20 GB/s USB 3.1 Gen2 Type-C port, a HDMI, audio port, RGB buttons and Fan speed buttons. AORUS provides the advanced interface design, to meet the gamers’ needs for connecting more peripherals devices.
Hidden Power, Succinct Beauty
Enjoy a clean look by hiding the PSU and those messy power cables inside the PSU shroud, while separating the PSU heat from the rest of the internal system. With the window design on the left side of the shroud, users can show off the cool outlook of PSU. In addition, the left and right cabin both have the cable management space and ties which can utilize various cable thicknesses, to make gamers manage it more easily and perfectly.
