Antec Announces Supreme Series Cannon E-ATX Chassis

The FPS Review may receive a commission if you purchase something after clicking a link in this article.

Image: Antec

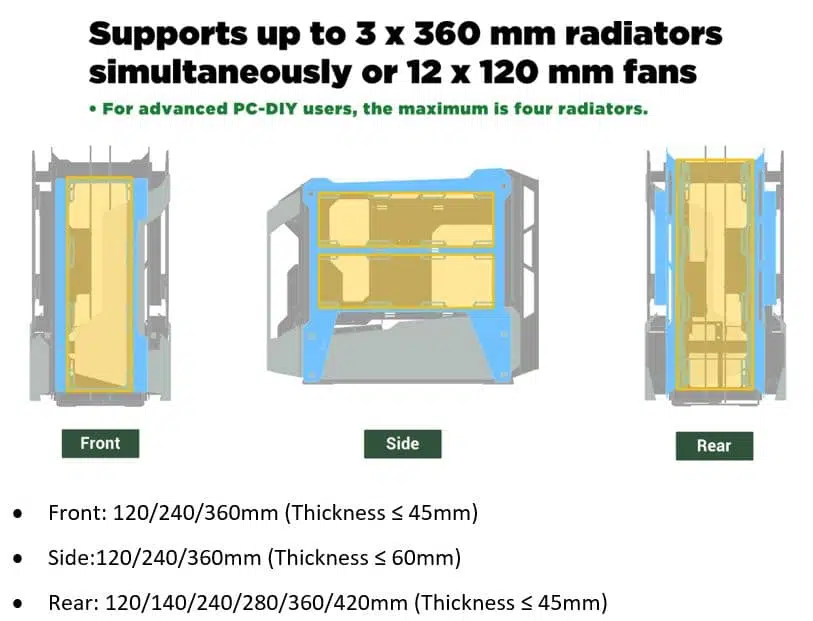

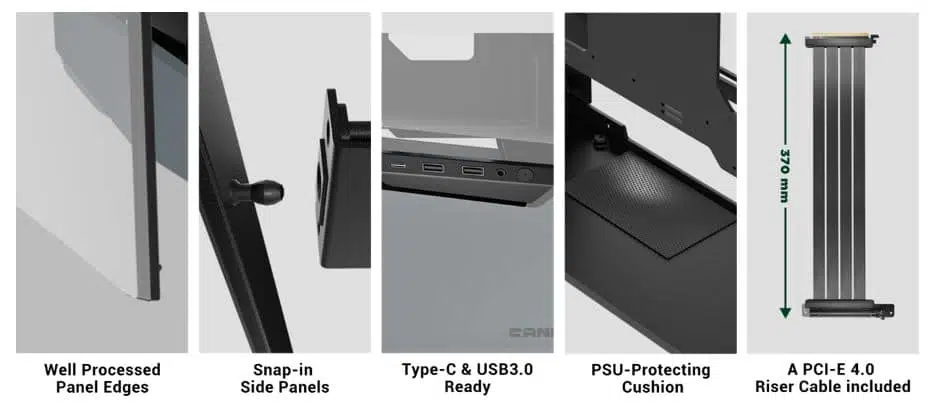

Antec has announced its Supreme Series Cannon full-tower PC case. The first of its kind, it can support two liquid cooling systems simultaneously. Up to three 360 mm radiators can be installed simultaneously, or a combination of two, and a 420 mm radiator on the rear of the case. It comes with a PCIe 4.0 riser cable and can fit graphics cards up to 385 mm in length. Brackets for 2.5- and 3.5-inch SSDs and HDDs are included, and PSUs up to 270 mm in length can be used. Other features include snap-in side panels, USB Type-C and 3.0 ports, and PSU protective cushioning. The Antec Cannon is now available on Amazon for $479.99.
Dimensions604 x 261 x 481 mm (DWH)
Form FactorFull Tower
MaterialsAluminum + Plastic + Steel
Mainboard SupportE-ATX, ATX, Micro-ATX, Mini-ITX
Front Access & ControlsPower, USB 3.0 x 2, USB 3.1 Type-C x 1, Headphone/Mic Combo Jack
Side Panel4mm Tempered Glass
 Drive Bays
Front3 x 120mm
Side6 x 120mm
Rear3 x 120mm/3 x 140mm
Radiator Support
Side120/240/360mm (Support up to 2 x 360mm Radiators at the same time)
Max GPU Length385mm
Max CPU Cooler Height85mm
Max PSU Length270mm
Net Weight10 Kgs
Gross Weight13.3 Kgs
Warranty1 year

Combined with the technological aesthetics and a unique case structure design, the new Antec Cannon is an aluminum alloy made open-air gaming case well equipped with high compatibility and layout for high-end PC components. The Cannon full-tower measures 604 x 261 x 481 mm (DxWxH) and will easily meet every PC-DIY user’s need as far as styling, functions, and uniqueness are concerned. The case is now commercially available on Amazon at US $479.99.

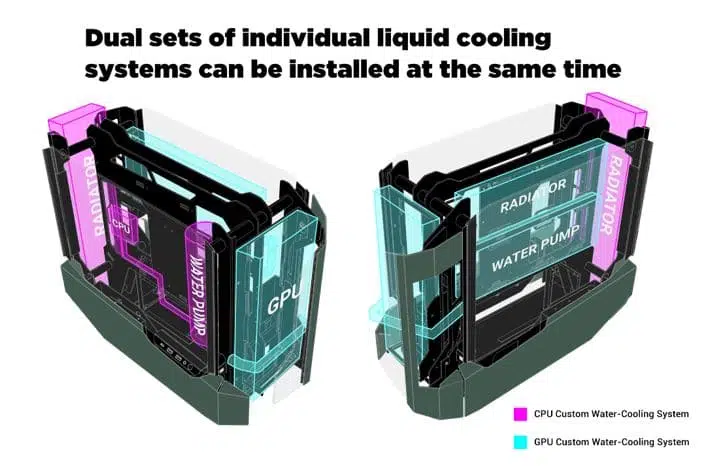

The Cannon has space for two separate individual liquid cooling loops which can be installed at the same time. This layout provides an extra-high standard of cooling for the GPU and CPU. The diversified configurations provide many options for high-end PC-DIY users to enjoy their creativity.

With highly flexible storage options, there are four potential 2.5″ SSD & 3.5″ HDD storage positions:

• One 2.5″ SSD & one 3.5″ HDD brackets are included

• One 2.5” SSD (The 2.5 SSD Bracket can support 2 x SSDs)

• One 3.5” HDD

This unique powerhouse accomodates PSUs with a length of up to 270mm length. Silicone cushions prevent you from scratching the case or the PSU. The chassis supports e-ATX, ATX, micro-ATX and mini-ITX motherboards and is is compatible with high-end GPUs such as ASUS STRIX 3090 or the MSI 3090 SUPRIM X.

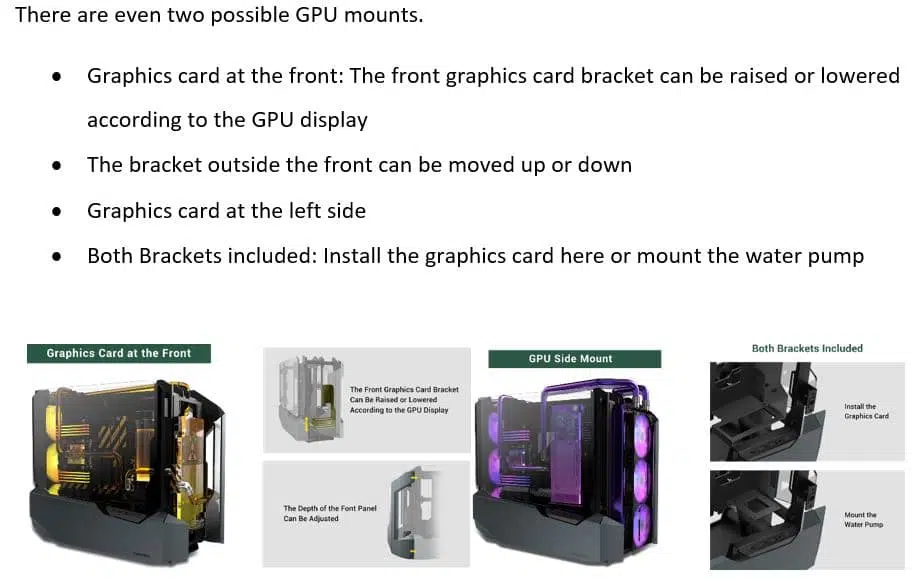

In terms of fan support, there is space for three 120mm fans in the front, six 120mm fans on the side as well as three 120 / 140mm fans in the rear of the case. To create a tidy appearance, the space for cable management is well-designed in the center and bottom of the case. A PCI-E 4.0 Riser Cable included. The GPU can be perfectly mounted, whether you put it in the front or at the side.

Source: Antec
