ASUS Announces ROG Hyperion GR701 Full-Tower Gaming Case

Image: ASUS

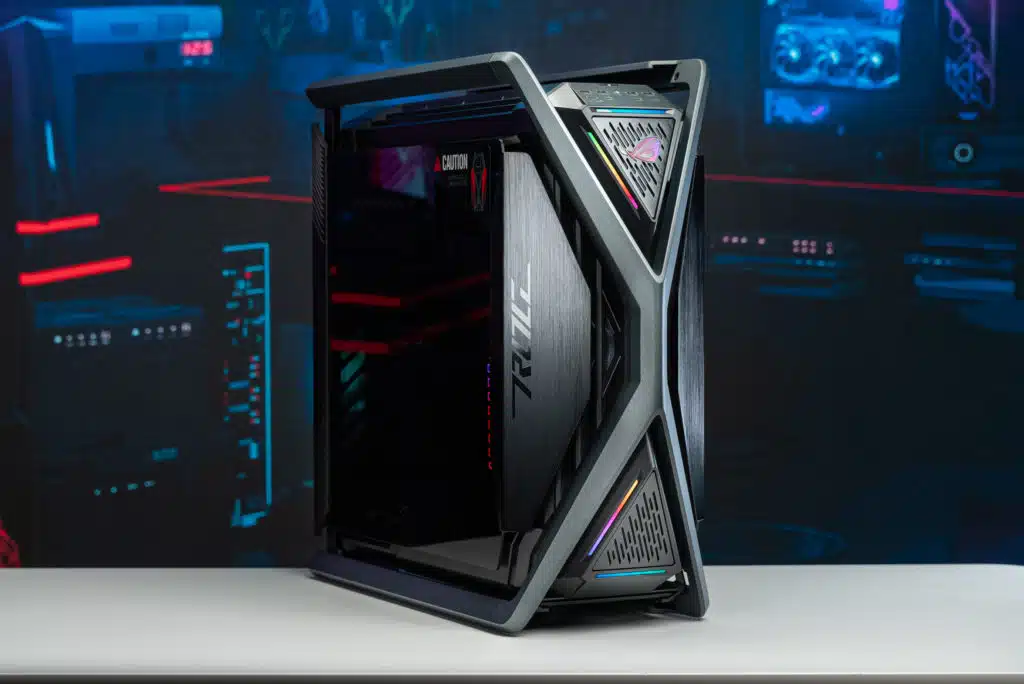

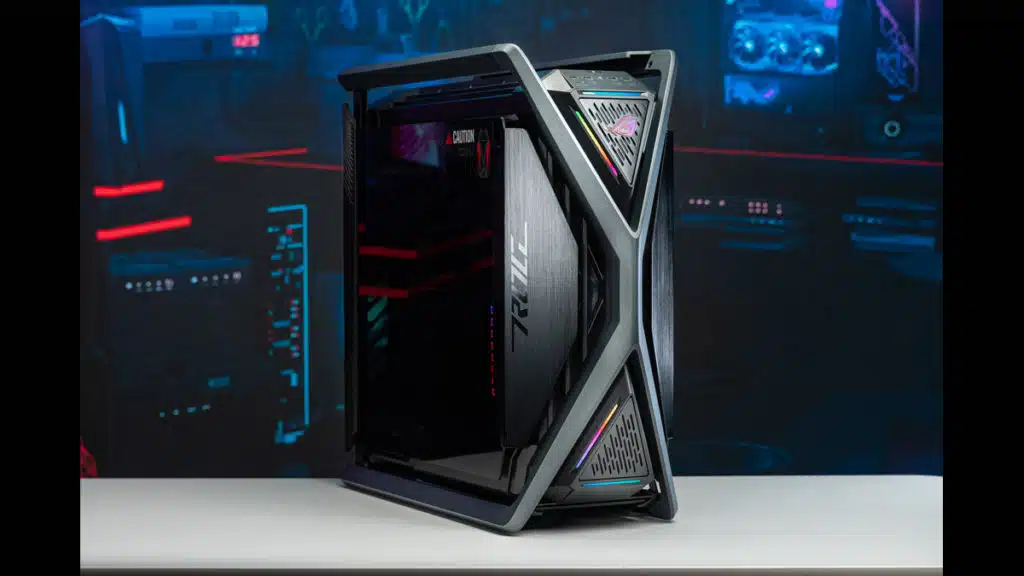

ASUS Republic of Gamers (ROG) has announced the Hyperion GR701, a new full-tower gaming case from the premium gaming brand that was designed for hosting “monster builds,” featuring a stylish chassis that can fit graphics cards up to 460 mm in length alongside novelties that include a built-in storage drawer.

The Hyperion GR701, which ASUS ROG describes as sleek and feature-packed, is advertised with the following:

  • Extra style: The chassis is decked out with anodized metal and hairline finishes, and the fan hub and lighting panel all support Aura Sync
  • Extra cooling: Dual 420 mm radiator support, four 140 mm fans and a built-in fan hub offer massive airflow possibilities
  • Extra space: Plenty of room for beefy graphics cards, and an expansive cable management chamber is 34 mm deep with a 46 mm wide routing channel
  • Extra convenience: Hinged tool-free side panels, a built-in storage drawer and an integrated graphics card holder offer a premium building experience

ASUS ROG Hyperion GR701 Specifications

Motherboard CompatibilityE-ATX (up to 12″ x 10.9″), ATX, Micro-ATX, Mini-ITX
Dimensions268 x 639 x 659 mm
Weight20.8 kg
MaterialsAluminum, Steel, Tempered Glass, ABS Plastic
I/O Ports4 x USB 3.2 Gen1
2 x USB 3.2 Gen 2×2 (Type-C)
1 x Headphone + Microphone
3.5″/2.5″ Drive Bays2
2.5″ Drive Bays5
Expansion Slots9
Vertical Expansion Slots3
Maximum GPU Length460 mm
Maximum CPU Cooler Height190 mm
Maximum PSU Length240 mm
Radiator CompatibilityFront: 120/140/240/280/360/420 mm
Top: 120/140/240/280/360/420 mm
Side: 120/240/360 mm
Rear: 120/140 mm
Cooling SupportFront: 3 x 140 mm / 3 x 120 mm
Top: 3 x 140 mm / 3 x 120 mm
Side: 3 x 120 mm
Rear: 1 x 140 mm / 1 x 120 mm
Pre-installed FansFront: 3 x 140 mm PWM
Rear: 1 x 140 mm PWM
Removable Dust FiltersFront/Top/Bottom
Cable Routing34 mm
Extension HubSupports PWM Fan x 6, ARGB LED Component x 8

From an ASUS press release:

A new benchmark for airflow

The world of PC building has changed. From next-gen graphics cards like the NVIDIA GeForce RTX 4090 to faster-than-ever USB data rates and charging, a PC case needs to support the latest and greatest technologies. ASUS built the ROG Hyperion to be a durable, elegant chassis that is ready for the future of DIY gaming rigs — with an airflow-focused design that keeps components running in top shape.

This is the next generation of ROG chassis. The top priority with the Hyperion is airflow, with huge channels in the front for air to pass through alongside a grille along the top. Thanks to these channels plus support for up to two 420 mm radiators, users can rest assured that their components will stay frosty and perform their best, whether using heatsinks, all-in-one liquid cooling, or a fully custom loop designed from the ground up.

A vast and adaptable interior

The ROG Hyperion has also been designed with next-gen components in mind. It supports up to 12-inch E-ATX motherboards, dual USB 3.2 Gen 2×2 Type-C ports on the front, and plenty of expansion slots for future upgrades. The latest graphics cards, in particular, reach untold new levels of performance, with large heatsinks to keep them cool and quiet. And the Hyperion is spacious enough to fit even the largest graphics cards like the ROG Strix GeForce RTX 4090. Go with a traditional horizontal mount of up to 460 mm wide, or mount a card vertically with up to 130 mm of space for present and future cards. The built-in aluminum two-way graphics card holder will keep the card from sagging in either orientation, no matter how large it is — while also aiding in cable management for the rest of a build.

And users will not just be stuffing their cables behind the side panel and hoping it closes, either. ASUS has provided 34 mm of space behind the motherboard for all wiring, with multiple grommets and a wide panel along the back with built-in hook-and-loop cable ties to keep everything neat and tidy. Plus, with the translucent acrylic door, users can keep all cables contained before they ever put the back side panel on. This also provides more space for heat dissipation. A built-in ARGB controller provides a place for all Aura Sync devices to plug in, with support for up to eight ARGB devices and six PWM fans.

Designed for DIY builders

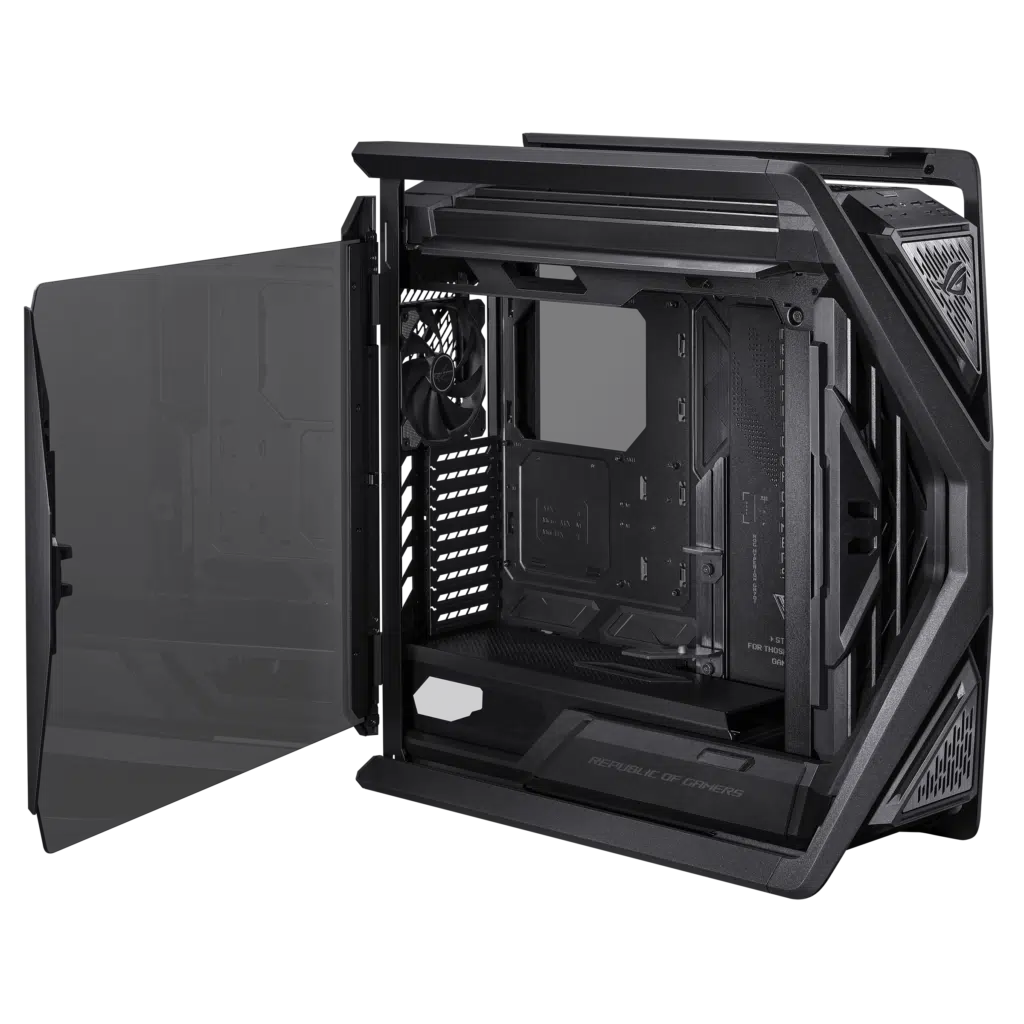

The Hyperion is a full-feature case with plenty of room to work — without being colossal. And the little conveniences are what really take the Hyperion to the next level. With most builds, users are stuck stashing extra screws, cable ties and PCIe slot covers in a box somewhere, hoping they do not get lost before the next upgrade. The ROG Hyperion offers a small embedded drawer along the bottom as dedicated storage for screws, accessories and even a small screwdriver. The side panels are completely tool-less, and the power supply shroud has been designed to allow airflow while keeping the holes small enough to prevent screws from falling through. There’s also a small opening in the shroud for the ROG Thor’s OLED panel, so users can see their power usage at all times.

The signature ROG experience

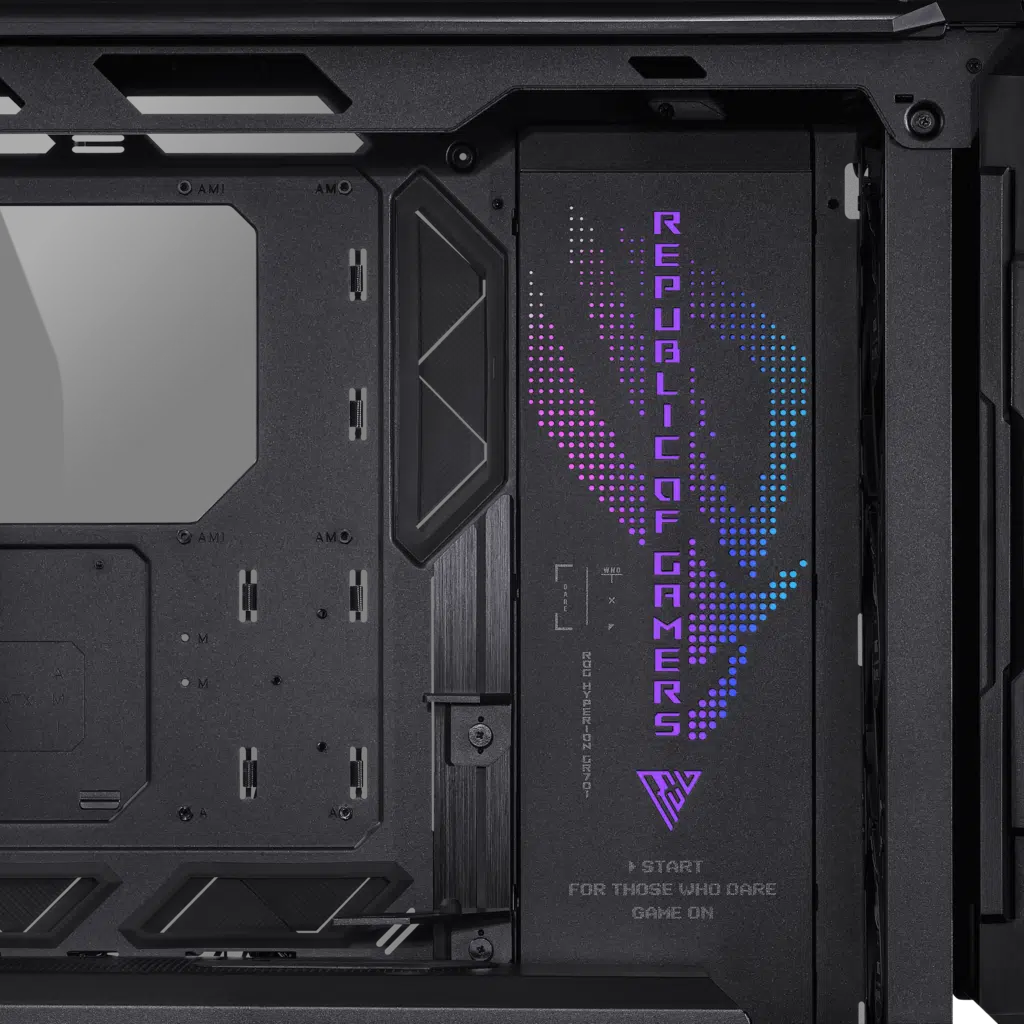

Finally, no case is complete without the aesthetic flourishes that help it stand out from the crowd. The interior panel next to the motherboard allows space for a radiator, ARGB fans, multiple 2.5-inch SSDs or — if users do not need that extra mounting space — they can install the included lighting board, which adds a bit of ROG visual flair to the otherwise empty space. The case’s aluminum frame also acts as a pair of sturdy handles, which travel down the front panel of the case and meet under a black-tinted ARGB logo.

As the DIY PC space rapidly changes, the ROG Hyperion is ready to accommodate all the latest components with exceptional cooling, and it’s ready to grow with a user’s needs over time.

ASUS ROG’s current gaming case lineup comprises at least seven models, according to the manufacturer’s official website, including the ROG Strix Helios EVA Edition, a case inspired by the Japanese anime, priced at $399.99.
