NZXT C1200 Gold 1200 Watt ATX 3.0 Power Supply Featuring 16-Pin PCIe 12VHPWR Connector Announced

The FPS Review may receive a commission if you purchase something after clicking a link in this article.

Image: NZXT

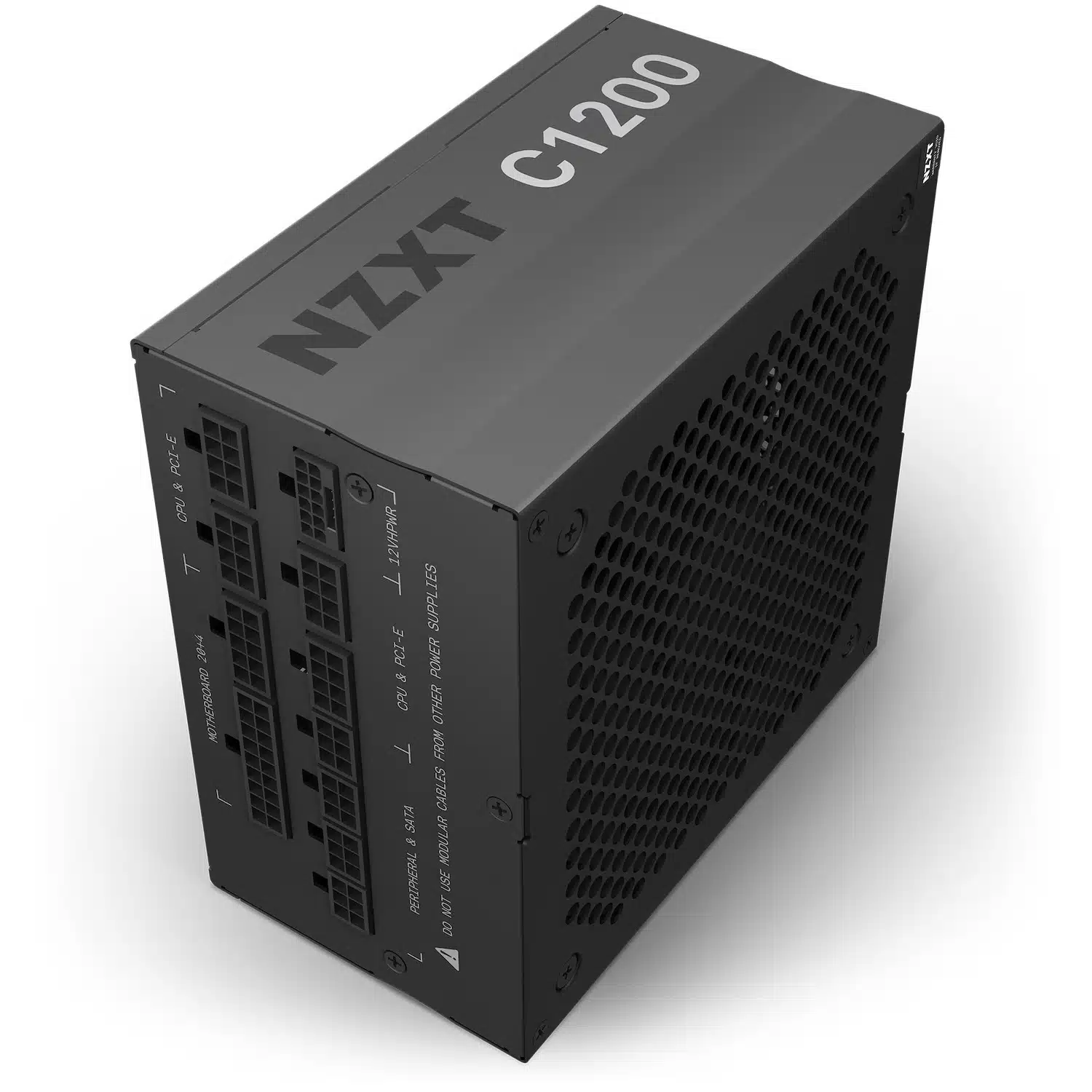

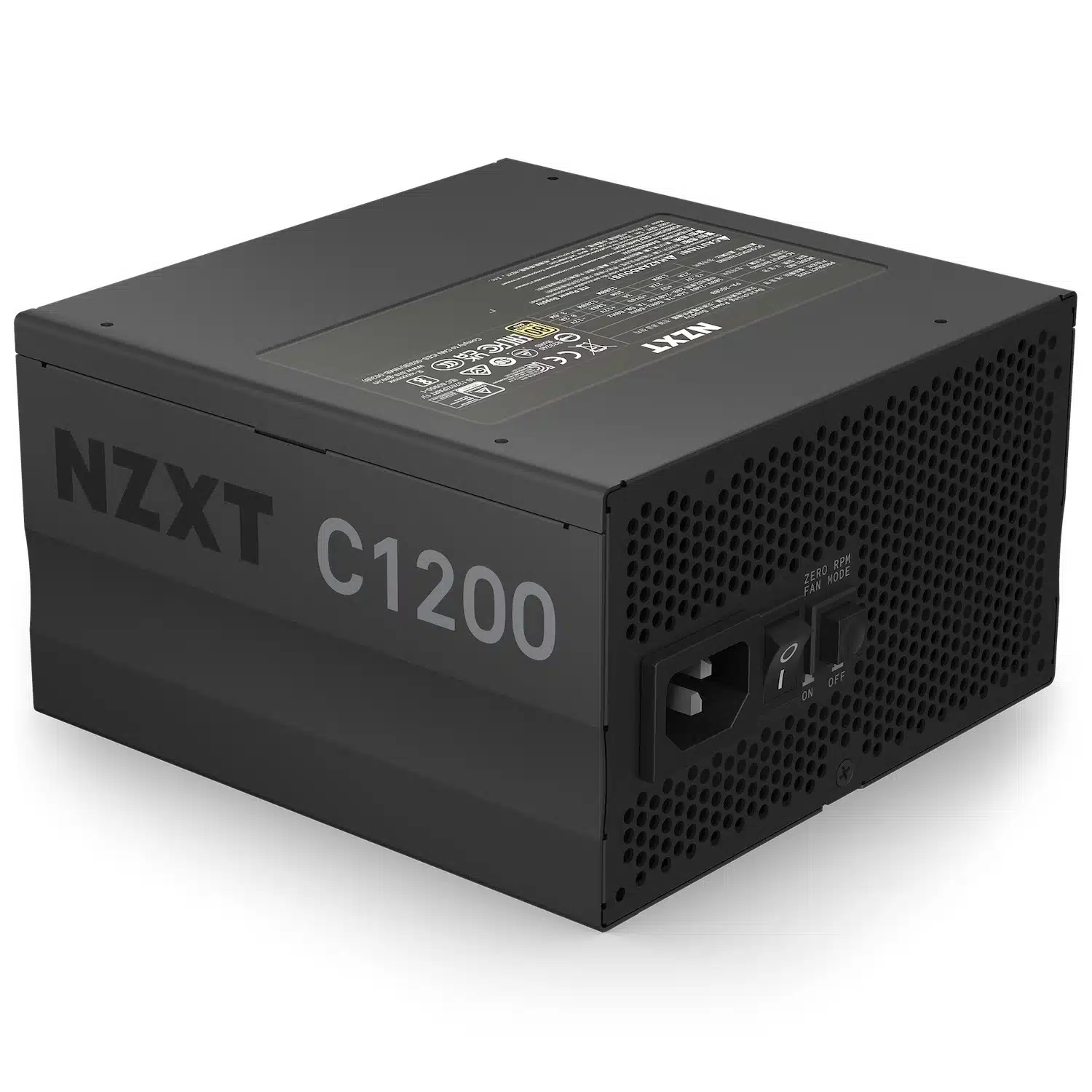

As part of its new product announcements, NZXT has also revealed its 1200 Watt ATX 3.0 power supply, the C1200 Gold. The NZXT C1200 Gold joins the ranks of the expanding range of power supplies to adopt the new 16-pin connector that can deliver up to 600 Watts of power to a graphics card via a single cable. The NZXT C1200 Gold is listed as coming soon, is priced at $219.99, and features a 10-year warranty. A zero fan mode allows for quiet operation under light loads and cooling is provided via a 135mm PWM fan with fluid dynamic bearings. The PSU is constructed with Japanese 105°C capacitors and has an efficiency of 90.5% when at 50% load.

Specifications

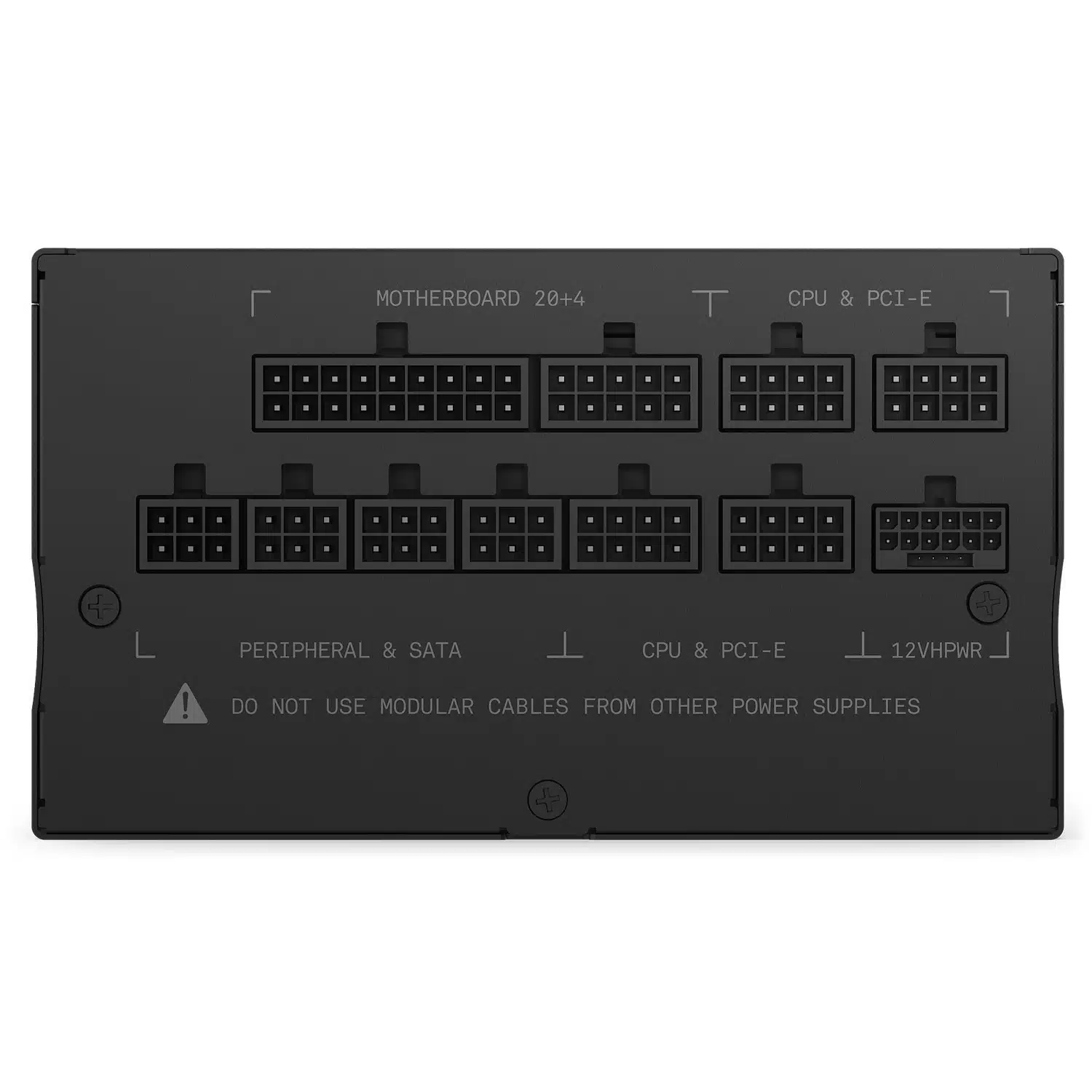

OUTPUT CONNECTORS

  • 24-pin ATX power:1
  • 4+4-pin CPU power:1
  • 6+2-pin PCIe power:4
  • SATA power:8
  • Peripherals:4

CABLE SPECS

  • 24-pin ATX power:600 mm, Nylon sleeving
  • 4+4-pin CPU power:700 mm, Nylon sleeving
  • 6+2-pin PCIe power:650 + 150 mm, Nylon sleeving
  • SATA power:500 + 150 mm
  • Peripherals:500 + 150 mm

AC INPUT RATING

  • 100 – 240Vac:14A-7A 50Hz-60Hz

DC OUTPUT RATING

  • +3.3V and +5V:22A (120W)
  • +12V:100A (1200W)
  • -12V:0.3A (3.6W)
  • 5Vsb:3A (15W)
  • Total:1200W

OPERATION

  • PF Correction:Active @0.96
  • MTBF:100,000 hours
  • Temperature:0 – 50 °C (derating from 100% to 80% from 40 °C to 50 °C)

ENERGY EFFICIENCY

  • Rating:80 Plus Gold
  • 20% loading:87% @115Vac
  • 50% loading:90.5% @115Vac
  • 100% loading:87.5% @115Vac

FAN SPECS

  • Dimensions:135 x 135 x 25 mm
  • Speed:0-2300 ± 10% RPM
  • Airflow:93.02 CFM (Tpy.)
  • Noise:44.5 dBA max
  • Bearing:Fluid Dynamic Bearing (FDB)

GENERAL

  • Dimensions:150 x 150 x 86mm
  • Material(s):Steel, PCB and Plastic
  • Compliance Standard:ATX12V v3.0 / EPS12V v2.92
  • Regulation & Certification:cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA
  • Warranty:10 years
  • Model Number:PA-2G1BB
