LIAN has announced that the O11 Vision is available for pre-order beginning today at Newegg and other retailers at an MSRP of $139.99 for the black version and $149.99 for the white version. A Chrome version of the O11 VISION will also be available at a later date, priced the same as the white version ($149.99).

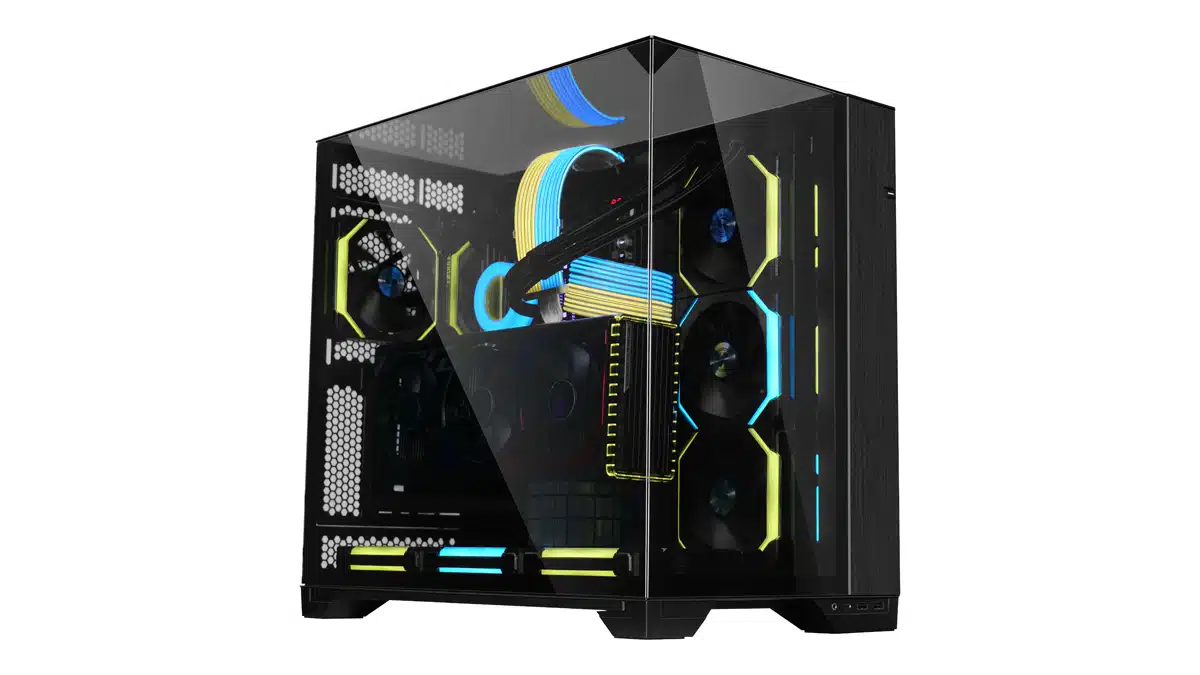

Developed in collaboration with PC Master Race (PCMR), the O11 Vision is a new case from LIAN LI that is aimed at users who really want to show off their hardware, being a “showcase tower” that features tempered glass panels on not only the side, but also the front and top.
Here are the key features for the O11 Vision:
- 3-sided tempered glass without support frame and column for unobstructed view
- Removable motherboard tray; adjustable in 2 positions (low mode, high mode)
- Low mode supports up to 2 x 120mm fans / 240 radiator at the rear
- High mode supports 95mm thick fan/radiator combo at the bottom
- 27mm elevated base for increased air intake
- Comprehensive cable management and flexible storage solutions
And here’s a breakdown of the case’s key features from LIAN LI, including a removable motherboard tray and improved airflow via an elevated base (27 mm) and rear support for up to 2x 120 mm fans:

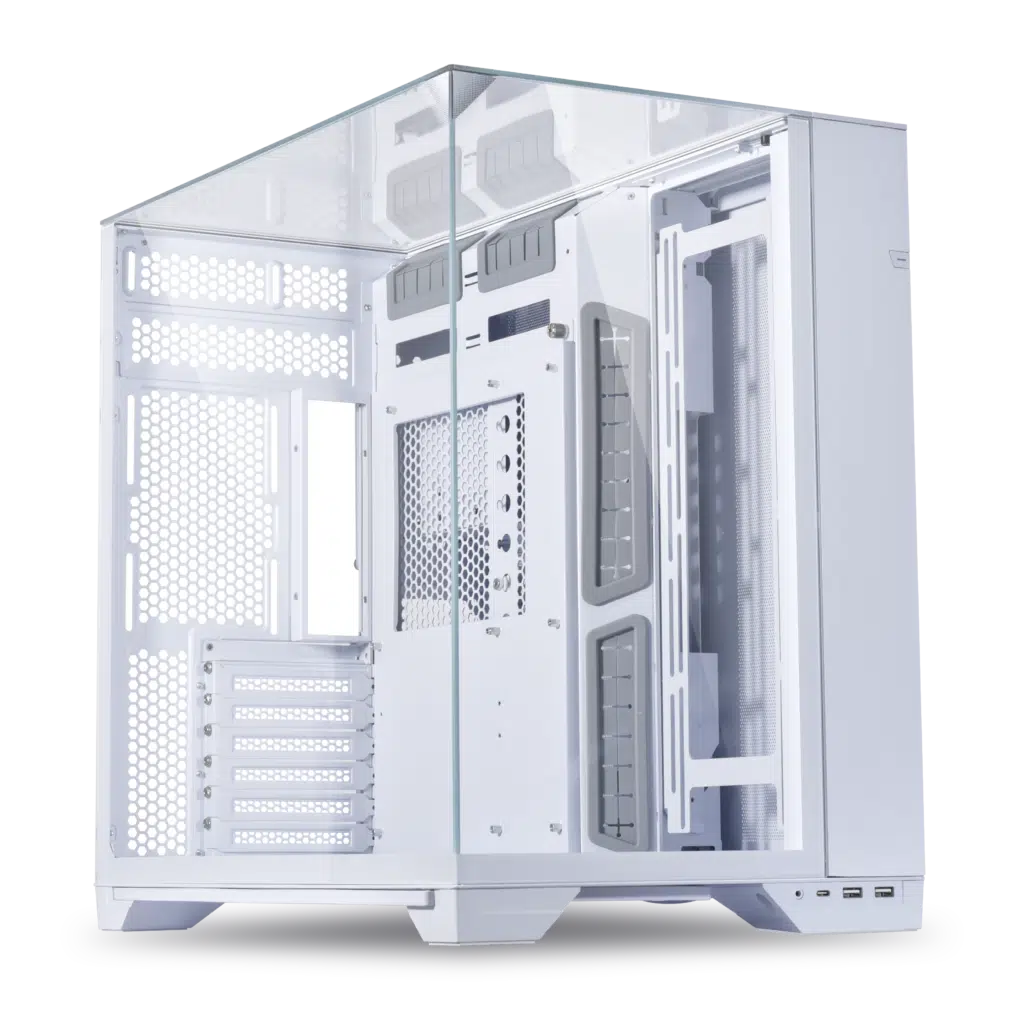

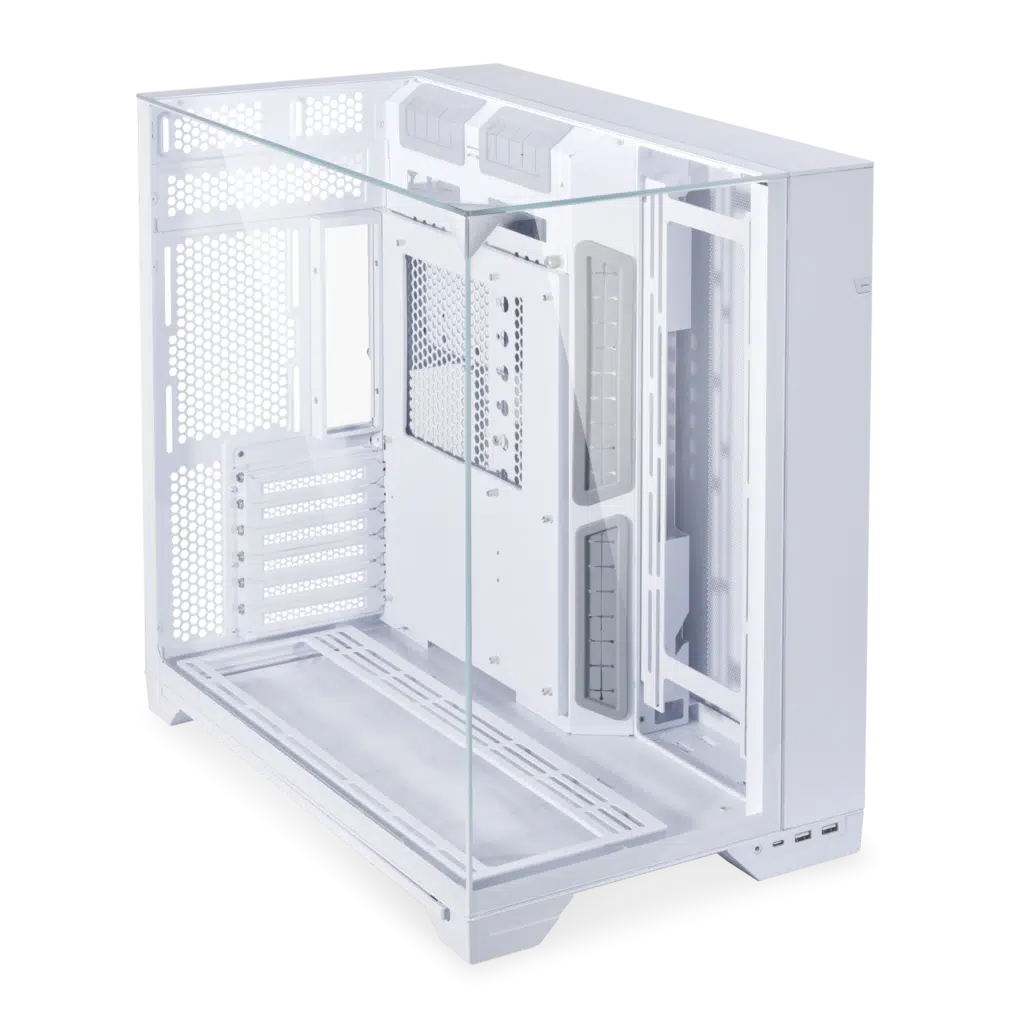

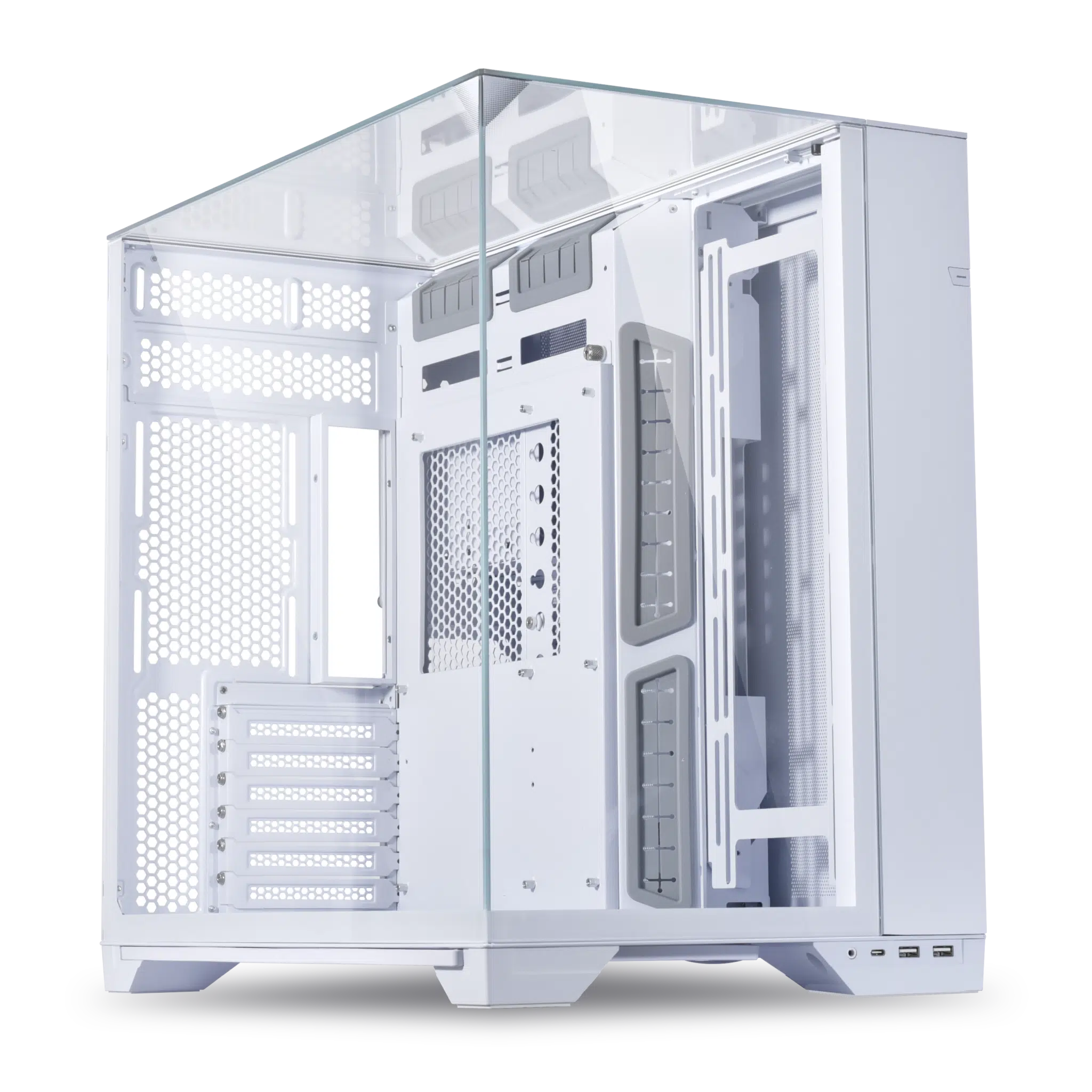

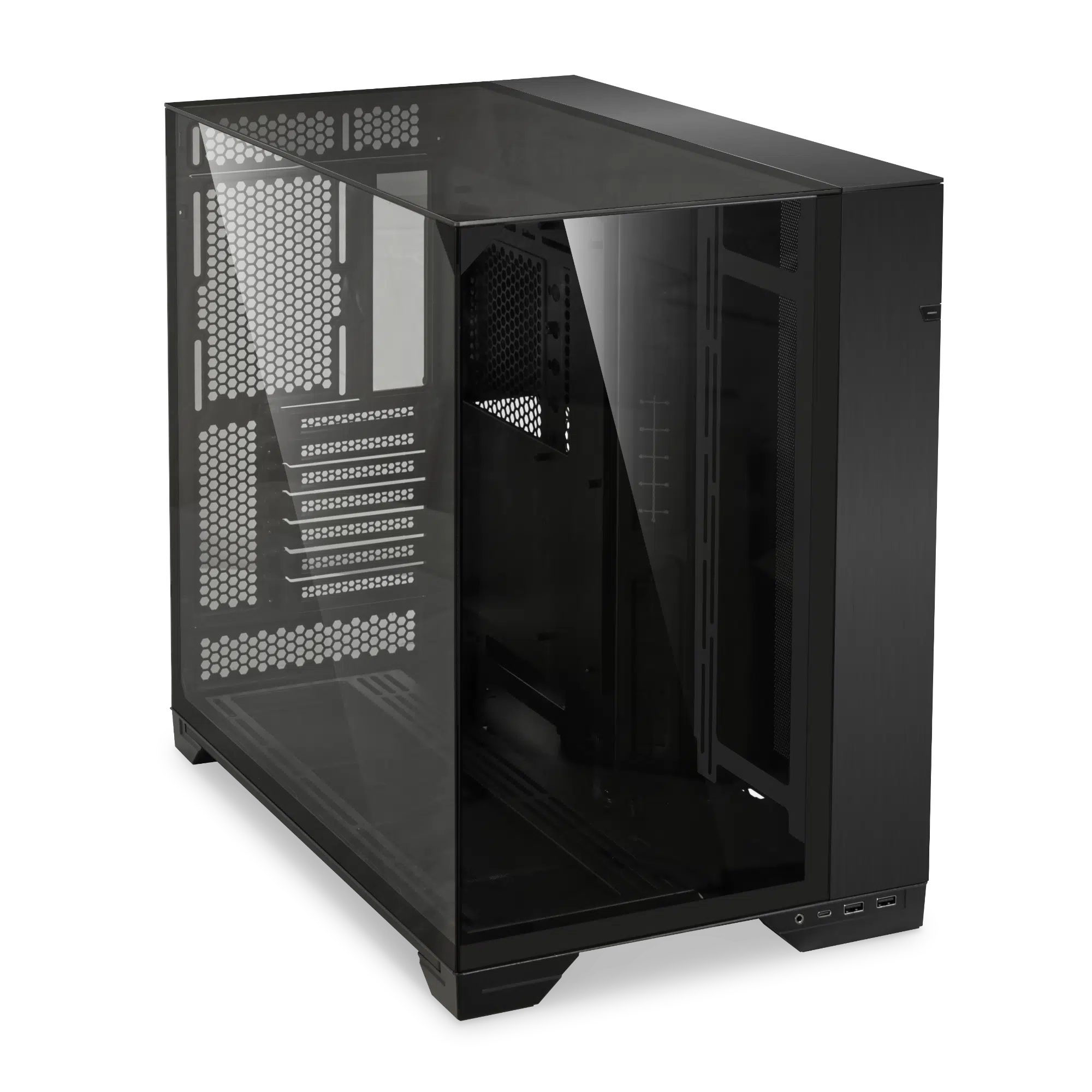

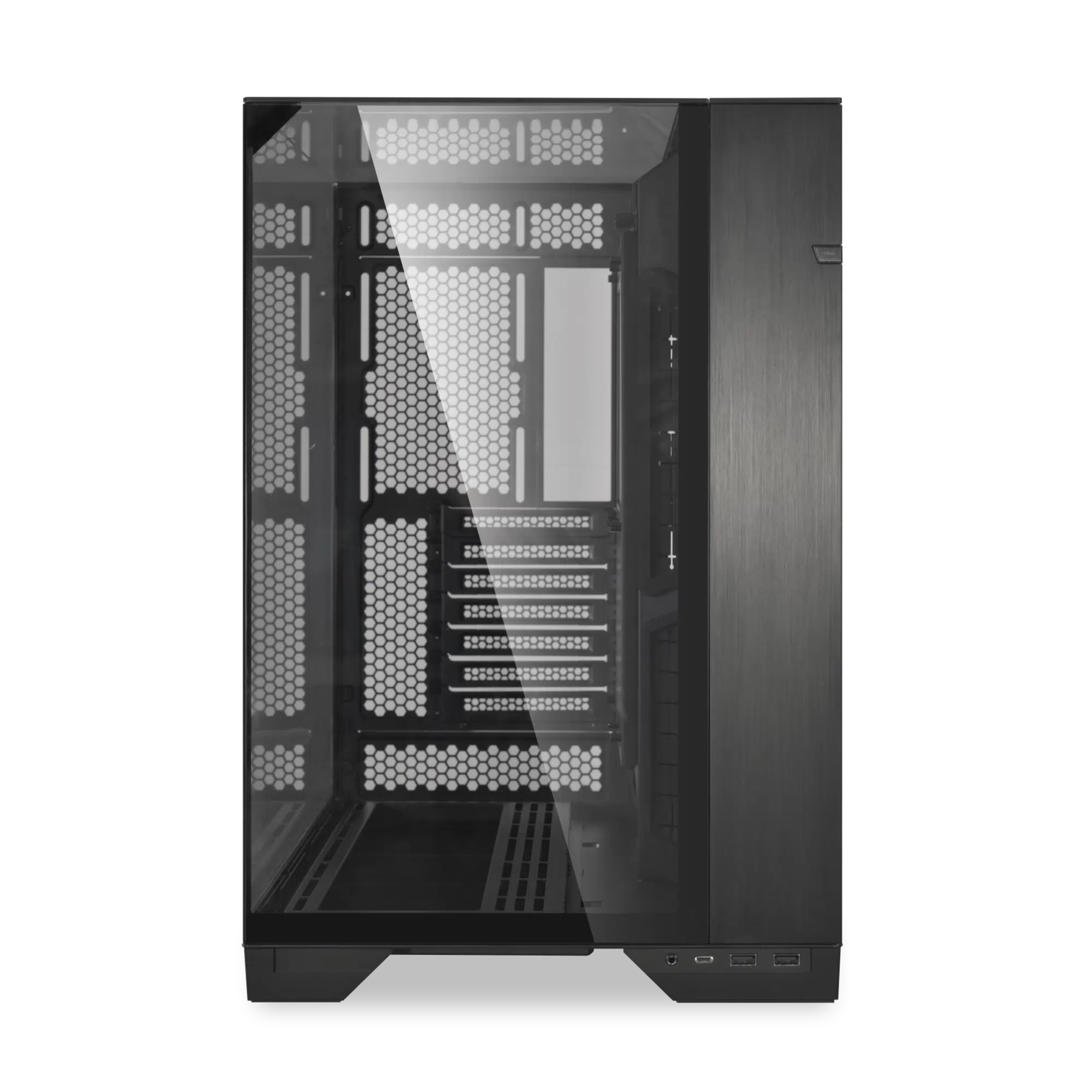

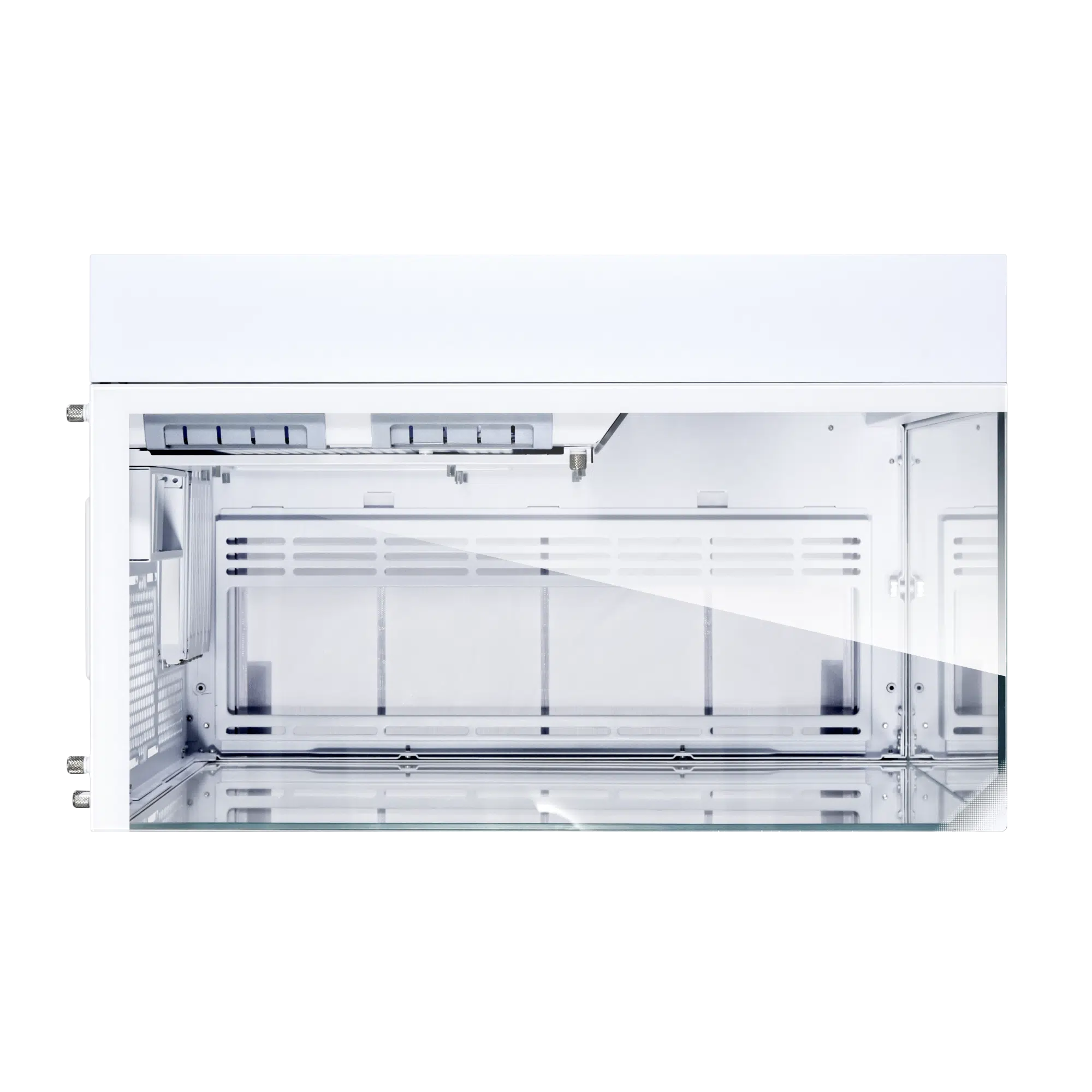

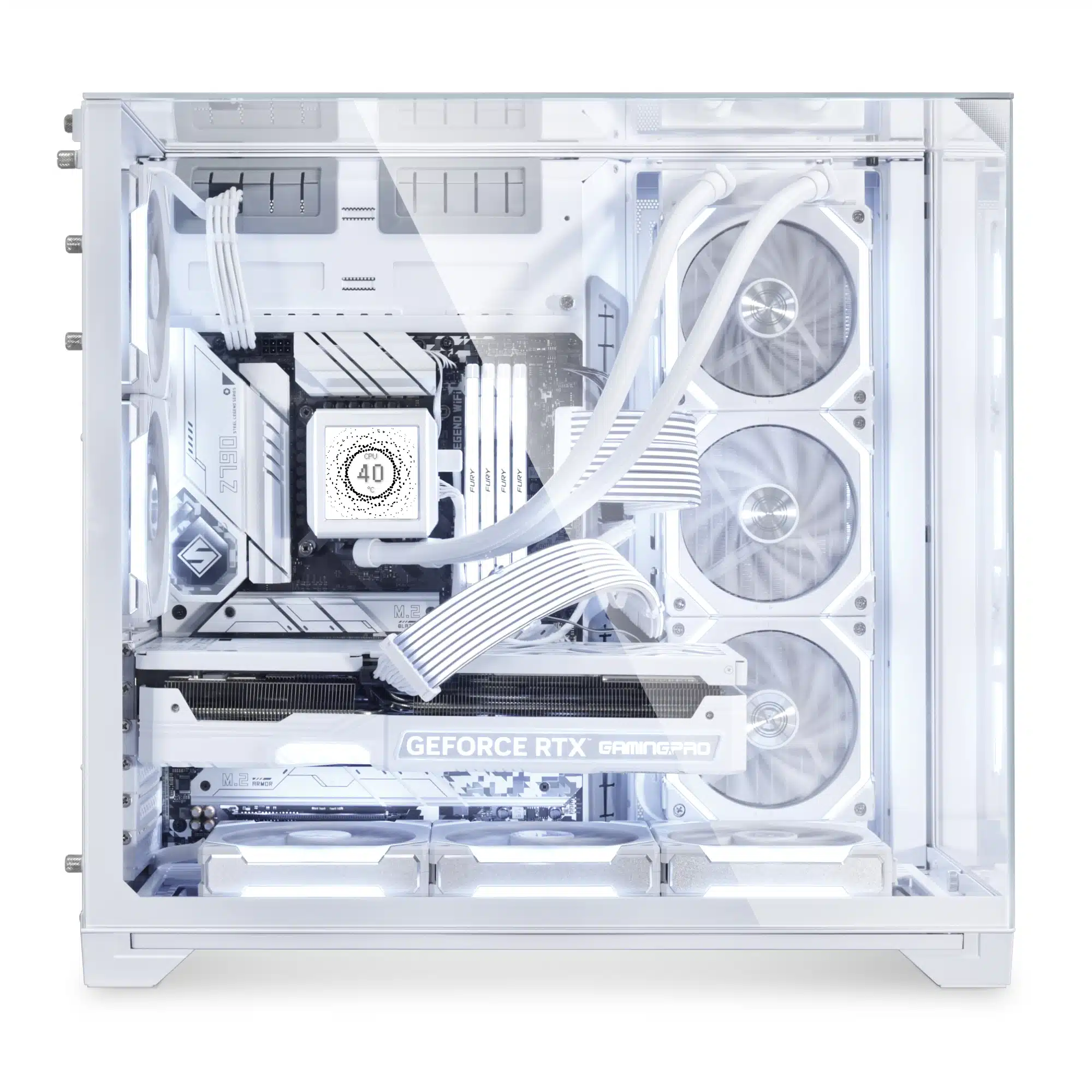

Built with Unobstructed View

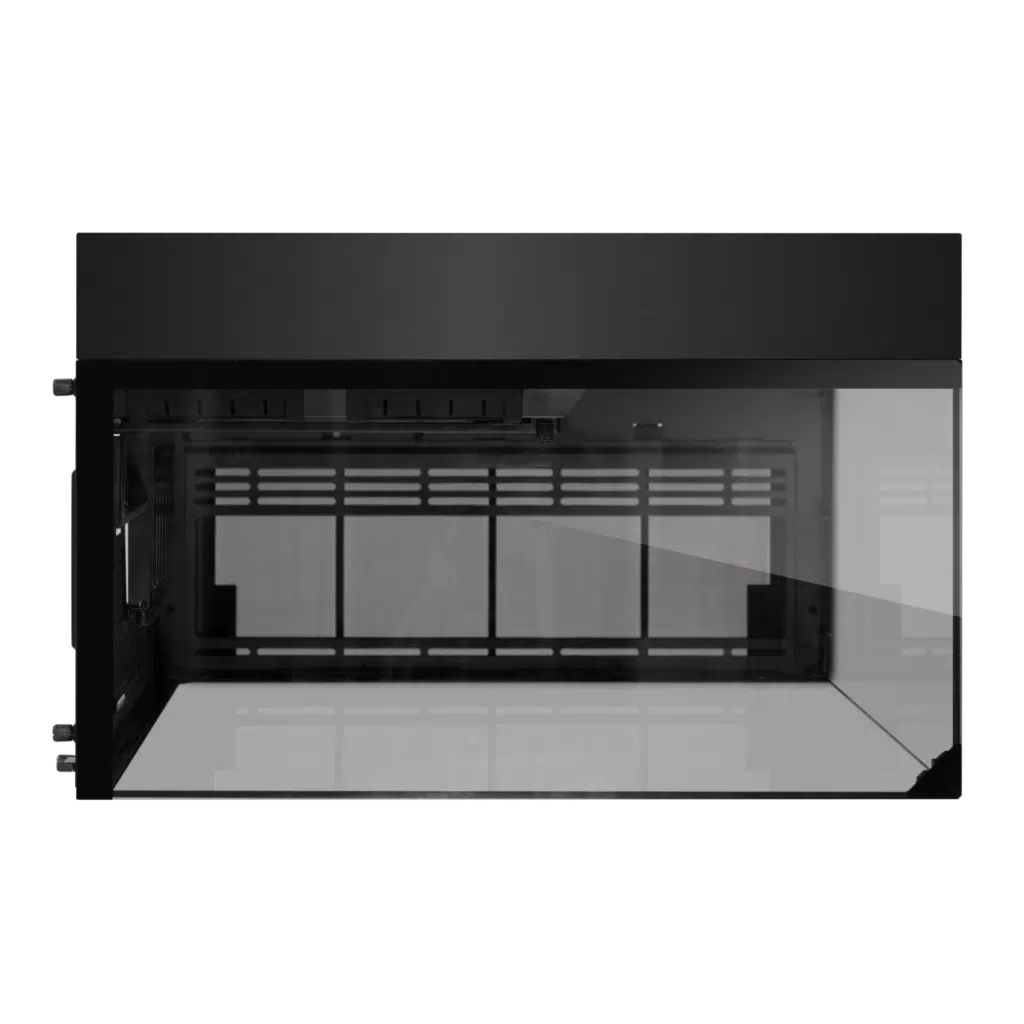

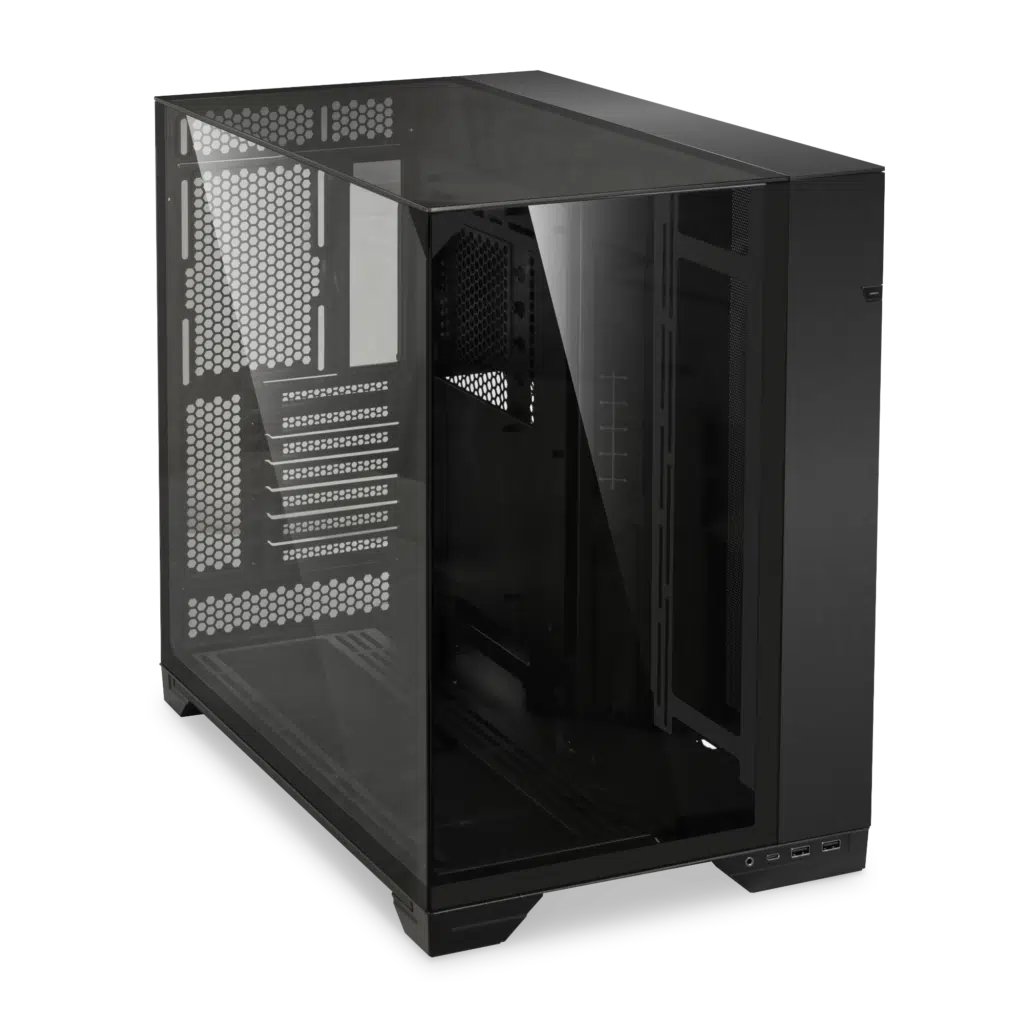

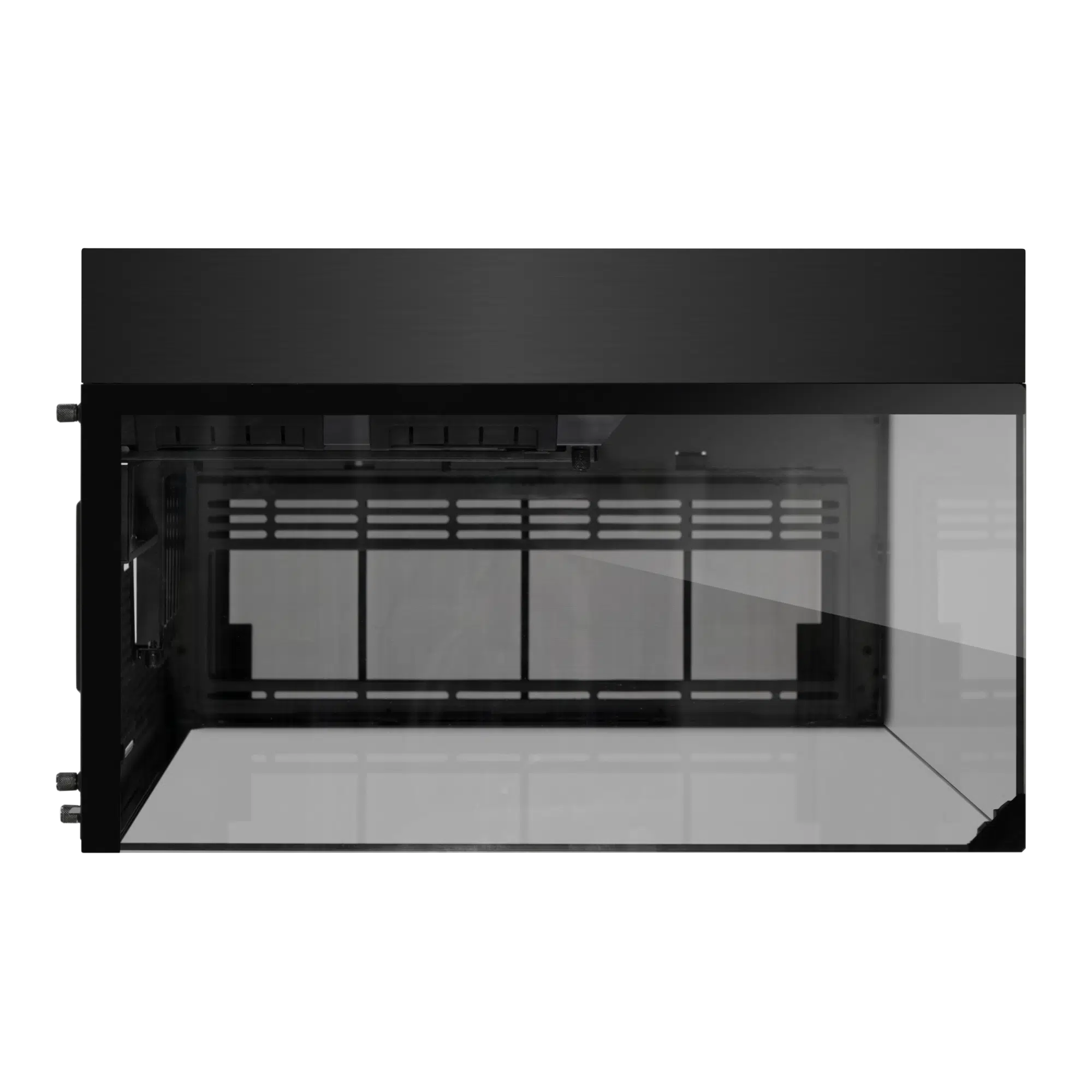

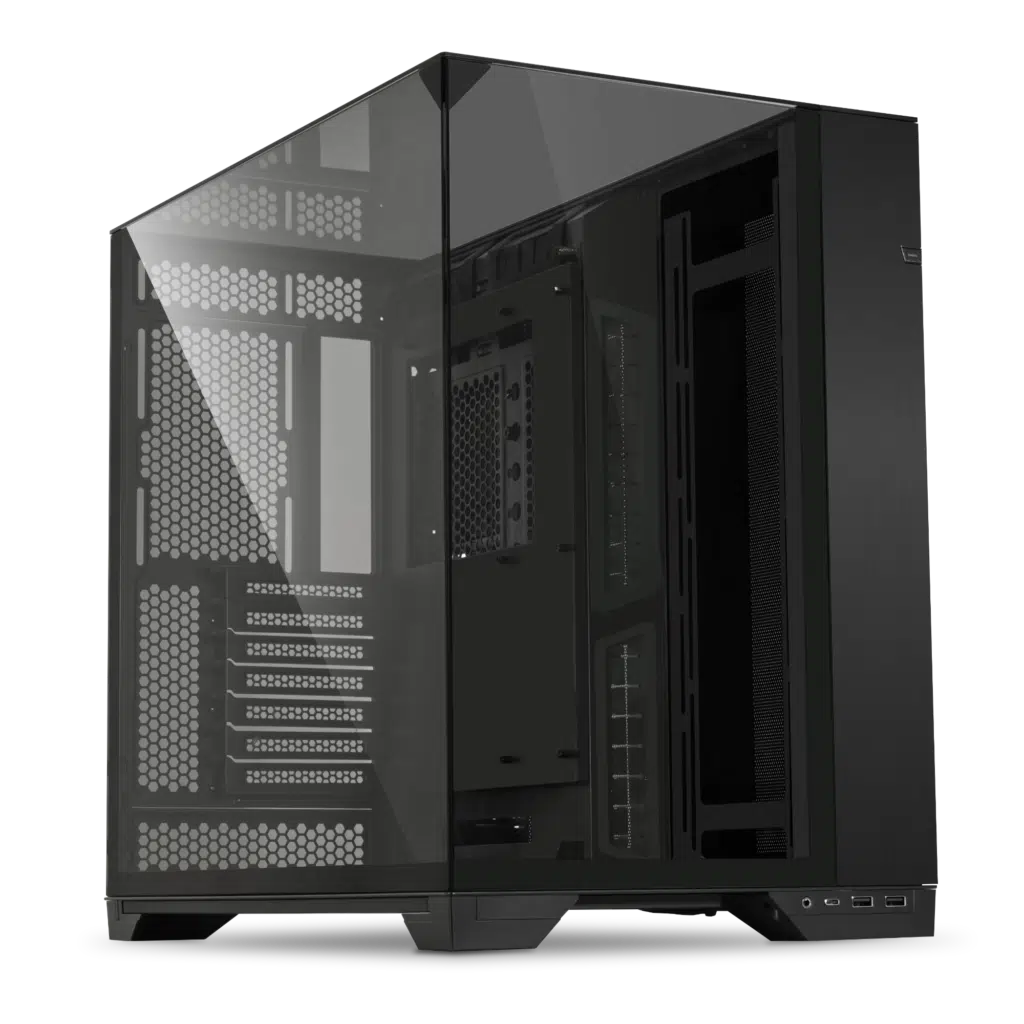

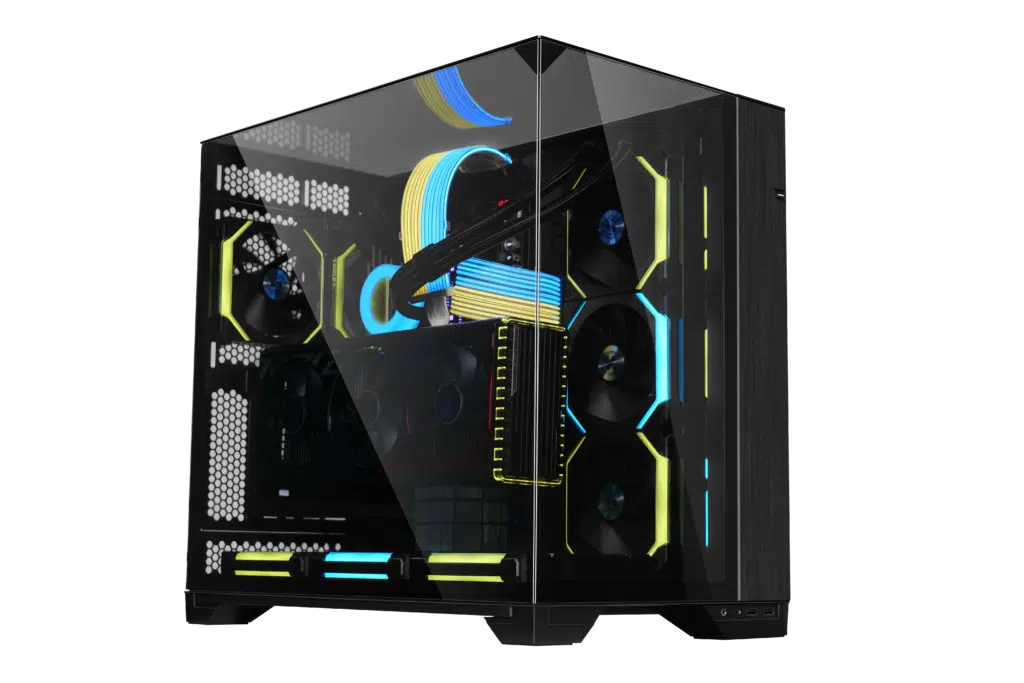

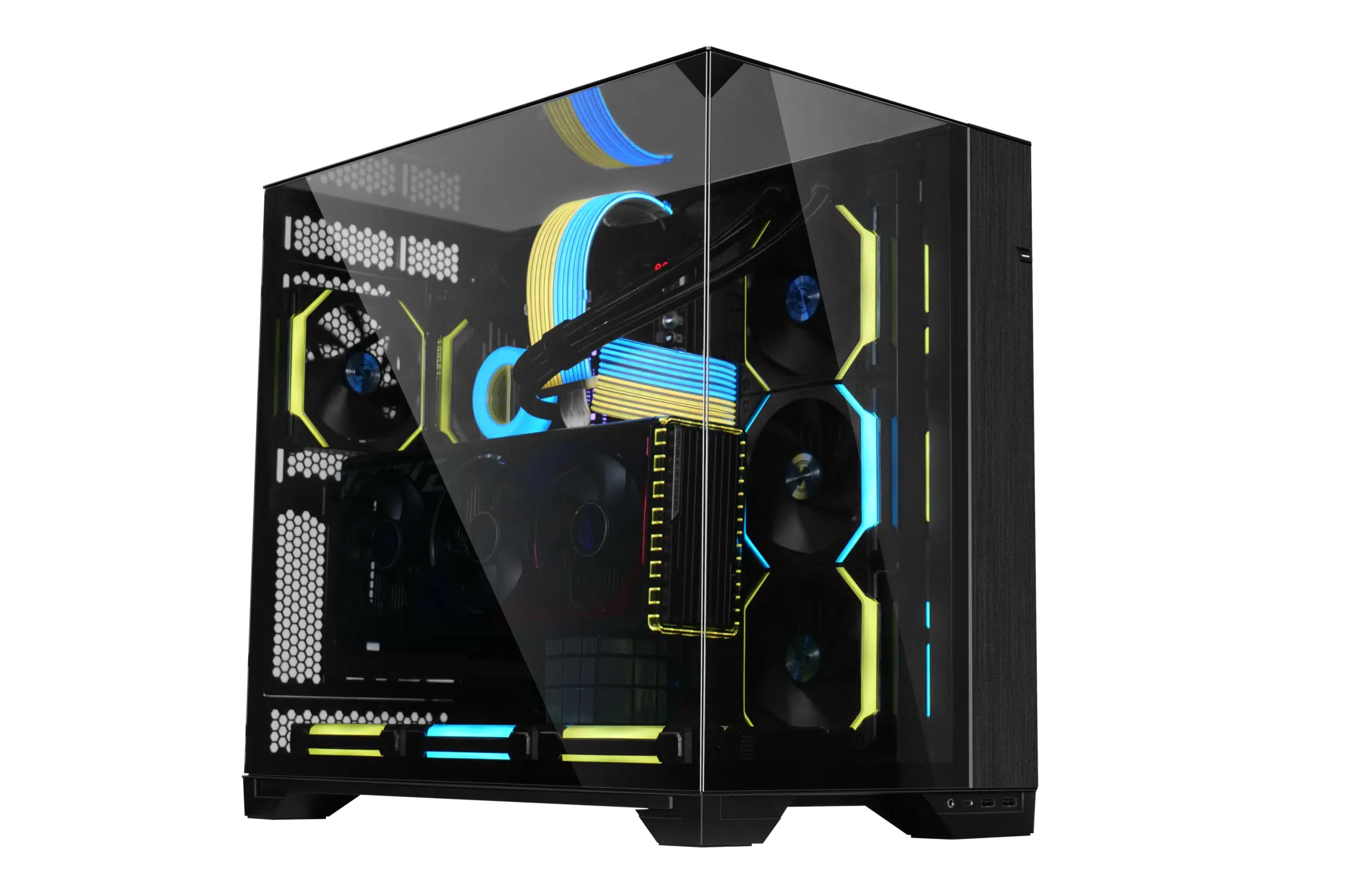

The O11 VISION is the first case to offer a completely unobstructed view of the system with its top, front, and left-side tempered glass panels. The support structure along the glass edges has been eliminated. For structural support, the glass panels meet at the top left corner, held in place by a mounting key that aligns with magnets that provide up to 35kg of support force. The mounting key is discreetly concealed behind a triangular silk screen, with the white version featuring an elegant gradient white and grey, elegantly blending with the case.
2 Configurations

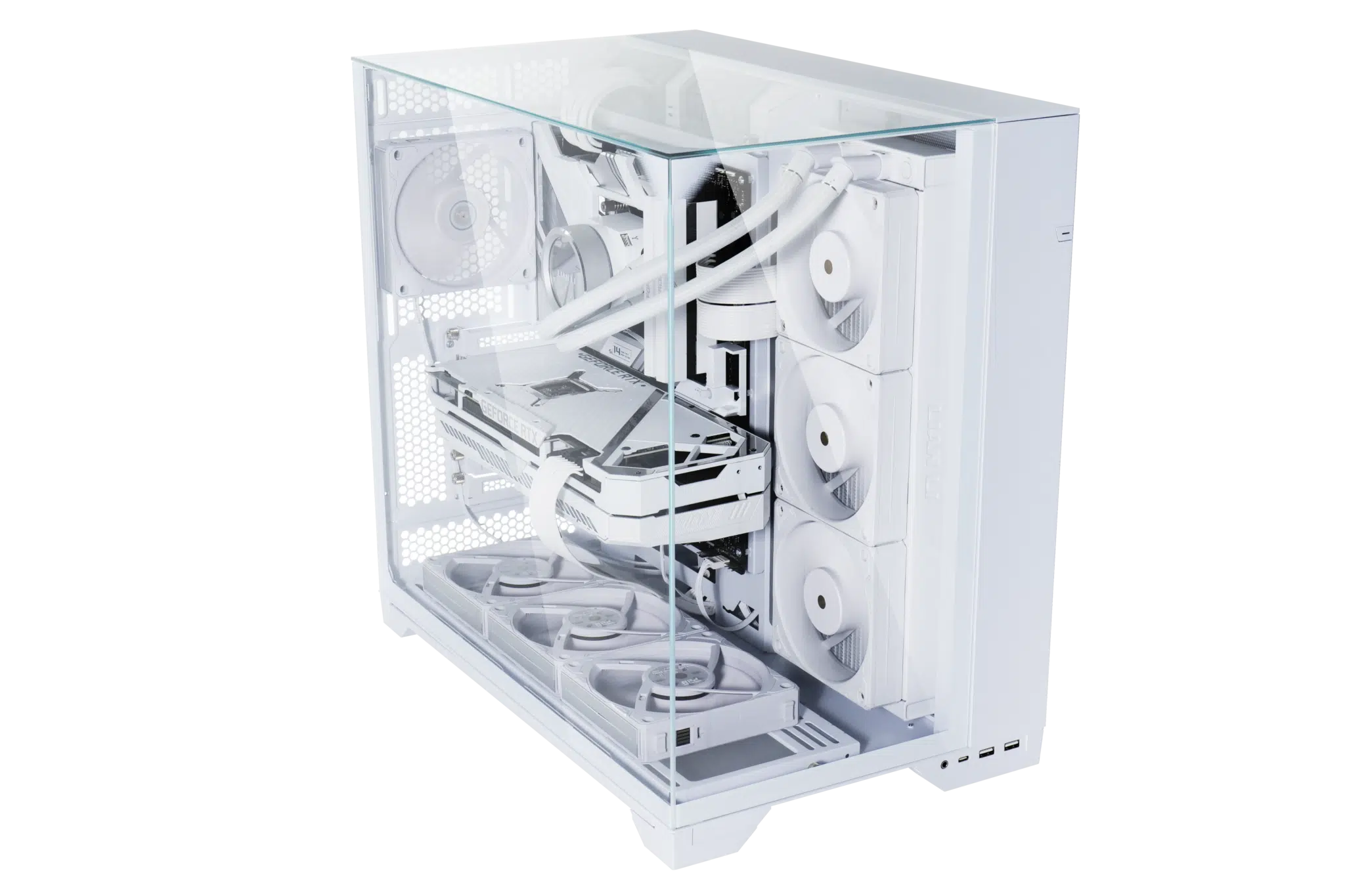

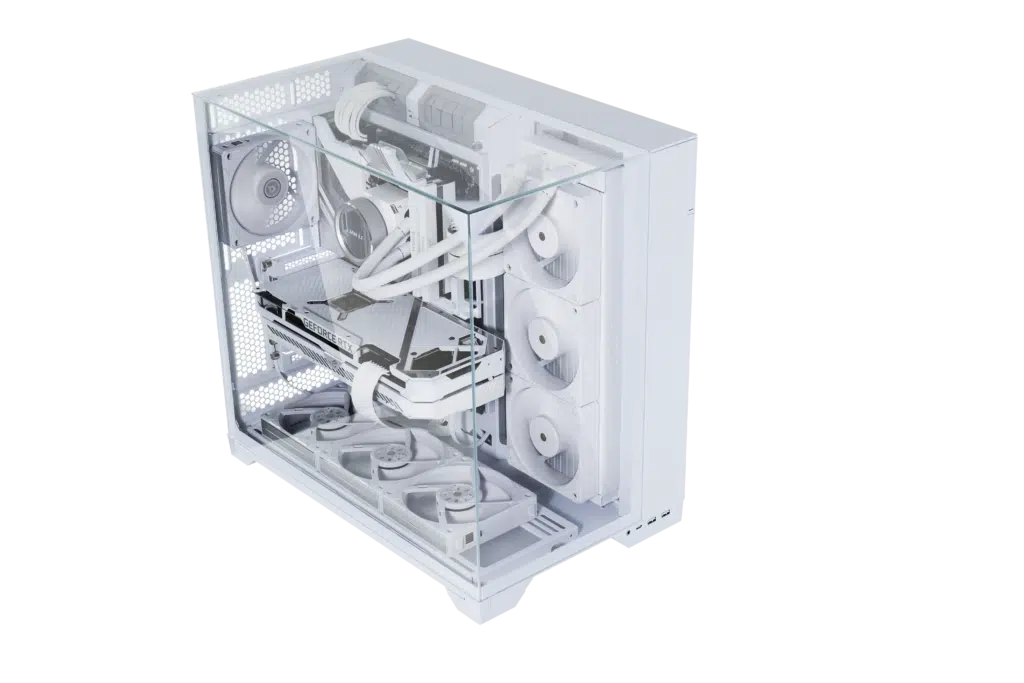

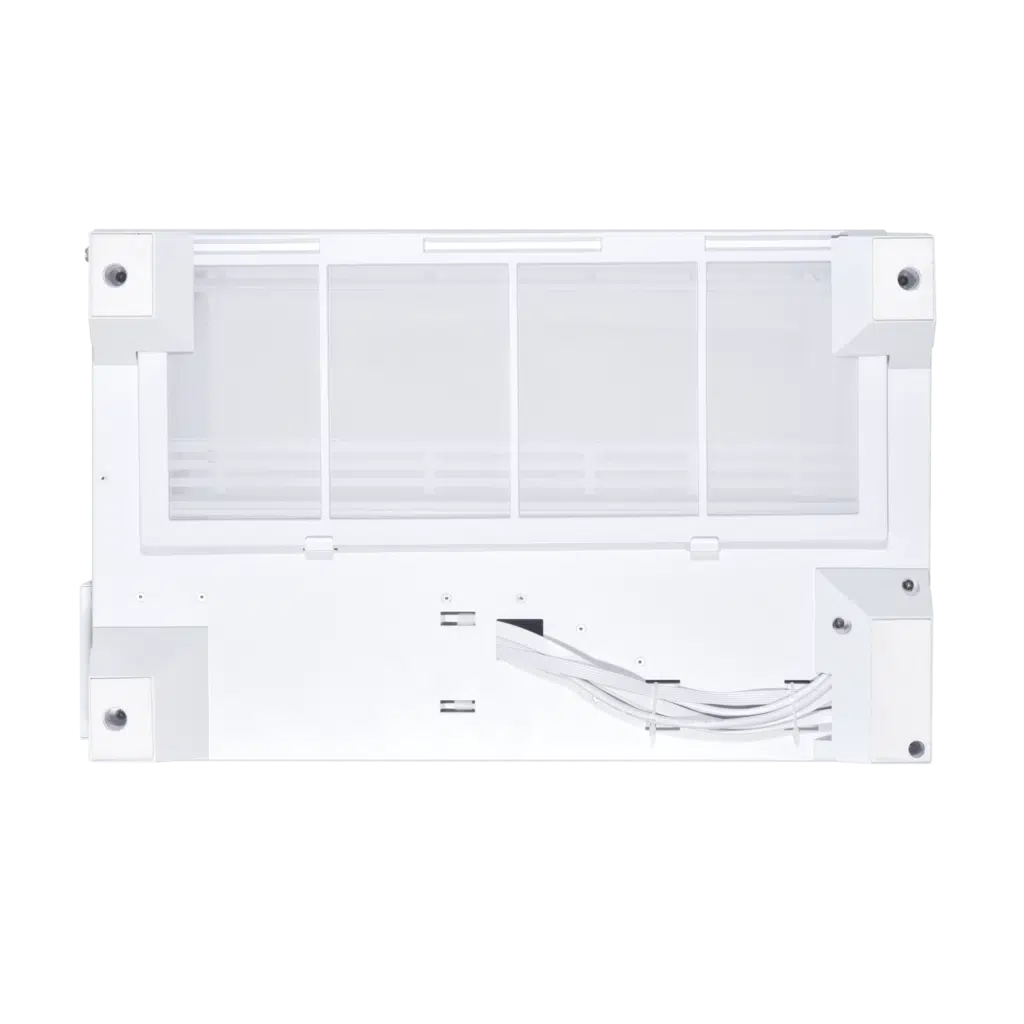

The O11 VISION offers a removable motherboard tray for ease of installation, which can be adjusted in two different positions. In low mode, the O11 VISION supports up to 2 x 120mm fans / 240 radiator at the rear. In high mode, the case supports up to 3 x 120mm/140mm fans and up to 360 radiator at the bottom removable bracket, with maximum thickness of 95mm, ample space for push-pull setup. Additionally, the O11 Vision supports 3 x 120mm fans / 360 radiator or 2 x 140mm fans / 280 radiator beside the motherboard. For optimal bottom air intake, the base is elevated to 27mm, and with fans mounted on the bottom fan bracket, the height of the bottom fans can be raised to 40mm in total.

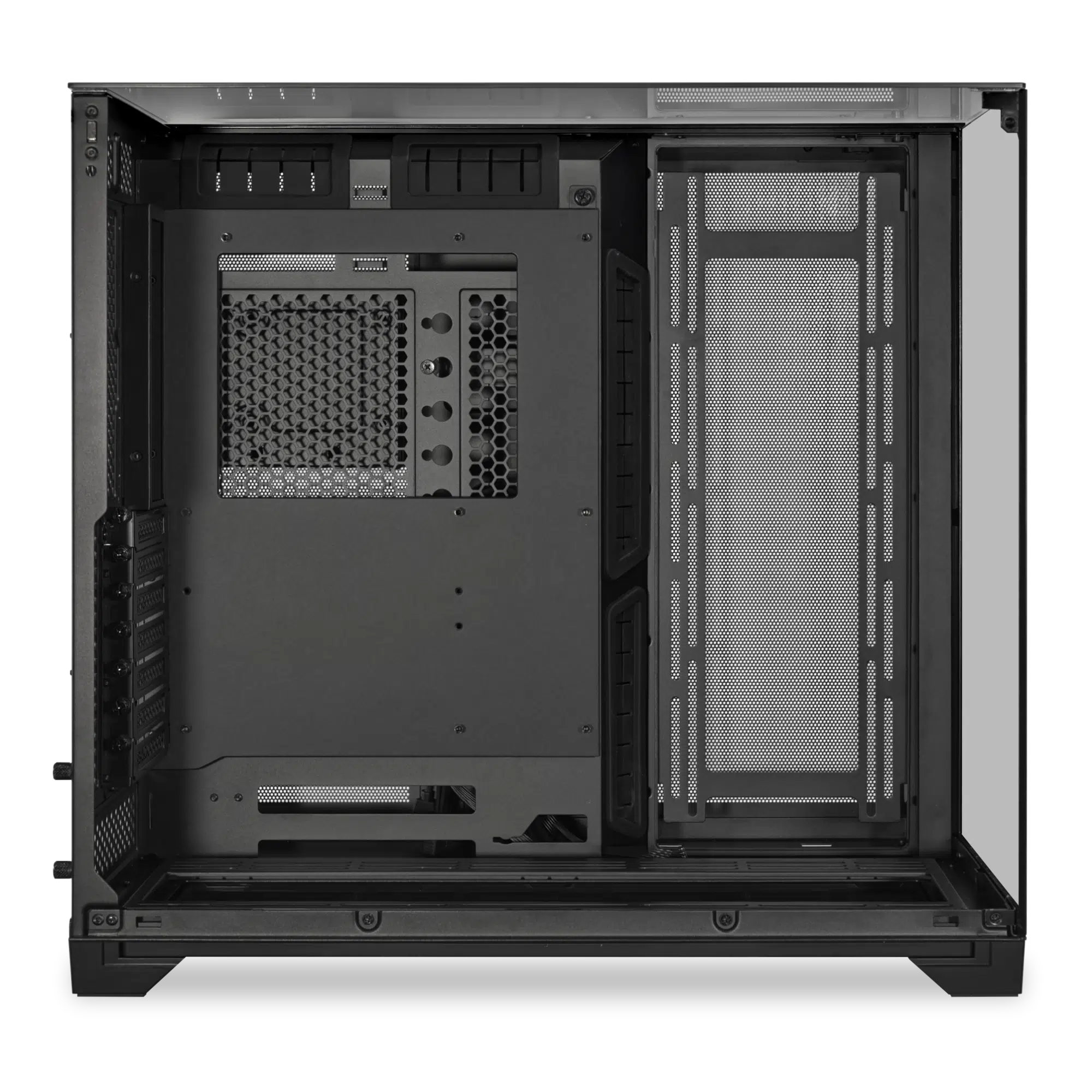

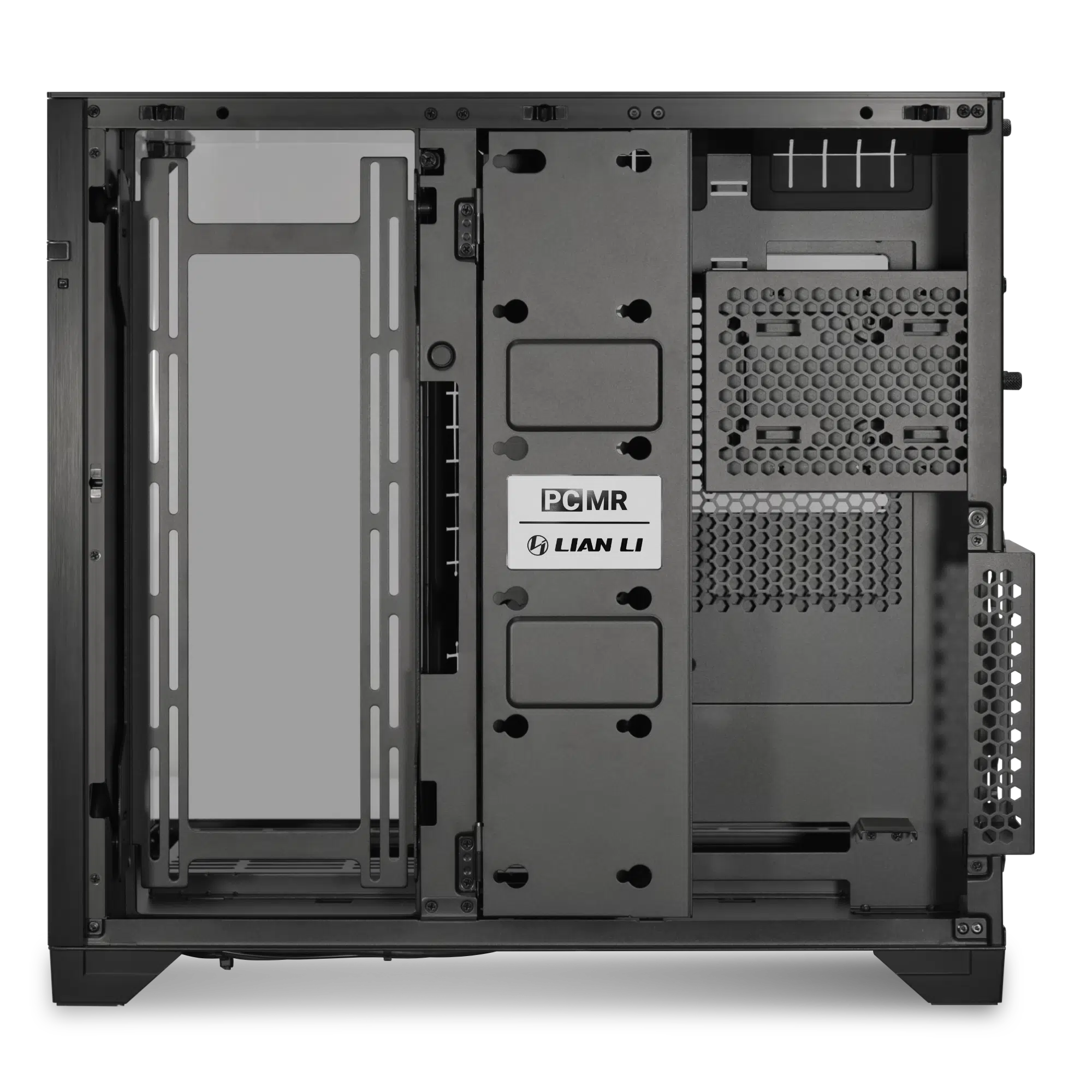

Cable Management Focused

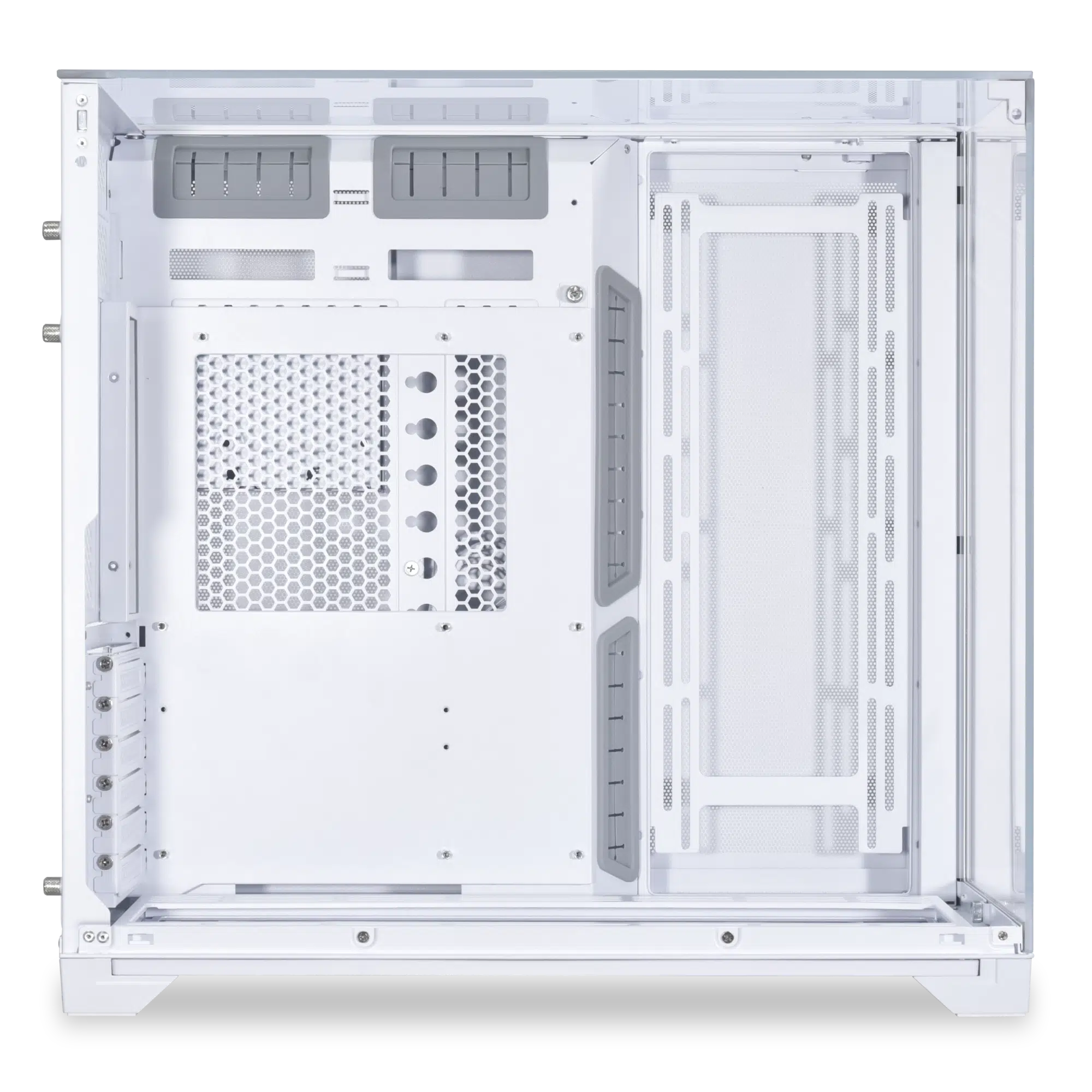

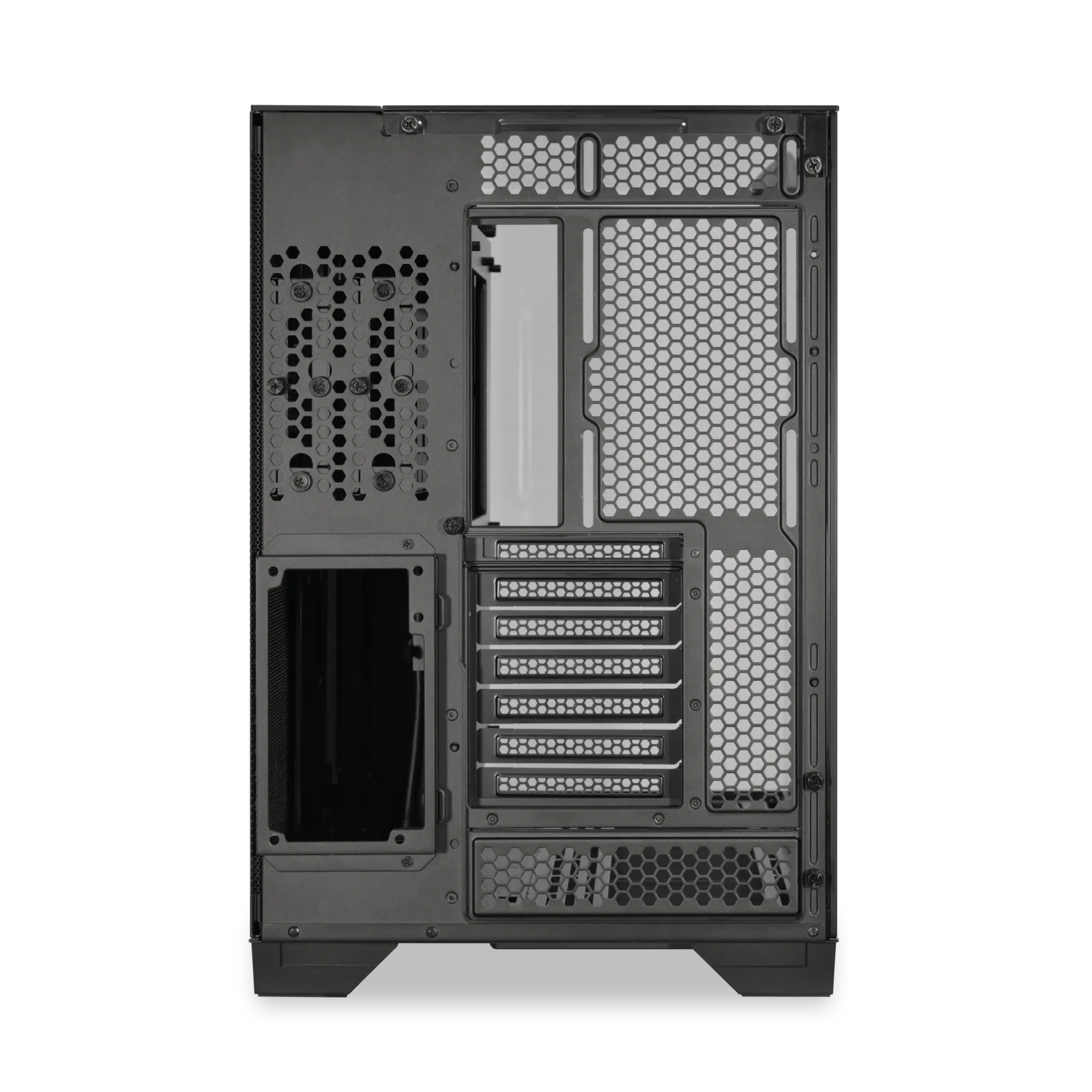

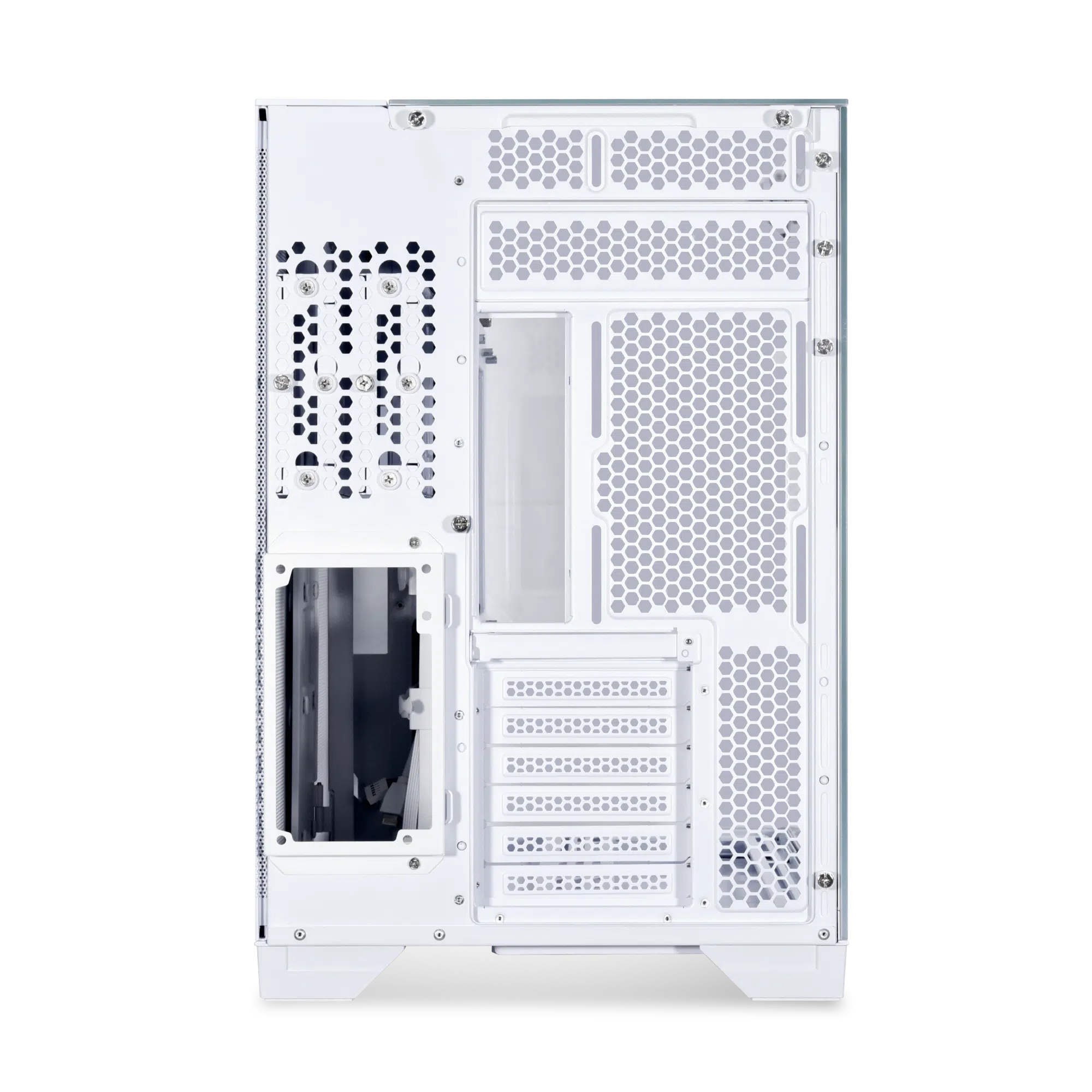

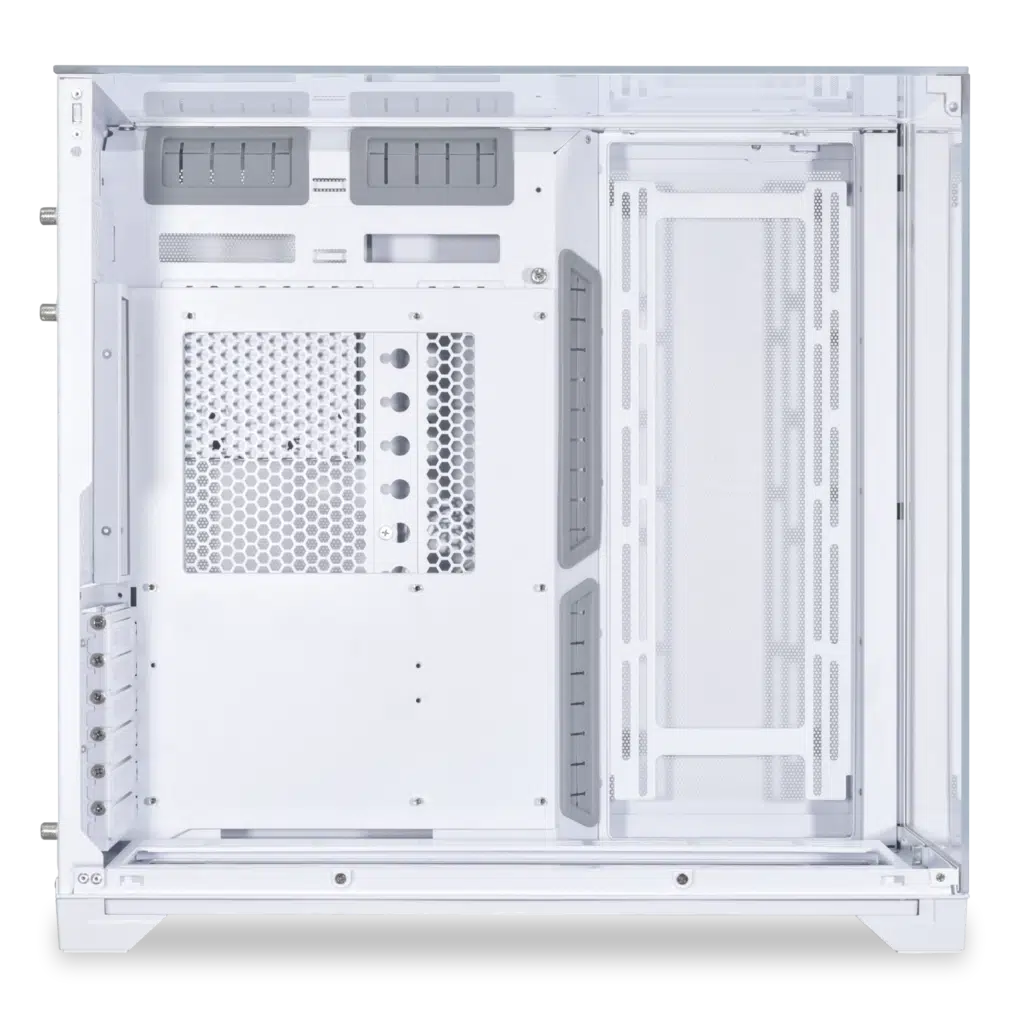

In the second chamber, the cable management bar is held in place by magnets. The PSU mounting bracket also protrudes from the rear of the case by 15mm to provide more clearance in the second chamber for excess cables. Additionally, the 2 drive cages located above the PSU can be removed individually if not used, freeing up more space in the second chamber, or providing another location for mounting a fan hub/controller. Lastly, the O11 VISION comes equipped with two dual-layer cable clips that can be mounted anywhere along vertical grommets pass through.

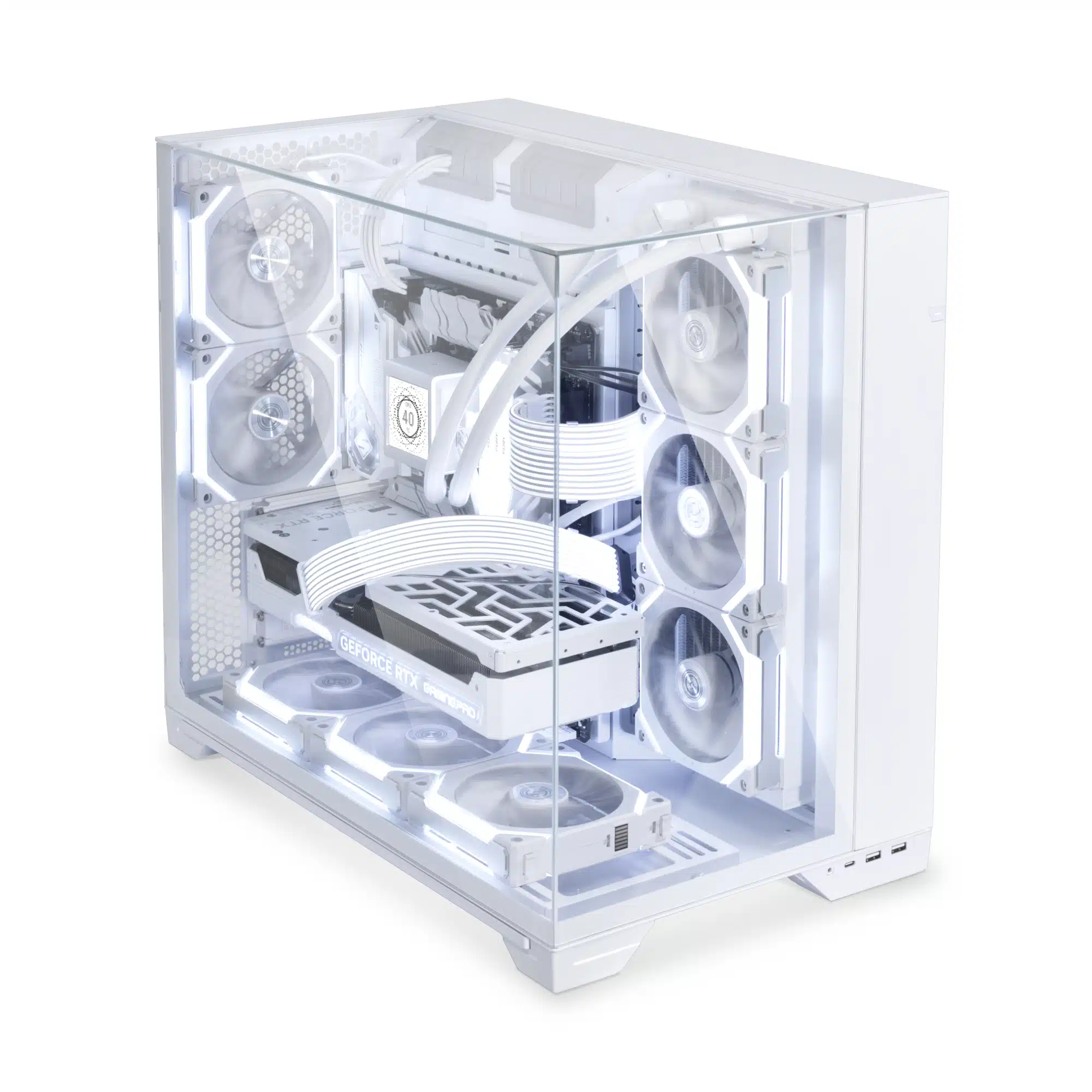

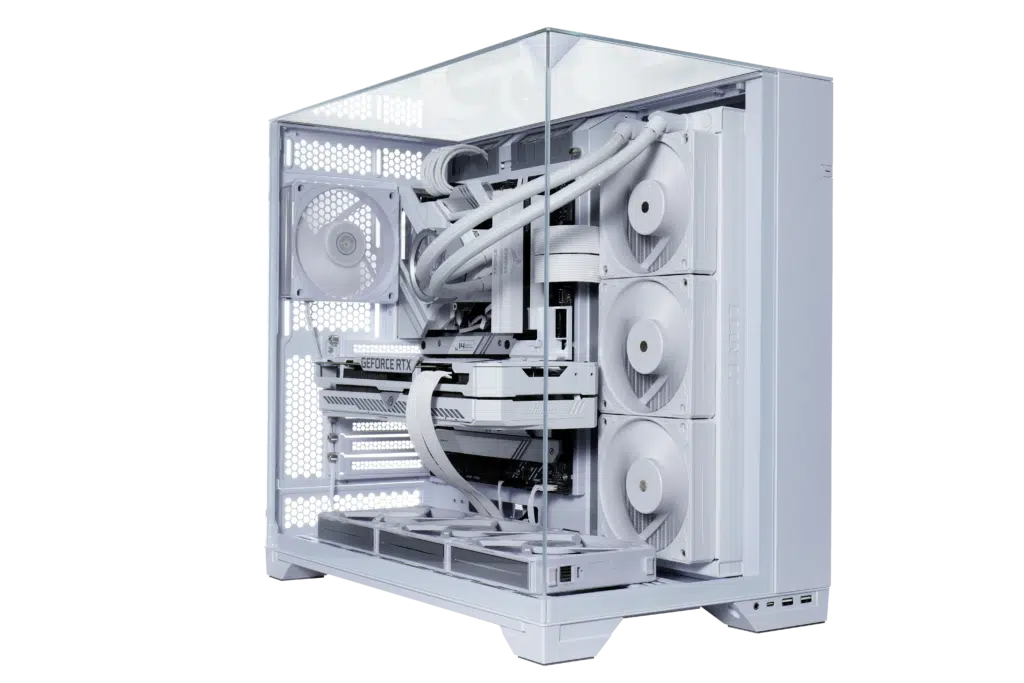

High-end Build Ready
The O11 VISION offers support for large components, including compatibility with up to E-ATX motherboards, 455mm long GPUs, and CPU cooling towers as tall as 167mm. It can accommodate a total of 5 x 2.5” SSDs or 2 x 3.5” HDDs, along with 3 x 2.5” SSDs. With such support and its unique hardware display capabilities, the possibilities are endless.
“The collaboration brings together LIAN LI’s exceptional craftsmanship in case design and mechanics with insights from the PCMR community. The O11 series continues to evolve with the tastes and preferences of the community, delivering what is the O11 VISION,” said, Jameson Chen, CEO of LIAN LI.
“Today, we’ve harnessed the boundless enthusiasm of PCMR, turning the PC case into an extraordinary centerpiece of the digital world. The PC is not just the most powerful and versatile tool there is; it’s a canvas for limitless creativity and beauty, showcasing individual taste without constraints,” said Pedro Valadas, Founder of PMCR.
LIAN O11 VISION Specifications
Model | O11 VISION |
Case Type | Tower Chassis |
Dimensions | (D) 480mm x (W) 304mm x (H) 464.5mm |
Color | Black / White / Chrome |
Material | Steel 4.0mm Tempered Glass 3.0mm Tempered Glass Aluminum |
Motherboard Support | E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX |
Expansion Slot | 6+1 |
Storage | Behind MB Tray: 3 x 2.5” SSD Hard Drive Cage: 2 x 3.5” HDD / 2.5” SSD |
GPU Length Clearance | 455mm (Max.) |
CPU Cooler Height Clearance | 167mm (Max.) |
PSU | ATX (Under 220mm) |
Fan Support | Side: 3 x 120mm / 2 x 140mm Bottom: 3 x 120mm / 3 x 140mm Rear: Up to 2 x 120mm |
Radiator Support | Side: 360 / 240 / 280mm Bottom: 360 / 240 / 280mm Rear: 240 / 120mm |
I/O PORTS | 1 x Power Button 1 x Reset Button 2 x USB 3.0 1 x USB Type C 1 x Audio |
Dust Filters | 1 x Bottom |
