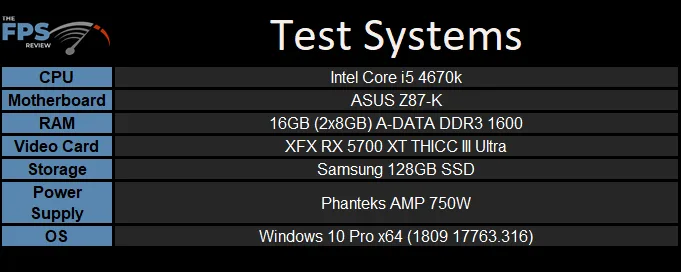

Testing Setup
Testing will consist of two tests. A noise level test where a sound meter will be placed a couple feet directly in front of the case. We will put the system through some tests to see how loud (or quiet) the case is. Then we will be testing the ability of the case to dissipate the heat outside of the case. To do this I will mount 4 thermal probes inside the four general corners of the case. We will load up the system a few times to generate some heat and see how well the case can put that heat outside.
Fractal Design Focus G White Specifications
Specification | Fractal Design Focus G Value |
---|---|
3.5″ or 2.5″ Drive capacity | 2 |
Dedicated 2.5″ drive capacity | 1 |
Dedicated 5.25″ drive brackets | 2 |
Front ports | 1x USB 3.0, 1x USB 2.0, Audio in/out, Power button, Reset button |
Total fan mounts | 6 |
Front fan | 2x 120/140 mm (2x Silent Series LL 120 mm LED fans included) |
Top fan | 2x 120/140 mm (not included) |
Rear fan | 1x 120 mm (not included) |
Bottom fan | 1x 120 mm (not included) |
Dust filters | Top fans, Bottom fan + PSU, Front fans |
Padlock and Kensington lock support | Yes |
Front radiator | 120/240 mm, 140/280 mm (280 mm requires that the bottom 5.25″ slot is unused) |
Top radiator | 240 mm |
Rear radiator | 120 mm (max width 120 mm) |
PSU max length | 230 mm |
GPU max length | 380 mm |
CPU cooler max height | 165 mm |
Dimension (WxHxD) | 205 x 444 x 464 mm |
