GIGABYTE has listed its first custom Radeon RX 6900 XT graphics card, the Radeon RX 6900 XT GAMING OC 16G. The manufacturer hasn’t shared how much it’ll cost or when it’ll be available, but the custom variant does improve upon AMD’s own reference design with a slightly faster 2.28 GHz boost clock and 2.05 GHz game clock (+35 MHz over reference in both categories). The Radeon RX 6900 XT GAMING OC 16G also features some of GIGABYTE’s most notable features, such as a WINDFORCE cooling system comprising 3x 80 mm blade fans that spin alternately for reduced turbulence and increased air pressure.
Features
- Powered by RDNA2 Radeon RX 6900 XT
- Integrated with 16GB GDDR6 256-bit memory interface
- WINDFORCE 3X Cooling System with alternate spinning fans
- Graphene nano lubricant
- RGB Fusion 2.0
- Dual BIOS
- Protection metal back plate

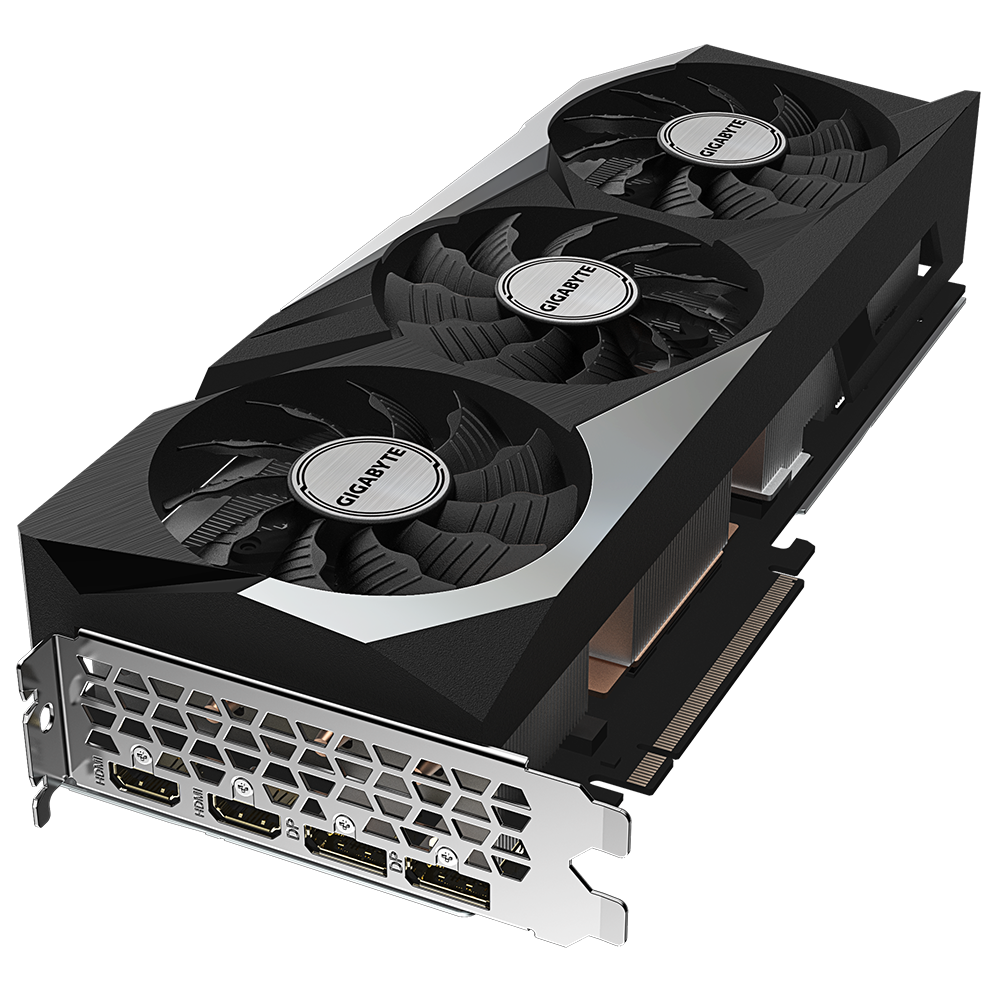

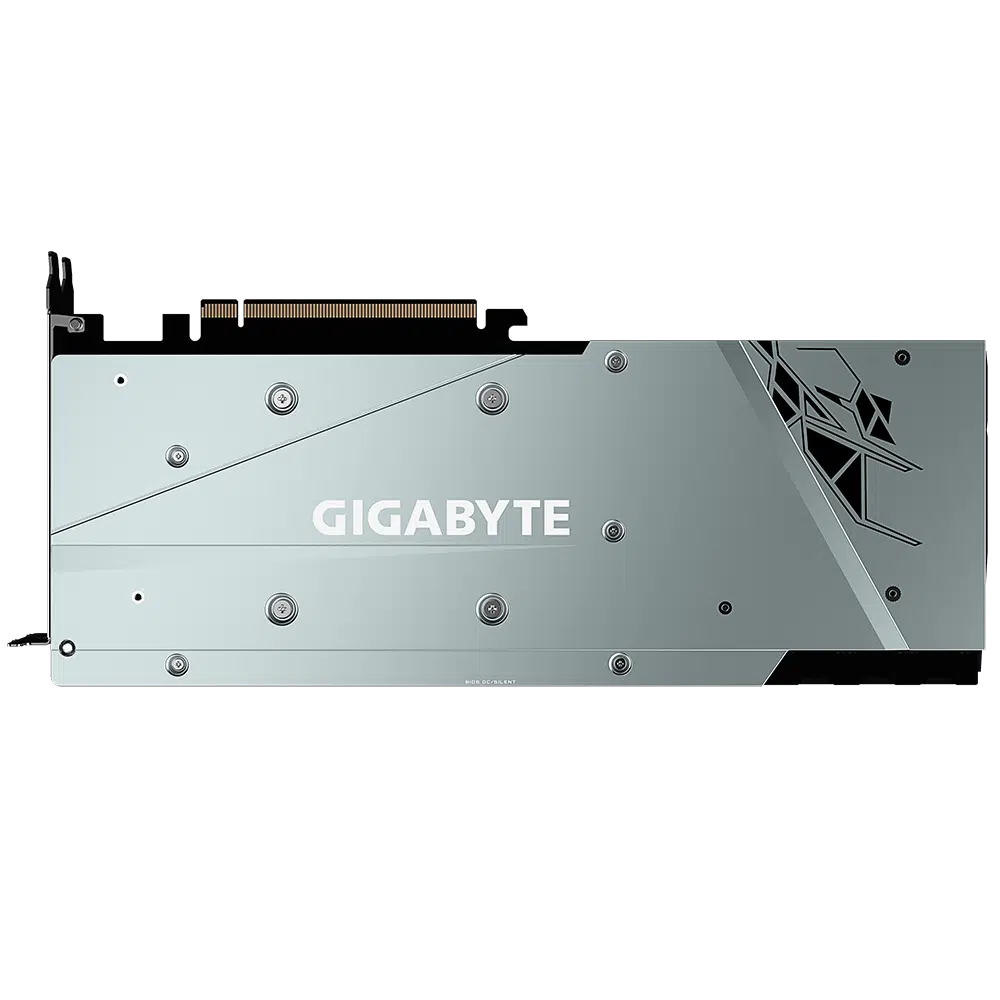

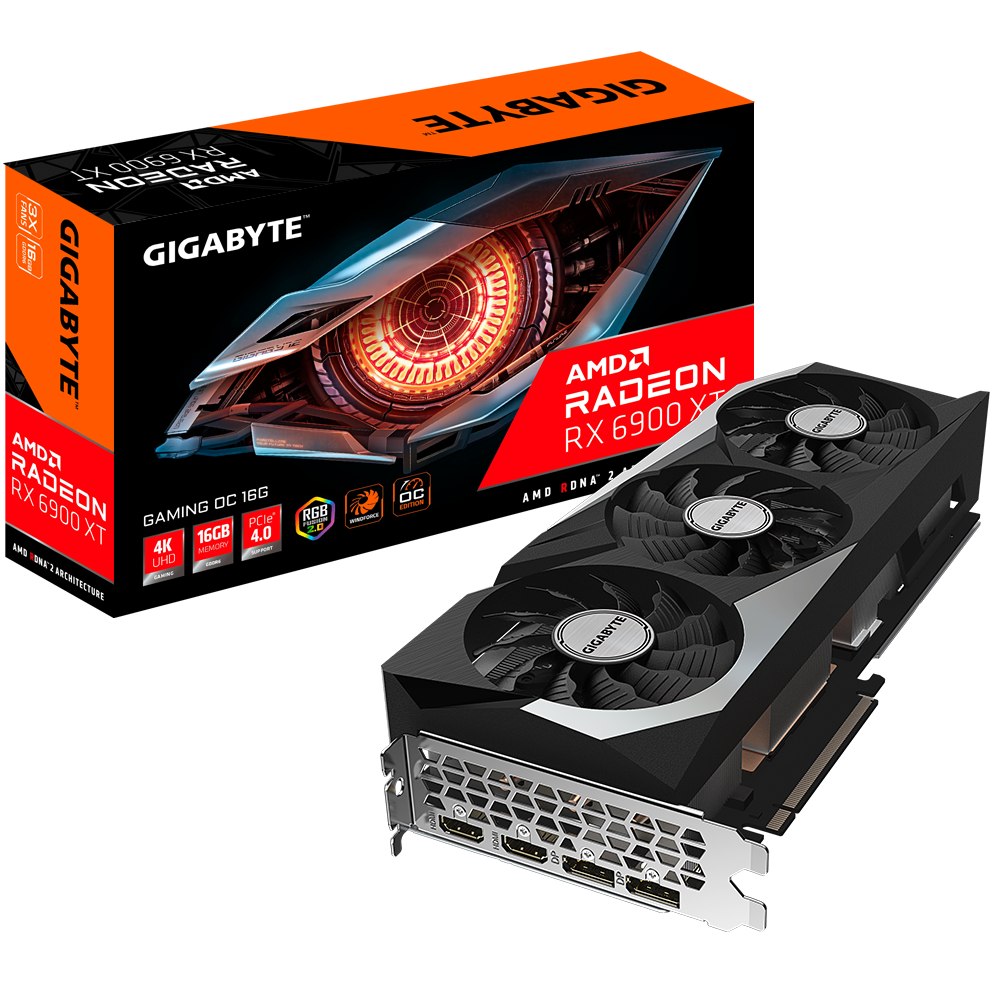

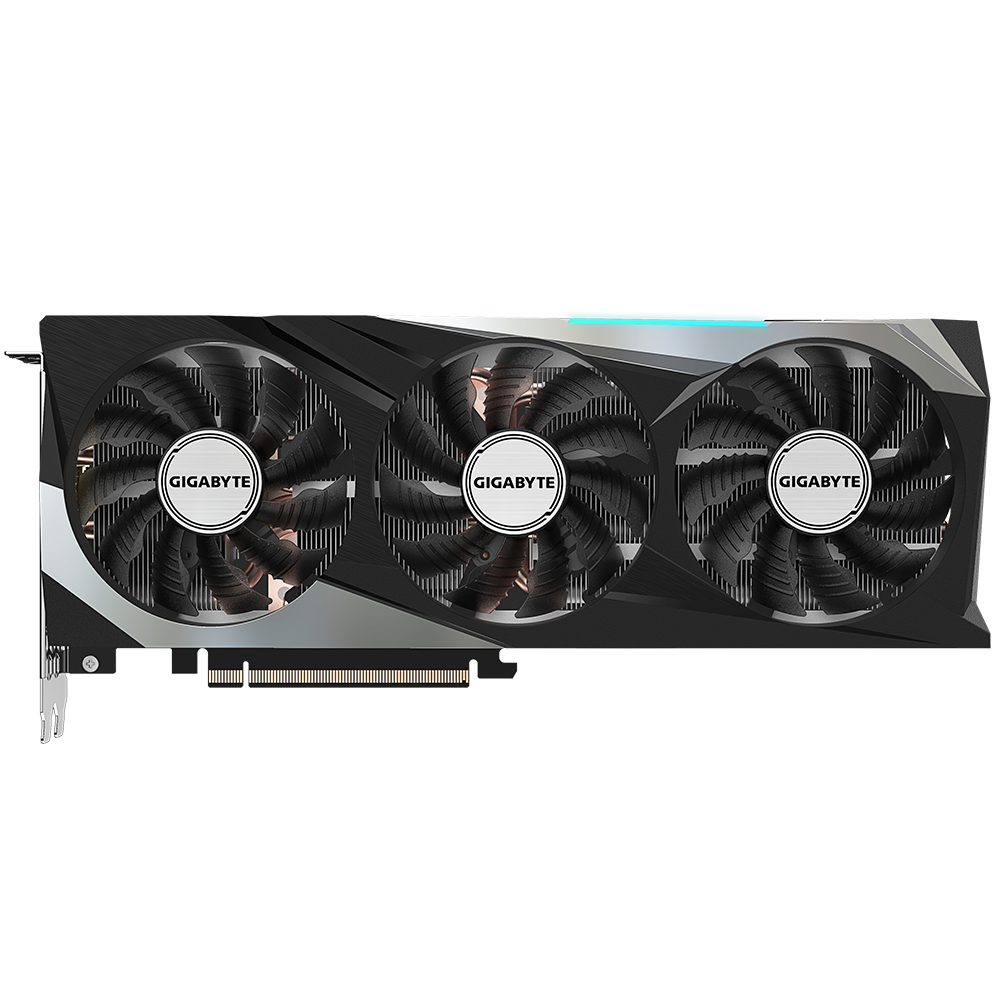

Gallery
Specifications
| Radeon™ RX 6900 XT 16G | Radeon™ RX 6900 XT GAMING OC 16G | |
|---|---|---|
| Graphics Processing | Radeon™ RX 6900 XT | Radeon™ RX 6900 XT |
| Core Clock | Boost Clock : up to 2250 MHz Game Clock* : up to 2015 MHz | Boost Clock : up to 2285 MHz (Reference card: 2250 MHz) Game Clock* : up to 2050 MHz (Reference card: 2015 MHz) |
| Stream Processors | 5120 | 5120 |
| Process Technology | 7 nm | 7 nm |
| Memory Clock | 16000 MHz | 16000 MHz |
| Memory Size | 16 GB | 16 GB |
| Memory Type | GDDR6 | GDDR6 |
| Memory Bus | 256 bit | 256 bit |
| Memory Bandwidth (GB/sec) | 512 GB/s | 512 GB/s |
| Card Bus | PCI-E 4.0 x 16 | PCI-E 4.0 x 16 |
| Digital max resolution | 7680×4320 | 7680×4320 |
| Multi-view | 4 | 4 |
| Card size | L=267 W=120 H=49 mm | L=286 W=118 H=58 mm |
| PCB Form | ATX | ATX |
| DirectX | 12 Ultimate | 12 Ultimate |
| OpenGL | 4.6 | 4.6 |
| Recommended PSU | 850W | 850W |
| Power Connectors | 8 pin*2 | 8 pin*3 |
| Output | DisplayPort 1.4a *2 HDMI 2.1 *1 USB Type-C *1 | DisplayPort 1.4a *2 HDMI 2.1 *2 |
| Accessories | Quick guide | Quick guide |
| Note | *: “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. | *: “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. |
