PowerColor Releases Liquid Devil AMD Radeon RX 6900 XT and RX 6800 XT

The FPS Review may receive a commission if you purchase something after clicking a link in this article.

Image: PowerColor

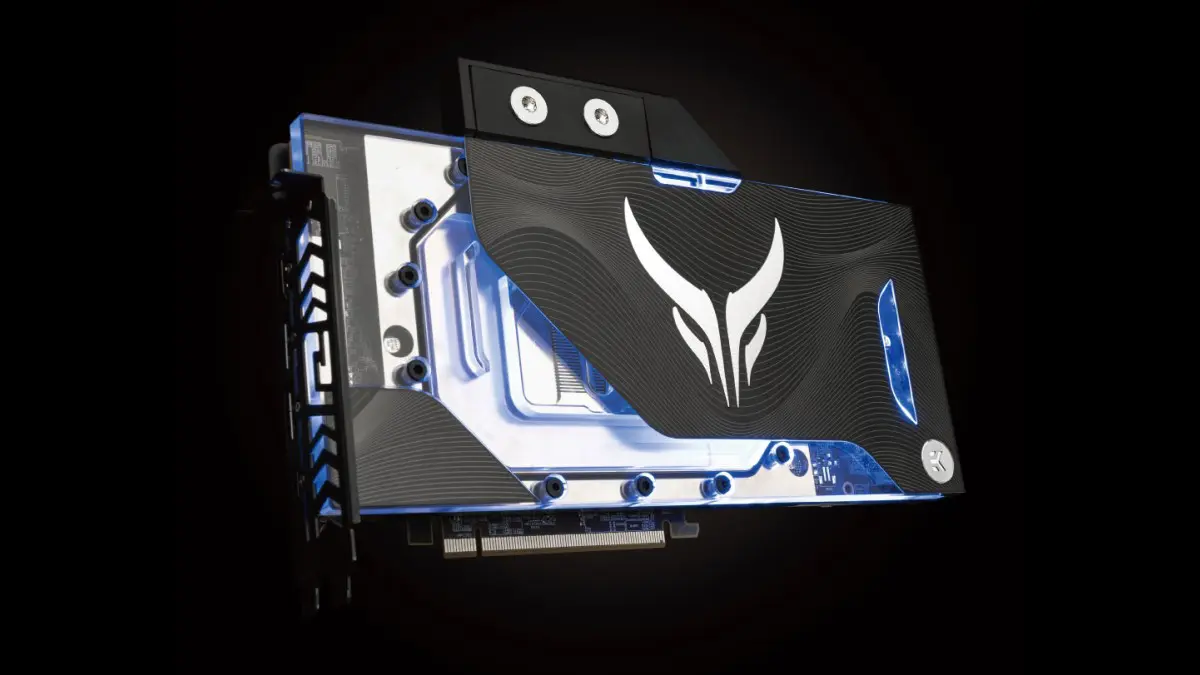

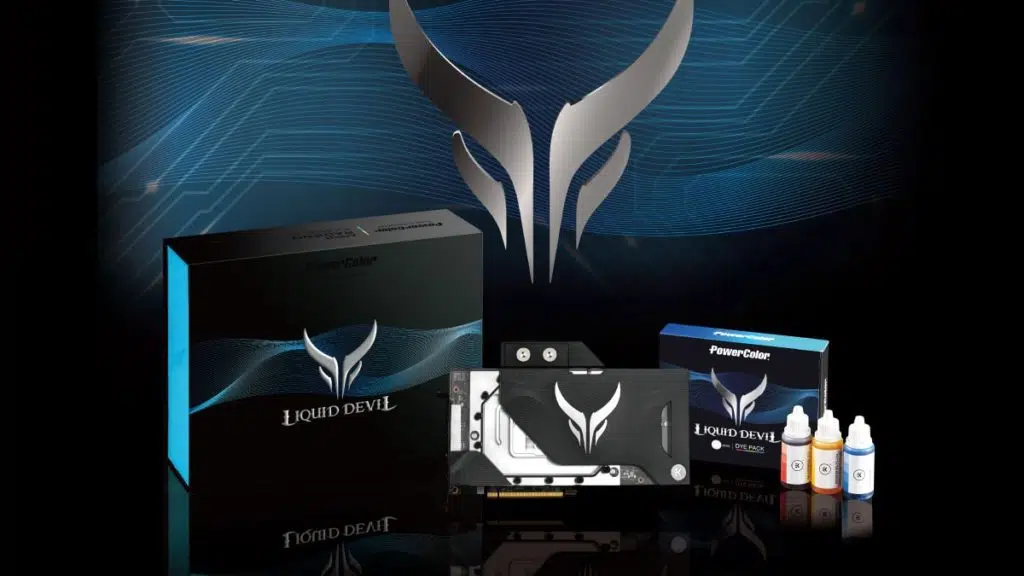

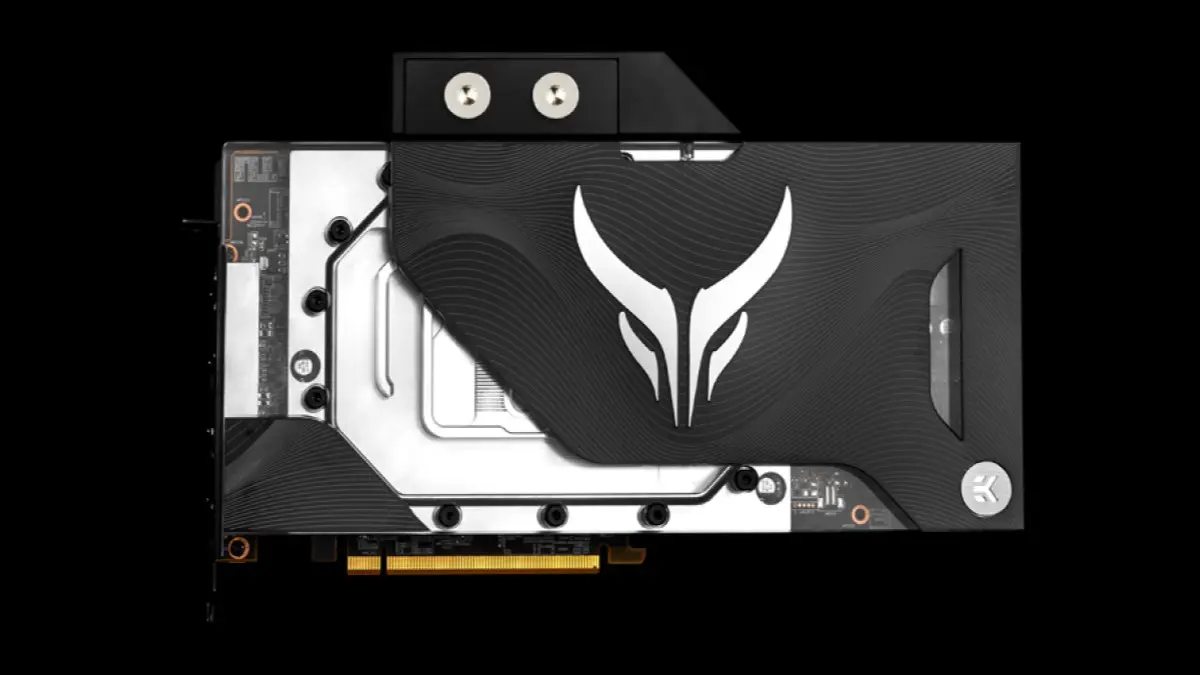

PowerColor has released its Liquid Devil AMD Radeon RX 6900 XT and Radeon RX 6800 XT graphics cards. Featuring a custom acrylic water block with RGB lighting, a nickel-plated copper base, and a nickel-plated finish made by EKWB, they are engineered for both performance and style. Power delivery is achieved through a 14+2 phase configuration with DrMOS and high polymer capacitors, which improve upon the 13 and 12 phase configurations found on the reference versions. The PCB and cooling solution is rated for up to 400 watts of power and includes a BIOS OC/Unleash switch for achieving higher clock speeds. They also come with a dye pack made by EK-CryoFuel for those seeking to customize their rigs even further. Prices have not been announced, but they are expected to be available on March 15.


Graphic EngineAXRX 6900XT 16GBD6-W2DHC/OCAXRX 6800XT 16GBD6-W2DHC/OC
Video Memory16 GB GDDR 616 GB GDDR6
Stream Processor5120 Units4608 Units
Engine ClockGame 2135 Mhz/ Boost 2365 MHzGame 2110 Mhz/ Boost 2360 MHz
Memory Clock16.0 Gbps16.0 Gbps
Memory Interface256-bit256-bit
Bus StandardPCIE 4.0PCIE 4.0

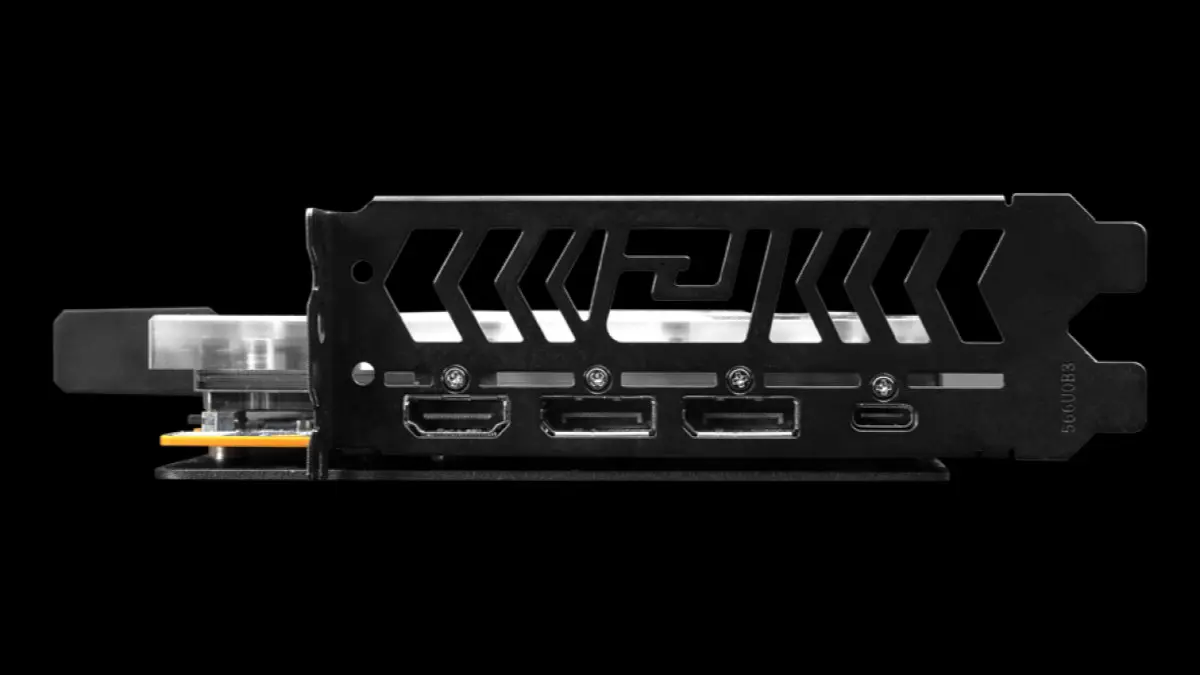

Display Connectors1 x HDMI 2.1 , 2 x DisplayPort 1.4, 1 x USB-C1 x HDMI 2.1 , 2 x DisplayPort 1.4, 1 x USB-C
Form FactorATXATX
CoolerEK water blockEK water block
Power Connector3 x 8-pin3 x 8-pin
DirectX® Support1212
Minimum System Power900W900W
Card Dimension(mm)266mm*162mm*42 mm266mm*162mm*42 mm
