Subsystem Testing
The ASUS ROG STRIX B550-F GAMING (WI-FI) uses the ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A
SSD Performance-M.2 PCIe 4.0 NVME Slot
As we can see from the above CrystalDiskMark numbers above, this drive performs pretty much where Samsung states it should. The read speed a couple of hundred MB/s under and the write speed is a little less than a hundred under the theoretical speed stated, but still some nice numbers.
LAN Speed
Wireless

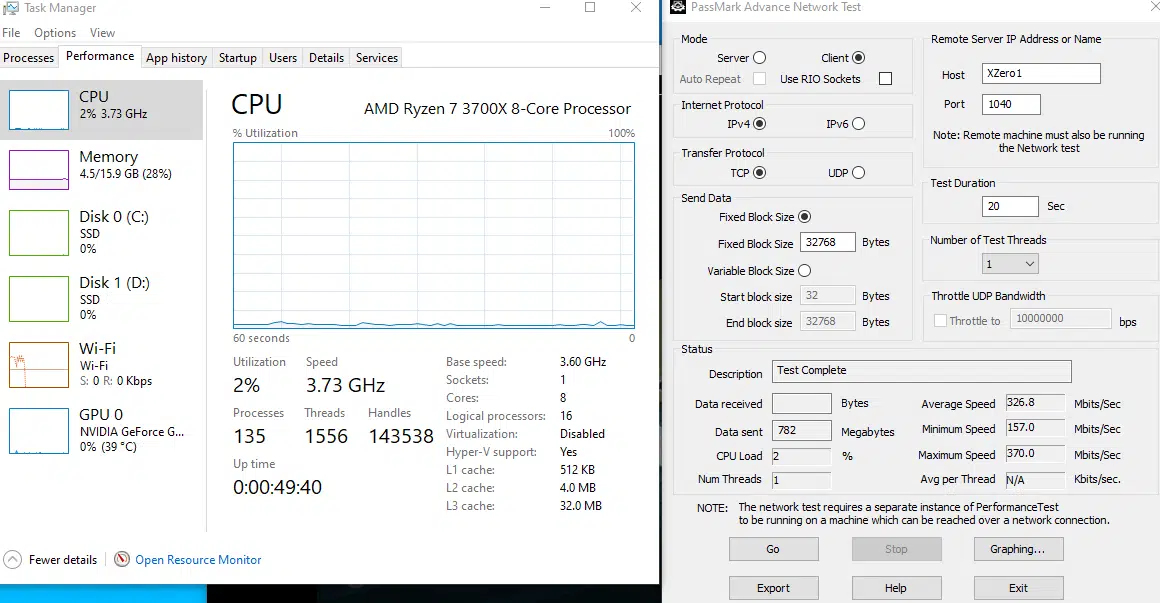

Our local network, here at the lab, has a 1 Gigabit speed as well as the router is a 1 Gigabit unit. With an average wireless speed of 326.8 Mbits/Sec, this is not too bad of a wireless reading. We were at about 10 feet/3 meters from the wireless router and this was pretty much the expected results. Of course, we expect to see much better results with a wired Ethernet connection.
Wired
On the wired side, we saw an average of 950.7 Mbits/Sec speeds which is right on par with a 1 Gigabit connection. This motherboard supports the new 2.5 Gigabit connection, so if you are running a new modem that has the 2.5 connection, you will most likely see some great transfer speeds.
USB 3.2 Gen2
We tested the read and write to a USB 3.2 Gen2 port to the Samsung 980 Pro PCIe 4.0 NVMe M.2 using an external drive enclosure. We did this using a second Samsung 980 Pro PCIe 4.0 NVMe M.2 drive in the PCIe 4.0 NVMe slot on the motherboard.
With this test, we are reading from the USB 3.2 Gen2 port and writing the data to the M.2 PCIe 4.0 NVMe SSD. What we see is that we maintained an 857.5MB/s read. We used 2 different Gen2 USB ports, including the new USB Type-C with the same results.
Something to note on the read times with the new USB 3.2 Gen2 is that under most tests we have conducted here on The FPS Review, we have found that the new Gen2 is about double the speed on reading.
As we would expect, the write performance is lower than the read performance. This is on par with almost every drive benchmark and is to be expected. Again, these speeds are significantly faster than the Gen1 counterpart.
This is something that many enthusiasts and gamers might consider when purchasing a motherboard for a new build. The USB 3.2 Gen2 might be something that should be looked at prior to purchase. If a person is using an external drive for games or applications, the Gen2 is a much faster transfer.
