MSI has shared a press release confirming its first batch of custom GeForce RTX 3080 (12 GB) graphics cards, which NVIDIA officially launched today.
They comprise two premium Suprim models, two Gaming Trio models, and two Ventus models. MSI’s GeForce RTX 3080 12G LHR cards should be available at retailers beginning today, according to the press release.

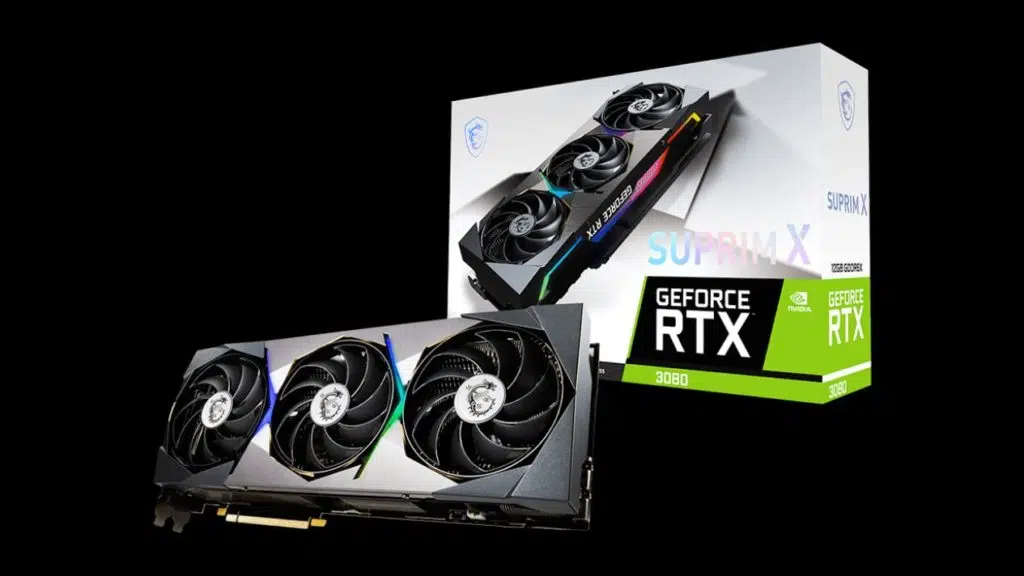

“SUPRIM cards with the new GeForce RTX 30 GPUs have been designed for performance, efficiency, and prestige,” MSI wrote regarding its shiniest collection. “Cooled with TRI FROZR 2S, our most advanced air cooling system yet, heat is effectively dissipated from critical board components with TORX FAN 4.0, Airflow Control fins, Core Pipes, a base plate, and even a dedicated heatsink for the memory modules.”
“Polished aluminum on the exterior of the cooler and the backplate impart an armored aesthetic while reinforcing the length of the card. RGB lighting flows with millions of colors and an array of customizable of dynamic lighting options will dazzle onlookers. With Dual BIOS, users can quickly opt for low noise or for additional performance with the flip of a switch.”
Specifications
| Model | GeForce RTX 3080 SUPRIM X 12G LHR | GeForce RTX 3080 SUPRIM 12G LHR | GeForce RTX 3080 GAMING Z TRIO 12G LHR | GeForce RTX 3080 GAMING TRIO PLUS 12G LHR | GeForce RTX 3080 VENTUS 3X PLUS 12G OC LHR | GeForce RTX 3080 VENTUS 3X PLUS 12G LHR |
| GPU | NVIDIA GeForce RTX 3080 | NVIDIA GeForce RTX 3080 | NVIDIA GeForce RTX 3080 | NVIDIA GeForce RTX 3080 | NVIDIA GeForce RTX 3080 | NVIDIA GeForce RTX 3080 |
| INTERFACE | PCI Express Gen 4 | PCI Express Gen 4 | PCI Express Gen 4 | PCI Express Gen 4 | PCI Express Gen 4 | PCI Express Gen 4 |
| CORES | 8960 Units | 8960 Units | 8960 Units | 8960 Units | 8960 Units | 8960 Units |
| CORE CLOCKS | TBD | TBD | TBD | TBD | TBD | TBD |
| MEMORY SPEED | 19 Gbps | 19 Gbps | 19 Gbps | 19 Gbps | 19 Gbps | 19 Gbps |
| MEMORY | 12GB GDDR6X | 12GB GDDR6X | 12GB GDDR6X | 12GB GDDR6X | 12GB GDDR6X | 12GB GDDR6X |
| MEMORY BUS | 384-bit | 384-bit | 384-bit | 384-bit | 384-bit | 384-bit |
| OUTPUT | DisplayPort x 3 (v1.4a) / HDMI 2.1 x1 | DisplayPort 3 (v1.4a) / HDMI 2.1 x1 | DisplayPortx 3(v1.4a)/ HDMI 2.1 x1 | DisplayPortx3(v1.4a)/ HDMI 2.1×1 | DisplayPortx3(v1.4a)/ HDMI 2.1 x1 | DisplayPort x 3 (v1.4a) / HDMI 2.1 x1 |
| HDCP SUPPORT | Y | Y | Y | Y | Y | Y |
| POWER CONSUMPTION | 390W | 390W | 390W | 350W | 350W | 350W |
| POWER CONNECTORS | 8-pin x 3 | 8-pin x 3 | 8-pin x 3 | 8-pin x 3 | 8-pin x 2 | 8-pin x 2 |
| RECOMMENDED PSU | TBD | TBD | TBD | TBD | TBD | TBD |
| CARD DIMENSION (MM) | 336 x 140×61 mm | 336 x 140 x 61 mm | 323x 140x 56mm | 323x 140x 56mm | 305 x 120 x 57mm | 305 x 120 x 57mm |
| WEIGHT (CARD / PACKAGE) | 1882g / 3178g | 1882g / 3178g | 1566g / 2351g | 1566g / 2351g | 1362g / 1986g | 1362g / 1986g |
| DIRECTX VERSION SUPPORT | 12 API | 12 API | 12 API | 12 API | 12 API | 12 API |
| OPENGL VERSION SUPPORT | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 |
| NVLINK SUPPORT | N/A | N/A | N/A | N/A | N/A | N/A |
| MAXIMUM DISPLAYS | 4 | 4 | 4 | 4 | 4 | 4 |
| VR READY | Y | Y | Y | Y | Y | Y |
| G-SYNC R TECHNOLOGY | Y | Y | Y | Y | Y | Y |
| ADAPTIVE VERTICAL SYNC | Y | Y | Y | Y | Y | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 | 7680 x 4320 | 7680×4320 | 7680 x 4320 | 7680 x 4320 | 7680 x 4320 |
Source: MSI
