Test Setup
We will use our standard air cooler test rig which you can read more about in this article. We’ve made a pair of changes by swapping in a Radeon R9 290X in the graphics slot and upgrading the test bench to a Lian Li PC-T60B. The new test bench gives a bit more ventilation and improves heat transfer by being aluminum instead of MDF.
We are using a Ryzen 7 2700X set to all core frequencies of 3.7GHz and 4.1GHz with PBO disabled to allow for a constant level of heat production. We will run loops of CineBench R20 at various fan levels and record the observed temperatures. We will also compare it to the other coolers we have tested thus far.
Installation

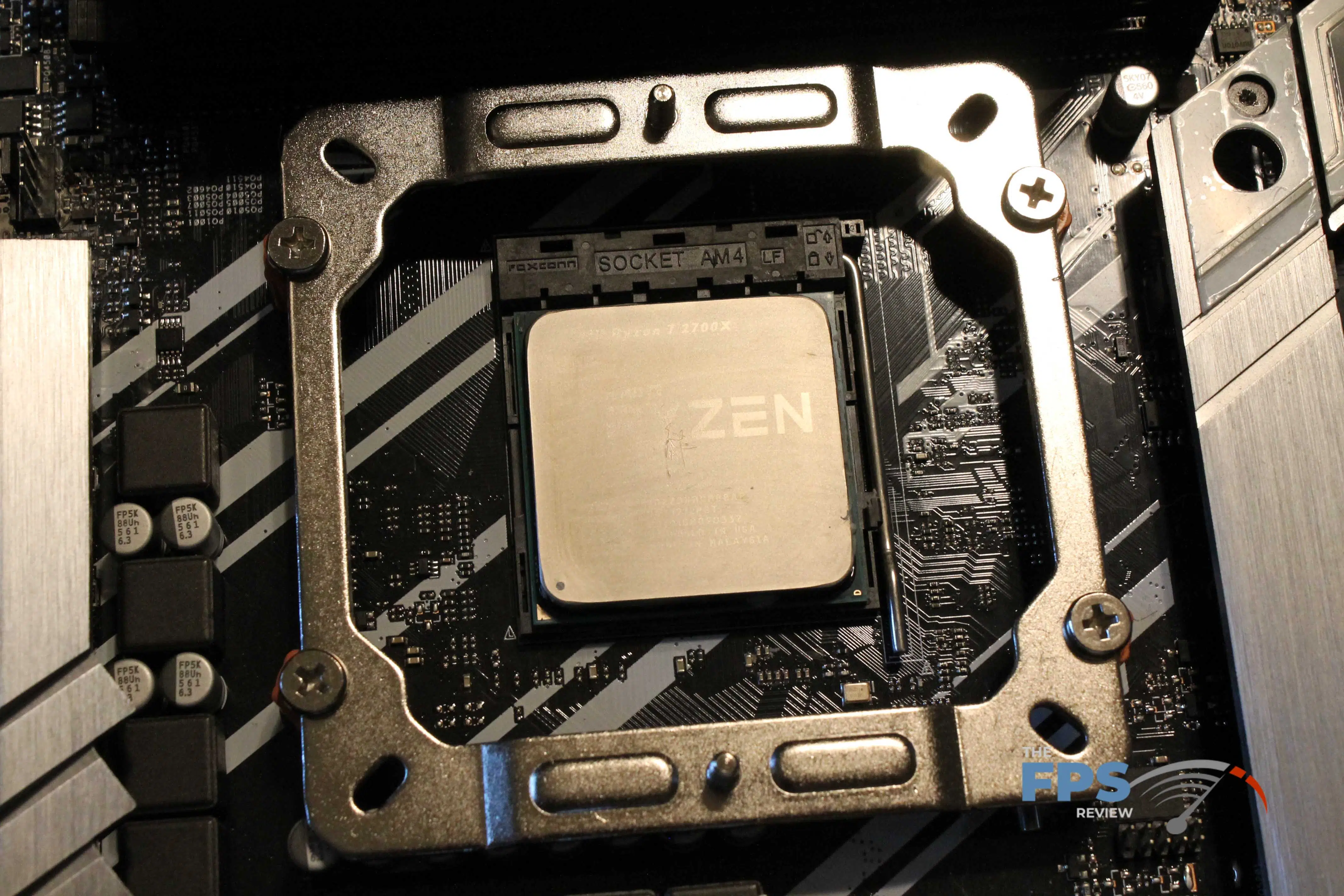

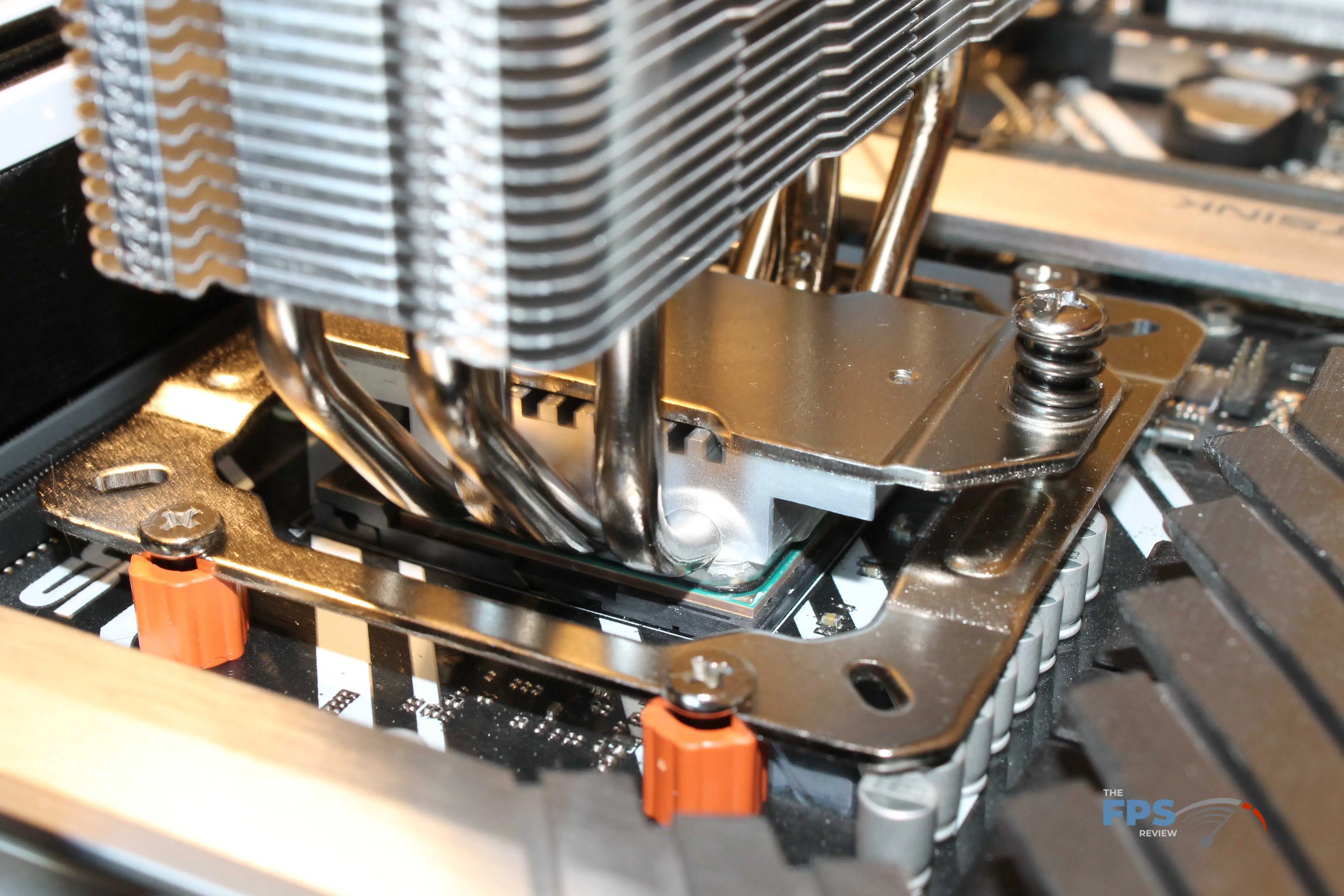

DeepCool says the AK400 has an improved installation method that is made easy with a sturdy all-metal mounting bracket and a quick five-step process to safely fasten your cooler on multiple platforms. Installation on the AM4 socket utilizes the standard backplate that comes with your motherboard. Overall, we felt like we needed three hands to hold everything together as the spacer that connects the backplate to the mounting bracket doesn’t exactly stick while you’ve got to have all of them in place to get it secured. Once we were able to get that set and put our third hand back in our pocket, it was quite simple to finish the job.
It would have also been nice to have the bags of parts labeled as the bits for Intel and AMD setups look very similar.

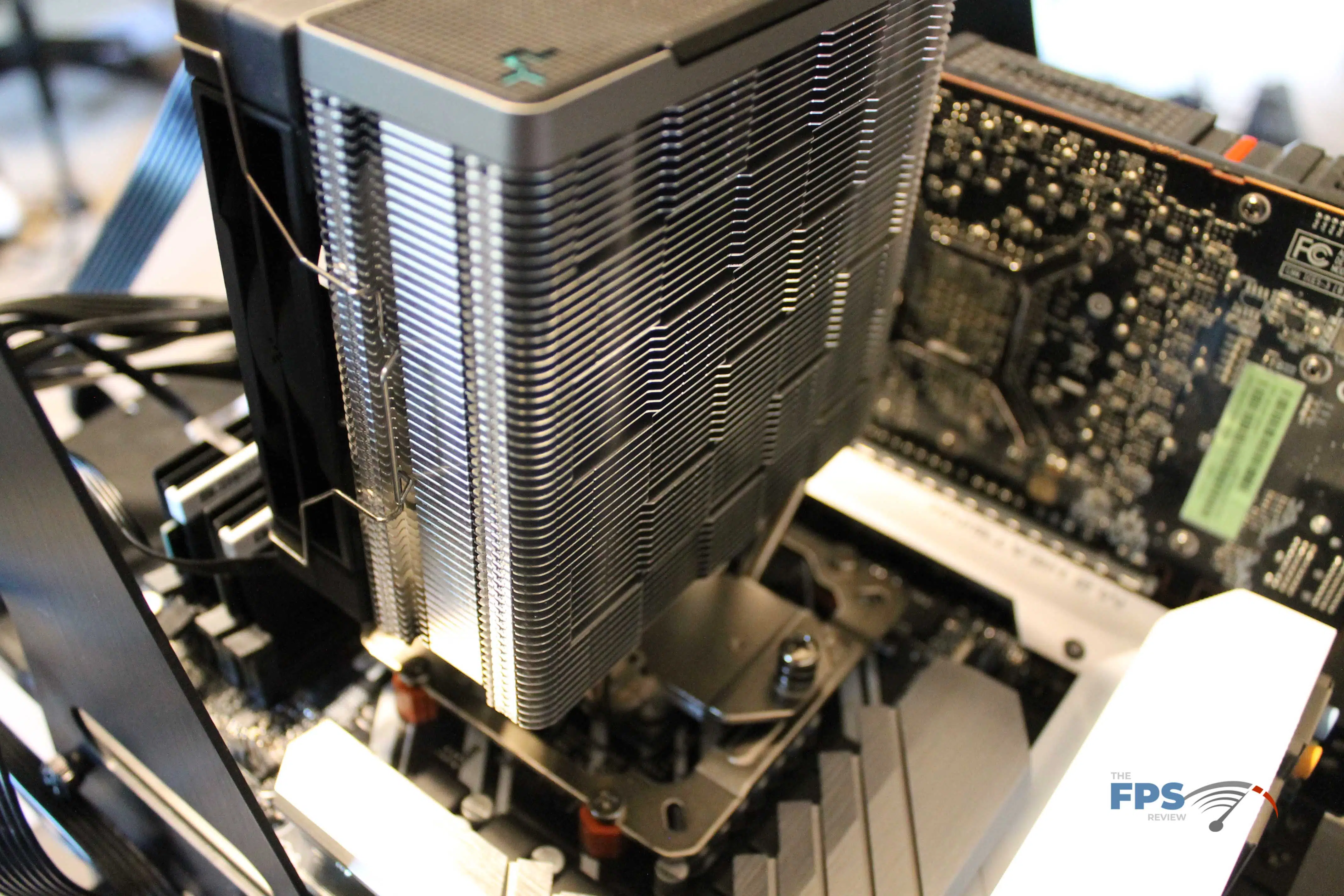

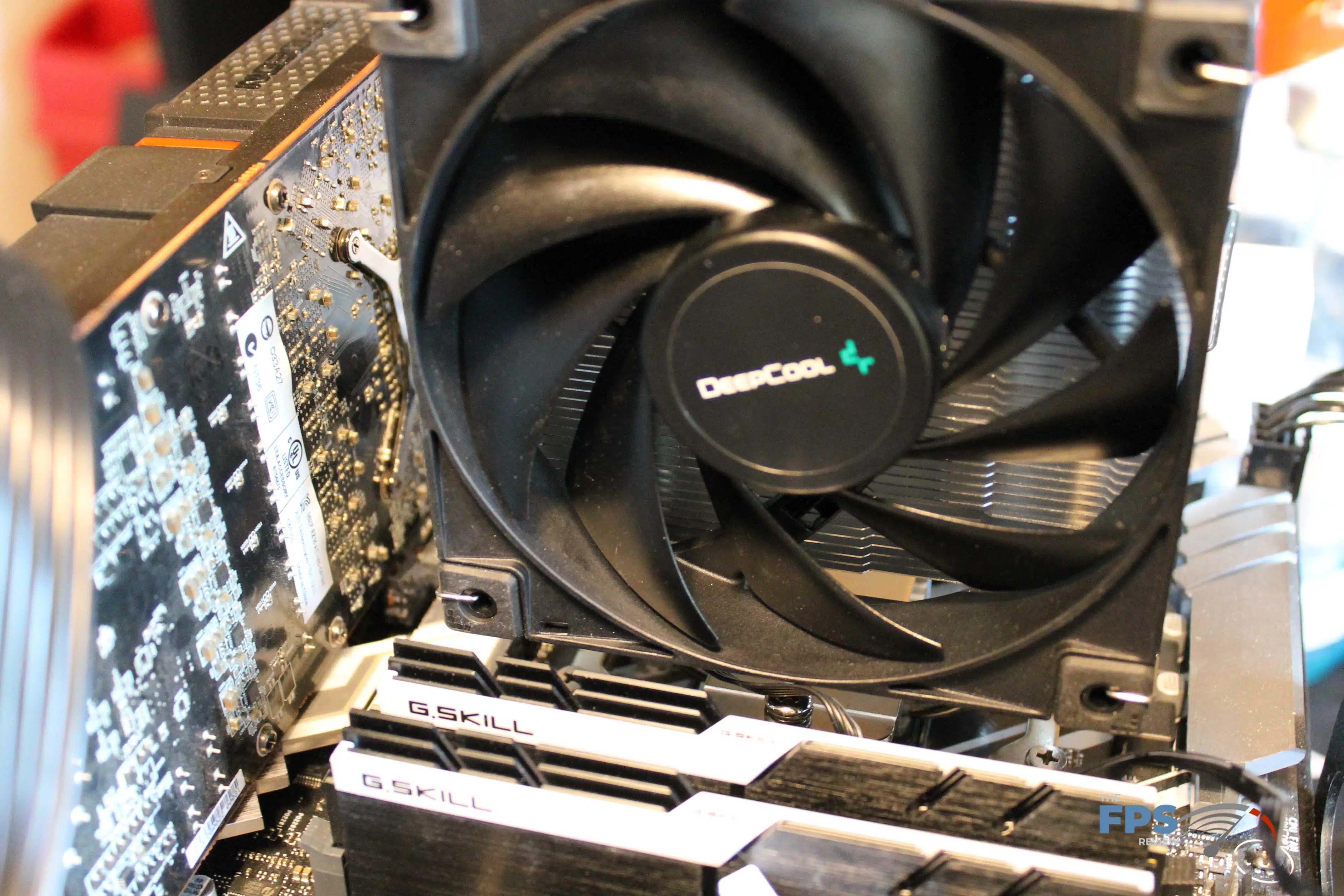

With everything comfortably situated, let’s see if the DeepCool AK400 is ready to be cool!
Discussion (3 replies)
Join Discussion →The 212 has been out for how long now? 2007? Sure, it's showing it's age a bit with noise levels, but man... it's just become so ubiquitous and the cost was never huge, it was the go-to for a lot of my builds that weren't going for cutting edge performance.
It's very nice to see this come out and be extremely competitive against what I consider to be the de facto entry-level standard. Great writeup, looks like a decent product. It's amazing how the basic design of these coolers is essentially the same - 4 heat pipes and some fins on a copper block; but they still have so much variance. I suspect we are seeing differences associated with the fans that are provided with the HSFs moreso than anything -- if you used the same fan with each run, I bet the results would be a lot closer. I know you're testing at static RPMs, and I think that's good, but different fan blade designs are going to push different CFM and static head with various noise levels for a given RPM as well. Whichever HSF has more pipes and more useable fin area will win every time if the fans are the same. Not saying you should adjust your testing -- I think testing with the fan provided with the unit is appropriate, just commenting to hear myself talk.
Also, I really appreciate that you have a steady test bench setup. It may not be cutting edge hardware, but I don't think it needs to be - the consistency matters more, especially if you start comparing reviews done today to reviews done 2-3 years from now.
It does make me think about Alder Lake and some of the issues it's having with it's design though... a drawback to this methodology is that you aren't able to identify or account for things like that. However, this is a review of the HSF, not Alder Lake, so I think that drawback is worth the consistency it gets you.
Heh. One of the criteria for the 2700X is we're not using it for GPU reviews anymore, might as well put it to work doing something else!
The thing that's really really really challenging with cooler reviews (in my opinion) is comparability. In today's more "modern" systems, there's a ton of variables that can get tweaked that will ultimately impact the overall performance of a given cooler. There's boost optimization for the CPU, there's fan speeds, there's the overall temperature of the CPU as well.
At default in the 2700X's case, it tends to start thermally throttling itself in the low 60's and really won't let itself get up over 80 degrees Celsius under load (probably for good reason as it starts crashing around 83c). Pair with that some arbitrary motherboard fan curve, and you'll end up with results that look quite similar between good and not-so-good coolers. It took a while to take those variables out of the game - running a set voltage, set frequency and getting around the CPU fan curve to allow for higher temperatures solves that particular comparison data issue, but of course, it creates another one.
The downside now is that the testing that we do does not necessarily relate to real-world usage of the product, though, I'd like to think the data points presented would be helpful to someone that is trying to customize their fan curve for the given cooler.
I think that's perfectly ok in this case --- you are looking for something representative of the cooler and it's performance; not how well any particular platform advantages or energy profiles play to that. Those will be consistent to your particular platform, and as you say - can mask the problems that a lesser cooler would exhibit over a better cooler.
Particularly today with chips that will run with some mayonaisse slathered on a metal lunchbox -- the only difference being how long and how high it will boost --- systems will work, and often work decently well under lightly loaded scenarios, with any old cooler that is at least connected to the socket properly. But a ~good~ cooler will get you better boost speeds and for longer times. But you won't know what a good cooler is from a bad cooler without some baseline info - which is what I appreciate your benchmark system providing.
If you tried to review a HSF under those conditions - they would all look about the same, because the chip would throttle out at some temp and you'd have to look at other parameters than just temperature and/or noise to determine what was working (and what was not).
