Cooler Master V850 SFX Gold WHITE Edition 850W Power Supply Review

The FPS Review may receive a commission if you purchase something after clicking a link in this article.

Overview

The V850 SFX GOLD WHITE packaging is about what we would expect to see given that this is an SFX-sized product. This is doubly true since we recently saw the related V650 SFX GOLD. The front of the package is bare of information save for the advertising about the 10-year warranty, and the 80 Plus Gold seal. When we check the 80 Plus website we find that this unit is not listed at the time of testing.

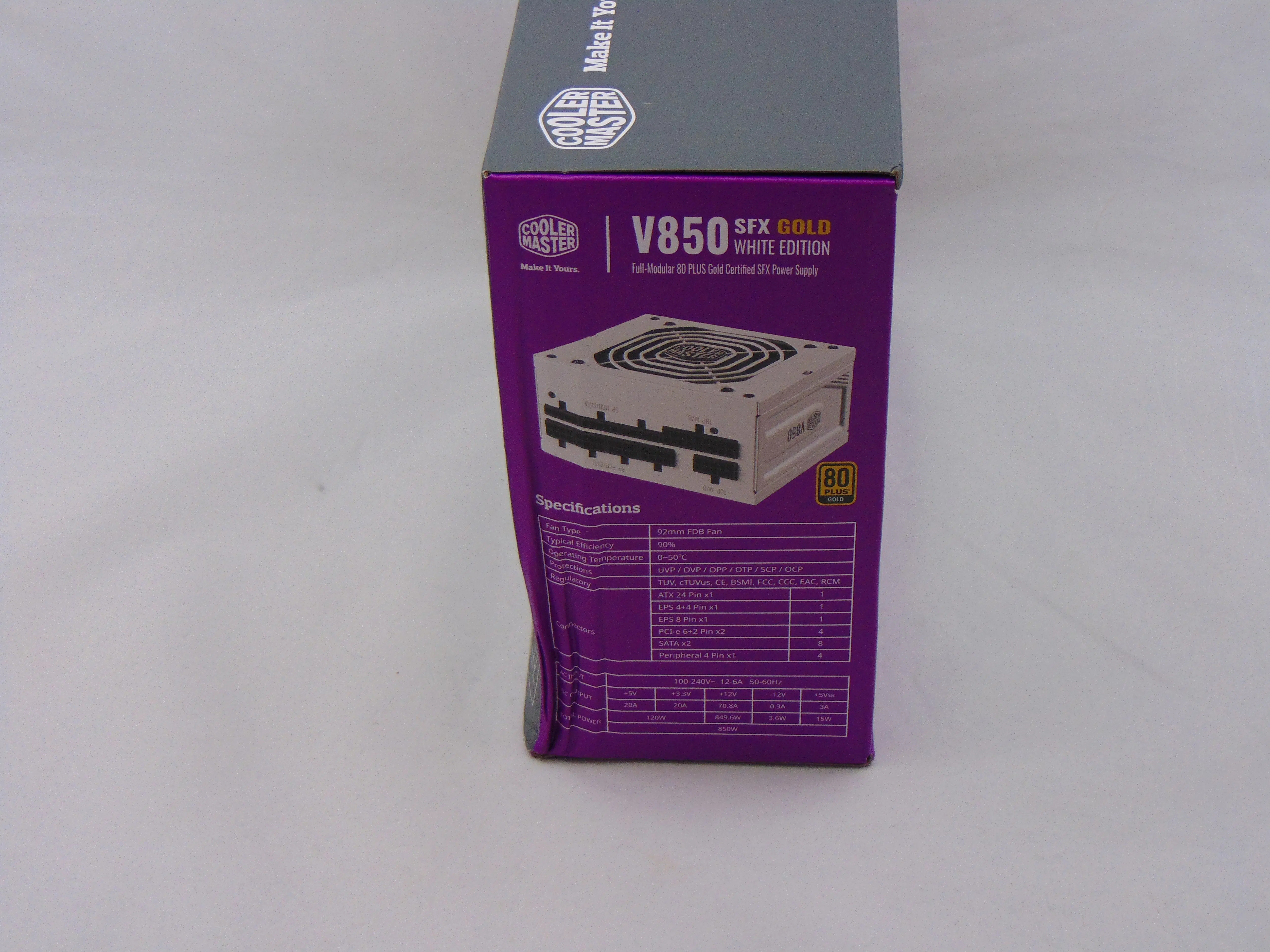

The rear of the packaging has a lot more in the way of advertising as we find advertisements for the unit size, FDB fan, fan controller, voltage regulation, Japanese capacitors, gold plated connectors, etc. This is in addition to the efficiency graph found here as well. The side of the package has the power label (reproduced below) and the connector count (reproduced below).

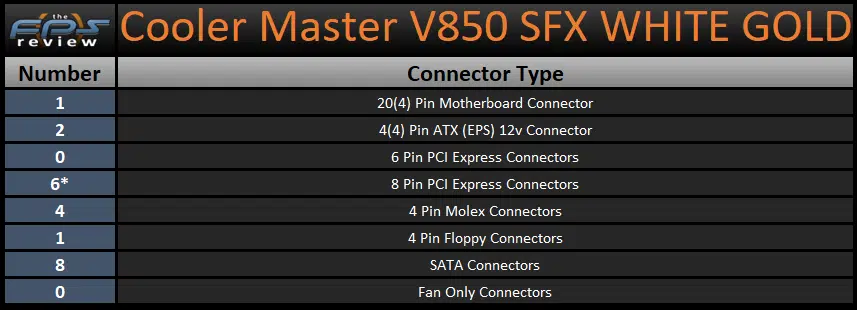

Cooler Master V850 SFX Gold WHITE Edition 850W Power Supply Connector Info Table

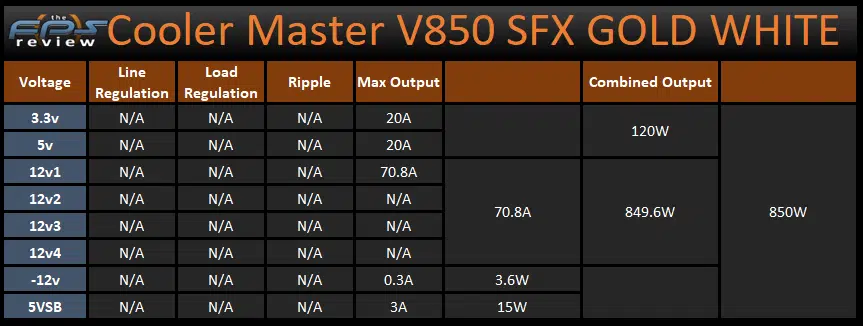

Cooler Master V850 SFX Gold WHITE Edition 850W Power Supply Power Information Table

The V850 SFX GOLD WHITE is advertised as being a single 12v rail power supply with a capacity up to 70.8A (or ~100% of the unit’s capacity) if necessary. The minor rails (5v and 3.3v) have a capacity of 20A each and the combined capacity of those two rails is 120W. Combined with these outputs, we find that this unit has 6 PCIe connectors, 8 SATA connectors, and 4 Molex connectors.

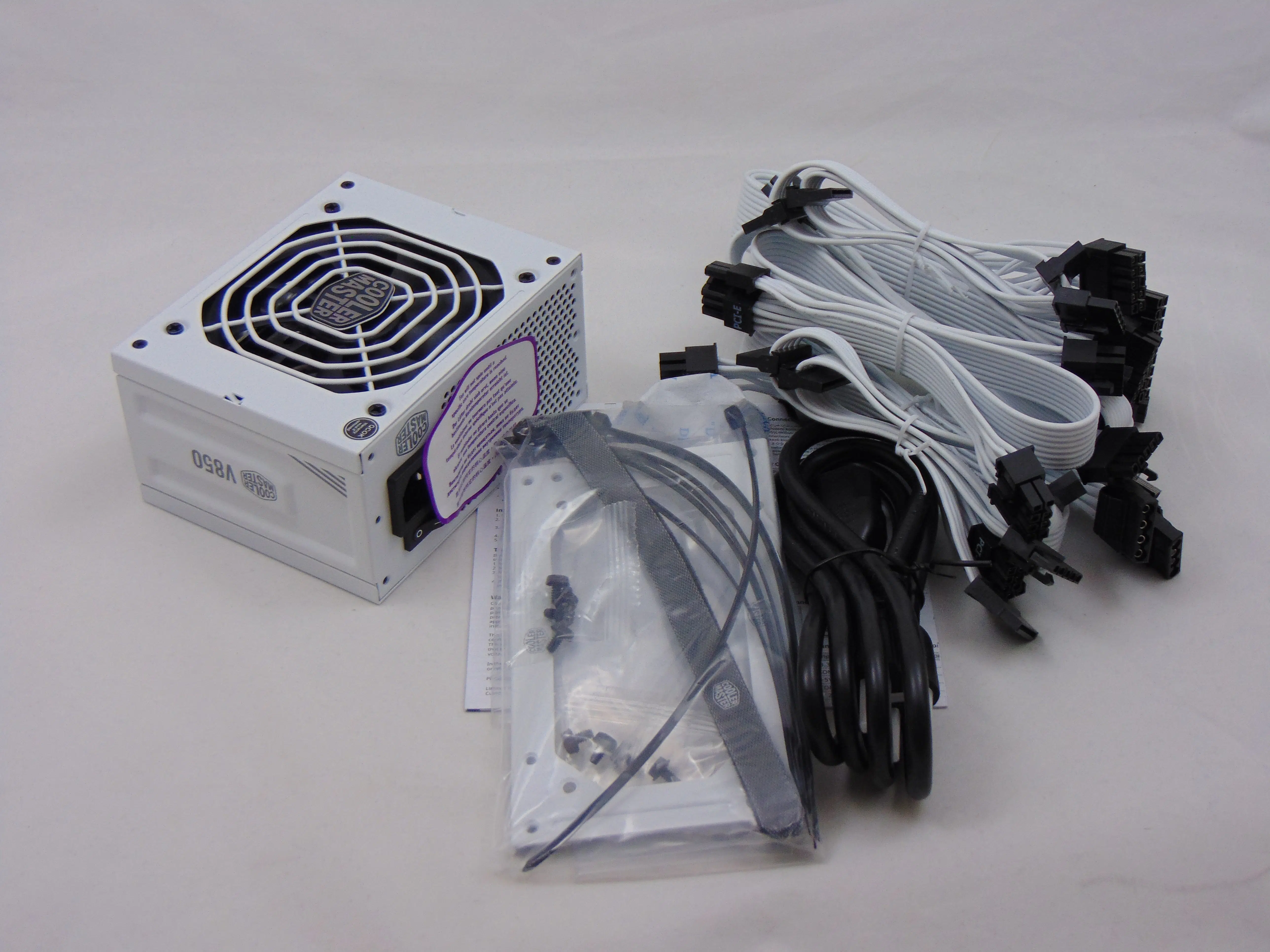

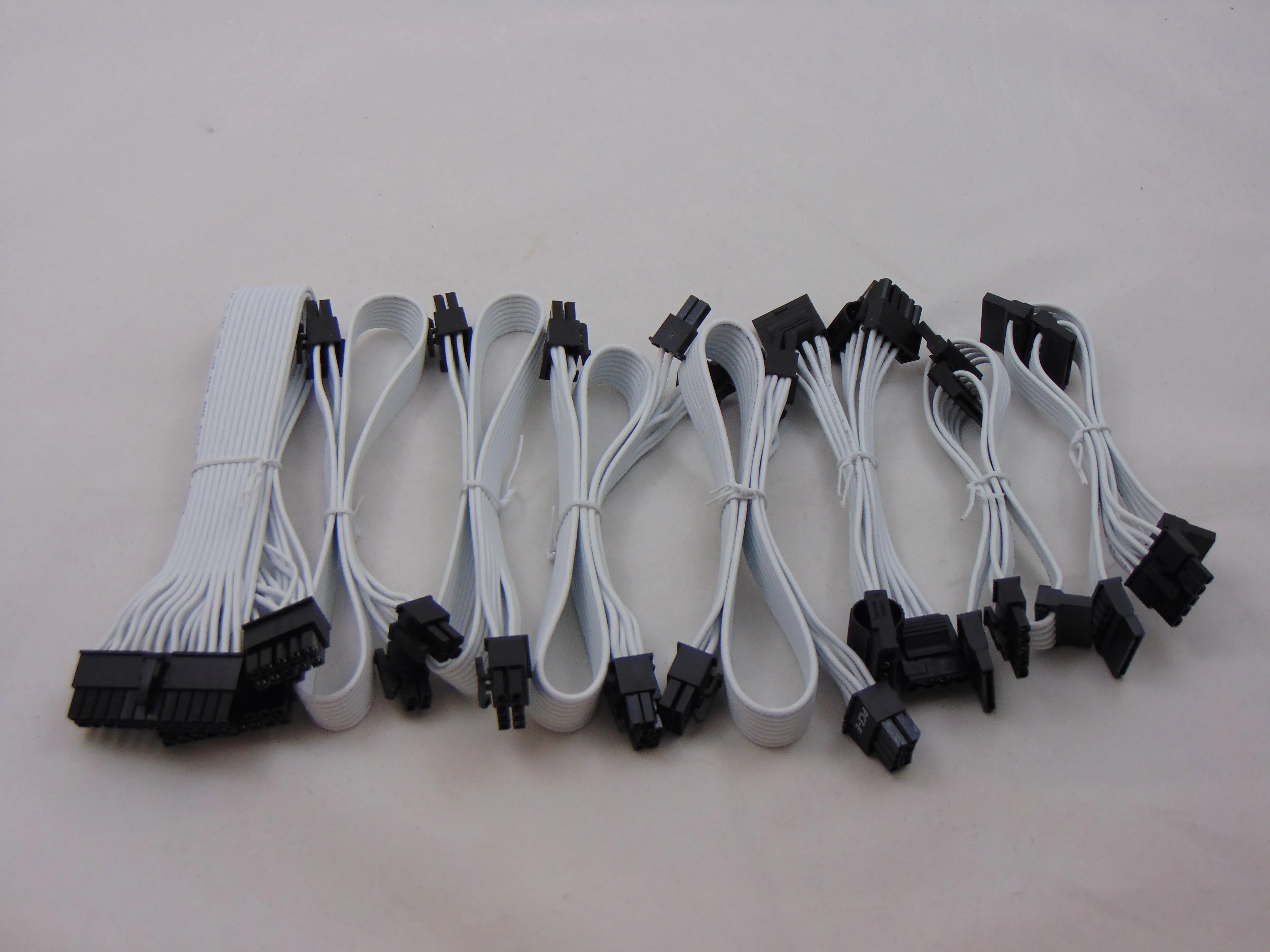

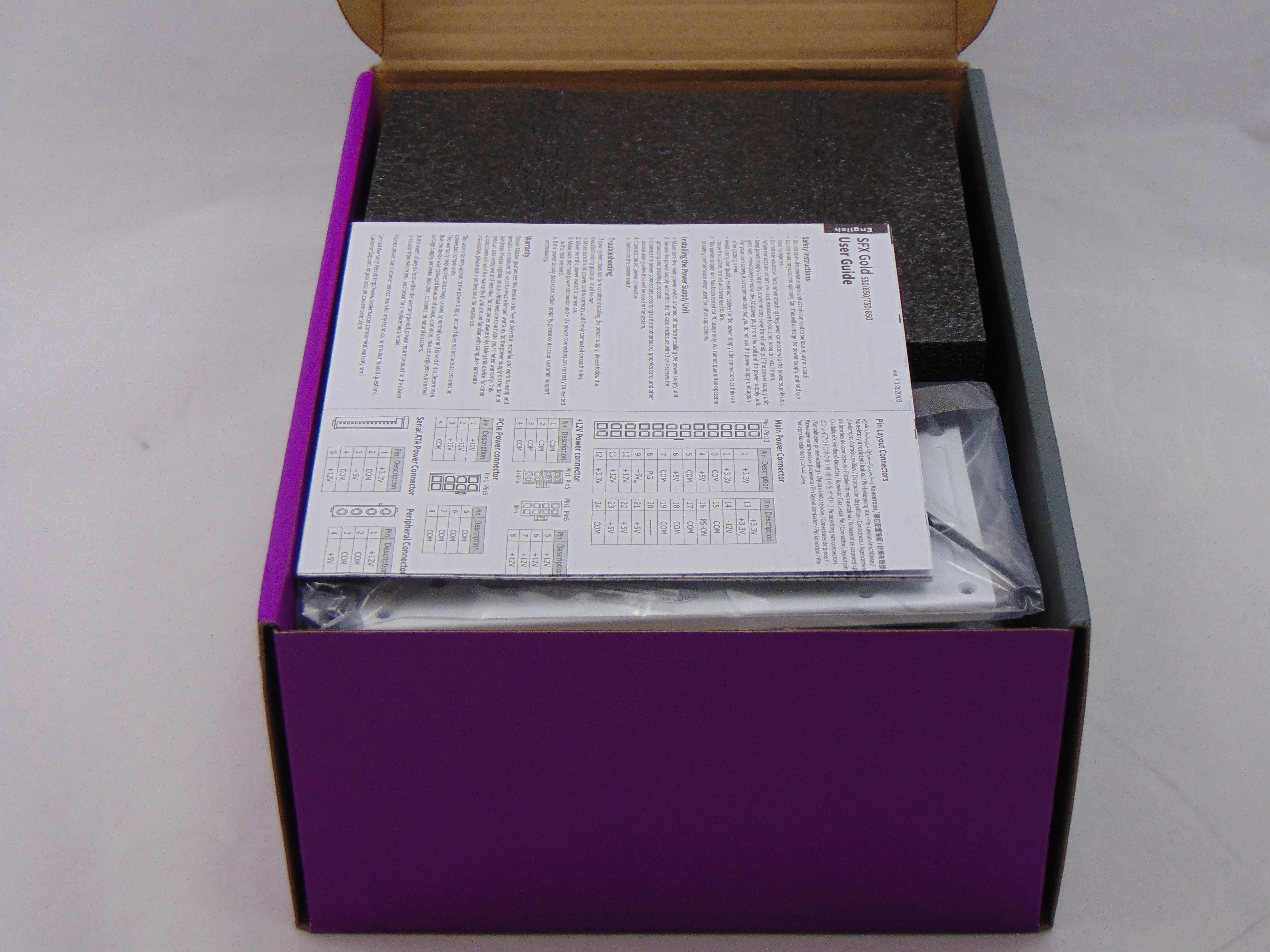

Once we open the V850 SFX GOLD WHITE packaging we find the power supply, mounting screws, modular cables, the power cord, Velcro straps, zip ties, ATX adapter plate, and the user manual. The user manual comes in two parts and covers some basic installation, warranty, and troubleshooting items. Let’s move on to the unit itself now.
