PerformanceTEST 10
PassMark Advanced GPU Compute Test
We are using PerformanceTest 10.2 and its PassMark Advanced GPU Compute Tests feature set of benchmarks. This is a suite of compute tests to test specific functions using DirectCompute and OpenCL. We have graphed out each one separately to compare in graphs.

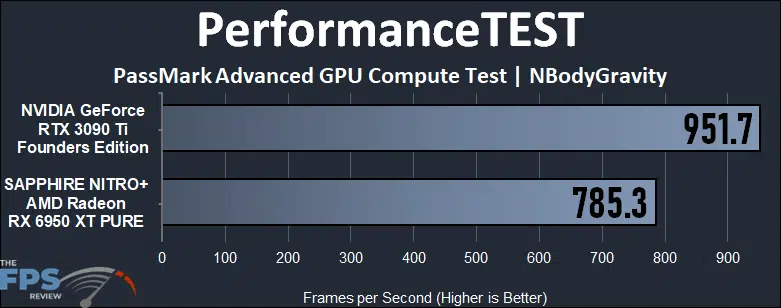

NBodyGravity is a physics simulation of gravity and motion. The GeForce RTX 3090 Ti FE is 21% faster than the Radeon RX 6950 XT.

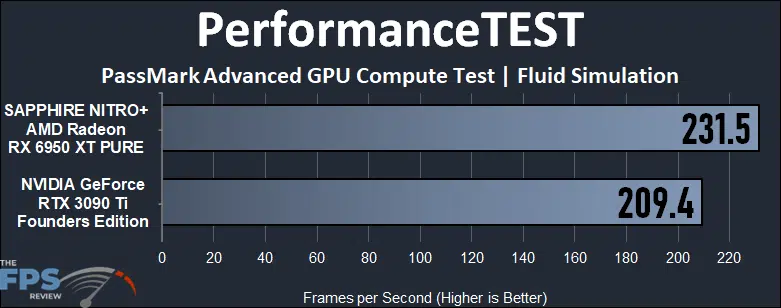

This test performs a fluid simulation using the MacCormack method to simulate a fire reaction in an enclosed volume. The Radeon RX 6950 XT is 11% faster than the GeForce RTX 3090 Ti FE.

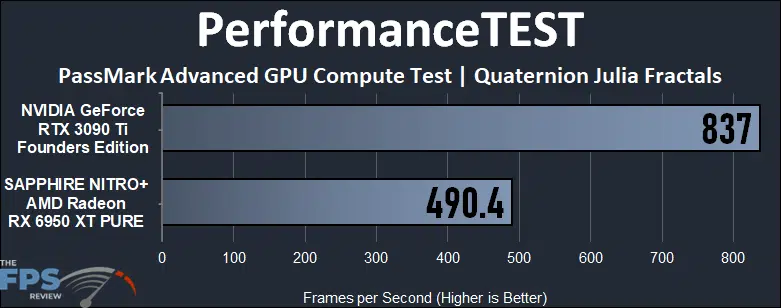

This test generates a four-dimensional Julia fractal set, which is then rendered in three dimensions and animated. Epsilon is set at 0.001 which increases the load on the GPU. The GeForce RTX 3090 Ti FE is 71% faster than the Radeon RX 6950 XT.

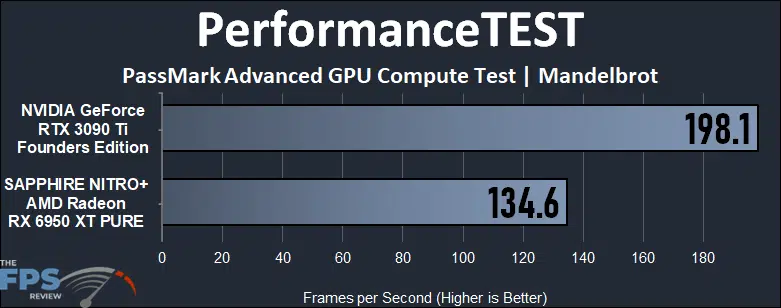

This test continuously zooms onto a particular point in a two-dimensional Mandelbrot fractal set, generating various shapes and patterns. The GeForce RTX 3090 Ti FE is 47% faster than the Radeon RX 6950 XT.

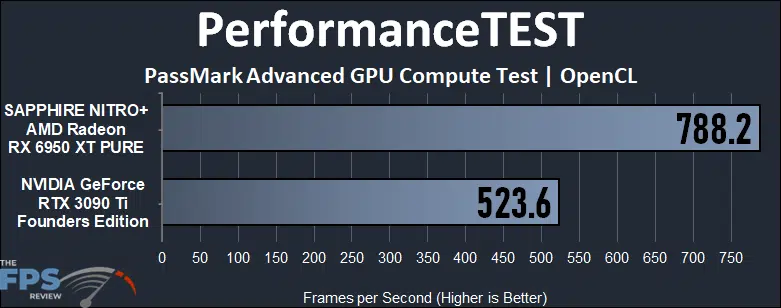

In this OpenCL physics test, the Radeon RX 6950 XT is 51% faster than the GeForce RTX 3090 Ti FE.
