SPECviewperf 2020 v3.0
We are using the newest SPECviewperf 2020 v3.0 which was released in December of 2021. This benchmark is a standard for measuring graphics performance based on professional workstation applications. The workloads represent graphics content and behavior from actual applications that the industry uses widely. These are 3DSMAX-07, CATIA-06, CREO-03, ENERGY-03, MAYA-06, MEDICAL-03, SNX-04 and SOLIDWORKS-06. We are running the benchmark in 4K.

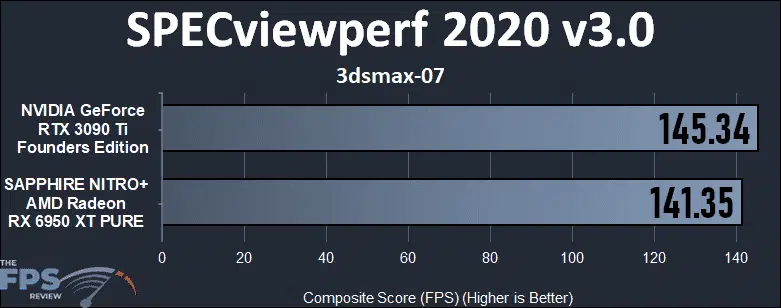

In 3dsmax-07 the GeForce RTX 3090 Ti FE is 3% faster than the Radeon RX 6950 XT.

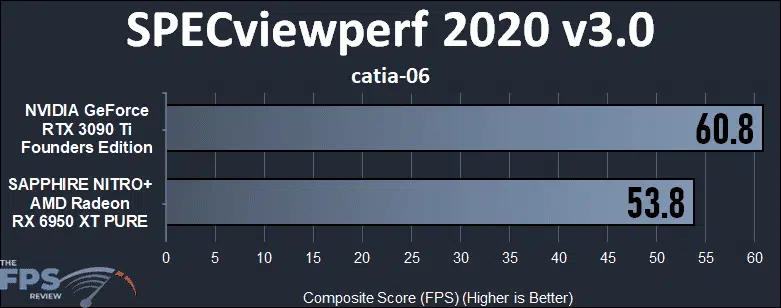

In catia-06 the GeForce RTX 3090 Ti FE is 13% faster than the Radeon RX 6950 XT.

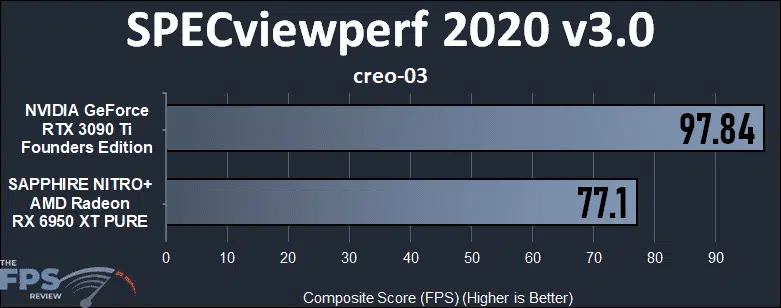

In creo-03 the GeForce RTX 3090 Ti FE is 27% faster than the Radeon RX 6950 XT.

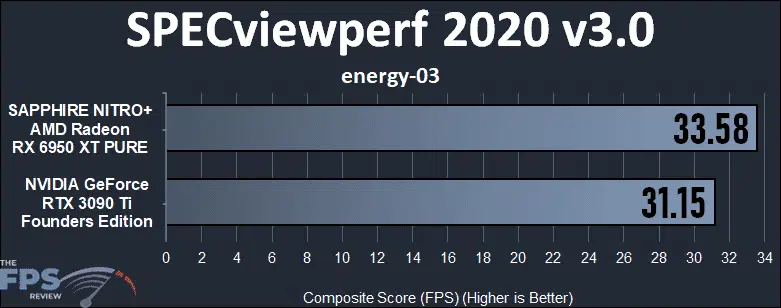

In energy-03 the Radeon RX 6950 XT is 8% faster than the GeForce RTX 3090 Ti FE.

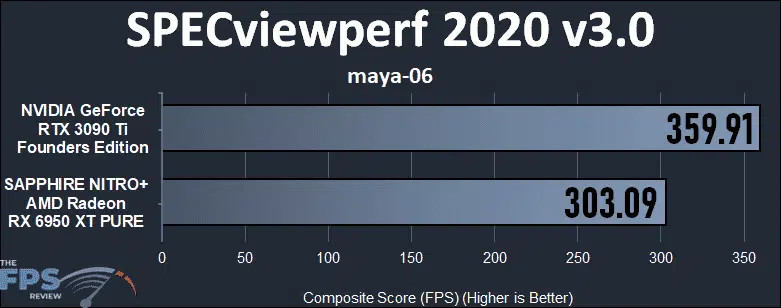

In maya-06 the GeForce RTX 3090 Ti FE is 19% faster than the Radeon RX 6950 XT.

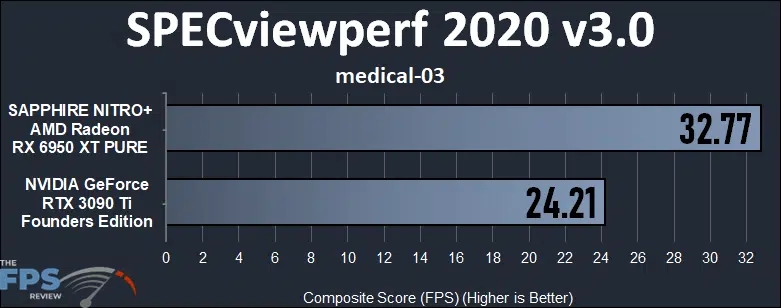

In medical-03 the Radeon RX 6950 XT is 35% faster than the GeForce RTX 3090 Ti FE.

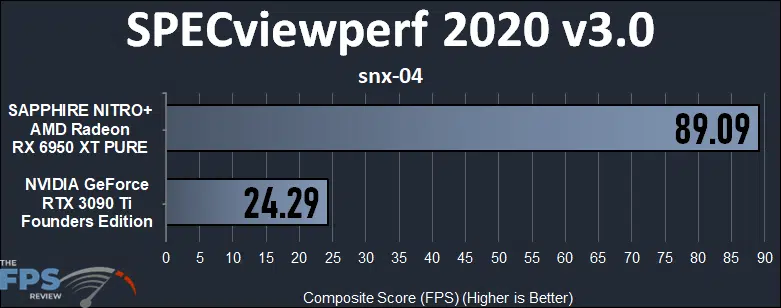

In snx-04 the Radeon RX 6950 XT is 267% faster than the GeForce RTX 3090 Ti FE.

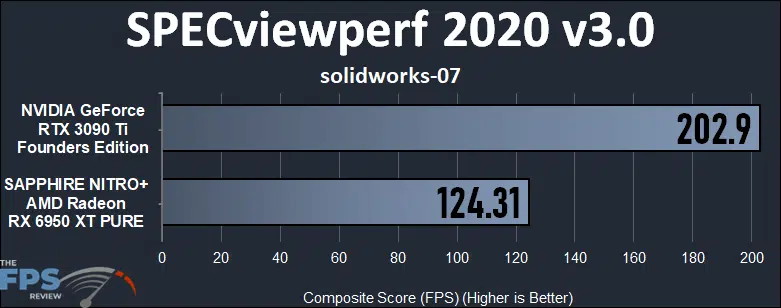

In solidworks-07 the GeForce RTX 3090 Ti FE is 63% faster than the Radeon RX 6950 XT.
