Testing Setup

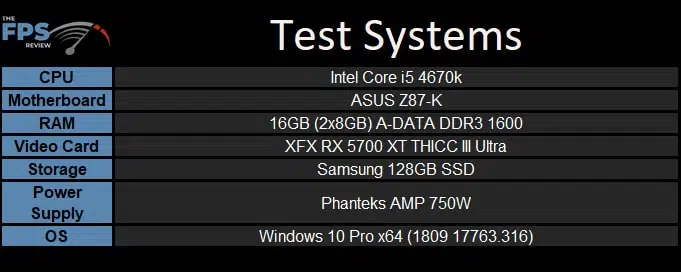

Testing will consist of two tests. A noise level test where a sound meter will be placed a couple of feet directly in front of the case. We will put the system through some tests to see how loud (or quiet) the case is. Then we will be testing the ability of the case to dissipate the heat outside of the case. To do this I will mount 4 thermal probes inside the four general corners of the case. We will load up the system a few times to generate some heat and see how well the case can keep its cool.
| Specification | FSP CMT520 Plus |
|---|---|
| Type | ATX Mid Tower |
| Color | Black |
| Materials | SPCC, Tempered glass x 2 |
| Weight | 8.5KG |
| Dimension DxWxH (mm) / (inch) | 495 x 215 x 510mm 19.49 x 8.46 x 20.08inch |
| Maximum CPU Cooler Height | 163mm |
| VGA Card Length | 423mm |
| Expansion Slots | 8 |
| MotherBoard Support | E-ATX, ATX, Micro ATX, ITX |
| External I/O port | USB3.0 x 2, USB2.0 x 2,Audio |
| Power Supply Type | 200mm ATX |
| 3.5“ HDD | 2 |
| 2.5″ SSD | 4 |
| Fan Including(pre-install) | Front: 120mm ARGB Fan x 3 Rear: 120mm ARGB Fan x 1 |
| Fan&Water Cooler Support | Front: 120mm/140mm x 3, or 360mm Radiator x 1 Top: 120mm x 3/140mm x 2 or 360mm Radiator x 1 Rear: 120mm x1 |
| Max Radiator Support | 360mm x 2 |
