Yesterday marked the launch of the NVIDIA GeForce RTX 2060 (12 GB) graphics card. This time around, NVIDIA is not offering a Founders Edition; only AIBs will be selling the new model with the increased VRAM. The card has reportedly been going for anywhere from $550 to as high as $785. Here are some of the new models.

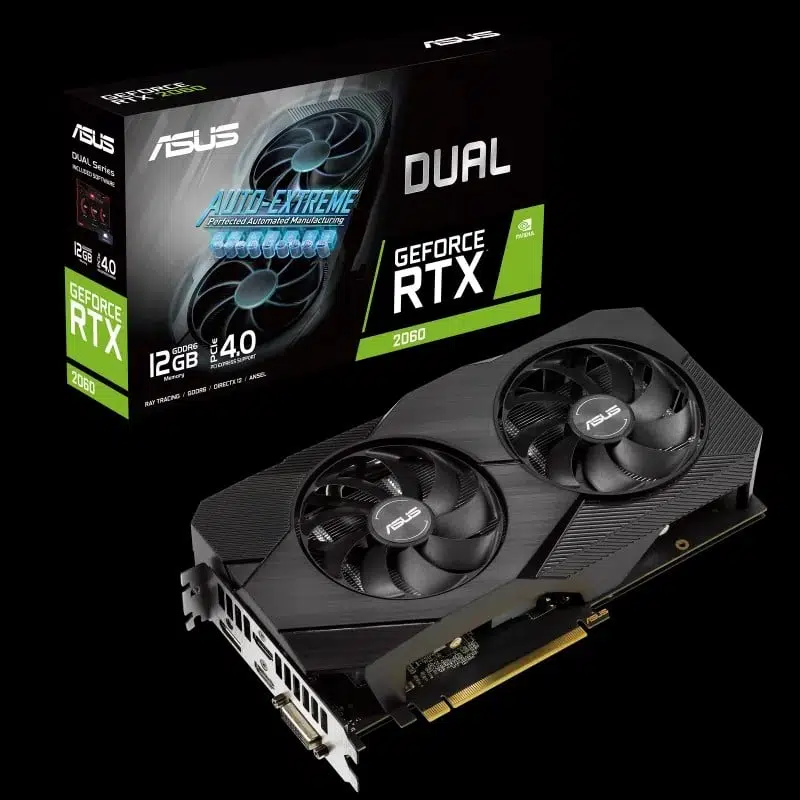

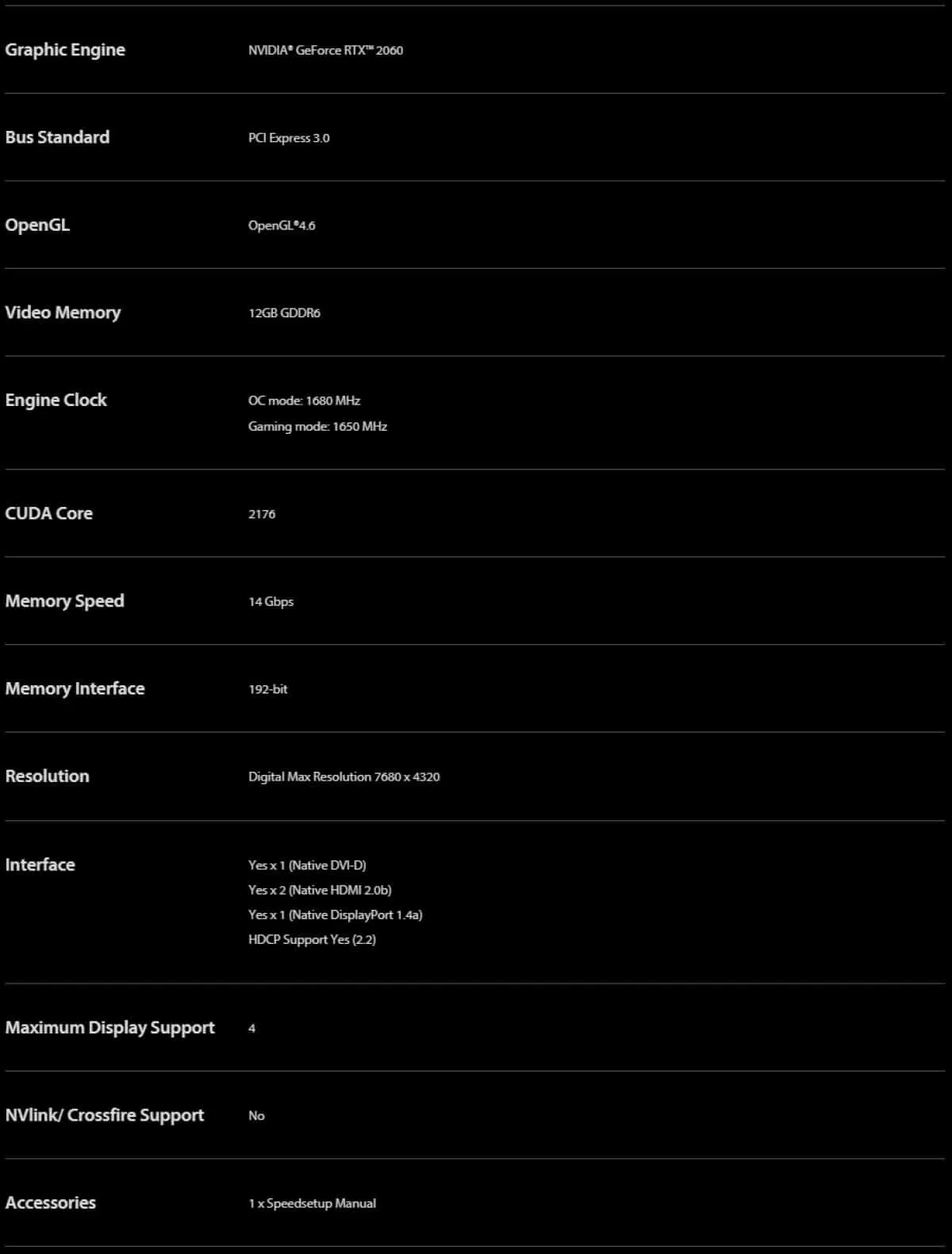

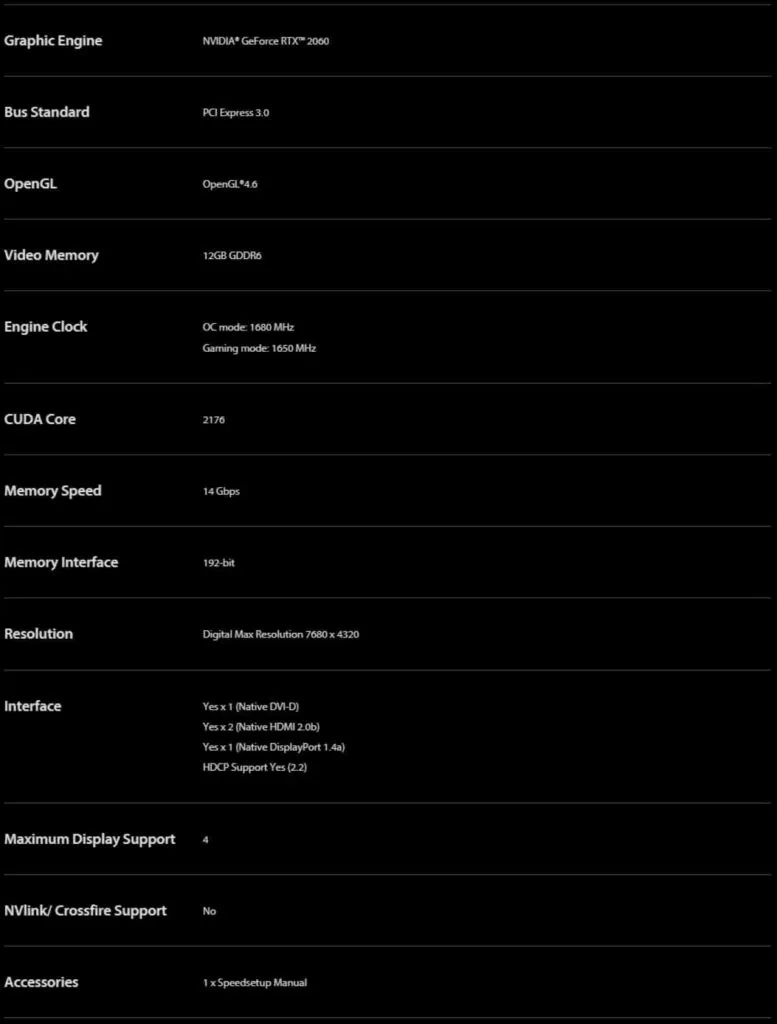

ASUS Dual GeForce RTX 2060 EVO Series
ASUS is offering two models. The OC edition increases the base clock by 30 MHz to 1,710 MHz.

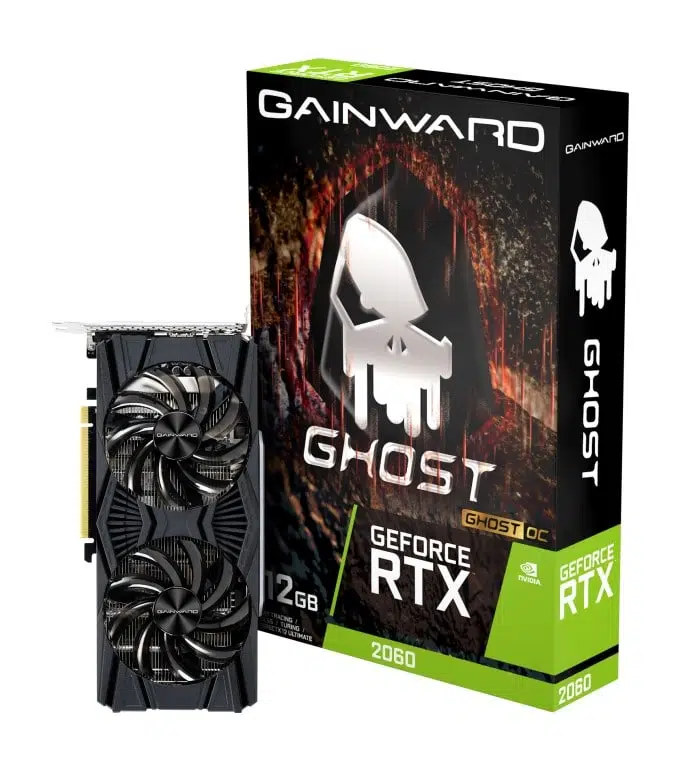

Gainward GeForce RTX 2060 Ghost 12GB Series
Gainward has announced two variants so far. An OC version has increased the base clock by 45 MHz to 1,695 MHz.
| Product Name | GeForce RTX™ 2060 Ghost 12GB |
|---|---|
| Barcode | 471056224-2997 |
| GPU | GeForce RTX 2060 |
| GPU Clockspeed | 1650 MHz |
| Memory | 12GB GDDR6 (192 bits) |
| Memory Clockspeed | 7000Mhz (14Gbps) |
| Bandwidth | 336 GB/s |
| Bus | PCI-Express 3.0 x 16 |
| Cooling | 2 Slot Fan cooler |
| Video-Features | HDMI v2.0 |
| Connectivity | DisplayPort + DVI-D |
| Product Size | 235mm x 115mm |
| Power Connector | 8-pin |
| P/N | NE62060S18K9-1160L |

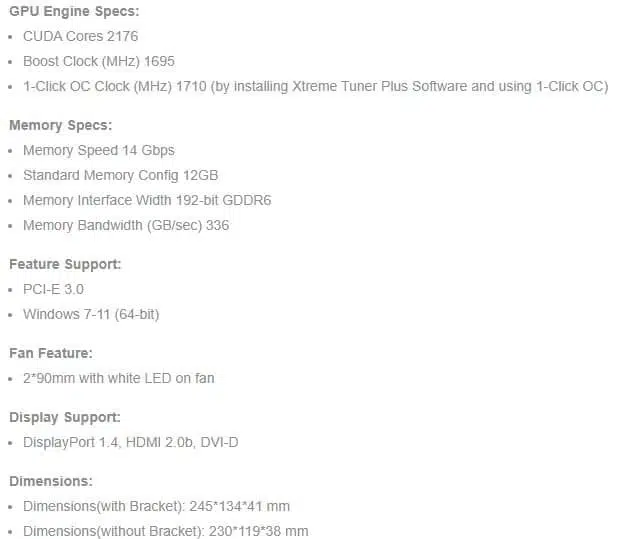

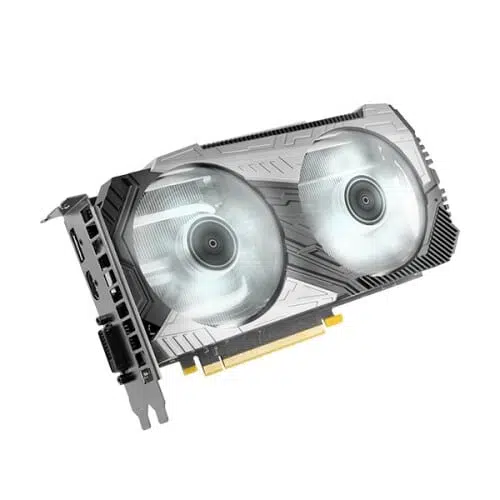

GALAX GeForce RTX 2060 12GB Plus (1-Click OC)

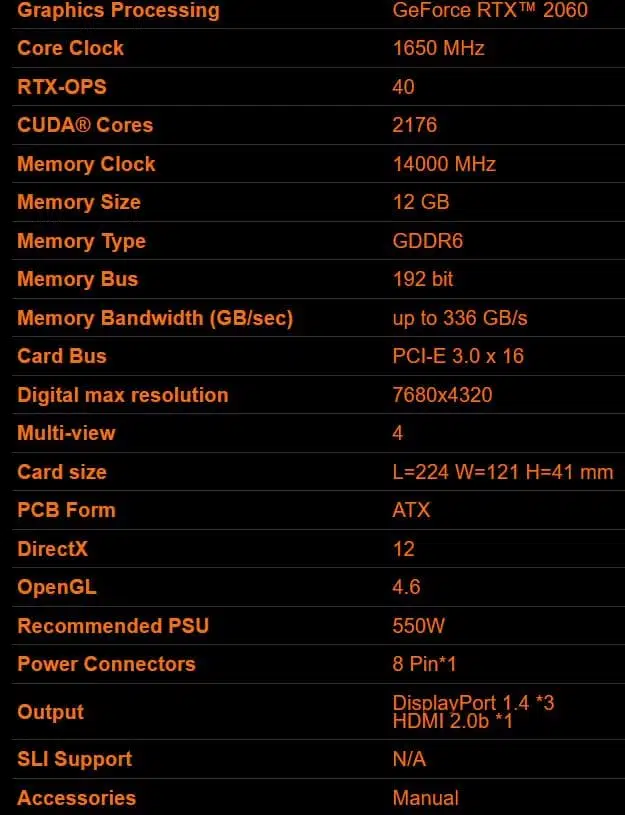

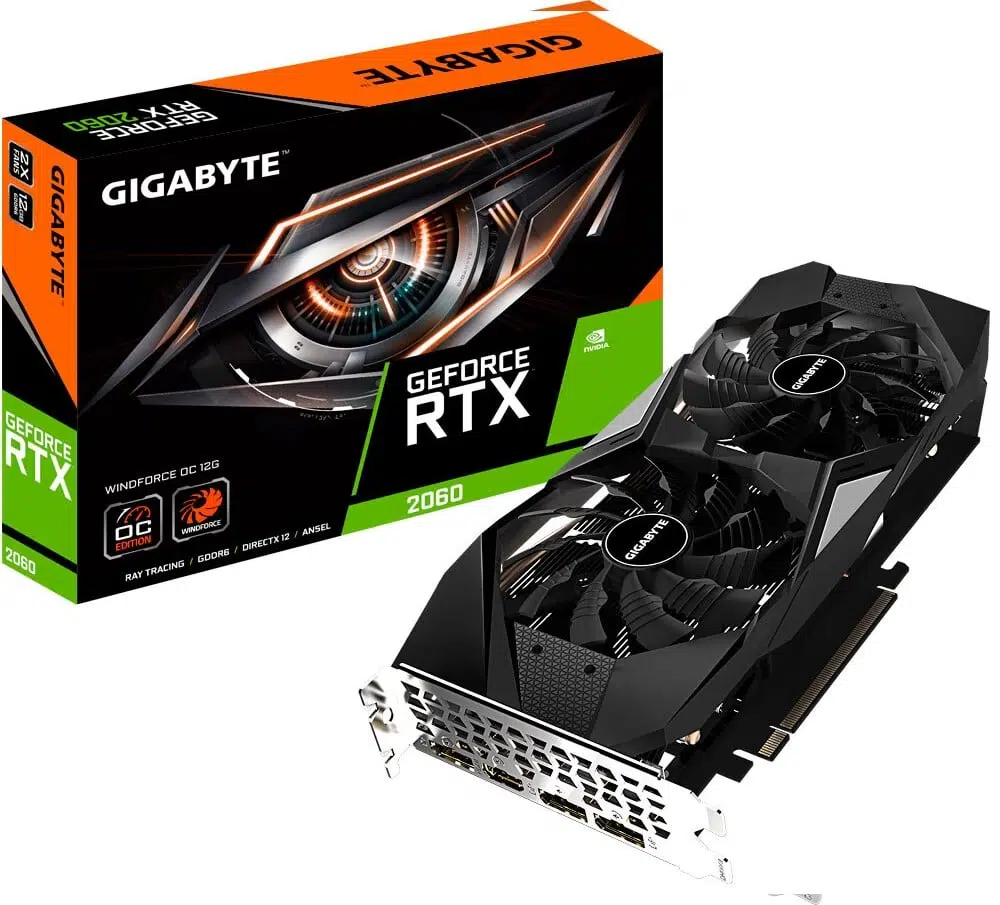

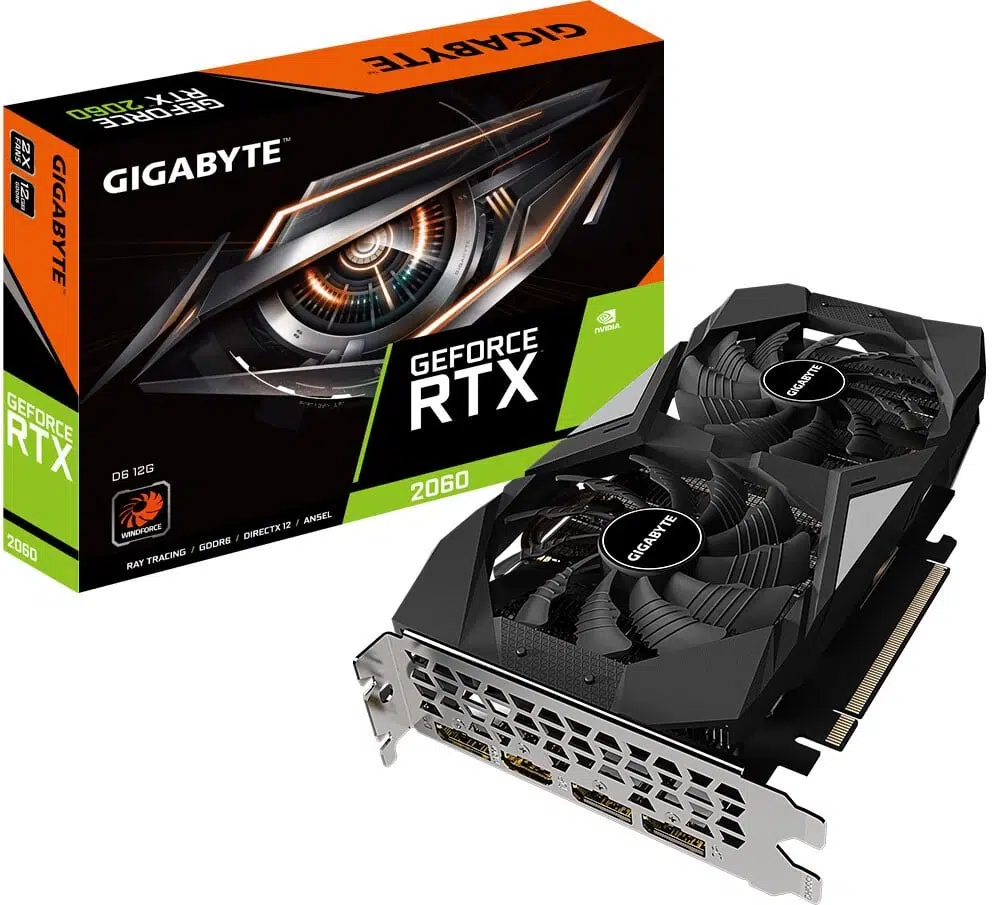

GIGABYTE RTX 2060 D6 12G and RTX 2060 WindForce OC 12G
GIGABYTE has launched two models. The Windforce offers a larger, dual-fan cooling solution with an increased clock of 30 Mhz to 1,680 MHz.

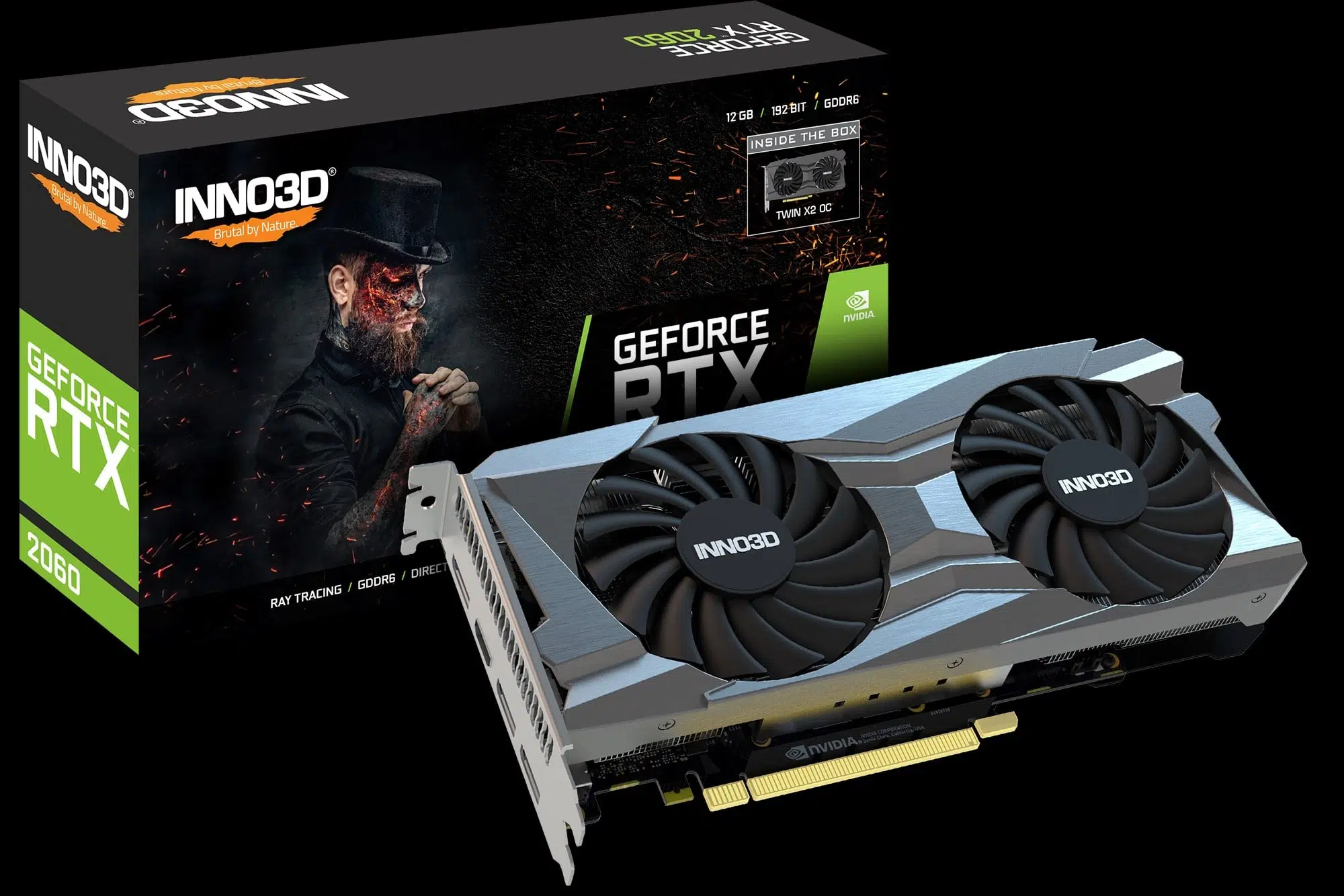

INNO3D GEFORCE RTX 2060 12GB TWIN X2 OC
| CUDA Cores | 2176 |
| Boost Clock (MHz) | 1665 |
| Base Clock(MHz) | 1365 |
| Minimum System Power Requirement (W) | 550 |
| Supplementary Power Connectors | 8-pin |
| Memory Clock | 14Gbps |
| Standard Memory Config | 12GB |
| Memory Interface | GDDR6 |
| Memory Interface Width | 192-bit |
| Memory Bandwidth (GB/sec) | 336 |
| Real-Time Ray Tracing | Yes |
| Ray Tracing Cores | Yes |
| Tensor Cores | Yes |
| NVIDIA Architecture | Turing |
| Microsoft DirectX | 12 Ultimate |
| NVIDIA DLSS | Yes |
| NVIDIA GeForce Experience | Yes |
| NVIDIA Ansel | Yes |
| NVIDIA FreeStyle | Yes |
| Bus Support | PCI-E 3.0 X16 |
| NVIDIA ShadowPlay | Yes |
| NVIDIA Highlights | Yes |
| OS Certification | Windows 10, Linux, FreeBSDx86 |
| NVIDIA G-SYNC™-Ready | Yes |
| Game Ready Drivers | Yes |
| NVIDIA Studio Drivers | Yes |
| NVIDIA GPU Boost™ | Yes |
| Vulkan API | Yes |
| OpenGL | 4.5 |
| NVIDIA Encoder | 6th Generation |
| NVIDIA Decoder | 4th Generation |
| Length | 240mm |
| Height | 120mm |
| Width | 2-slot |
| Multi Monitor | Yes |
| Maxmium Digital Resolution | 7680×4320 |
| HDCP | 2.2 |
| Standard Display Connectors | HDMI 2.0b, 3x DisplayPort 1.4 |

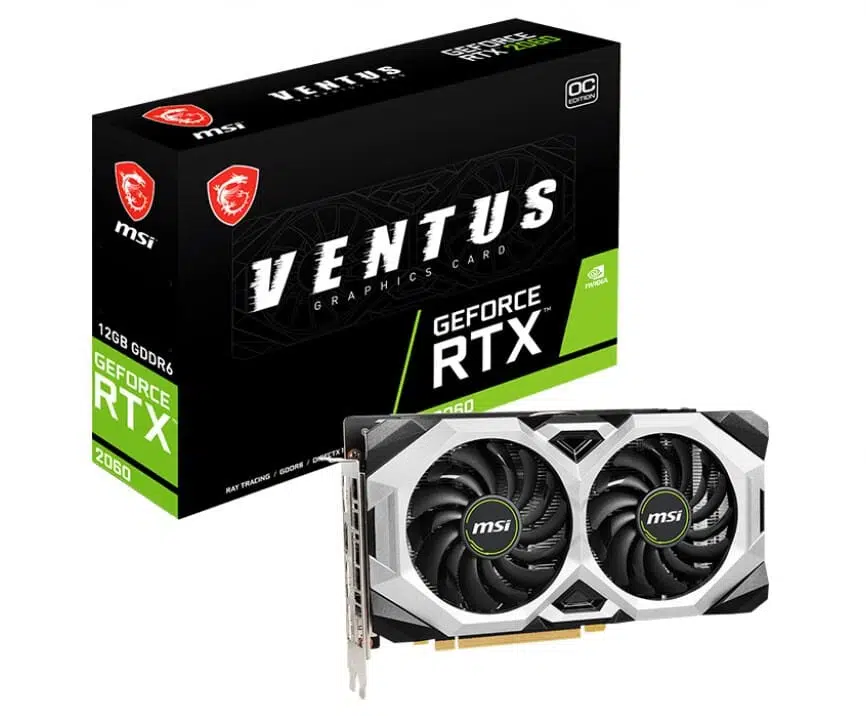

MSI GeForce RTX 2060 12GB Ventus Series
MSI has yet to publish the specs for its Ventus cards, but they were leaked on retailer’s sites a day early overseas. TechPowerUp has reported there will be two models, with the OC edition increasing the boost clock by 60 MHz to 1,710 MHz.

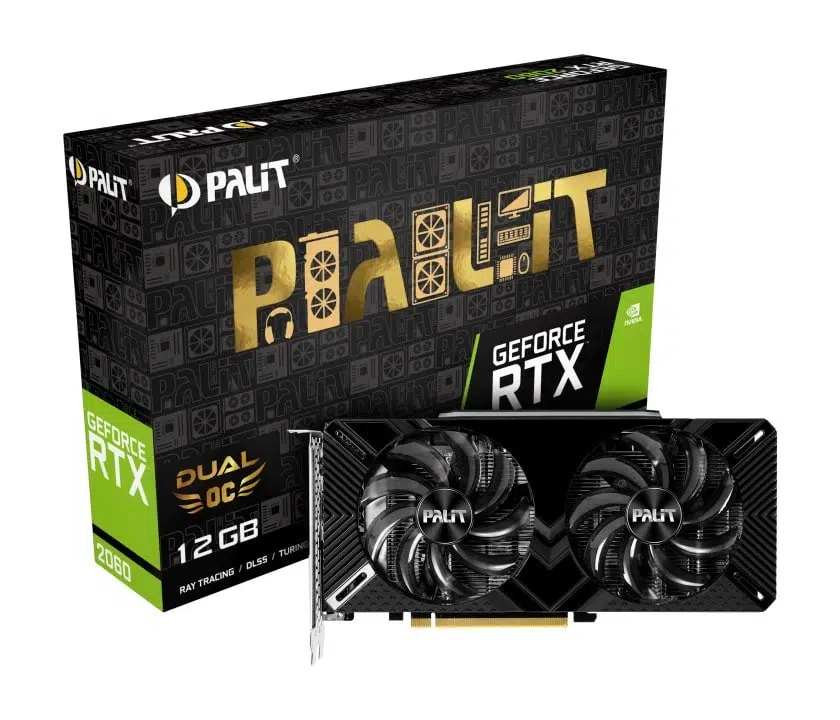

Palit GeForce RTX 2060 Dual OC 12GB
| Memory Amount | 12GB |
| Memory Interface | 192bit |
| DRAM Type | GDDR6 |
| Graphics Clock | 1470 MHz |
| Boost Clock | 1650 MHz |
| Memory Clock | 14 Gbps |
| RTX-OPS | 41T |
| CUDA Cores | 2176 |
| Memory Bandwidth (GB/sec) | 336 |
| Microsoft DirectX | 12 |
| OpenGL | 4.6 |
| Bus Support | PCI-E 3.0 x 16 |
| DVI | Dual-Link DVI-D |
| HDMI | HDMI 2.0b |
| DisplayPort | DP1.4a x 1 |
| Maximum Digital Resolution | 7680×4320@60Hz |
| Height | 2 Slot |
| Board Size | 235 x 115 x 40 mm |
| Graphics Card Power | 184 W |
| Minimum Recommended System Power | 550 W |
| Supplementary Power Connectors | 8-pin x 1 |
| Accessory | Manual |

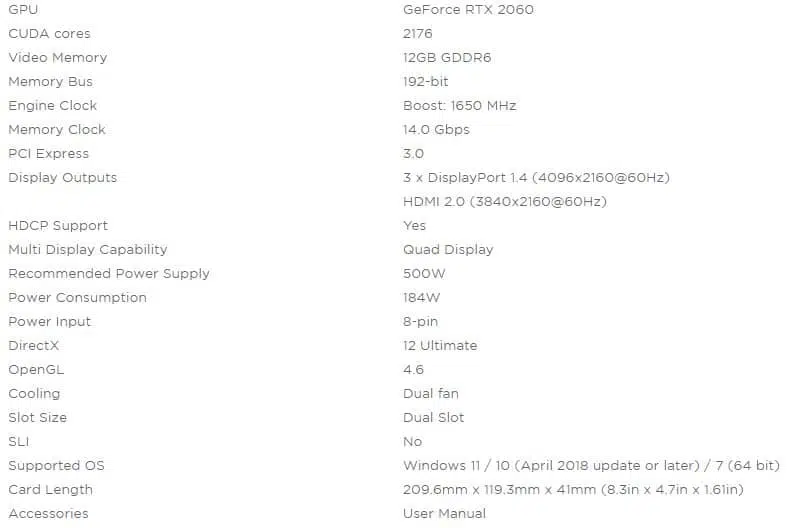

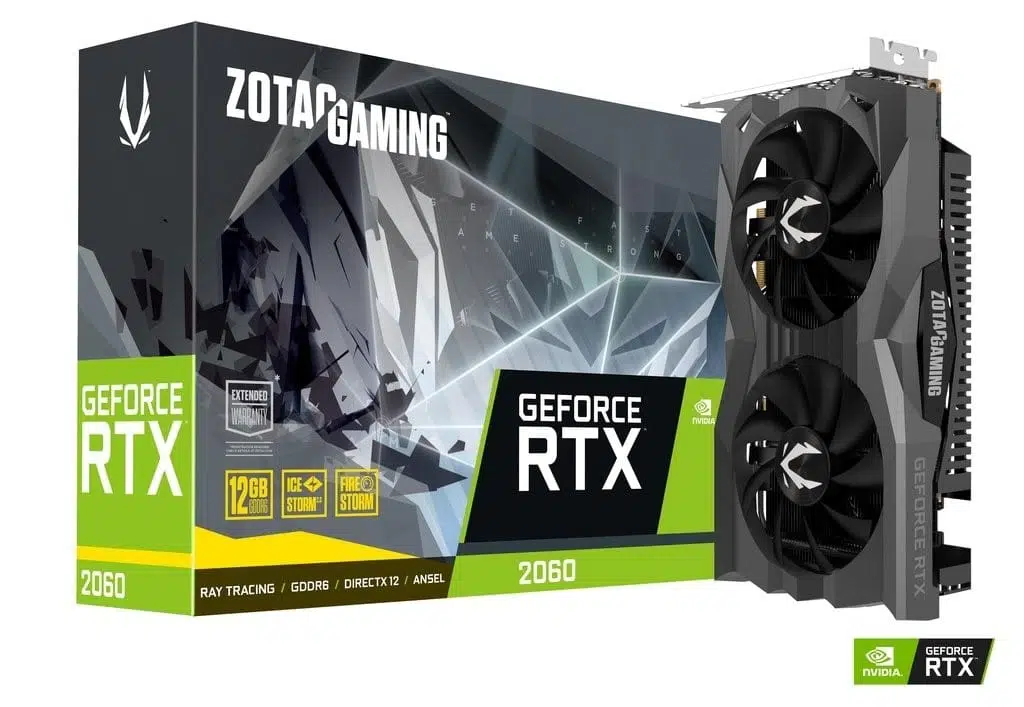

ZOTAC GAMING GeForce RTX 2060 Twin Fan 12GB
Sources: INNO3D, ASUS, Gainward, Zotac, Palit, MSI (via TechPowerUp), GIGABYTE, GALAX
