Subsystem Testing

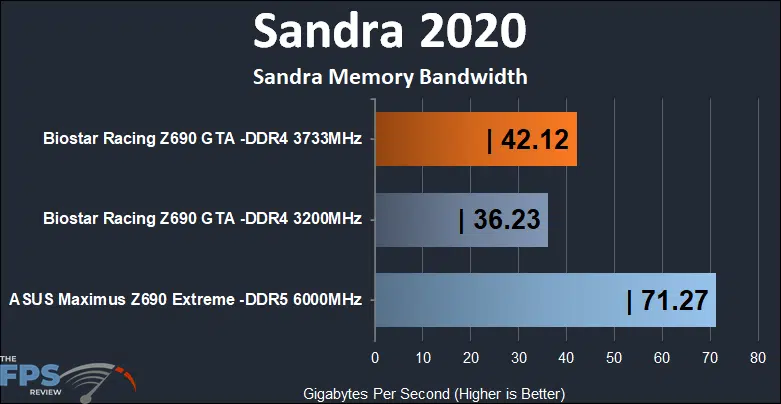

Memory Bandwidth
In this test, the BIOSTAR Z690 GTA achieved a result of 42.12GB/s at DDR4 3733MHz in Gear 2 mode. At DDR4 3200MHz, we saw a result of 36.23GB/s. This is inline and slightly better than most of the other systems we’ve tested in the recent past.

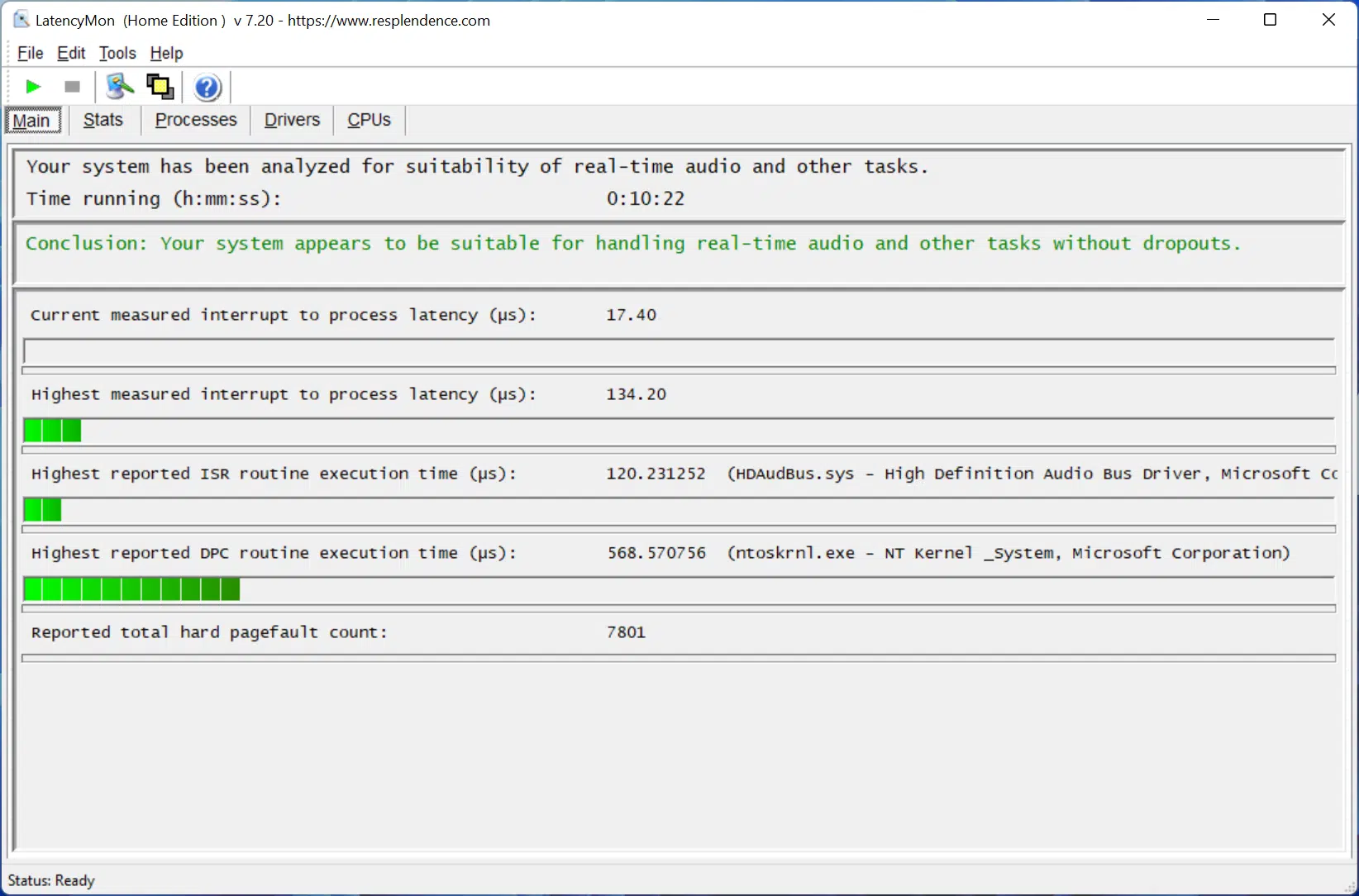

LatencyMon
In this test, the BIOSTAR Racing Z690 GTA scores a little worse than some other systems we’ve tested in the past (not shown). However, it’s well within an acceptable range and this is our first test using Windows 11.

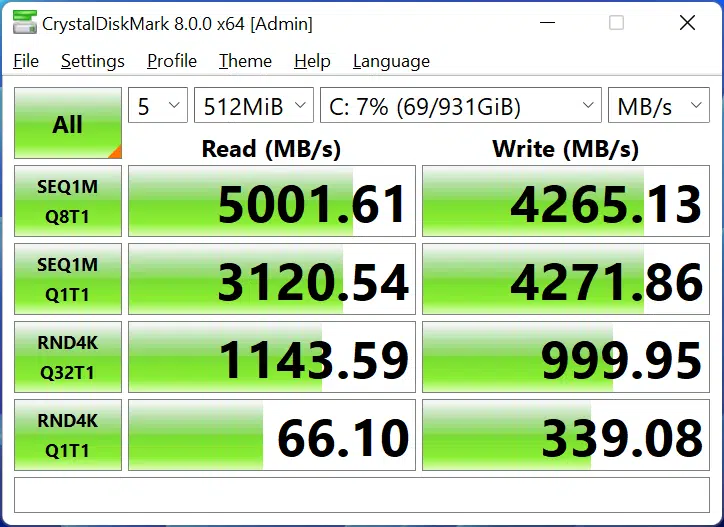

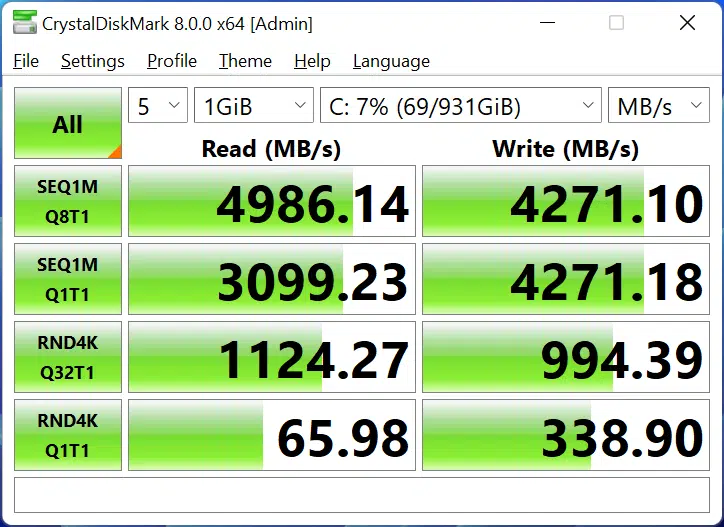

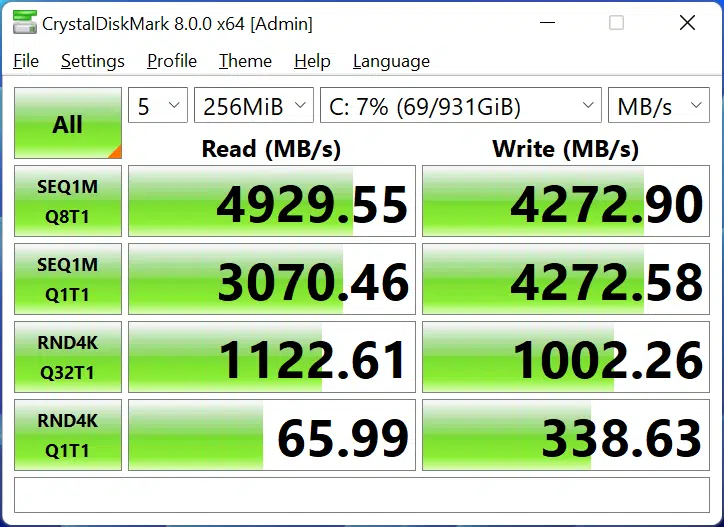

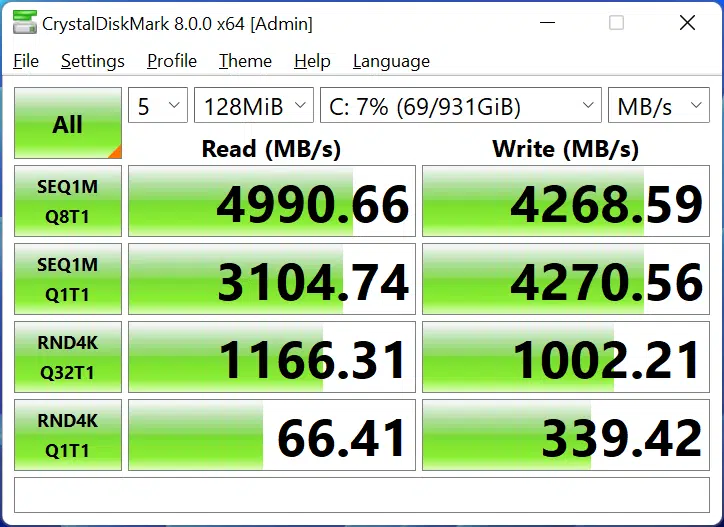

M.2 Performance
The performance of the Corsair MP600 1TB M.2 NVMe SSD is right where it should be based on the technical specs of the device. This isn’t surprising but indicates that everything is working as it should.
