ASRock Radeon RX 7600 XT Steel Legend 16GB OC Video Card Review

The FPS Review may receive a commission if you purchase something after clicking a link in this article.

Gameplay Performance at 1080p with Ray Tracing

In this section, we use the same comparison setup, while enabling Ray Tracing features in each game. We also enable FSR or DLSS, again depending on the game and video card(s) used. As we enable Ray Tracing the game demands increase, usually dramatically.

Alan Wake 2

In enabling Ray Tracing here we had to choose the “Low” preset. Anything else automatically enables path tracing which is too demanding for the cards in this review.

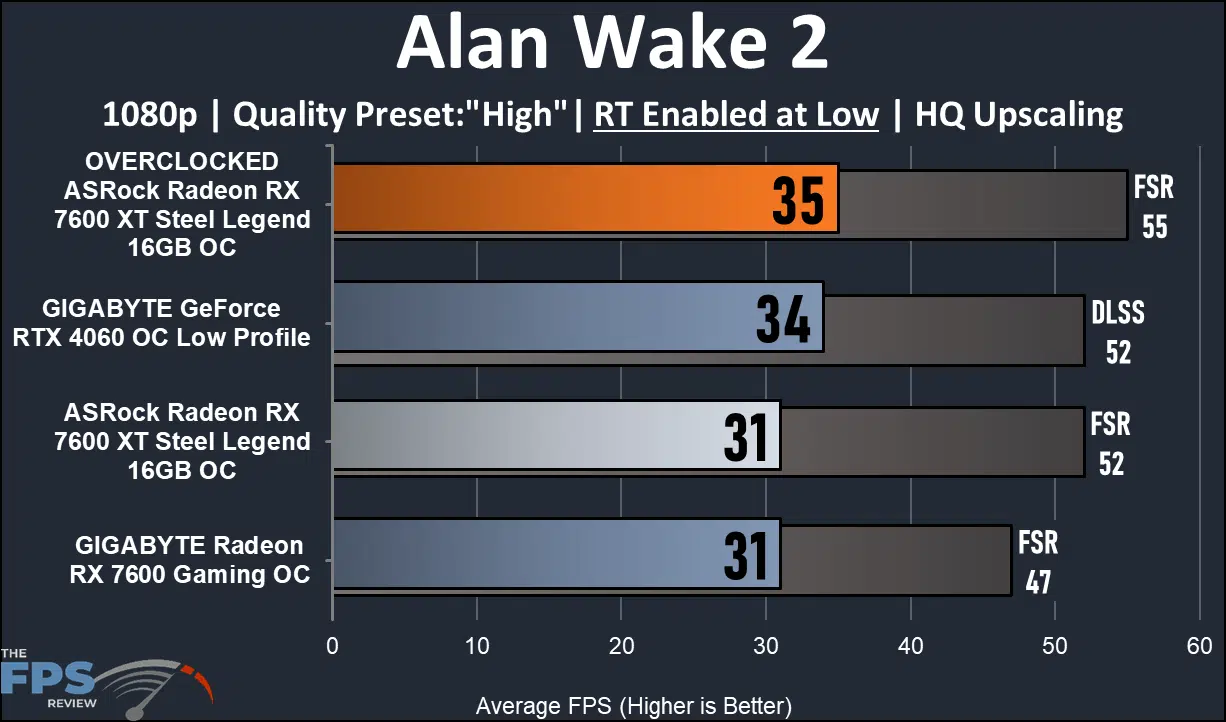

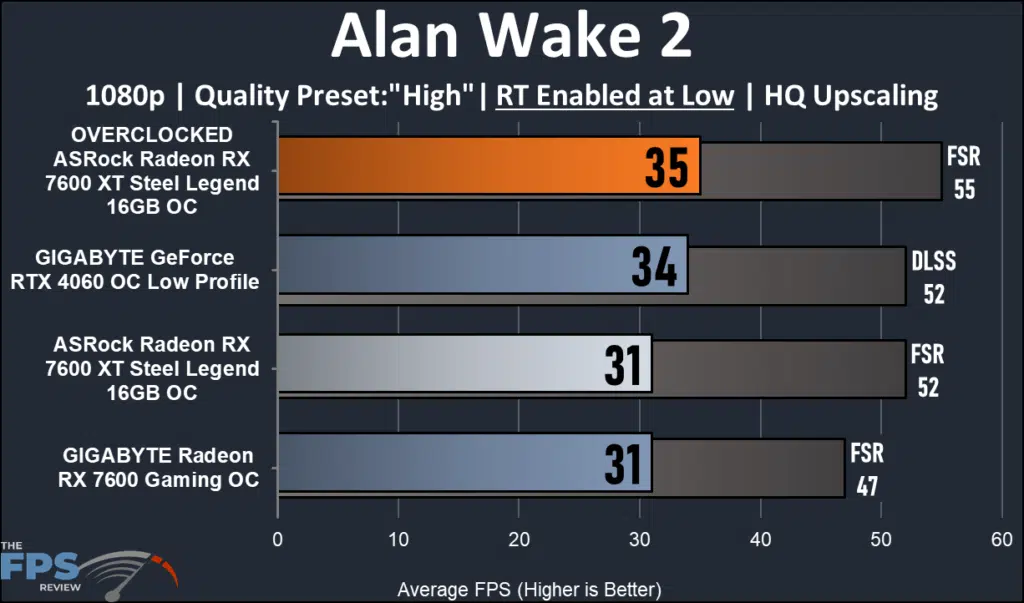

ASRock Radeon RX 7600 XT Steel Legend 16GB ray tracing Alan wake 2

If we are to use a 60 FPS baseline to define playable, none of the cards has the stuff. This game is fairly slow-paced and at or near 50 FPS runs quite well. Regardless, the graphics are quite nice and ray tracing does add to the atmosphere. Our ASRock Radeon RX 7600 XT Steel Legend 16G OC runs essentially even with the GIGABYTE Radeon RX 7600 Gaming OC. The GIGABYTE GeForce RTX 4060 OC Low Profile is the quickest by 10%. Overclocking once again adds 12% and is the best performer! Not even upscaling reaches the 60FPS barrier in this game.

Returnal

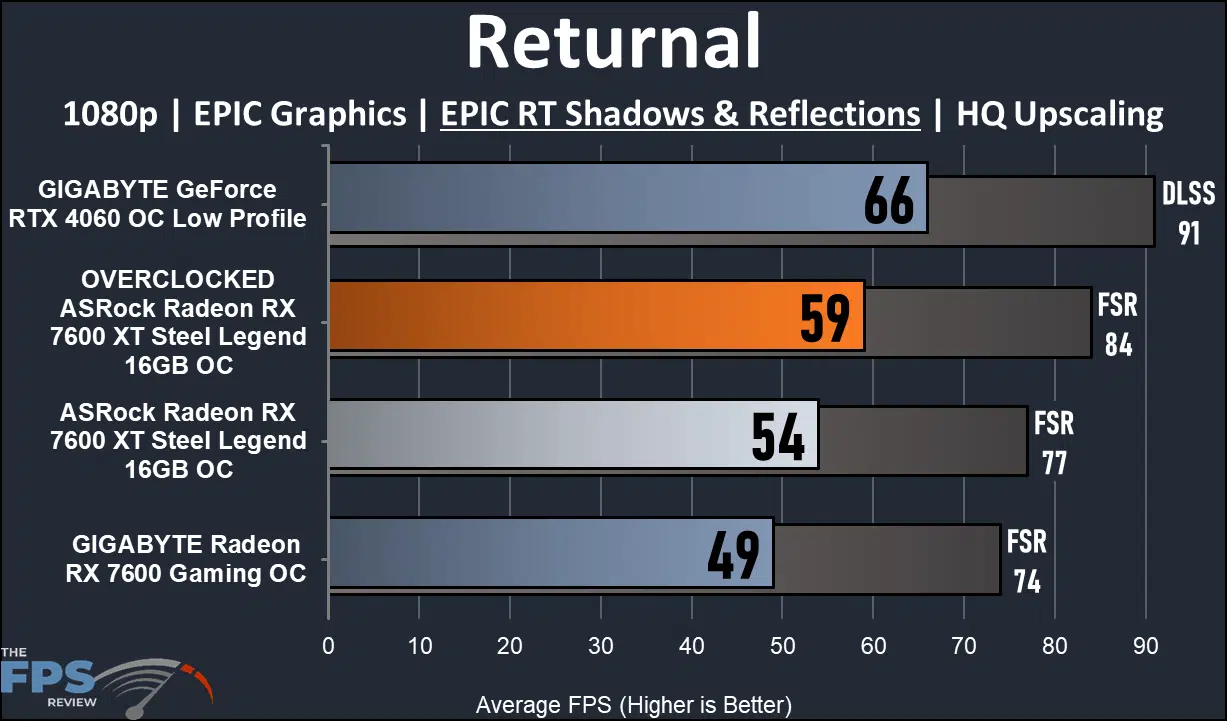

ASRock Radeon RX 7600 XT Steel Legend 16GB ray tracing Returnal

The GIGABYTE GeForce RTX 4060 OC Low Profile is the only card playable without upscaling. The ASRock Radeon RX 7600 XT Steel Legend 16G OC is 6% quicker than the GIGABYTE Radeon RX 7600 Gaming OC and almost reaches the 60FPS plateau. With upscaling all cards are nicely playable. The ASRock Radeon RX 7600 XT Steel Legend 16GB OC is 4% faster with upscaling.  Overclocking does give a nice 14% boost here.

Forspoken

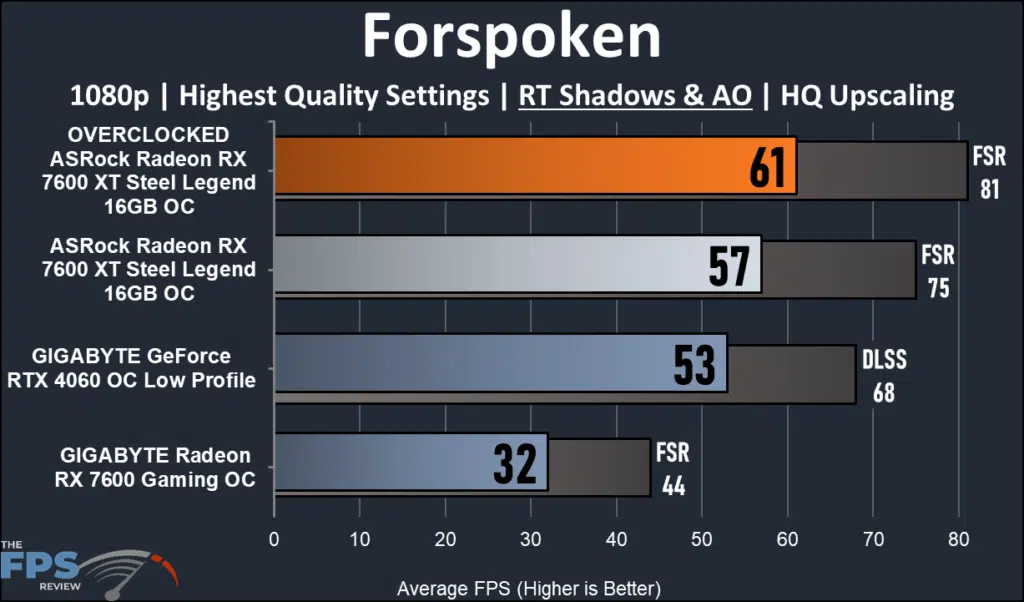

ASRock Radeon RX 7600 XT Steel Legend 16GB ray tracing Forspoken

The ASRock Radeon RX 7600 XT Steel Legend 16G OC comes out very well in this game. It is still not playable without upscaling, but neither are any of the cards except for the overclock. FPS is 4% and 46% better and jumps to 10 and 65% better with upscaling. As was mentioned in the Launch Review, there is something amiss here with the RX 7600. We are using the same public release drivers, but the results are not even as close as they are in our other benchmarks. It may be a game issue or a VRAM issue. Overclocking again rewards the ASRock Radeon RX 7600 XT Steel Legend 16G OC with the top slot, by 10%.

Chernobylite Enhanced Edition

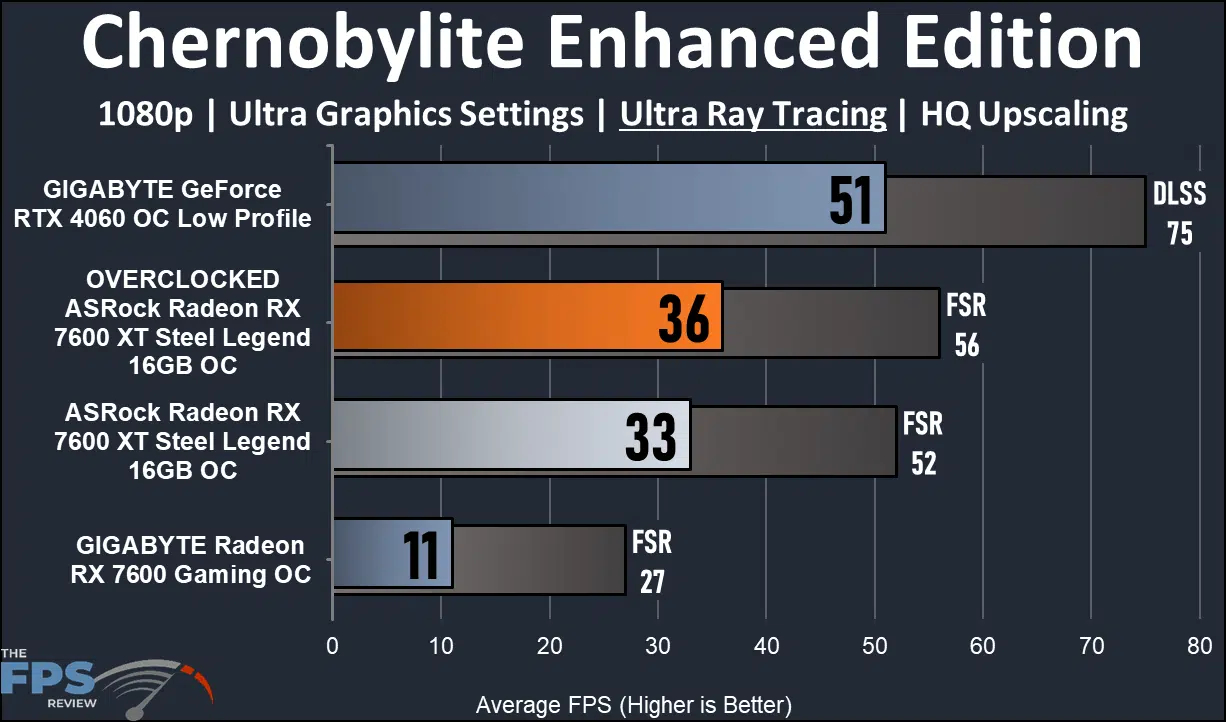

ASRock Radeon RX 7600 XT Steel Legend 16GB ray tracing Chernobylite EE

This is a surprisingly beautiful game, but it really gut-punches most video cards when ray tracing is enabled. Only the GIGABYTE GeForce RTX 4060 OC Low Profile was able to make a playable showing, but only with upscaling. The GIGABYTE RX 7600 had a very rough time. Our ASRock Radeon RX 7600 XT Steel Legend 16G OC dropped back by 54 and 44% here. Overclocking added 12% but was still shy of 60FPS.

Dying Light 2

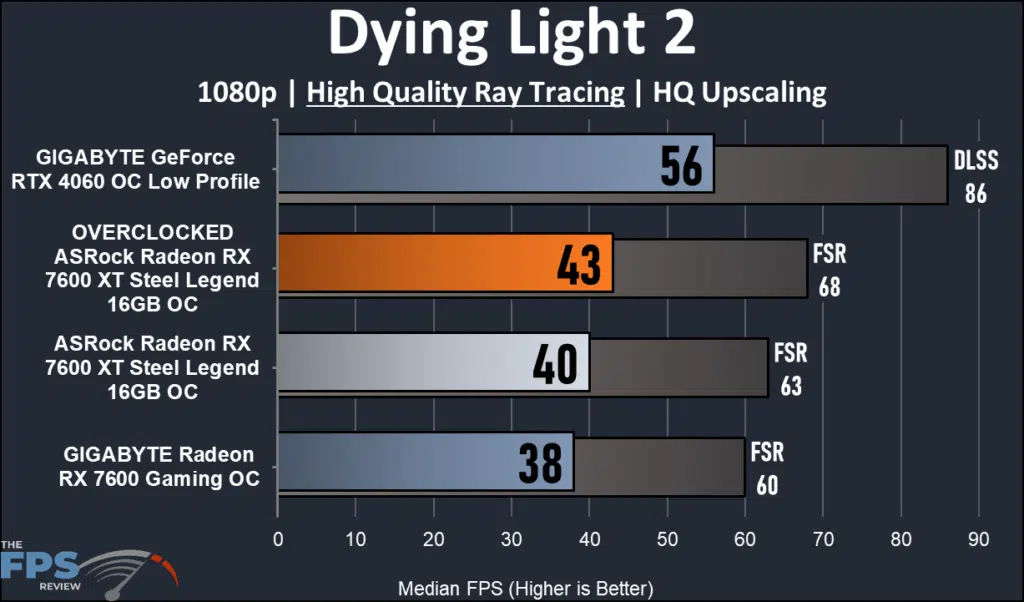

ASRock Radeon RX 7600 XT Steel Legend 16GB ray tracing Dying Light 2

None of the cards could make it to 60FPS before upscaling. That being said, upscaling provided playable framerates to all three cards. The GIGABYTE GeForce RTX 4060 OC Low Profile was again the quickest by roughly 40%. The ASRock Radeon RX 7600 XT Steel Legend 16G OC gains 5% over the GIGABYTE RX 7600 Gaming OC in upscaling performance.  Overclocking added 11%.

Cyberpunk 2077

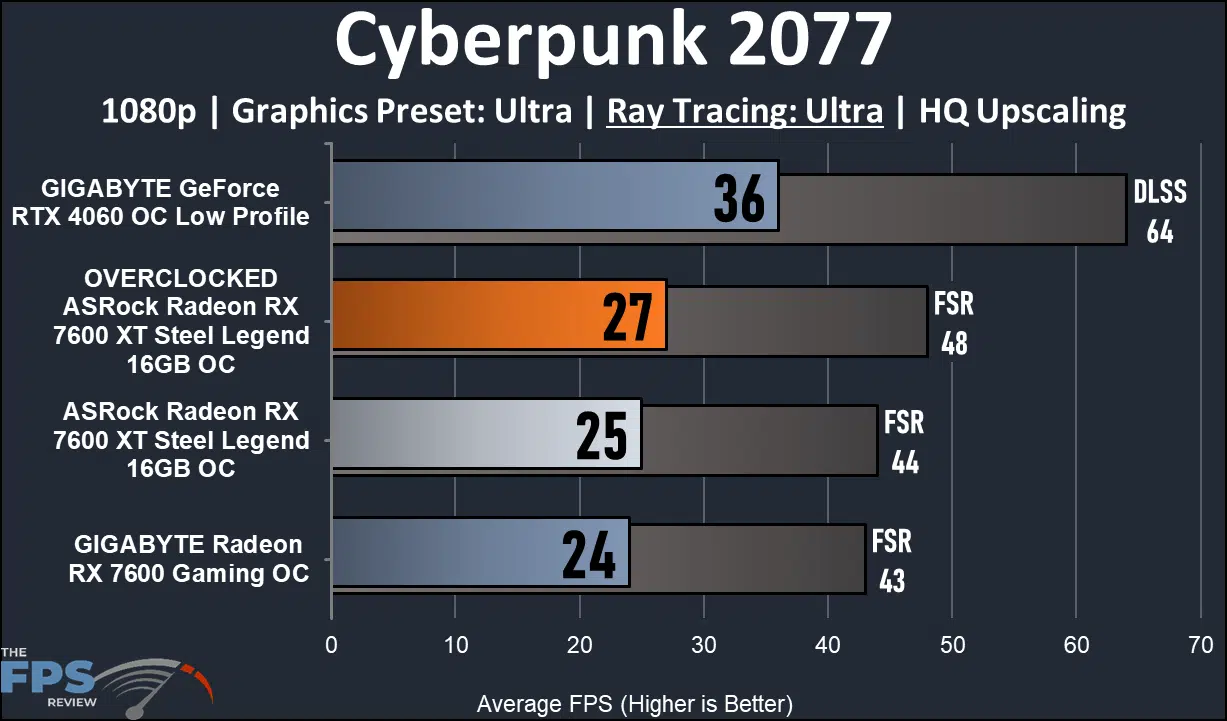

ASRock Radeon RX 7600 XT Steel Legend 16GB ray tracing Cyberpunk 2077

The results are similar to our other benchmarks in Ray Tracing. Only the GIGABYTE GeForce RTX 4060 OC Low Profile was playable in Cyberpunk and then only with upscaling. The ASRock Radeon RX 7600 XT Steel Legend 16G OC and the GIGABYTE Radeon RX 7600 Gaming OC were bringing up the rear again in an identical fashion. The difference was 30%. Overclocking did add 12% but wasn’t enough. Testing here at “Ultra” is probably not recommended for these cards.

Join the discussion in our forums...

REVIEW OVERVIEW

Gaming Performance
8
Build Quality and Cooling
9
Overclocking
10
Price and value
8

SUMMARY

This review evaluates the newest release from AMD RX 7000 series, the ASRock Radeon RX 7600 XT Steel Legend 16GB OC. This video card has an interesting white and gray aesthetic and clear RGB fans. It looks and feels well built. It is very quiet and cool even when robustly overclocked. When overclocked we see improved performance over the GIGABYTE Radeon RX 7600 Gaming OC and GIGABYTE GeForce RTX 4060 OC Low Profile. This card does struggle in Ray Tracing capability however. The performance does vary when compared to the Radeon RX 7600. The performance to cost margin may not be wide enough for some buyers despite the extra VRAM included on the ASRock Radeon RX 7600 XT Steel Legend 16GB OC. The future may hold games which will leverage more VRAM and that is the distinction with this card. That may give it more utility. All in all, this is a sound video card in this price and performance tier and it has distinct good looks. It overclocks well. The ASRock Radeon RX 7600 XT Steel Legend 16GB OC is certainly worth consideration.
