MSI PRO B550M-P (2026) Motherboard Review

UEFI/BIOS

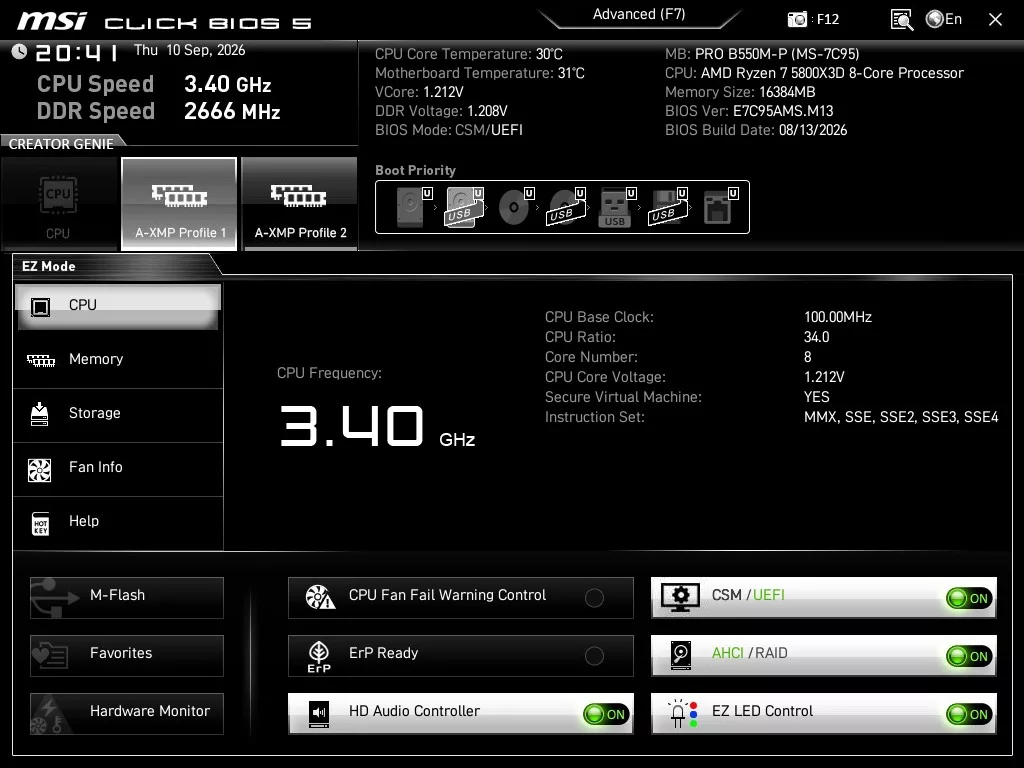

MSI PRO B550M-P motherboard: BIOS EZ mode

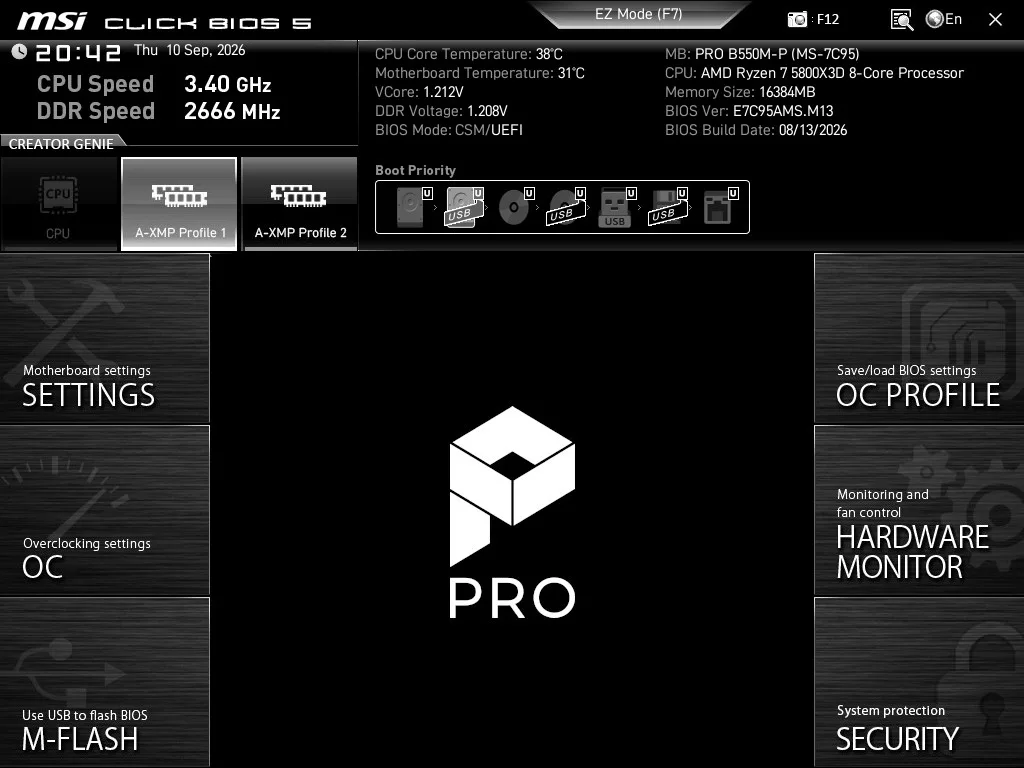

MSI PRO B550M-P motherboard: BIOS Advanced mode

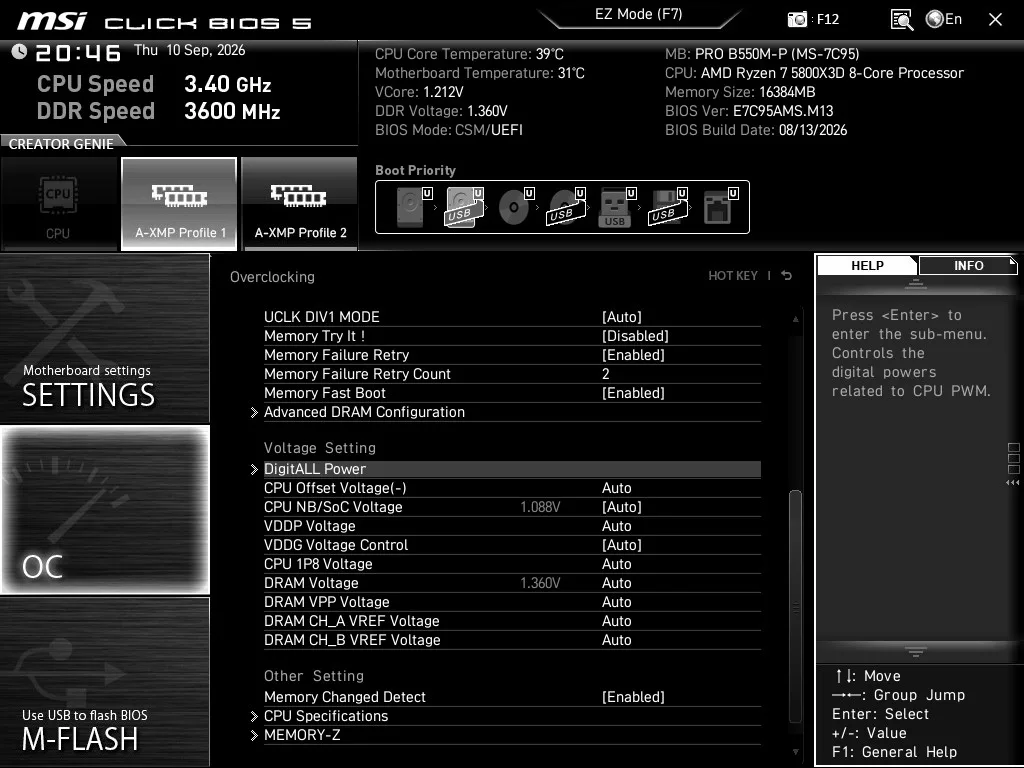

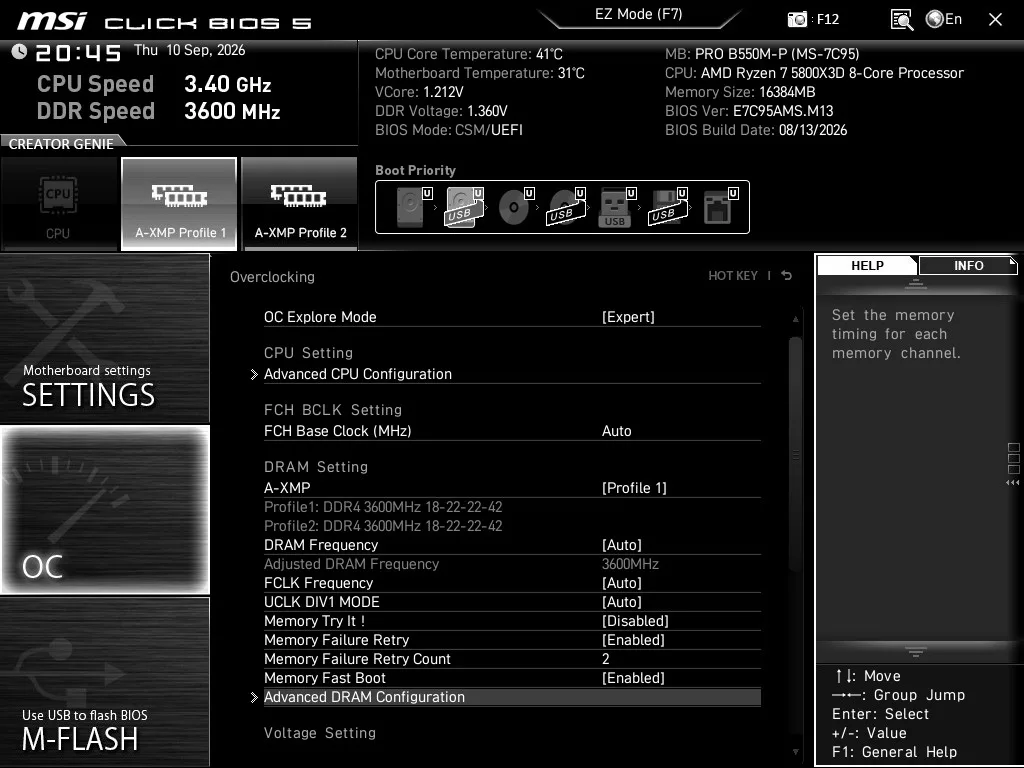

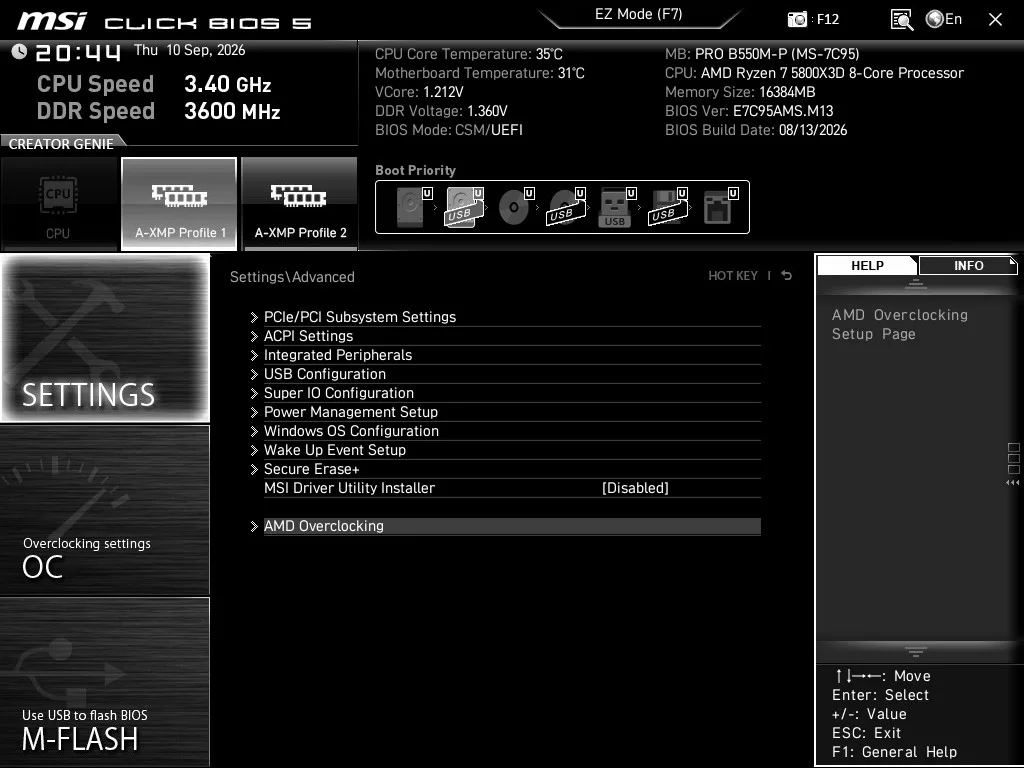

The MSI PRO B550M-P uses the identical last-gen “Click BIOS 5” as its WiFi 6E version. The setup and use of the BIOS is identical to the MSI PRO B550M-P WiFi6E we recently reviewed. This BIOS, in hindsight, is essentially the precursor to what we see in the AM5 motherboards from MSI, the “Click X BIOS”. The Click BIOS 5 is very similar in that it is a one-click navigation based on the AMI BIOS. The arrangement of both the Easy and Advanced Modes is also very similar. As noted, the BIOS offers two Modes. Easy mode covers pretty much all the “one-click” settings and adjustments, while Advanced mode has all the manual overclocking settings for CPU and RAM, all under the “OC” banner. Also in Advanced mode, you will find the “settings” category, which allows access to all the motherboard I/O options.

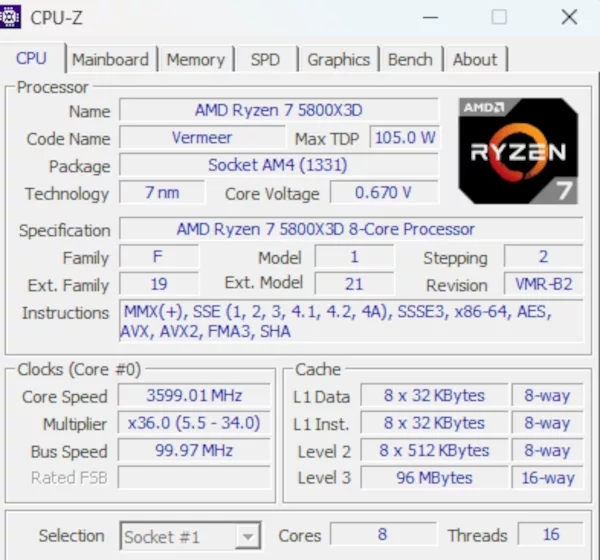

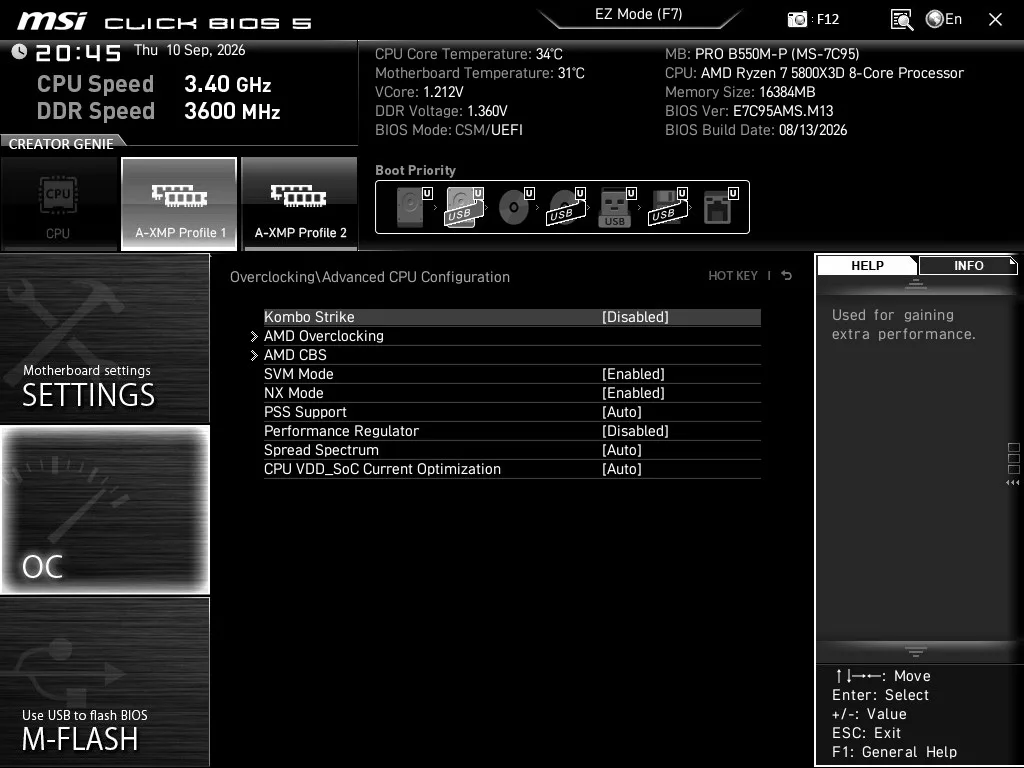

A word in this regard about our 5800X3D. AMD locked the multiplier on the chip and also does not support the use of PBO. This motherboard does, however, allow you to undervolt the CPU using a setting called “Kombo Strike,” which is found in Overclocking> Advanced CPU configuration. Overall, the Click BIOS 5 was very responsive and easy to use. The navigation was quite easy to follow, and there are fairly well-spelled-out explanations of the selections.

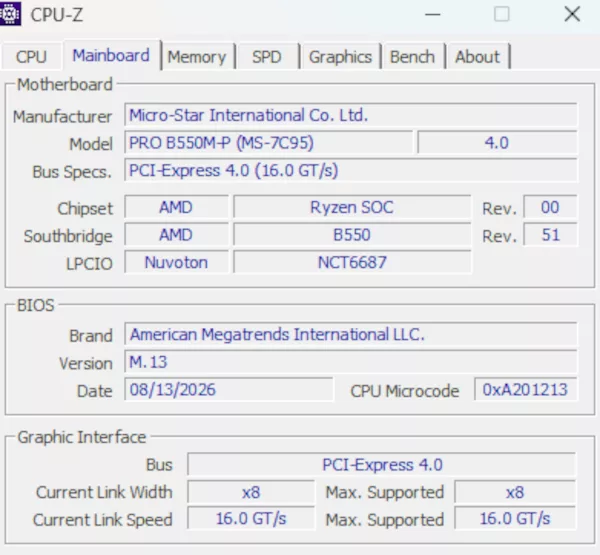

The MSI PRO B550M-P arrived with the release BIOS version, E7C95AMS.M00 dated 9 APR 2026. The most up-to-date version is E7C95AMS.M13 dated 13 AUG 26. We used the on-board M-Flash to flash the latest edition. M-Flash is quite straightforward, needing only the unzipped BIOS version on a flash drive. Once inside the BIOS, choose M-Flash (F8) and follow the prompts. The software locates the BIOS version and does all the work. This motherboard does not support M-Flash on the rear I/O panel. Below you will find a very limited number of screenshots from the BIOS. The set of reviews we have done on the 2026 MSI AM4 motherboard refreshes have used the identical BIOS. For more slides, we direct you to those other reviews.
