Mild OC Testing

For our mild OC testing, we have configured our CPU to run 4300MHz on all cores, set the voltage to 1.15V, and configured memory to XMP mode. This yields an approximate power at the wall of 450w under load (a 350w differential from idle, which pulls about 100w). This results in the CPU running at 4.3GHz on all cores during the looping rounds of Cinebench R20.

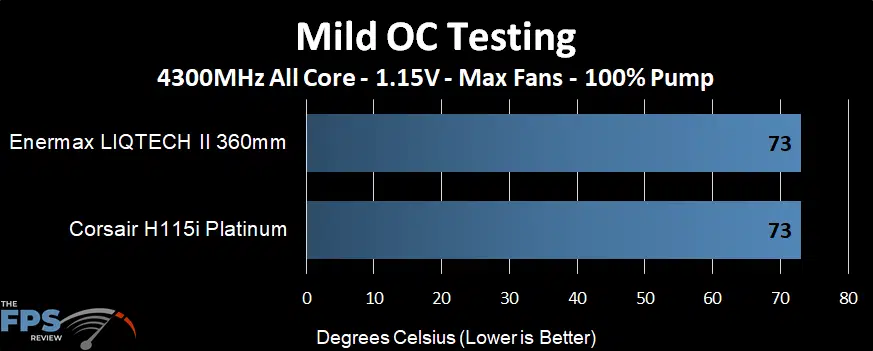

Max Fans – 100% Pump Speed

Turning the fans up all the way tied the score with the two units even at 73 degrees Celsius. We noted that the max fan speed on the LIQTECH was 2250 RPM and the H115i was 1800 RPM.

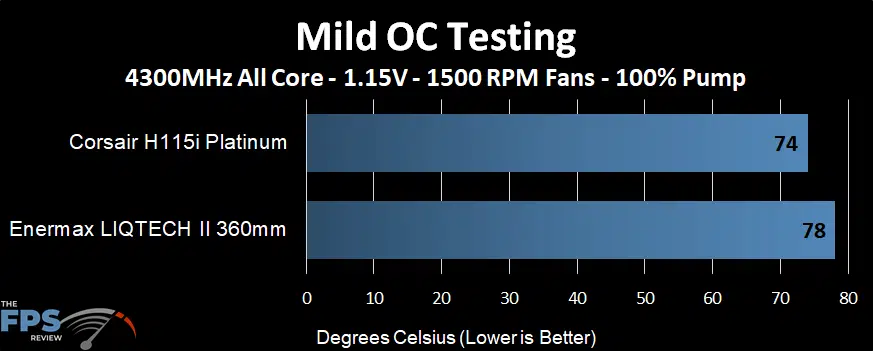

1500 RPM Fans – 100% Pump Speed

Bringing the fans down to 1500 RPM boosted the Enermax LIQTECH II 360 temperatures by 5 degrees to 78 degrees Celsius, but the Corsair H115i only gave up one degree with a temperature of 74 degrees Celsius.

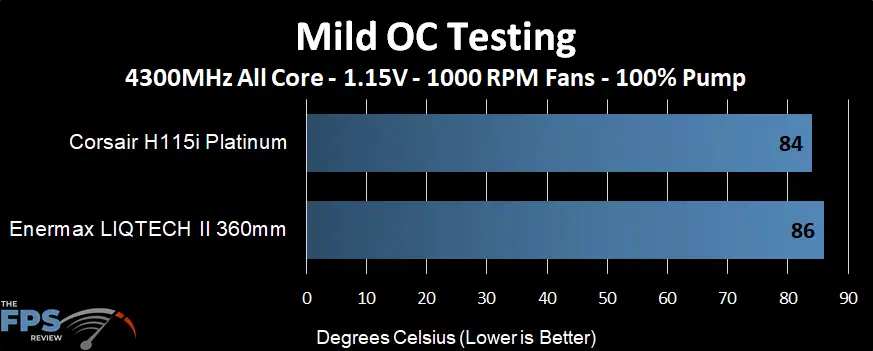

1000 RPM Fans – 100% Pump Speed

With the fans set to 1000 RPM, the Enermax LIQTECH II 360 was able to sustain 86 degrees Celsius under load. However, the Corsair H115i Platinum was two degrees cooler at 84 degrees Celsius.

600 RPM Fans – 50% and 100% Pump Speed

At the 600 RPM fan speed at both 50% and 100% pump speeds, both units let the temperature get out of control and thermal throttling kicked in as the CPU temperature reached 98 degrees.

David Schroth

David is a computer hardware enthusiast that has been tinkering with computer hardware for the past 25 years.

Join the Conversation

5 Comments

  1. Very nice article.. Just a one minor criticism though:

    In the testing setup portion of the article, you mention the Corsair H115i Platinum, but don’t dive into any of the specifics of the model. I had to go look up what the cooler was, its dimensions, and its cost. Even when comparing a wide range of coolers in a round-up you’d have listings of specifications for each cooler.

    Looks like the 280mm cooler took the 360mm cooler to school. Maybe a 360mm vs 360mm comparison down the road now that you have 1 360mm in the database? :)

    Again, thank you for a very nice article and I look forward to more content down the road!

  2. Wow, the Corsair definitely schooled it with less of a radiator. Was surprised by those results.
  3. Very nice article.. Just a one minor criticism though:

    In the testing setup portion of the article, you mention the Corsair H115i Platinum, but don’t dive into any of the specifics of the model. I had to go look up what the cooler was, its dimensions, and its cost. Even when comparing a wide range of coolers in a round-up you’d have listings of specifications for each cooler.

    Looks like the 280mm cooler took the 360mm cooler to school. Maybe a 360mm vs 360mm comparison down the road now that you have 1 360mm in the database? :)

    Again, thank you for a very nice article and I look forward to more content down the road!

    Well, once I review the Corsair H115i Platinum, we’ll have all the specs listed for it, and that review can reference back to the Enermax LIQTECH :).

    Next up, I have a Silverstone 360mm, and it will be directly compared to these other two. As we gather data about each one, it’ll be included 1. where relevant in the reviews (though, we may not get into 50 item absurd chart range) and 2. In a way that you can explore data / compare models dynamically (which will have the 50 item absurd chart data behind it).

    You’ll see on the conclusion page that I’m also testing out a dynamic graphing plugin (still working to get our logo on it) – that will become an output target for the datasets for the #2 item assuming everything works magically as I think that it should.

    Wow, the Corsair definitely schooled it with less of a radiator. Was surprised by those results.

    I was surprised as well.

  4. Well, each individual review probably shouldn’t include 50+ samples to compare to, however, there was one site that did heatsink reviews and it would should ~10 coolers to compare them too (usually the newest ones, best one, etc… it compared to) however, it did have a chart that showed 50+ coolers all compared to each other. That was cool as heck to use and I used to use it all the time, but I can’t seem to find it anymore.

    edit
    I thought it was https://www.frostytech.com/ but they seem to be redoing the site and nothing is available anymore.

  5. Thanks David for all the hard work in getting these up and running. Really looking forward to your next round. Liquid cooling is something I’m always considering and taking note of both pump & noise is of major concern to me. The fact that AMD is not even bundling a cooler for their high end CPUs now paints a picture of whats needed the big monsters out there in either field.
Leave a comment
