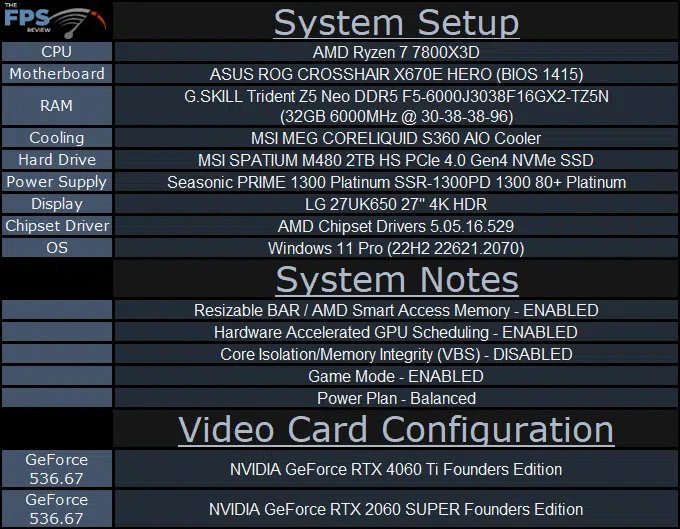

Test Setup
Please read the information on our GPU testing procedures and methodology here. Note that our GPU Testing Bench has been upgraded to the Ryzen 7 7800X3D CPU and AM5 platform.
We are using the motherboard’s current default BIOS settings on the latest release BIOS. We have enabled PCI-Express Resizable BAR in the motherboard BIOS. This means we are utilizing Resizable BAR on NVIDIA GPUs and AMD Smart Access Memory on AMD GPUs in all our testing. We have enabled EXPO I in the BIOS for the memory.
We are using a fresh install of Windows 11 Pro with the latest Windows Updates, including the 22H2 Fall 2022 update. We have the latest drivers installed including the latest chipset drivers from AMD. We are using the “Balanced” power profile in Windows Settings. Hardware Accelerated GPU Scheduling is ENABLED in Windows. VBS is DISABLED and Game Mode is ENABLED.
Discussion (6 replies)
Join Discussion →Love the review and thank you.
Doing some numbers something stood out to me and it REALLY shows when you compare the target max MHZ between the two cards.
the 4060 is pushing 2535 and the 2070 is pushing 1650, This is a raw difference clock per clock of 53.6.
When we are NOT doing RT work the % of improvement for games at 1080p averages out to 45.3%. This leads me to believe most actual improvement to performance and efficiency is through process node efficiency and not redesign or IPC improvement of the actual rasterization cores. But when you take into account that they ALSO doubled the cuda cores to reach that number... is even more interesting.
This is weird... They doubled the cuda core count
Increased peak MHZ by 53.6%
Nicely brought down the power envelope.
But for DOUBLE the cuda cores running at just over 50% the mhz rating... if the IPC remained the same I would have expected a more linear progression in performance.
So it seems like they DID make some changes to the cuda cores themselves, for efficiency but had to claw back performance through more cores and more mhz taking away some of that efficiency gain. Actually theoretically 100% of the potential gain considering the real performance improvement is more in line with the MHZ as opposed to the DOUBLED cuda core count.
Something does not smell right here with these numbers. We're missing a part of the story. The end user is getting lesser performant cores core to core... if the had left the core counts equal and counted on only generational improvements (not including DLSS I didn't crunch those numbers) a 2070 to 4060 would have been a rasterization downgrade.
I need to run similar numbers for AMD's cards in a generational comparison.
Would have been interesting to include these 3 cards also in the comparison & make it a 5 way battle
2060 12gb
3060 12gb
4060 ti 16gb
Idea is to identify bottlenecks with 8gb vram
For example in Ratchet & Clank in 1080p ultra (RT off) the 2060 12gb almost matches the 8gb 4060 ti !!!
Search engine optimization rules the day - will probably focus on more 1:1 matchups for now. The aim here is to look at upgrade scenarios....
Great writeup!
Grim brings up a good point - the 4060 shows about a 50% improvement in performance, but that 50% increase in clock speed ~and~ core count - the math doesn't seem to add up without drawing the conclusion that you just need to pack more slower (yet more efficient) cores to make Turing work. It's an interesting thing to note, if nothing else. Maybe that's why JSH is saying Moore's law is dead...?
Also - for ~most~ people (not enthusiasts here who chase the absolute top of the performance curve) - I usually recommend they upgrade to something that doubles their existing GPU performance. In the past that was every 2-3 generations, at roughly the same tier/price they had previously paid. Now, starting with RTX, that has been thrown out the window.
nVidia obviously wants you to pay a premium for Raytracing performance. I've never thought it was worth it, but to those that do - it's your money, buy what you like. But for folks that have cards from Pascal and newer, it's been hard to recommend anything to upgrade to without utterly blowing through budgets or accepting much smaller (rasterizing) performance gains.
Thanks, @Brent_Justice for the great comparative write-up. It's bummer about the PCIe and VRAM details but otherwise a solid upgrade in keeping at the exact same price point.
I had gotten a 2080 SUPER back then as a slight upgrade to a 1080 Ti and also so I could enjoy using G-Sync with an LG C9. While mostly a sideways move it had some impressive improvements for the day with RT and DLSS when gaming at 1440p. It even cost me somewhere around $50-100 less than what I paid for the 1080 Ti and only needed 2x 8-pin connectors vs 3x 8-pin for the 1080 Ti. I always cringed at the "SUPER" name but otherwise really had a good experience with that card.
Very nice review, thank you. I've been looking to get a lower tier card at some point for a back up rig again, and this review does help.
