Wolfenstein II: The New Colossus
Note that in all the graphs the video cards are compared by price. The most expensive video card by MSRP is on top, while the least expensive video card by MSRP is on bottom. In this way you can compare pricing from bottom to top and see where performance lies.
In the graph we are using the latest version of Wolfenstein II. The game is running in Vulkan and we have all of the in-game settings at their maximum values for graphics. We have performed a manual run-through in this game in the Manhattan area.

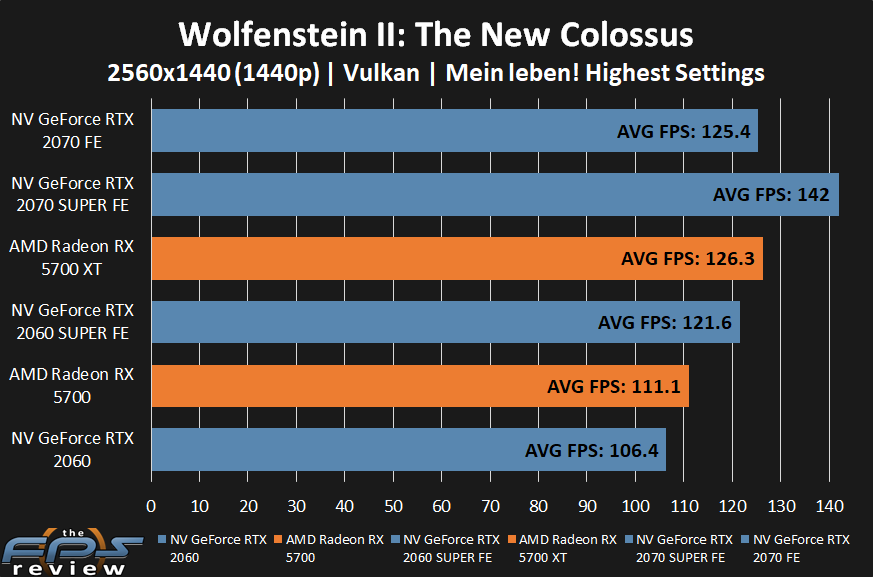

Vulkan support in games usually goes well for AMD, but NVIDIA has caught up to AMD in Vulkan performance with its Turing architecture compared to Pascal. The AMD Radeon RX 5700 XT once again performs on par with the GeForce RTX 2070 FE, a much more expensive video card, which is great. However, the RTX 2070 SUPER does beat it. It is faster than the GeForce RTX 2060 SUPER however. The AMD Radeon RX 5700 is also faster than the GeForce RTX 2060. In terms of gameplay all video cards are producing over 100FPS average so the gameplay experience is the same.

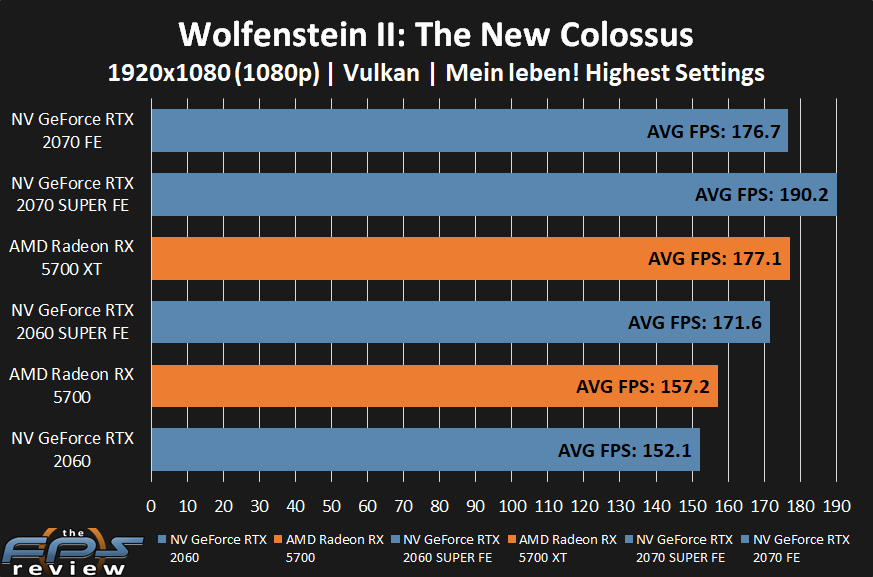

The same pattern holds true at 1080p and performance is just insane from top to bottom, over 150FPS.
