Deus Ex: Mankind Divided
Note that in all the graphs the video cards are compared by price. The most expensive video card by MSRP is on top, while the least expensive video card by MSRP is on bottom. In this way you can compare pricing from bottom to top and see where performance lies.

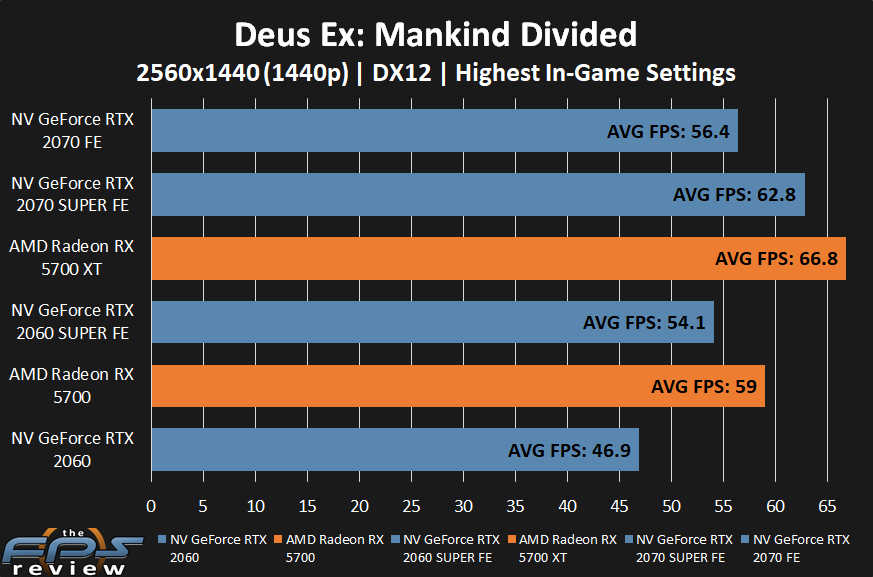

In the graph we are using the latest version of Deus Ex: Mankind Divided. The game is running in DX12 and we have all of the in-game settings at their maximum values for graphics. We are using the built-in benchmark for testing results and we verified playability in gameplay. Feel free to test your video cards performance and see how it compares against ours.
Similar to a few other games tested here the AMD Radeon RX 5700 series video cards respond well to Deus Ex: Mankind Divided. This game is so well optimized for the AMD GPUs that the Radeon RX 5700 XT is actually 6% faster than the more expensive GeForce RTX 2070 SUPER video card! The Radeon RX 5700 is 9% faster than the GeForce RTX 2060 SUPER video card. So far this is about the third game out of ten that are this well optimized on the AMD GPUs.
In terms of gameplay this puts the two Radeon RX 5700 cards at a great gameplay experience at maximum settings in this game at 1440p. Whereas on the NVIDIA side you’ll need at least the RTX 2070 FE and up to have a smooth experience at 1440p with max settings.

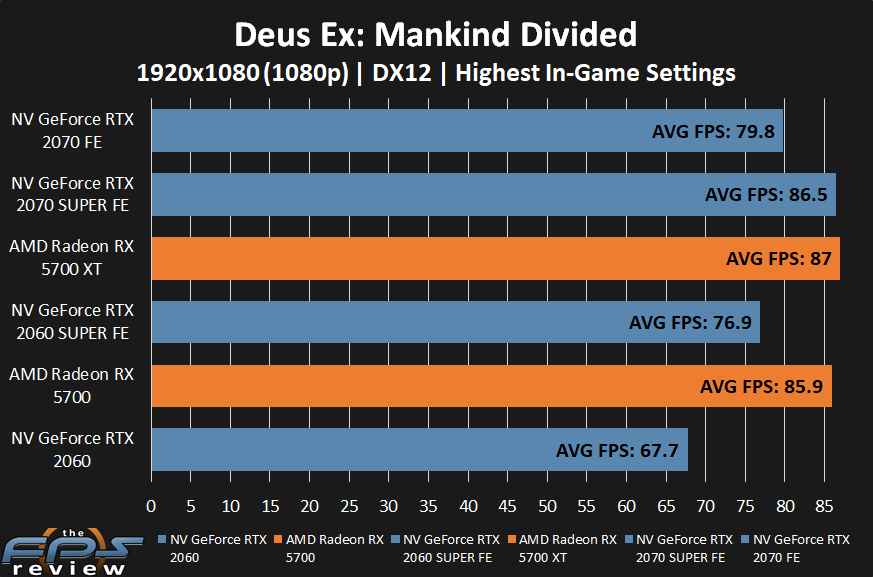

The same pattern once again holds true at 1080p as above, the Radeon RX 5700 XT is as fast as the 2070 SUPER. Radeon RX 5700 is extremely well and performs just under the 5700 XT. However, all video cards are playable at the highest settings at 1080p in this game.
