Power & Temperature
On this page, we are going to explore the AMD Ryzen 7 7700X3D CPU power and temperature compared to the Ryzen 9 9800X3D. We will do full-load testing in Cinebench 2026 for Multi-Core power and temperature. All of our data has been captured with HWiNFO64.

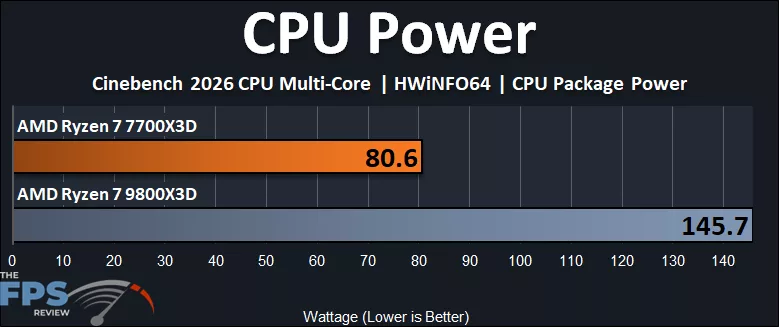

CPU Power
The AMD Ryzen 7 9800X3D has a TDP of 120W and a PPT of 162W, which is the same for the Ryzen 7 7700X3D. Due to the nature of the 2nd Gen 3D V-Cache, the Ryzen 9 9800X3D can run higher in frequency and can run closer to its PPT. Therefore, in our power testing, the Ryzen 9 9800X3D is running at 65W more than the Ryzen 7 7700X3D, or 81% more power. In other words, the Ryzen 7 7700X3D is running at 45% less power than the Ryzen 7 9800X3D. At 145W, the Ryzen 7 9800X3D is not exactly demanding a ton of power; it is reasonable, but it is more, so be aware of that. This is also in a full-load, all-core situation; in games, it will use less power.

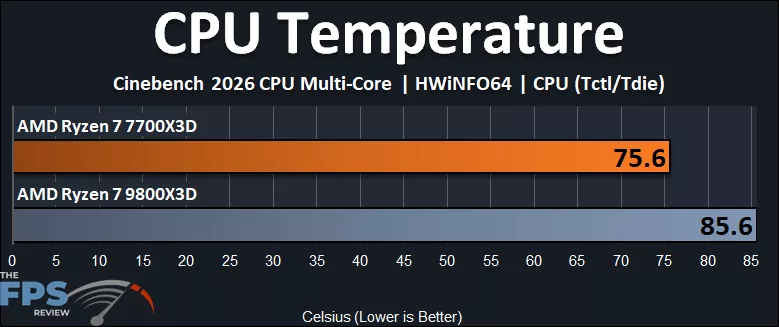

Temperature
In terms of CPU Temperature, there is a 10-degree difference. The Ryzen 7 9800X3D was running about 85c, or 10 degrees warmer than the Ryzen 7 7700X3D at 75c, a 13% difference.
