Application Benchmarks

We are going to start with application and system benchmarks for comparisons, these are the kind of benchmarks that provide an overall performance score to compare with.  These are also benchmarks that may either test the system as a whole, including many different real-world workloads or stress the CPU in ways real-world everyday workloads are performed to produce a performance result.

PCMark 10

This is the latest version of PCMark 10. We are using the standard benchmark and not the express or the extended. The latter of which utilizes GPU performance metrics that aren’t relevant to what we are looking at today.

TheFPSReview Logo

Unfortunately, for whatever reason the PCMark 10 test would not complete on our MSI MPG Z490 and Intel Core i9-10900K test system. Sadly, these launch reviews leave us very little time to troubleshoot individual benchmarks. However, in the interest of full disclosure, we wanted to document our issue with this test. More interestingly, this is something that only effected my test system and not Brent’s.

Geekbench 5

Geekbench 5.1.1 was used for this test. It is a multi-platform test that is comparable across different CPU architectures.

Single Core

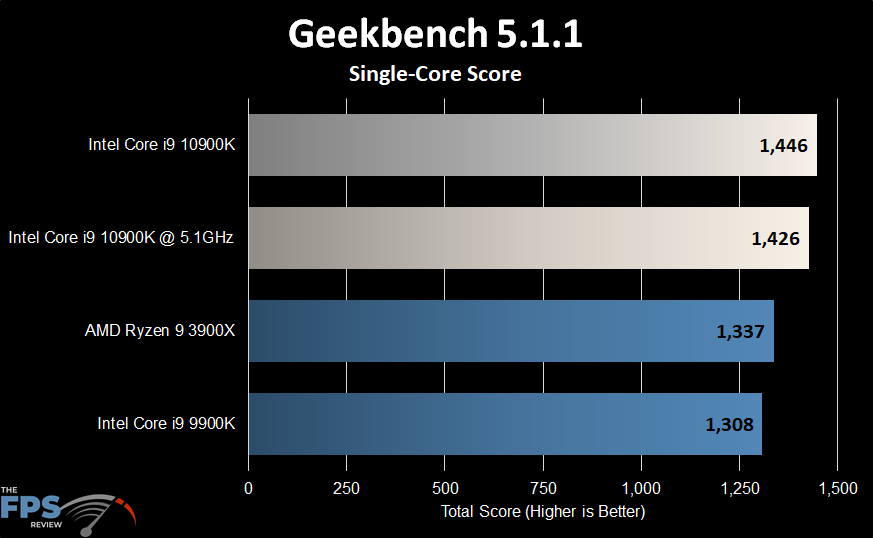

Intel Core i9-10900K Geekbench Single-Core Score

Testing single core performance oddly, while overclocked to 5.1GHz, the 10900K was actually slower. This is due to the fact that the 10900K actually boosts higher than that when running a test like this. As a result, an all-core overclock of 5.1GHz, actually hurt performance. However, the 10900K is faster than both the 9900K and AMD’s Ryzen 9 3900X.

Multi-Core Score

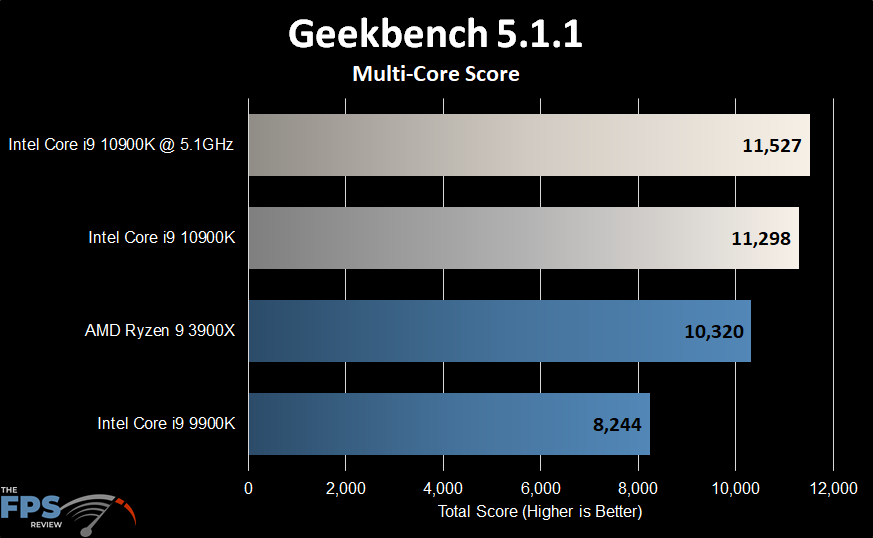

Intel Core i9-10900K Geekbench Multi-Core Score

In this test, it’s unsurprising that the overclocked Intel Core i9-10900K was faster than the same CPU at stock clocks was. However, I actually expected AMD’s Ryzen 9 3900X to achieve a better score here. Interestingly, the difference between the 10900K and the 9900K is massive. I’m uncertain what changes would have had such an impact on this test.

AIDA64 CPU Queen

The CPU Queen test tests branch prediction penalties for a given CPU architecture. It tends to favor shorter pipelines as a result of this.

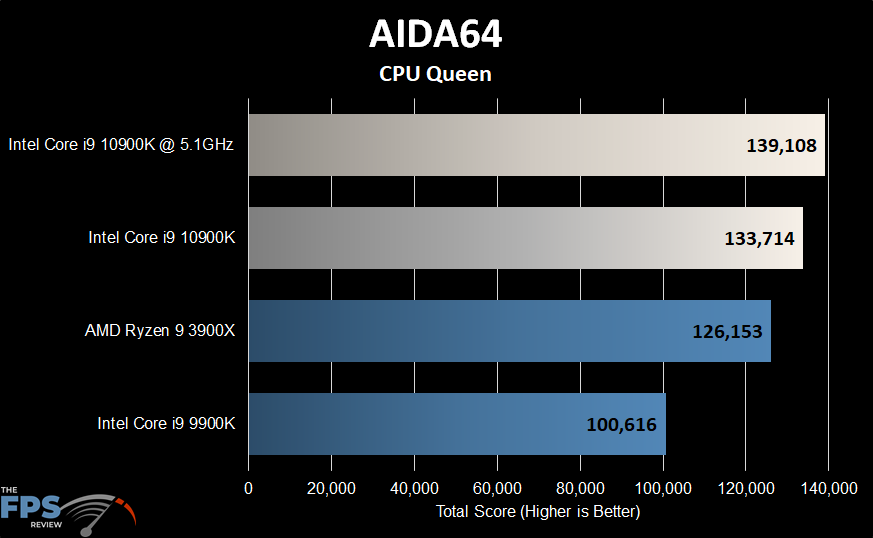

Intel Core i9-10900K Aida64 CPU Queen

As we can see, this test heavily favors Intel’s 10th generation Core architecture. There are also some decent gains from a manual overclock.

Join the Conversation

8 Comments

  1. So the memory on the Zen system was 3200 or 3600? I know the kit was 3600 but I am just double checking.
  2. It was set to DDR4 3200MHz speeds which is our testing standard for everything unless otherwise noted. If you look at the specification table, I list the part number for the RAM and then the speed used. That’s how I do it for all of these.
  3. It was set to DDR4 3200MHz speeds which is our testing standard for everything unless otherwise noted. If you look at the specification table, I list the part number for the RAM and then the speed used. That’s how I do it for all of these.

    Oof missed that. Was the platform unable to hit 3600?

  4. Oof missed that. Was the platform unable to hit 3600?

    Yes, it can easily hit DDR4 3600MHz speeds and more. I’ve addressed the Ryzen 3000 / X570 memory speeds in previous CPU and motherboard review articles. Given the time allotted for getting the 10900K review done by the embargo date, I was not able to retest the 3900X and 9900K under overclocked conditions. Even if I had, memory overclocking is handled separately as we try to keep that variable out of the benchmarks unless that’s what we are testing.

  5. Good review and well written. Nothing stood out as a glaring inconsistancy.

    It will be interesting to see what happens to code that has been heavily optimized for a 10+?? year old instruction set actually has to run on something new.

    This is what AMD is doing and I think that is a large reason so many of the normal work and Gaming examples were performing better on Intel. (Other than raw execution speed)

    I might be way off base in thinking that coders are using older optimizations that simply don’t exist on the newer AMD silicone.

  6. Intel has always pushed software companies to optimize for Intel silicon going back at least as long as I’ve worked with computer hardware. There are all kinds of SDK’s and programs for doing that. Intel even mentions this in the product brief we got. What little there was of it anyway. But this is one reason why I think that Intel achieves so much despite the lack of cores and threads compared to AMD. Sure, clock speed and cache are part of that too, but I think that optimization for Intel silicon comes into play in cases where we know something is multi-threaded, but Intel still manages to pull a big win vs. AMD.

    It’s worth noting that Ghost Recon Breakpoint was optimized for AMD silicon and it shows. The results between the 9900K and the 3900X are quite similar. The only reason why the Core i9 10900K beats either of them comes down to clock speed and additional cache. That and the extra threads don’t really matter. If I recall correctly, Ghost Recon Breakpoint only sees 12t or at least, that’s all it shows in the in-game performance metrics. Something like that.

  7. I find the 400 fps difference in Doom quite huge for the little difference between the CPU’s but I guess the average tells another story and the min’s are even stranger.

    Any chance of a quick retest when the new doom patch hits next week orso to see if that did anything?

  8. I find the 400 fps difference in Doom quite huge for the little difference between the CPU’s but I guess the average tells another story and the min’s are even stranger.

    Any chance of a quick retest when the new doom patch hits next week orso to see if that did anything?

    Yes. I’d have looked more into the anomalous performance if I had the time. That said, its easily something I could have done differently. Those are Frameview captures of manual run throughs. I could have done something with the camera, or did something slightly different that caused that in some of the runs. If you run into a wall and stare at it in most games your FPS shoots up, or if you explode an enemy at point blank, it can drop substantially. That’s why I prefer canned benchmarks for these types of things, but not every game that people are interested in has built in tools for that.
